Brand:Siemens Item No.:6AG1134-4NB01-7AB0 Product Origin:Germany Product Dimensions:15 × 81 × 52 mm Product Weight:0.04 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
Industrial control systems depend on a steady flow of accurate information from the field. Whether a production line is monitoring temperature, a machine is tracking a process variable, or a plant is supervising flow and pressure, the controller needs reliable analog measurements before it can make effective control decisions.

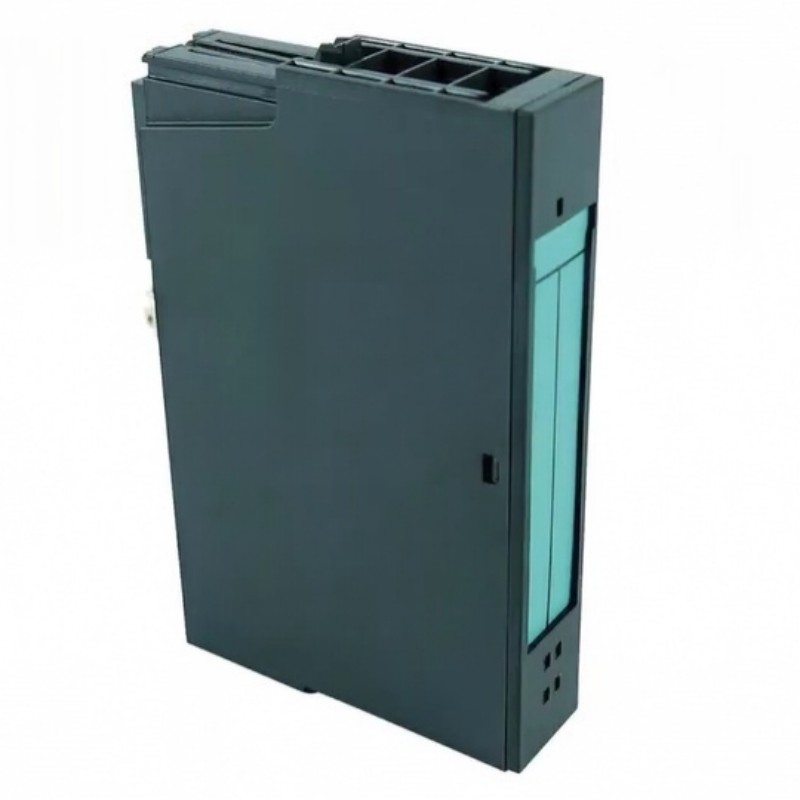

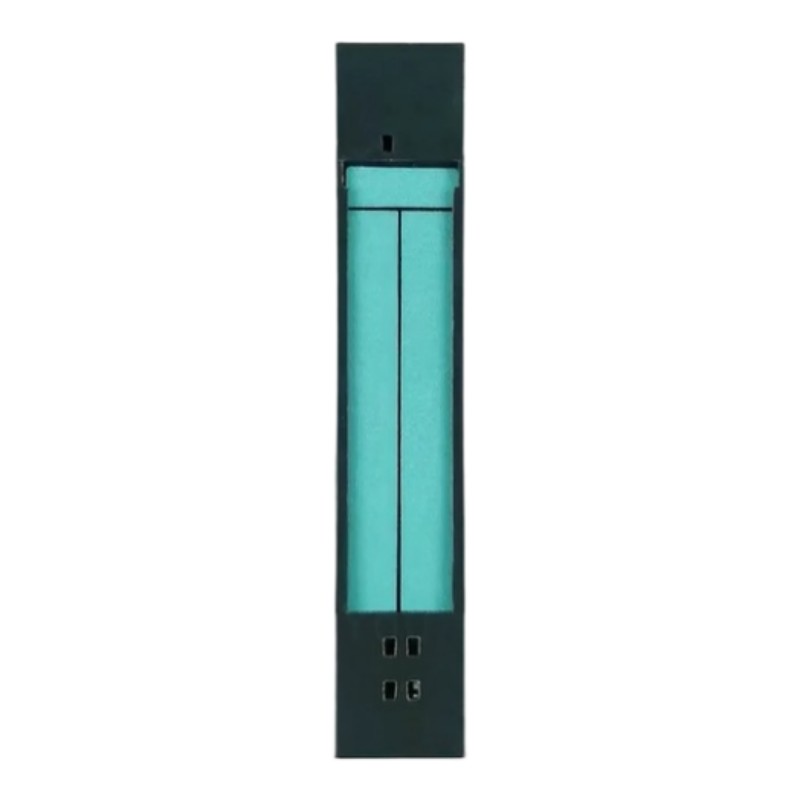

The Siemens 6AG1134-4NB01-7AB0 Analog Input Module is designed for compatible Siemens automation environments where analog field signals need to be acquired and processed. It can form part of an I/O architecture supporting process monitoring, machine control, alarms, and operator visualization.
One of its most useful physical characteristics is its compact 15 × 81 × 52 mm footprint. This makes it suitable for control cabinets where installation space is at a premium. The module weighs only 0.04 kg (0.09 lb), allowing technicians to handle it easily during assembly, replacement, and maintenance.
For reliable operation, the analog module should be considered as one part of a complete measurement system. Field-device selection, signal wiring, shielding, grounding, module configuration, and PLC scaling all influence the quality of the final process value.
For OEM machine builders and industrial automation integrators, the 6AG1134-4NB01-7AB0 can be a useful component when a compact analog I/O solution is required. Proper compatibility verification remains essential before installation or replacement.
Technical Specifications
Specification
Details
Brand
Siemens
Model
6AG1134-4NB01-7AB0
Product Type
Analog Input Module
I/O Function
Analog Signal Acquisition
Primary Function
Industrial Process Measurement
Application
PLC and Industrial Automation
Typical Use
Process Monitoring and Machine Control
Installation
Industrial Control / I/O System
Dimensions
15 × 81 × 52 mm
Weight
0.04 kg (0.09 lb)
Recommended Related Models
Model
Product Type
Application
Siemens 6AG1134-4NB01-7AB0
Analog Input Module
Industrial analog signal acquisition
Siemens 6AG1134-4MB02-2AB0
Analog Input Module
Process measurement
Siemens 6AG1134-4LB02-2AB0
Analog Input Module
Analog signal acquisition
Siemens 6AG1134-4JB51-7AB0
Analog Input Module
Process monitoring
Siemens 6AG1134-4GD00-2AB0
Analog Input Module
Industrial analog measurement
These related Siemens modules can be evaluated when expanding an existing analog I/O system or selecting compatible replacement hardware. The final choice should be based on signal characteristics, host-system compatibility, field instrumentation, and the intended control architecture.
Popular Related Models
Model
Product Type
Typical Application
Siemens 6AG1134-4NB01-7AB0
Analog Input Module
Industrial process measurement
Siemens 6AG1134-4MB02-2AB0
Analog Input Module
Analog signal acquisition
Siemens 6AG1134-4LB02-2AB0
Analog Input Module
Process monitoring
Siemens 6AG1134-4JB51-7AB0
Analog Input Module
Industrial analog measurement
Siemens 6AG1134-4GD00-2AB0
Analog Input Module
Machine and process automation
When sourcing the Siemens 6AG1134-4NB01-7AB0, confirm the complete catalog number and match it with the existing Siemens automation architecture. Before commissioning, verify the field signal characteristics, transmitter compatibility, wiring, shielding, grounding, channel configuration, PLC scaling, and diagnostic status to support stable and accurate analog signal acquisition.
Applications
The Siemens 6AG1134-4NB01-7AB0 Analog Input Module is built for automation applications where continuously changing field signals need to be brought into a compatible Siemens control system. It can be used as part of the signal-acquisition layer for machine monitoring, process supervision, closed-loop control, alarms, and production data collection.
Typical applications include industrial machinery, process equipment, instrumentation systems, temperature and pressure monitoring, flow and level measurement, and distributed I/O installations. Its compact form factor is particularly useful when control-panel space is limited and I/O density needs to be kept high.
For OEMs, system integrators, and maintenance teams, this module provides a practical option for adding or replacing analog input functionality in compatible Siemens installations.
Advantages
Analog signal acquisition — Designed to bring compatible variable field signals into the automation system.
Space-efficient construction — The compact housing helps conserve control cabinet space.
High-density I/O arrangement — Well suited to installations with multiple I/O modules.
Process monitoring support — Appropriate for applications requiring continuous measurement.
Siemens automation integration — Intended for compatible Siemens control architectures.
Lightweight handling — At 0.04 kg (0.09 lb), the module is easy to handle during installation and service.
Versatile industrial use — Suitable for machine and process automation applications.
Practical maintenance solution — Its compact modular design supports efficient replacement and servicing.
Technical FAQs
1. What is the Siemens 6AG1134-4NB01-7AB0 used for?
The 6AG1134-4NB01-7AB0 is an Analog Input Module used to acquire compatible analog signals and make the resulting measurements available to a Siemens automation system.
2. Why are analog inputs different from digital inputs?
A digital input generally represents a discrete state, while an analog input represents a continuously varying electrical signal corresponding to a physical process condition.
3. What should be verified before connecting a field transmitter?
Confirm the transmitter output type, signal range, module input characteristics, wiring method, field power requirements, channel configuration, and grounding arrangement.
4. Why is correct scaling important?
The electrical signal received by the module must be converted into a meaningful engineering value. Incorrect scaling can cause the PLC and HMI to display process values that do not accurately represent the field condition.
5. What could cause an analog channel to read zero?
Possible causes include missing field power, an open circuit, incorrect wiring, an incompatible signal, incorrect channel configuration, or a failed transmitter.
6. What can cause excessive fluctuation on an analog channel?
Electrical interference, inadequate shielding, grounding problems, damaged signal cables, unstable instrumentation, and incorrect installation practices can all contribute to signal fluctuation.
7. How can an analog measurement problem be isolated?
Check the field instrument, measure the actual signal, inspect wiring and terminals, review controller diagnostics, verify configuration, and compare the PLC reading with an independent reference.
8. Why should analog signal cables be separated from power wiring?
High-current and high-frequency electrical equipment can generate electromagnetic interference. Proper cable routing can help reduce unwanted noise in sensitive analog measurement circuits.
9. Can a transmitter with an incompatible output range be used?
It should not be connected simply because the physical connector fits. The transmitter output must match the electrical characteristics supported by the input channel and its configuration.
10. What maintenance is recommended for analog I/O?
Inspect terminals and field wiring, check connected instruments, monitor diagnostic information, maintain suitable cabinet conditions, and periodically validate important measurements against appropriate reference equipment.
