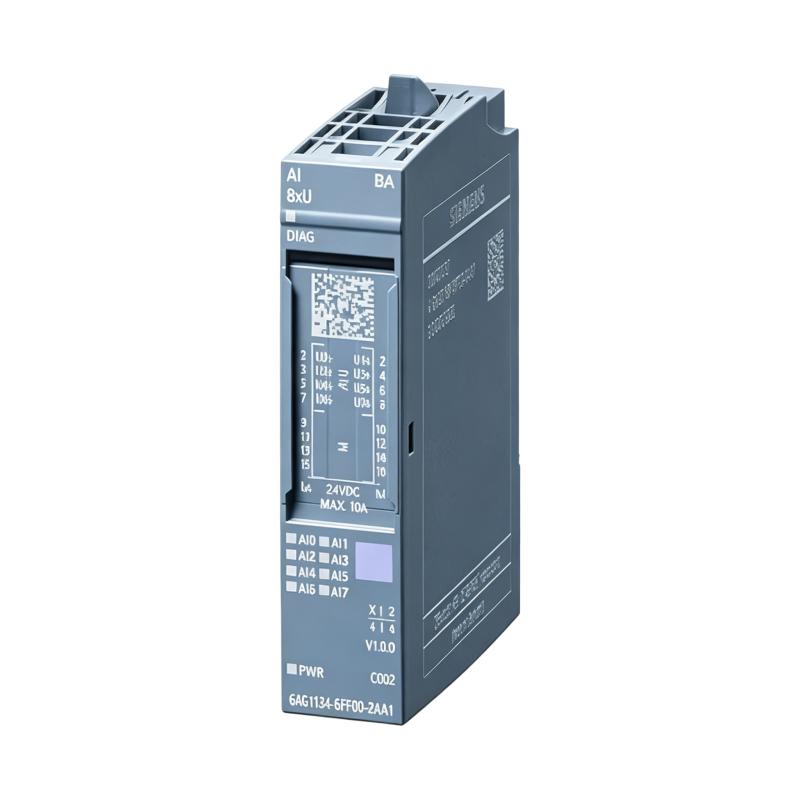

Name: Siemens 6AG1134-6FF00-2AA1 Analog Input Module
Brand: Siemens
SKU: 19067
Availability: InStock
Rating: 5.0 (1 reviews)

Introduction

Analog signals provide the control system with a continuous view of what is happening in the field. Instead of simply indicating whether a device is active or inactive, an analog measurement can represent the actual condition of a process variable. This makes analog input hardware an important part of many machine and process-control applications.

The Siemens 6AG1134-6FF00-2AA1 Analog Input Module is designed for compatible Siemens automation systems requiring this type of signal acquisition. It can support the measurement side of an automation architecture, where field instrumentation feeds information to PLC logic, operator interfaces, alarms, or higher-level monitoring functions.

Its compact 15 × 73 × 58 mm dimensions make the module a strong fit for space-conscious control cabinets. At just 0.031 kg (0.07 lb), it is exceptionally light and easy to handle during panel construction, installation, or replacement.

From an engineering perspective, dependable analog acquisition requires attention to the entire signal path. A correctly selected field instrument must be paired with appropriate wiring, grounding, shielding, input configuration, and PLC scaling. When these elements are coordinated properly, the resulting measurement is more useful for both control and diagnostics.

For system integrators and industrial maintenance teams, the 6AG1134-6FF00-2AA1 can provide a compact option for compatible Siemens analog I/O installations.

Technical Specifications

Specification	Details
Brand	Siemens
Model	6AG1134-6FF00-2AA1
Product Type	Analog Input Module
I/O Function	Analog Signal Acquisition
Primary Function	Industrial Process Measurement
Application	PLC and Industrial Automation
Typical Use	Process Monitoring and Machine Control
Installation	Industrial Control / I/O System
Dimensions	15 × 73 × 58 mm
Weight	0.031 kg (0.07 lb)

Recommended Related Models

Model	Product Type	Application
Siemens 6AG1134-6FF00-2AA1	Analog Input Module	Compact analog signal acquisition
Siemens 6AG1134-4NB51-2AB0	Analog Input Module	Industrial analog measurement
Siemens 6AG1134-4NB01-7AB0	Analog Input Module	Process signal acquisition
Siemens 6AG1134-4MB02-2AB0	Analog Input Module	Analog process monitoring
Siemens 6AG1134-4LB02-2AB0	Analog Input Module	Industrial analog measurement

These related Siemens modules can be evaluated when building or maintaining an analog I/O architecture. The correct selection should be based on the required electrical signal characteristics, controller compatibility, field instrumentation, and system configuration.

Popular Related Models

Model	Product Type	Typical Application
Siemens 6AG1134-6FF00-2AA1	Analog Input Module	Industrial analog measurement
Siemens 6AG1134-4NB51-2AB0	Analog Input Module	Process monitoring
Siemens 6AG1134-4NB01-7AB0	Analog Input Module	Analog signal acquisition
Siemens 6AG1134-4MB02-2AB0	Analog Input Module	Industrial process measurement
Siemens 6AG1134-4LB02-2AB0	Analog Input Module	Machine and process automation

When sourcing the Siemens 6AG1134-6FF00-2AA1, verify the complete catalog number and confirm that the module matches the installed Siemens automation architecture. Before commissioning, check the field signal characteristics, sensor compatibility, wiring, shielding, grounding, channel configuration, PLC scaling, and diagnostic status for reliable analog signal acquisition.

Applications

The Siemens 6AG1134-6FF00-2AA1 Analog Input Module is designed for compact industrial automation installations that require analog signal acquisition from compatible field devices. It can be used to bring measured process information into a Siemens control system for monitoring, regulation, alarm handling, sequencing, and data collection.

This type of analog I/O is well suited to machine automation, process equipment, instrumentation systems, production lines, and distributed control architectures. Its 15 × 73 × 58 mm footprint is particularly advantageous where control cabinet space is limited or a dense I/O arrangement is required.

For OEMs, panel builders, and maintenance teams, the module offers a compact approach to analog input expansion or replacement within a compatible Siemens automation system.

Advantages

Compact analog I/O solution — Provides analog signal acquisition without occupying excessive panel space.
Space-efficient construction — The narrow form factor supports dense cabinet layouts.
Industrial measurement support — Suitable for compatible sensors and transmitters used in automation systems.
Efficient I/O expansion — Useful when additional analog measurement capability is required.
Siemens system integration — Designed for compatible Siemens automation architectures.
Very low weight — Weighing only 0.031 kg (0.07 lb), the module is easy to handle.
Maintenance-friendly format — Compact construction is convenient for service and replacement activities.
Suitable for distributed automation — Can be considered for applications where field signals are collected close to the control equipment.

Technical FAQs

1. What is the Siemens 6AG1134-6FF00-2AA1 used for?
The 6AG1134-6FF00-2AA1 is an Analog Input Module intended to acquire compatible analog field signals for processing within a Siemens automation system.

2. Why are analog input modules used in automation?
Analog inputs allow controllers to receive continuously varying measurements instead of only discrete ON/OFF signals. This is important for process variables such as temperature, pressure, flow, and level.

3. What should be checked before connecting a field sensor?
Verify the sensor output type, electrical signal range, module input characteristics, wiring arrangement, power requirements, channel configuration, and grounding requirements.

4. Why is correct PLC scaling important?
The input module receives an electrical representation of the measured variable. PLC scaling converts that raw input into an engineering value that can be correctly interpreted by control logic and operator interfaces.

5. What could cause an analog channel to read an abnormal value?
Potential causes include incorrect wiring, incompatible signal characteristics, incorrect configuration, field-device failure, damaged cabling, grounding problems, or incorrect scaling.

6. Why can analog signals become unstable?
Electromagnetic interference, poor shielding, improper grounding, unstable transmitters, damaged cables, and poor cable routing can cause unwanted variations in the measured signal.

7. How can an analog input problem be diagnosed?
Measure the actual field signal, inspect wiring and terminals, verify the sensor or transmitter, review controller diagnostics, check the configured input range, and compare the PLC value with an appropriate reference.

8. Can any sensor be connected to an analog input?
No. The sensor or transmitter must provide an electrical output compatible with the module's specified input characteristics.

9. How can electrical noise be reduced on analog signal lines?
Appropriate cable separation, shielding, grounding, correct termination, and good cabinet wiring practices can help reduce interference. The installation should be designed according to the requirements of the complete automation system.

10. What should be checked after replacing an analog input module?
Confirm correct installation and wiring, verify that the controller recognizes the module, review diagnostics, check channel configuration, and confirm that the acquired process values are reasonable.
