Brand:Siemens Item No.:6AG1134-6GF00-7AA1 Product Origin:Germany Product Dimensions:15 × 73 × 58 mm Product Weight:0.031 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
Modern industrial automation depends heavily on accurate measurement. A control system may need continuous information about temperature, pressure, flow, level, or another process variable before it can make the right control decision. Analog input modules provide the essential interface between field instrumentation and the controller.

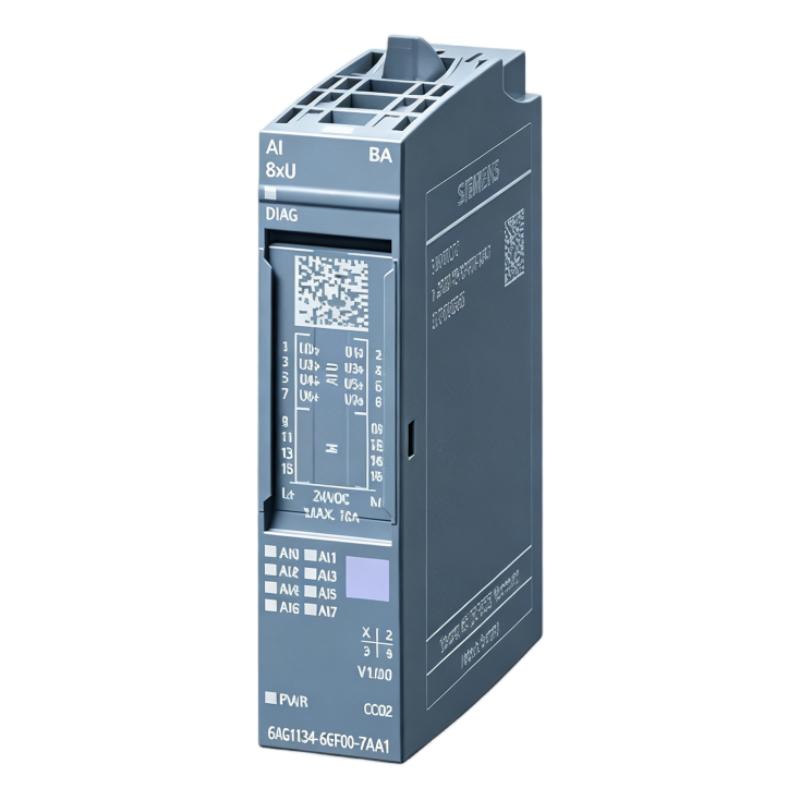

The Siemens 6AG1134-6GF00-7AA1 Analog Input Module is intended for compatible Siemens automation applications where analog signals need to be collected and processed. It can participate in an automation architecture used for process monitoring, machine control, alarm management, and operational data acquisition.
Its 15 × 73 × 58 mm dimensions give the module a compact installation profile, making it suitable for space-conscious control cabinets and dense I/O arrangements. At only 0.031 kg (0.07 lb), it is also exceptionally easy to handle during panel assembly, replacement, and routine maintenance.
Good analog performance depends on the complete signal path. The field instrument, signal wiring, shielding, grounding, module configuration, and PLC scaling must all be correctly coordinated. Proper engineering at these points helps reduce noise, avoid scaling errors, and make commissioning more predictable.
For industrial automation integrators and OEMs, the 6AG1134-6GF00-7AA1 offers a compact solution for compatible analog signal acquisition while helping maintain an efficient cabinet layout.
Technical Specifications
Specification
Details
Brand
Siemens
Model
6AG1134-6GF00-7AA1
Product Type
Analog Input Module
I/O Function
Analog Signal Acquisition
Primary Function
Industrial Process Measurement
Application
PLC and Industrial Automation
Typical Use
Process Monitoring and Machine Control
Installation
Industrial Control / I/O System
Dimensions
15 × 73 × 58 mm
Weight
0.031 kg (0.07 lb)
Recommended Related Models
Model
Product Type
Application
Siemens 6AG1134-6GF00-7AA1
Analog Input Module
Compact analog signal acquisition
Siemens 6AG1134-6GD01-7BA1
Analog Input Module
Industrial analog measurement
Siemens 6AG1134-6FF00-2AA1
Analog Input Module
Analog process monitoring
Siemens 6AG1134-4NB51-2AB0
Analog Input Module
Process signal acquisition
Siemens 6AG1134-4NB01-7AB0
Analog Input Module
Industrial analog input
These related Siemens modules can be evaluated when expanding or maintaining an analog I/O system. Final selection should be based on the required electrical signal characteristics, host-system compatibility, field instrumentation, and I/O architecture.
