Brand:Siemens Item No.:6AG1134-6HB00-2CA1 Product Origin:Germany Product Dimensions:15 × 73 × 58 mm Product Weight:0.032 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
Industrial controllers rely on field measurements to understand what is happening inside a machine or process. While digital signals can indicate simple states, many real-world variables require continuous measurement. Analog input modules provide the bridge between these field measurements and the control system.

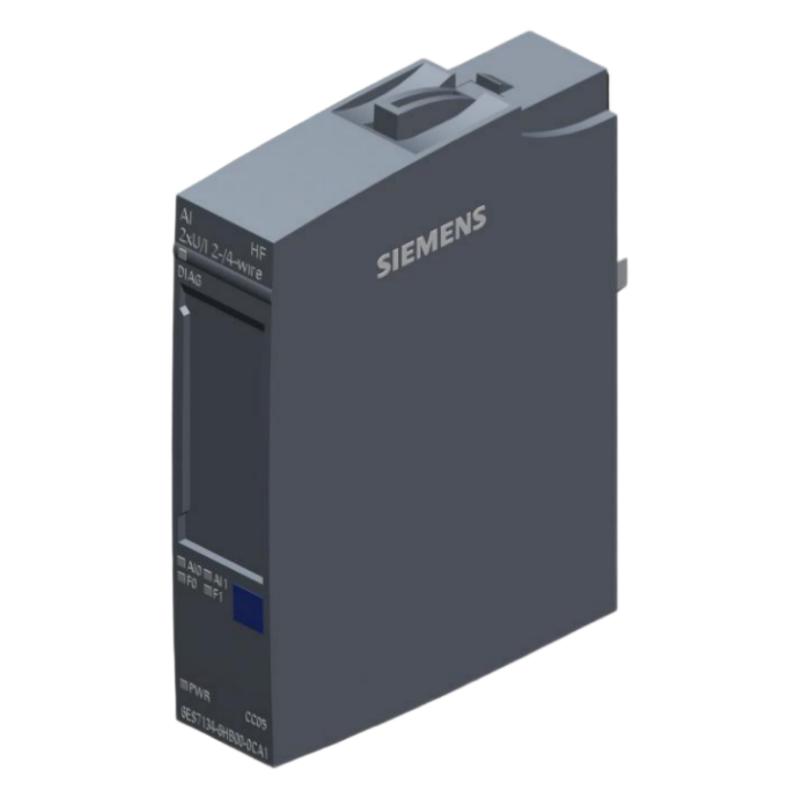

The Siemens 6AG1134-6HB00-2CA1 Analog Input Module is designed for compatible Siemens automation environments requiring analog signal acquisition. It can support applications involving process monitoring, machine regulation, alarms, sequencing, and operational data collection.
With dimensions of 15 × 73 × 58 mm, the module occupies very little cabinet space. Its weight is only 0.032 kg (0.07 lb), making it particularly convenient for technicians working on densely populated I/O assemblies.
A successful analog installation requires more than simply connecting a transmitter. The complete signal path should be considered, including the field instrument, power supply, signal wiring, shielding, grounding, module configuration, and PLC scaling. Attention to these details can improve measurement stability and simplify commissioning.
For machine builders, system integrators, and industrial maintenance departments, the 6AG1134-6HB00-2CA1 offers a compact analog I/O solution for compatible Siemens automation systems.
Technical Specifications
Specification
Details
Brand
Siemens
Model
6AG1134-6HB00-2CA1
Product Type
Analog Input Module
I/O Function
Analog Signal Acquisition
Primary Function
Industrial Process Measurement
Application
PLC and Industrial Automation
Typical Use
Process Monitoring and Machine Control
Installation
Industrial Control / I/O System
Dimensions
15 × 73 × 58 mm
Weight
0.032 kg (0.07 lb)
Recommended Related Models
Model
Product Type
Application
Siemens 6AG1134-6HB00-2CA1
Analog Input Module
Industrial analog signal acquisition
Siemens 6AG1134-6GF00-7AA1
Analog Input Module
Compact process measurement
Siemens 6AG1134-6GD01-7BA1
Analog Input Module
Analog signal acquisition
Siemens 6AG1134-6FF00-2AA1
Analog Input Module
Industrial process monitoring
Siemens 6AG1134-4NB51-2AB0
Analog Input Module
Analog measurement
These related Siemens models may be considered for analog I/O expansion, maintenance, or system replacement projects. The appropriate model should be selected according to the required signal characteristics, controller compatibility, field instrumentation, and overall system architecture.
Popular Related Models
Model
Product Type
Typical Application
Siemens 6AG1134-6HB00-2CA1
Analog Input Module
Industrial process measurement
Siemens 6AG1134-6GF00-7AA1
Analog Input Module
Compact analog acquisition
Siemens 6AG1134-6GD01-7BA1
Analog Input Module
Process monitoring
Siemens 6AG1134-6FF00-2AA1
Analog Input Module
Industrial analog measurement
Siemens 6AG1134-4NB51-2AB0
Analog Input Module
Machine and process automation
When sourcing the Siemens 6AG1134-6HB00-2CA1, verify the complete catalog number and confirm that the module matches the existing Siemens automation architecture. Before commissioning, verify the field signal characteristics, instrument compatibility, wiring, shielding, grounding, channel configuration, PLC scaling, and diagnostic status to ensure dependable analog signal acquisition.
Applications
The Siemens 6AG1134-6HB00-2CA1 Analog Input Module is intended for industrial automation systems that need to acquire analog signals from compatible field instrumentation. It can be integrated into suitable Siemens control architectures to provide process values for monitoring, closed-loop control, alarm handling, sequencing, and operational data collection.
The module is well suited to machine-building applications, process equipment, instrumentation panels, production systems, and distributed I/O installations. Its compact 15 × 73 × 58 mm format helps maintain efficient cabinet layouts, particularly where space is limited and a high concentration of I/O hardware is required.
For automation integrators and maintenance teams, the 6AG1134-6HB00-2CA1 provides a practical option for analog input expansion or replacement when system compatibility has been established.
Advantages
Compact analog acquisition — Provides a practical interface for compatible analog field signals.
Space-saving design — Its compact dimensions help optimize control cabinet layouts.
Efficient I/O integration — Suitable for dense industrial automation installations.
Process measurement support — Useful for monitoring continuously changing field variables.
Siemens architecture compatibility — Designed for integration into appropriate Siemens automation systems.
Lightweight construction — Weighs 0.032 kg (0.07 lb), simplifying handling during installation and service.
Easy module replacement — The compact form factor is convenient for maintenance operations.
Suitable for OEM applications — A practical choice for machine and process automation projects requiring compatible analog input capability.
Technical FAQs
1. What is the Siemens 6AG1134-6HB00-2CA1 used for?
The 6AG1134-6HB00-2CA1 is an Analog Input Module used to acquire compatible analog field signals within a Siemens industrial automation system.
2. What types of industrial variables can analog inputs represent?
Depending on the connected instrumentation and supported signal characteristics, analog inputs can be used to represent variables such as temperature, pressure, flow, level, or other continuously changing process conditions.
3. What must be verified before wiring a field transmitter?
Check the transmitter output, electrical signal range, input characteristics, wiring configuration, power requirements, channel settings, and grounding requirements.
4. Why is analog signal scaling important?
The module receives an electrical signal representing a physical measurement. Scaling converts the raw input into an engineering value that the PLC can use for control calculations, alarms, and visualization.
5. What can cause an analog input to show an incorrect value?
Incorrect wiring, incompatible signal characteristics, transmitter faults, damaged cables, grounding problems, configuration errors, and incorrect PLC scaling are common possibilities.
6. Why might an analog signal fluctuate unexpectedly?
Electromagnetic interference, poor shielding, inadequate grounding, unstable instrumentation, cable damage, and inappropriate signal routing can introduce unwanted fluctuations.
7. How should a suspected analog input fault be tested?
Measure the actual field signal, inspect the field wiring and terminals, verify the transmitter, review PLC diagnostics, confirm channel configuration, and compare the measured value against an independent reference.
8. Can a conventional ON/OFF sensor be connected to an analog input?
A standard discrete sensor is normally intended for a digital input. An analog input requires a compatible continuously variable electrical signal.
9. How does cabinet wiring affect analog signal quality?
Improper routing near high-power or high-frequency conductors can increase electromagnetic interference. Appropriate separation, shielding, and grounding help protect sensitive analog measurements.
10. What should be verified after replacing an analog input module?
Check physical installation, wiring, module recognition, channel configuration, diagnostics, and the resulting process values before returning the equipment to normal operation.
