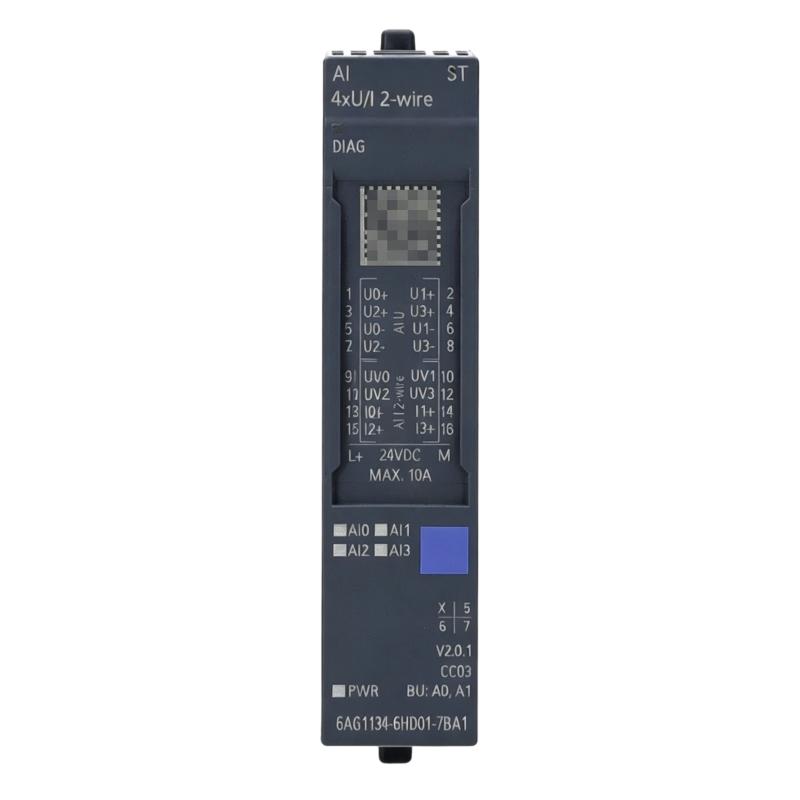

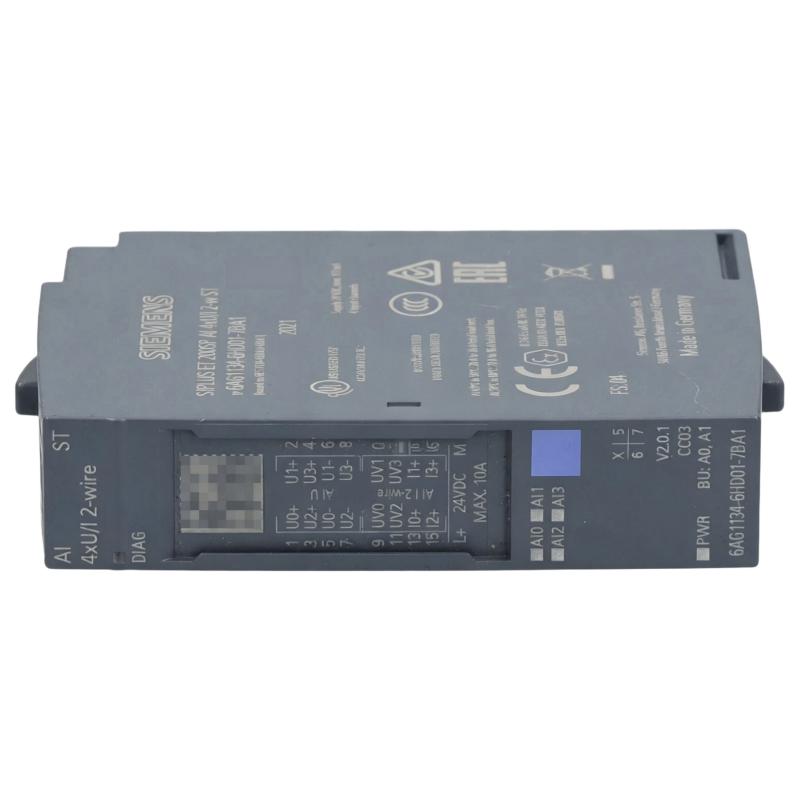

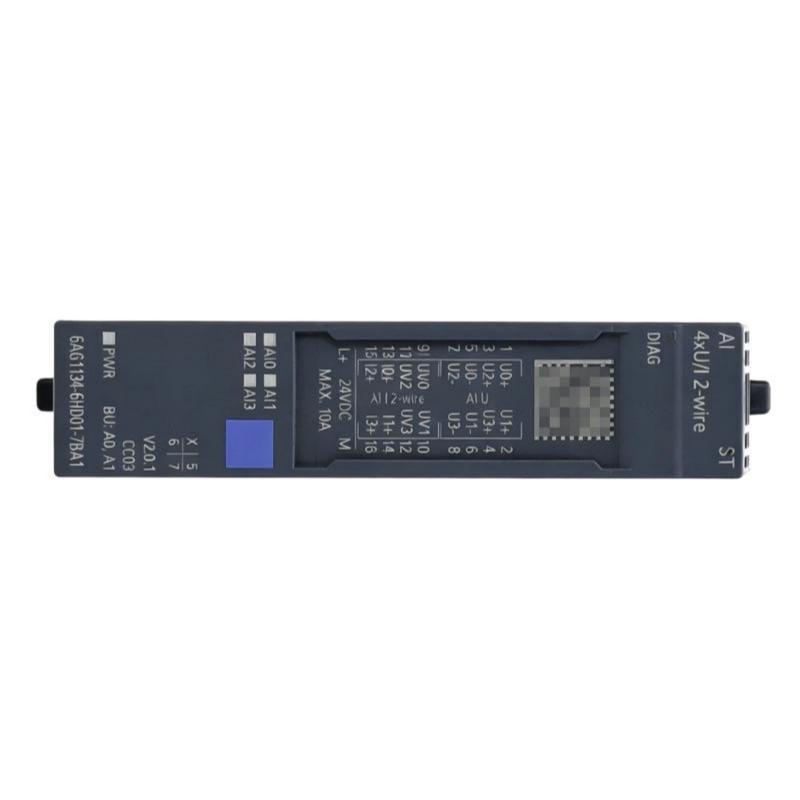

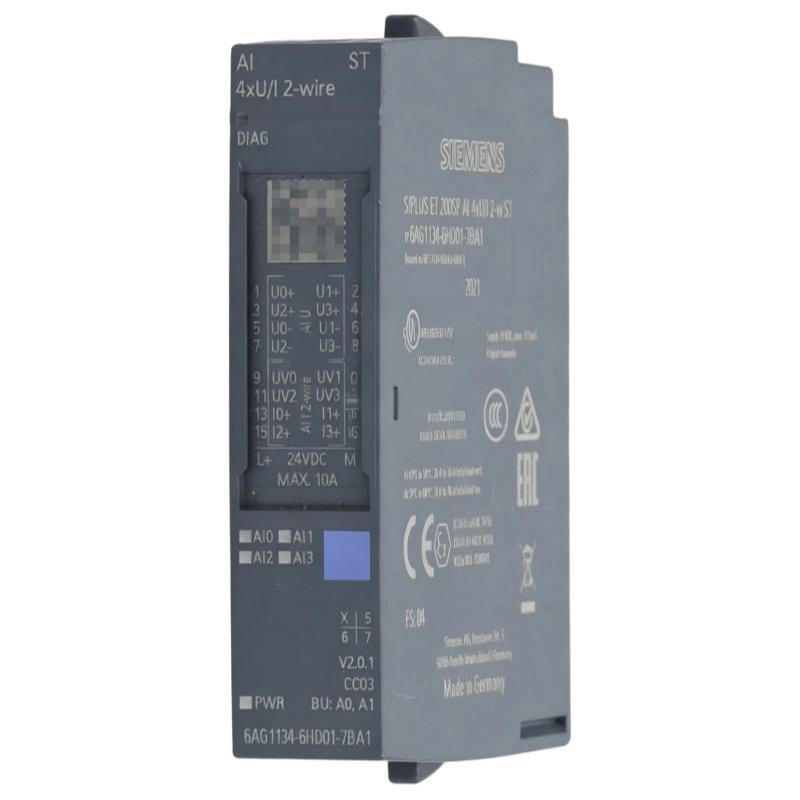

Name: Siemens 6AG1134-6HD01-7BA1 Analog Input Module
Brand: Siemens
SKU: 19072
Availability: InStock
Rating: 5.0 (1 reviews)

Introduction

Accurate field data is fundamental to effective industrial automation. A PLC can only make an appropriate control decision when the information it receives accurately represents the actual process. Analog input modules therefore play an important role in applications where temperature, pressure, flow, level, or other variables must be measured continuously.

The Siemens 6AG1134-6HD01-7BA1 Analog Input Module is designed for compatible Siemens automation environments requiring analog signal acquisition. It can become part of an I/O architecture supporting process supervision, machine regulation, alarm functions, and production monitoring.

Its compact 15 × 73 × 58 mm dimensions make efficient use of control cabinet space. The module weighs only 0.031 kg (0.07 lb), which makes it easy for technicians to handle during installation, replacement, and service operations.

A reliable analog measurement system requires attention to the complete signal path. Field instrumentation, wiring, shielding, grounding, channel configuration, and PLC scaling all have to work together. Proper installation can improve signal stability while also making future fault diagnosis faster.

For industrial automation integrators, machine builders, and maintenance departments, the 6AG1134-6HD01-7BA1 is a compact analog I/O option for compatible Siemens systems.

Technical Specifications

Specification	Details
Brand	Siemens
Model	6AG1134-6HD01-7BA1
Product Type	Analog Input Module
I/O Function	Analog Signal Acquisition
Primary Function	Industrial Process Measurement
Application	PLC and Industrial Automation
Typical Use	Process Monitoring and Machine Control
Installation	Industrial Control / I/O System
Dimensions	15 × 73 × 58 mm
Weight	0.031 kg (0.07 lb)

Recommended Related Models

Model	Product Type	Application
Siemens 6AG1134-6HD01-7BA1	Analog Input Module	Industrial analog signal acquisition
Siemens 6AG1134-6HB00-2DA1	Analog Input Module	Analog process measurement
Siemens 6AG1134-6HB00-2CA1	Analog Input Module	Industrial analog acquisition
Siemens 6AG1134-6GF00-7AA1	Analog Input Module	Compact process monitoring
Siemens 6AG1134-6GD01-7BA1	Analog Input Module	Industrial analog measurement

These related Siemens modules can be considered for compatible analog I/O expansion, replacement, or maintenance projects. Final selection should be based on the required signal characteristics, host-system compatibility, field instrumentation, and overall I/O configuration.

Popular Related Models

Model	Product Type	Typical Application
Siemens 6AG1134-6HD01-7BA1	Analog Input Module	Industrial process measurement
Siemens 6AG1134-6HB00-2DA1	Analog Input Module	Analog signal acquisition
Siemens 6AG1134-6HB00-2CA1	Analog Input Module	Process monitoring
Siemens 6AG1134-6GF00-7AA1	Analog Input Module	Compact analog measurement
Siemens 6AG1134-6GD01-7BA1	Analog Input Module	Machine and process automation

When sourcing the Siemens 6AG1134-6HD01-7BA1, verify the complete catalog number and confirm compatibility with the installed Siemens automation architecture. Before commissioning, check the field signal characteristics, transmitter compatibility, wiring, shielding, grounding, channel configuration, PLC scaling, and diagnostic status for reliable analog signal acquisition.

Applications

The Siemens 6AG1134-6HD01-7BA1 Analog Input Module is designed for industrial automation systems that require compact acquisition of compatible analog field signals. It can operate as part of the I/O interface between field instrumentation and a Siemens control system, making measured process information available for monitoring, control, alarms, and production functions.

Typical applications include machine automation, process equipment, instrumentation cabinets, manufacturing lines, and distributed I/O installations. With a compact 15 × 73 × 58 mm form factor, it is well suited to control panels where space efficiency and organized I/O density are important.

For OEMs and automation integrators, this module offers a practical option for expanding or replacing analog input hardware in compatible Siemens installations.

Advantages

Compact analog input interface — Supports acquisition of compatible continuously varying field signals.
Space-saving footprint — Helps engineers build more efficient control cabinet layouts.
High-density I/O potential — Suitable for installations containing multiple I/O modules.
Process measurement support — Designed for applications where real-time analog values are required.
Siemens automation integration — Intended for compatible Siemens control architectures.
Lightweight design — Weighing 0.031 kg (0.07 lb), the module is easy to handle.
Convenient maintenance — Compact construction simplifies handling during replacement and servicing.
Suitable for industrial OEM projects — A practical component for compatible machine and process-control systems.

Technical FAQs

1. What is the Siemens 6AG1134-6HD01-7BA1 used for?
The 6AG1134-6HD01-7BA1 is an Analog Input Module used to acquire compatible analog signals for processing by a Siemens automation system.

2. What is the role of an analog input in a PLC system?
It converts compatible field measurement signals into information that the control system can process for monitoring, calculations, regulation, and alarms.

3. What should be verified before connecting a field transmitter?
Check the transmitter's output signal, electrical range, input characteristics, wiring arrangement, power requirements, channel configuration, and grounding requirements.

4. Why must analog values be scaled in the control program?
The raw input represents an electrical signal. Scaling converts that value into an engineering unit suitable for control calculations and operator visualization.

5. What could cause a channel to display an unexpected value?
Incorrect wiring, signal incompatibility, transmitter faults, cable damage, grounding problems, configuration errors, and incorrect scaling are possible causes.

6. Why might a process measurement fluctuate?
Electromagnetic interference, inadequate shielding, poor grounding, unstable instrumentation, damaged signal cables, or improper cable routing can affect the measured value.

7. How can a suspected analog input fault be diagnosed?
Measure the field signal independently, inspect the wiring and terminals, verify the field device, review controller diagnostics, confirm configuration, and compare the PLC value against a known reference.

8. Can a discrete sensor be connected to an analog input?
A conventional ON/OFF sensor is normally intended for a digital input. The analog channel requires a compatible continuously variable electrical signal.

9. Why should analog wiring be separated from power conductors?
Power and switching circuits can generate electromagnetic interference. Appropriate physical separation can help protect sensitive analog measurement signals.

10. What checks should be performed after replacing the module?
Verify physical installation, field wiring, module recognition, channel configuration, diagnostic status, and the resulting process values before placing the equipment back into normal operation.
