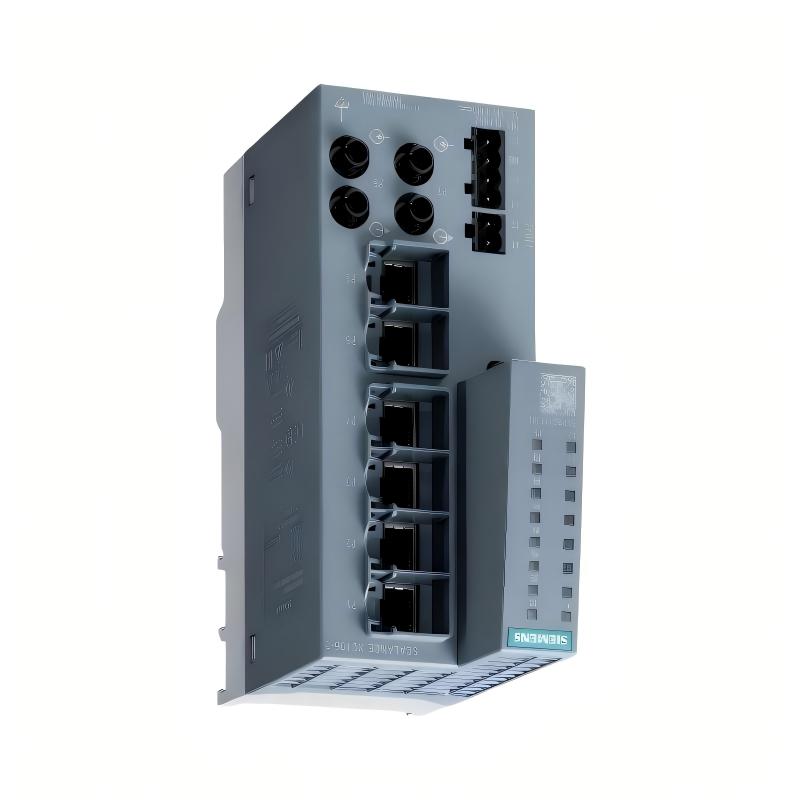

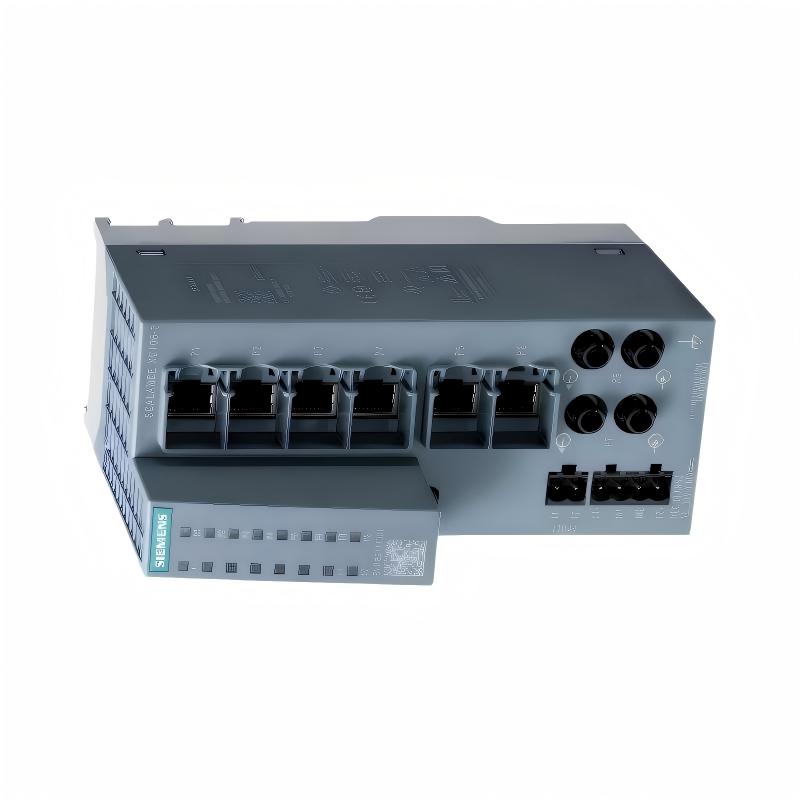

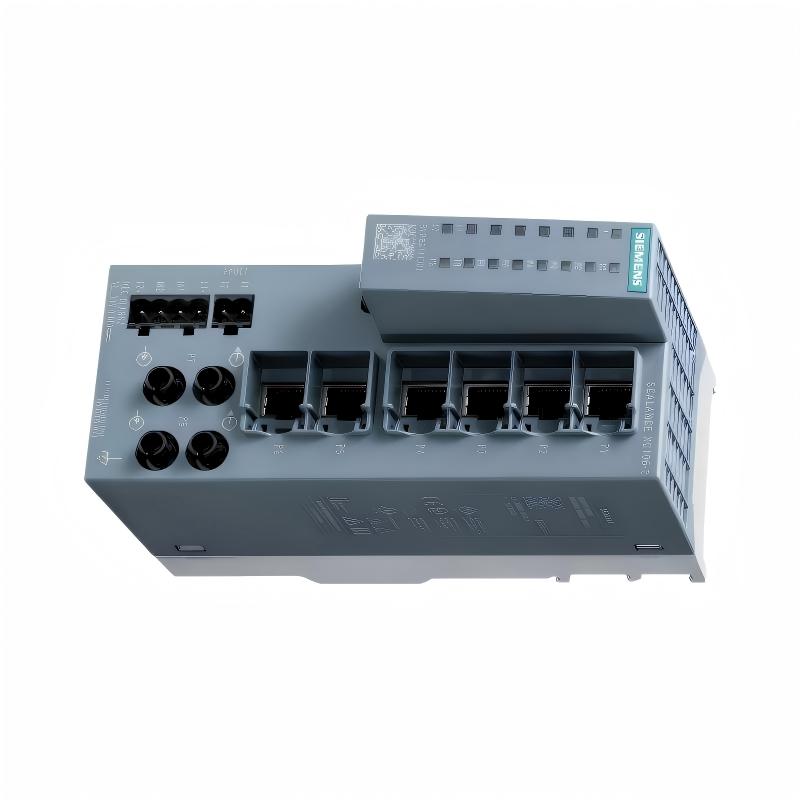

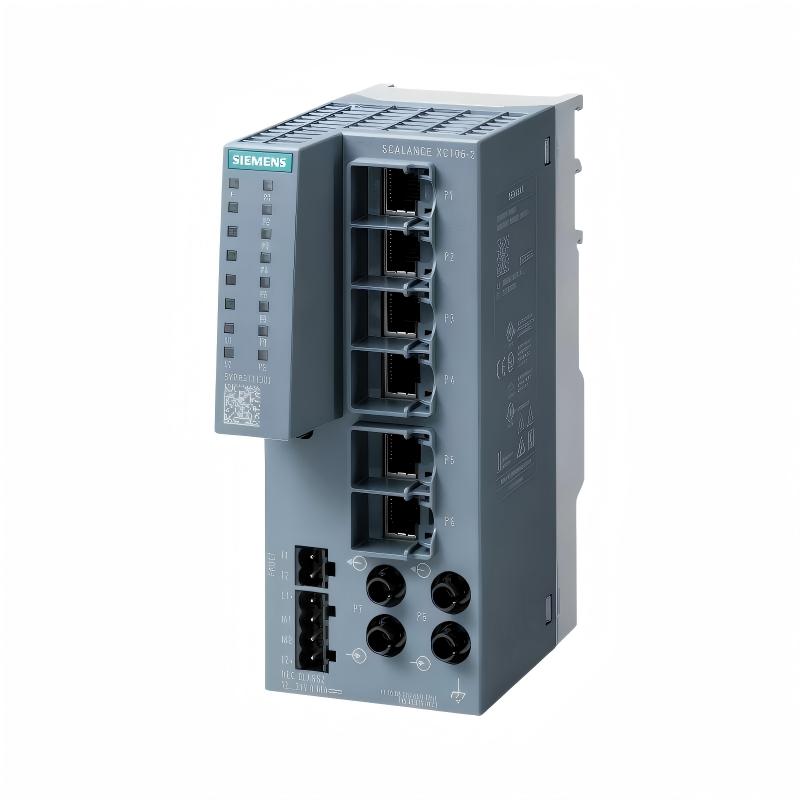

Siemens 6AG1106-2BB00-7AC2 Unmanaged IE Switch

Industrial Applications

The Siemens 6AG1106-2BB00-7AC2 Unmanaged IE Switch is an industrial Ethernet switching component intended for automation networks that require straightforward and dependable connectivity between Ethernet-based devices. Its unmanaged architecture makes it particularly suitable for applications where network communication needs to be established without complex switch configuration.

The switch can be incorporated into machine networks, production lines, control cabinets, manufacturing cells, and distributed automation systems. It can provide a practical communication point between PLCs, HMIs, industrial computers, remote devices, and other compatible Industrial Ethernet equipment.

For machine builders, the unmanaged design can simplify network deployment. Once the physical Ethernet connections are correctly established, the switch can operate without requiring extensive network-management configuration, making it useful for straightforward industrial communication architectures.

The 6AG1106-2BB00-7AC2 can also be considered for maintenance and replacement applications. When an existing automation system relies on an industrial Ethernet switch with simple plug-and-connect operation, selecting a compatible Siemens component can help preserve the established network structure.

Practical Advantages

The main advantage of the Siemens 6AG1106-2BB00-7AC2 is its simple unmanaged Ethernet architecture. It provides industrial network connectivity without introducing the configuration complexity associated with managed switches.

This makes the device particularly attractive for machine-level networks where the primary requirement is reliable communication between connected automation components rather than advanced network-management functionality.

Its industrial design is also appropriate for control-system installations where equipment needs to operate continuously in an automation environment. For maintenance teams, the straightforward architecture can make replacement and network restoration more efficient.

Key benefits include:

• Unmanaged Industrial Ethernet switching
• Simple plug-and-connect network operation
• Suitable for machine-level automation networks
• Designed for industrial control environments
• Useful for PLC and HMI communication
• Suitable for production-line networking
• Practical for control-cabinet installations
• Reduces the need for complex switch configuration
• Useful for replacement and maintenance projects
• Supports efficient industrial network expansion

Technical FAQs

1. What is the Siemens 6AG1106-2BB00-7AC2 used for?
The 6AG1106-2BB00-7AC2 is an unmanaged Industrial Ethernet switch used to connect compatible Ethernet devices within an automation network.

2. What does "unmanaged switch" mean in an industrial network?
An unmanaged switch generally operates without user-configured network-management functions. Connected Ethernet devices can communicate through the switch without requiring the switch itself to be programmed with a network configuration.

3. Is the 6AG1106-2BB00-7AC2 suitable for PLC networks?
Yes, it can be incorporated into compatible PLC-based Industrial Ethernet networks to provide physical Ethernet connectivity between controllers and other networked automation equipment.

4. Can an unmanaged switch communicate with a managed switch?
Generally, unmanaged and managed Ethernet switches can operate within the same Ethernet network when their technical characteristics and network architecture are compatible. The exact system design should determine how they are interconnected.

5. Does an unmanaged switch require an IP address?
An unmanaged switch typically does not require an IP address for basic Ethernet switching. IP addressing is normally handled by the connected network devices.

6. What should be checked if a connected PLC cannot communicate through the switch?
Start by checking the switch power supply, Ethernet cables, connectors, link indicators, and the network interface of the PLC. If the physical connection is healthy, check the PLC's IP configuration and the communication settings of the connected devices.

7. Can a switch failure affect multiple automation devices?
Yes. If several PLCs, HMIs, or other devices depend on the same switch for network connectivity, a power or hardware failure can interrupt communication across multiple network nodes.

8. Is an unmanaged switch suitable for large, complex automation networks?
It can be appropriate for simple machine-level or small industrial networks. More complex architectures requiring redundancy, diagnostics, VLANs, advanced monitoring, or network-management functions may require a suitable managed switch instead.

9. What is the recommended approach when replacing an existing industrial Ethernet switch?
Verify the original part number, network topology, Ethernet requirements, connected devices, power arrangement, and installation conditions. The replacement should provide the functionality required by the existing system.

10. Can a faulty Ethernet cable appear to be a switch problem?
Yes. Damaged cables, poor terminations, loose connectors, or electromagnetic interference can cause intermittent or failed Ethernet communication. Physical-layer checks should therefore be performed before replacing the switch.
