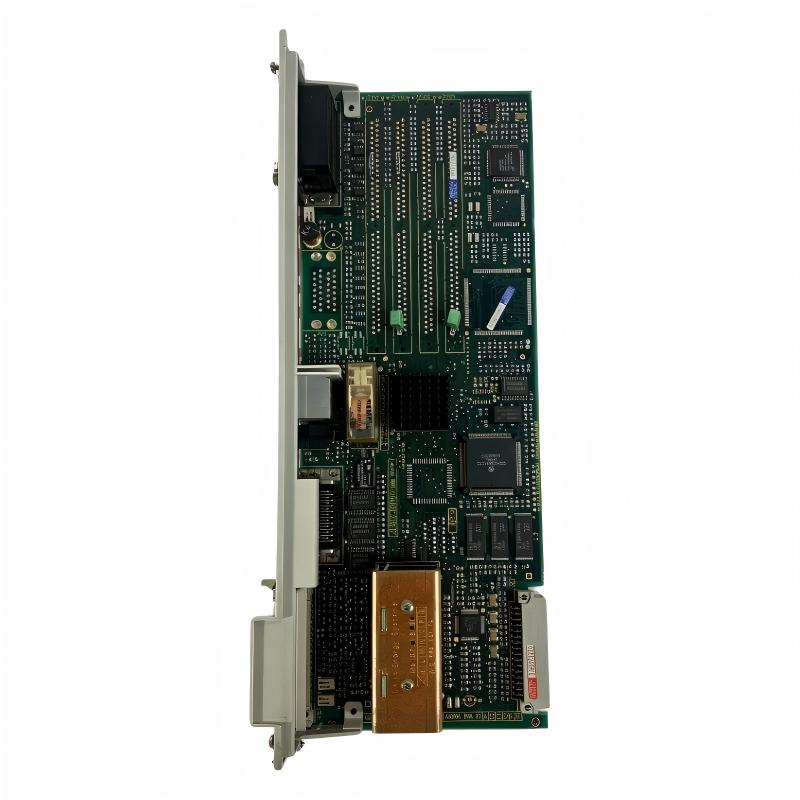

Siemens 6SN1118-0DM11-0AA0 Dual-Axis Closed-Loop Plug-in Control Unit

Industrial Applications

The Siemens 6SN1118-0DM11-0AA0 Dual-Axis Closed-Loop Plug-in Control Unit is a specialized motion-control component intended for compatible Siemens CNC and drive architectures. Its dual-axis closed-loop design is suited to applications where the control system must continuously process motion commands and feedback to achieve accurate, repeatable axis movement.

This type of control unit is particularly relevant to CNC machine tools, machining centers, automated production machinery, precision manufacturing equipment, and industrial machine-tool systems. Closed-loop motion control is valuable in applications where actual axis position and movement must be monitored and regulated rather than relying solely on an open-loop command.

The plug-in configuration also makes the module practical for established Siemens control systems. For maintenance departments, the ability to replace a dedicated control component can be important when a mature CNC machine remains mechanically and electrically suitable for continued production.

Typical application areas include:

• CNC machine tools
• Machining centers
• Precision positioning systems
• Automated manufacturing equipment
• Multi-axis industrial machinery
• Siemens CNC maintenance
• Machine refurbishment projects
• Motion-control system repair

Core Advantages

The key feature of the 6SN1118-0DM11-0AA0 is its dual-axis closed-loop control architecture. Closed-loop operation allows the motion-control system to use feedback information as part of the regulation process, supporting accurate and consistent machine-axis behavior.

Its plug-in design is also advantageous in compatible Siemens systems because it provides a dedicated control component within the established control architecture. This can simplify component-level maintenance compared with redesigning an entire motion-control system.

For industrial users, the module can be a valuable spare part when maintaining legacy Siemens CNC equipment. Correctly matching the replacement hardware can help reduce commissioning risk and preserve the original machine configuration.

Key advantages include:

• Dual-axis closed-loop control functionality
• Dedicated motion-control architecture
• Designed for compatible Siemens CNC systems
• Supports feedback-based axis regulation
• Suitable for precision machine applications
• Plug-in format for compatible control systems
• Practical for CNC maintenance and repair
• Useful for machine refurbishment
• Suitable for industrial spare-parts inventories
• Helps extend the service life of established automation equipment

Technical FAQs

1. What is the primary function of the 6SN1118-0DM11-0AA0?
The module provides dedicated closed-loop motion-control functionality for two axes within a compatible Siemens CNC and drive architecture.

2. What does closed-loop control mean in a CNC system?
Closed-loop control uses feedback from the machine or drive system to compare actual movement with the commanded movement. The control system can then respond to deviations to improve motion accuracy.

3. Why is closed-loop control important for CNC machines?
It can improve positioning consistency and help the control system compensate for differences between commanded and actual machine movement, which is important in precision machining.

4. Is the 6SN1118-0DM11-0AA0 a general-purpose PLC module?
No. It is a specialized motion-control unit designed for a compatible Siemens CNC and drive-control architecture.

5. What should be verified before replacing this control unit?
Verify the complete Siemens order number, CNC system, drive architecture, axis configuration, feedback arrangement, associated modules, and applicable system configuration requirements.

6. What symptoms may indicate a closed-loop control problem?
Possible symptoms include axis-following errors, unexpected positioning behavior, motion alarms, initialization problems, or inconsistent axis response. Similar symptoms can also be caused by feedback devices, drives, cabling, or mechanical problems.

7. Can a feedback encoder cause symptoms that appear to be a control-unit fault?
Yes. Incorrect or unstable feedback can produce positioning errors and motion alarms. Feedback wiring, connectors, sensors, and drive electronics should therefore be checked before replacing the control unit.

8. Does replacing the control unit require axis testing?
Yes. After replacement, the system should be checked for correct hardware recognition and diagnostic status, followed by controlled axis testing and appropriate commissioning procedures.

9. Can this module be used in a CNC retrofit project?
It may be suitable when the retrofit retains a compatible Siemens CNC and motion-control architecture. Compatibility should be established from the complete system design rather than from the module's physical dimensions alone.

10. Why is the complete part number important when sourcing a replacement?
Siemens motion-control hardware can contain closely related modules with different functions or compatibility requirements. Matching 6SN1118-0DM11-0AA0 helps ensure that the selected component corresponds to the required system configuration.
