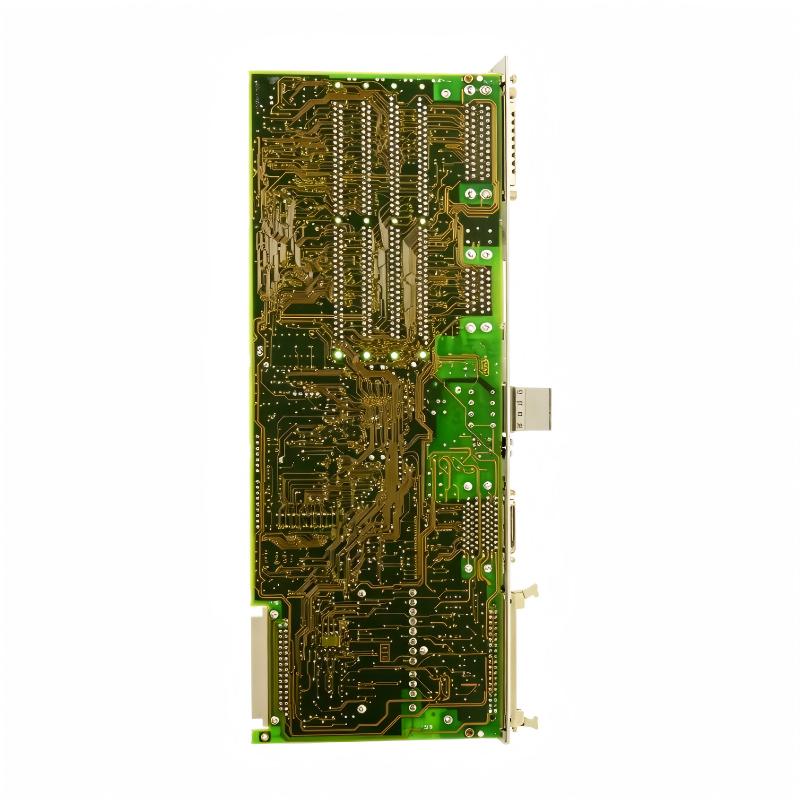

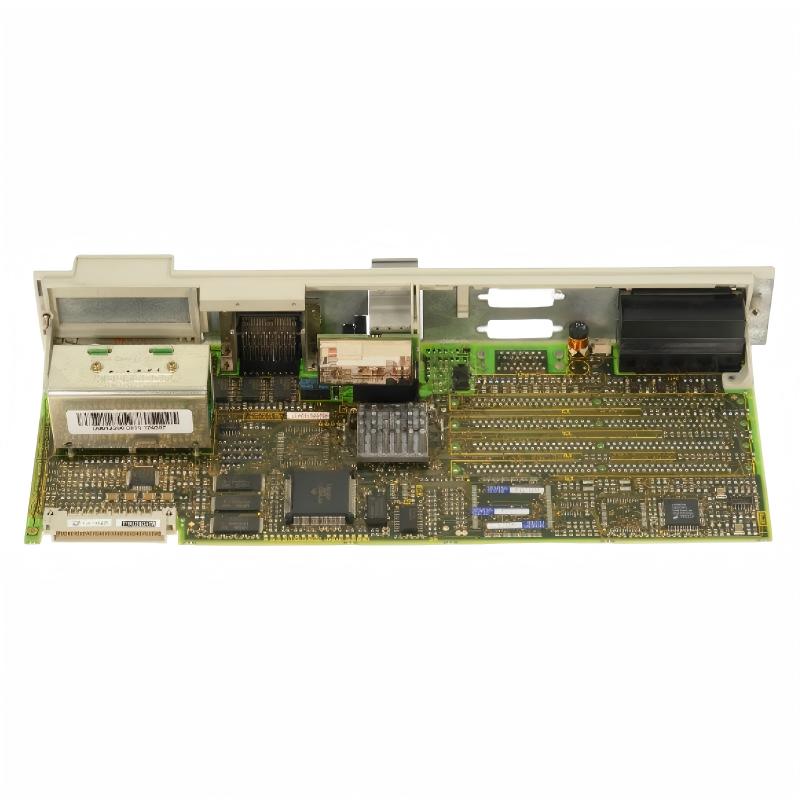

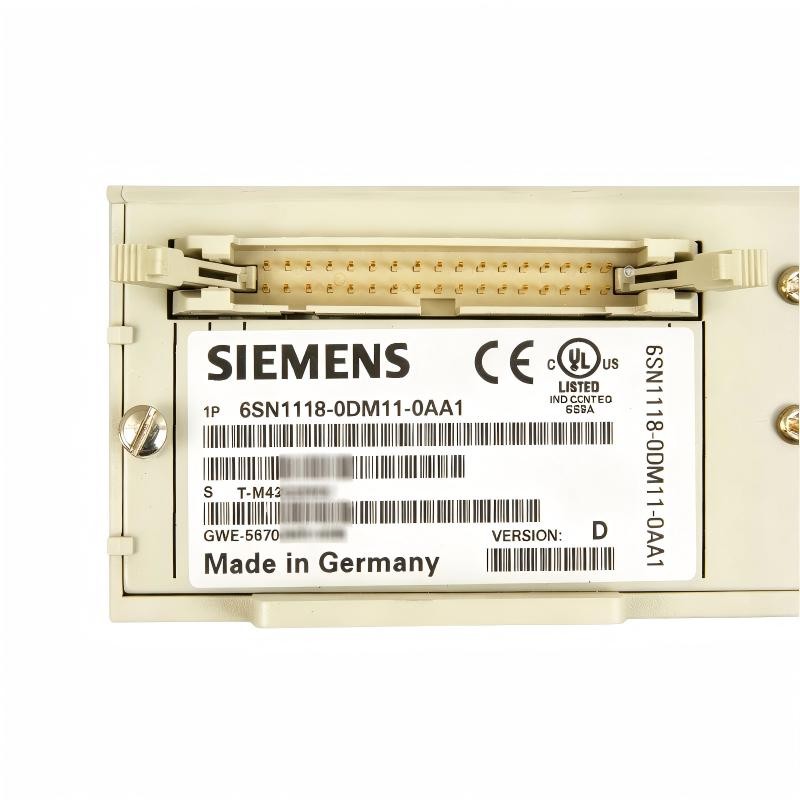

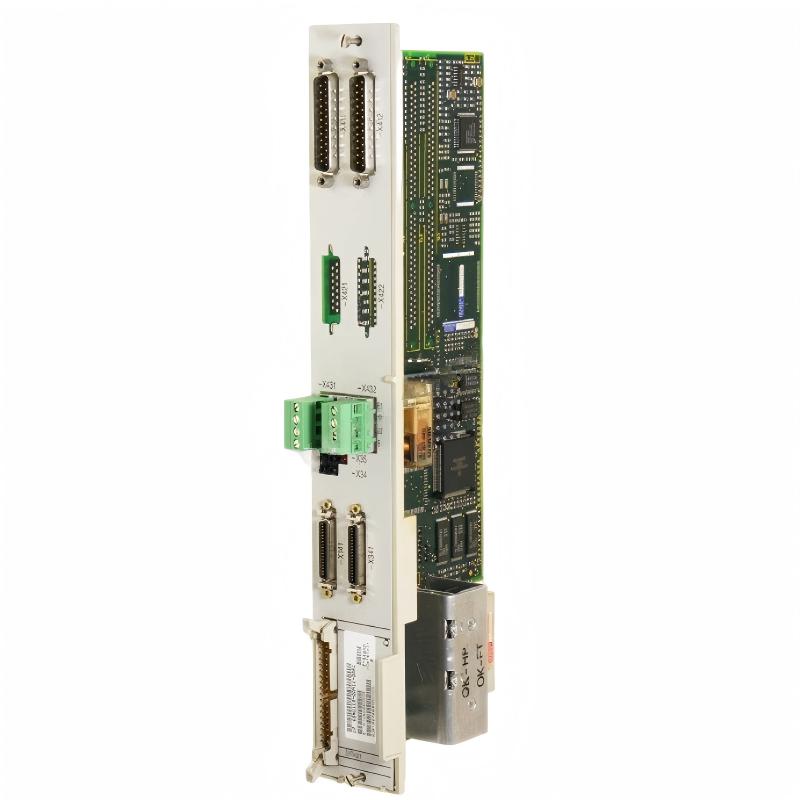

Siemens 6SN1118-0DM11-0AA1 Dual-Axis Closed-Loop Plug-in Control Unit

Where It Is Used

The Siemens 6SN1118-0DM11-0AA1 is a dual-axis closed-loop plug-in control unit designed for compatible Siemens CNC and motion-control systems. It is intended for applications where precise axis regulation depends on the continuous interaction between commanded motion and actual machine feedback.

This type of control hardware is well suited to CNC machine tools, machining centers, precision production equipment, automated manufacturing machinery, and other applications requiring controlled multi-axis movement. In a closed-loop architecture, feedback information becomes an active part of the control process, helping the system maintain accurate axis behavior during operation.

The module can also be valuable in maintenance environments. For companies operating established Siemens CNC equipment, replacing an individual control unit with the correct matching component can be a cost-effective way to restore machine functionality without redesigning the complete control architecture.

Typical applications include:

• CNC machine tools
• Precision machining centers
• Multi-axis positioning equipment
• Automated manufacturing machinery
• Industrial motion-control systems
• Machine-tool repair
• CNC refurbishment
• Siemens automation spare-parts programs

Main Advantages

The 6SN1118-0DM11-0AA1 is built for dual-axis closed-loop motion control, giving it a specialized role in Siemens CNC architectures where positioning accuracy and repeatability are important.

Its closed-loop approach allows feedback information to participate in the regulation process. This is particularly valuable in machine-tool applications where the difference between commanded and actual movement can directly affect machining accuracy and production quality.

The plug-in construction also supports practical service operations within compatible Siemens systems. When a machine has been engineered around a particular control architecture, replacing the appropriate module can be significantly more efficient than introducing unrelated hardware.

Key advantages include:

• Dedicated dual-axis closed-loop control
• High-performance motion-control functionality
• Designed for compatible Siemens CNC architectures
• Supports feedback-based axis regulation
• Suitable for precision positioning applications
• Plug-in installation concept
• Useful for CNC repair and maintenance
• Appropriate for machine refurbishment
• Supports long-term servicing of established equipment
• Valuable as a specialized Siemens replacement component

Technical FAQs

1. What is the Siemens 6SN1118-0DM11-0AA1 designed to do?
It provides dedicated closed-loop control functionality for two motion axes within a compatible Siemens CNC and drive-control architecture.

2. What makes closed-loop control different from open-loop control?
A closed-loop system uses feedback representing actual machine or axis behavior. The control system can compare this information with the commanded position or movement and respond to deviations.

3. Why is feedback important in CNC applications?
Feedback helps the control system determine whether the machine is achieving the requested movement. Reliable feedback is therefore important for positioning accuracy, repeatability, and stable axis operation.

4. Is this module intended to replace a PLC CPU?
No. The 6SN1118-0DM11-0AA1 is a specialized motion-control component and is not a general-purpose PLC processor.

5. What equipment should be checked for compatibility?
The CNC control, drive system, axis configuration, feedback arrangement, associated control modules, and the original hardware order number should all be verified before installation.

6. What could cause a positioning fault besides the control unit?
Possible causes include encoder or feedback problems, drive faults, damaged wiring, loose connectors, incorrect parameters, mechanical backlash, or other machine-related conditions.

7. How can technicians distinguish a control-unit fault from a feedback fault?
Review the machine diagnostics and feedback signals first, then inspect connectors and wiring. Comparing the observed fault behavior with the system's diagnostic information can help isolate the affected section.

8. What should be done after installing a replacement unit?
Check system recognition and diagnostic status, verify the relevant configuration and parameters, and perform controlled axis tests before returning the machine to production.

9. Is the 6SN1118-0DM11-0AA1 suitable for older CNC equipment?
It can be appropriate for compatible legacy Siemens systems when the original control architecture calls for this specific component. The complete system configuration should be checked before procurement.

10. Why should the exact order number be matched during replacement?
Related Siemens control modules can have similar physical characteristics but different functions or compatibility requirements. Matching 6SN1118-0DM11-0AA1 helps ensure that the replacement corresponds to the intended system configuration.
