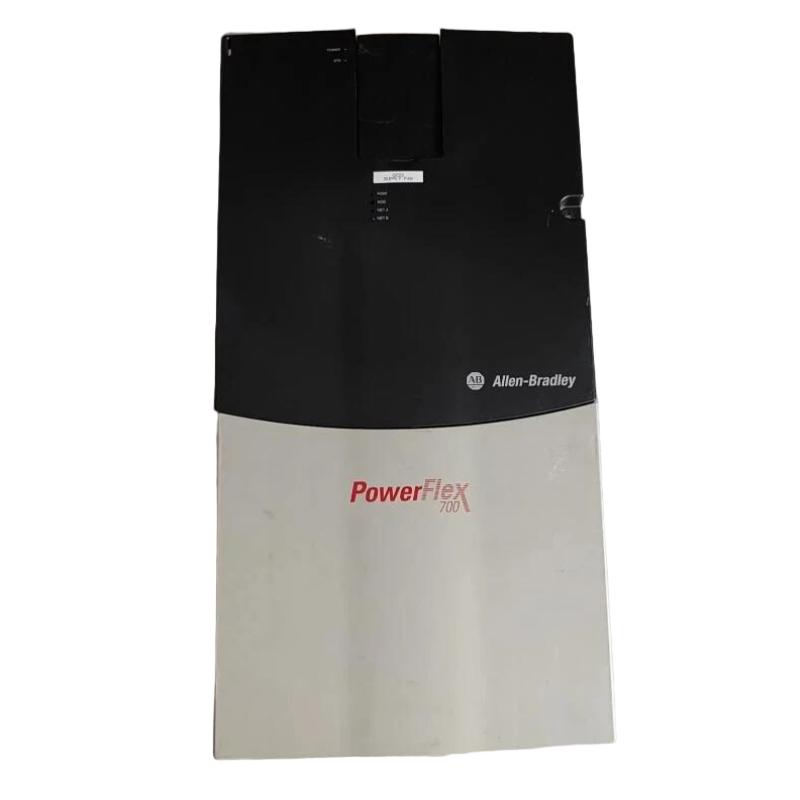

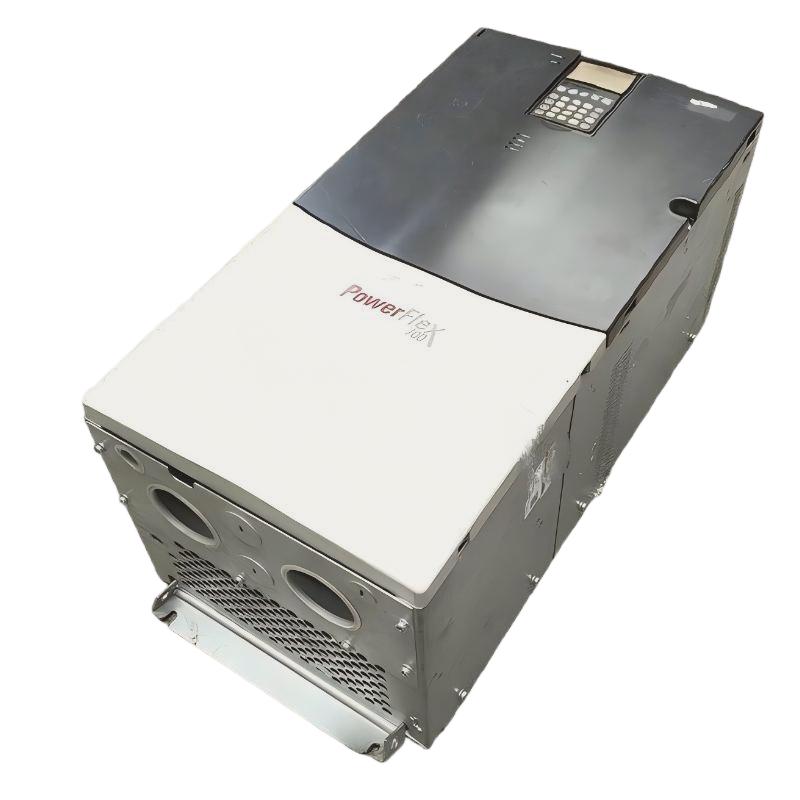

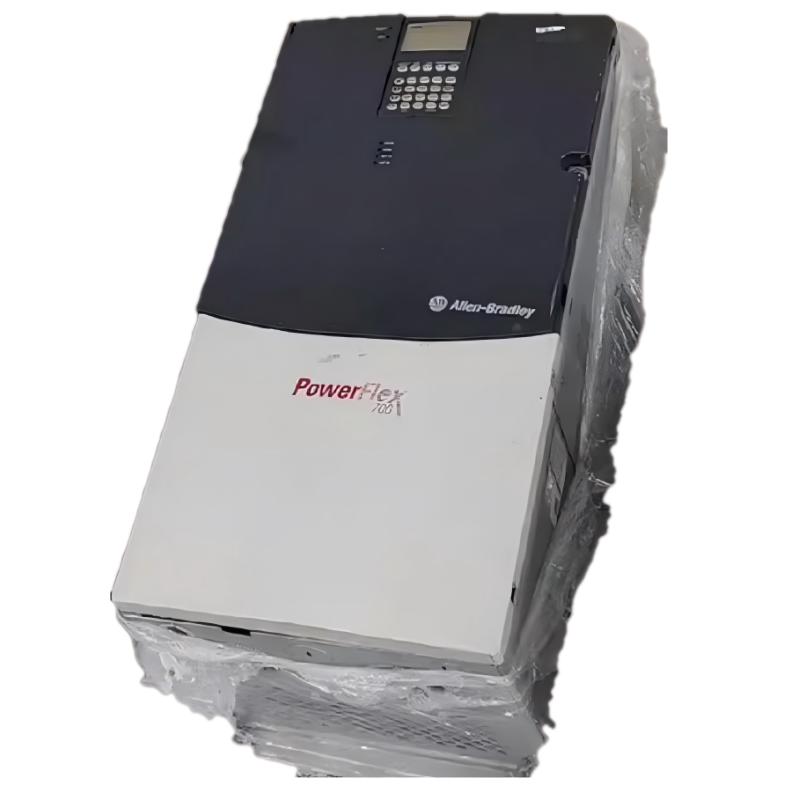

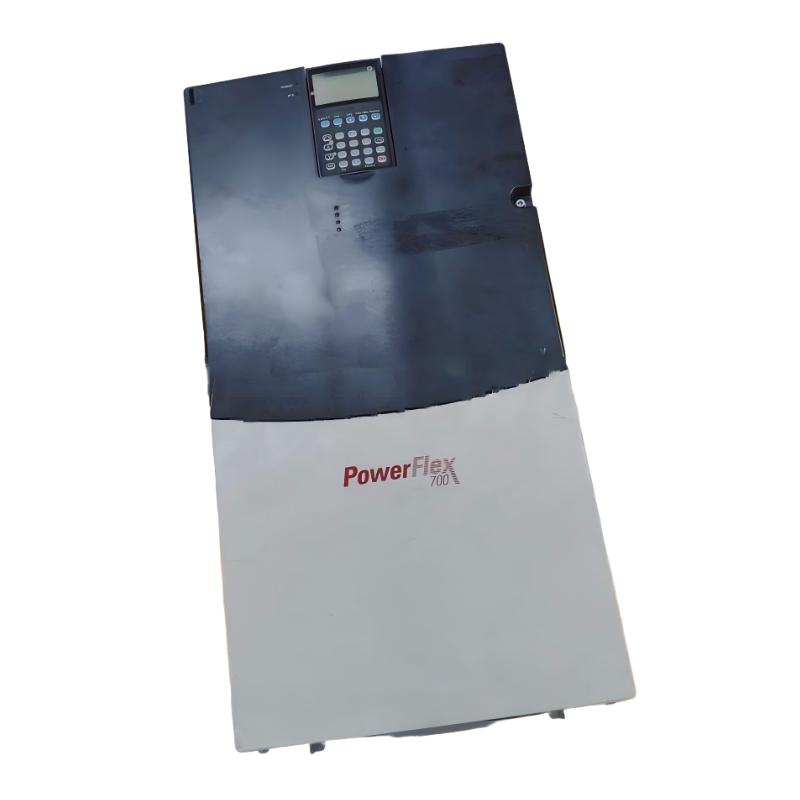

Allen Bradley 20BC105A3ANNANC0 PowerFlex 700 AC Drive

Industrial Applications

The Allen Bradley 20BC105A3ANNANC0 PowerFlex 700 AC Drive is an industrial variable-frequency drive designed for demanding motor-control applications. As part of the PowerFlex 700 family, it is suited to machinery and production systems where controlled motor speed, acceleration, deceleration, and torque performance are important to overall process stability.

This drive can be considered for applications such as conveyors, pumps, fans, compressors, material-handling equipment, machine tools, mixers, and general-purpose industrial machinery. Its integration into an Allen Bradley automation architecture also makes it a practical choice for facilities using Rockwell Automation control platforms.

For OEMs and system integrators, the PowerFlex 700 platform provides a proven approach to adjustable-speed motor control. For maintenance teams, the 20BC105A3ANNANC0 can be particularly valuable when servicing existing PowerFlex installations and maintaining an established drive architecture.

Typical application areas include:

• Industrial conveyor systems
• Pump and fan applications
• Material-handling machinery
• Manufacturing and process equipment
• Machine automation
• Packaging and production machinery
• Industrial motor-speed control
• PowerFlex 700 replacement projects
• Factory maintenance and refurbishment

Performance Advantages

The Allen Bradley 20BC105A3ANNANC0 is designed for industrial users who need more than simple motor starting and stopping. Variable-speed control allows machine builders to adjust motor operation to process requirements, potentially improving operating efficiency, reducing mechanical stress, and providing smoother machine behavior.

The PowerFlex 700 platform is also well suited to automation environments where the drive must operate as part of a broader control system. Its application in established Allen Bradley installations can simplify maintenance because engineers can work within a familiar drive family and control architecture.

For replacement applications, matching the complete catalog number is especially important. PowerFlex drives are available in numerous configurations and ratings, and selecting the correct version helps ensure that the electrical and application requirements of the original installation are maintained.

Key advantages include:

• Adjustable-speed AC motor control
• Designed for demanding industrial applications
• Suitable for integration with Allen Bradley automation systems
• Supports controlled acceleration and deceleration
• Helps provide consistent motor operation
• Suitable for continuous-duty industrial machinery
• Practical for OEM machine designs
• Useful for maintenance and replacement programs
• Supports modernization of established motor-control systems
• Proven PowerFlex 700 platform for industrial applications

Technical FAQs

1. What is the primary function of the Allen Bradley 20BC105A3ANNANC0?
The 20BC105A3ANNANC0 is an AC drive used to control the operating characteristics of an electric motor, including speed and acceleration, within a compatible industrial application.

2. What is the benefit of using an AC drive instead of direct-on-line starting?
An AC drive can provide controlled acceleration and deceleration and allow motor speed to be adjusted according to process requirements. This can improve machine control and reduce mechanical stress during starting and stopping.

3. Can the PowerFlex 700 be integrated into an Allen Bradley control system?
Yes. The PowerFlex 700 family is designed for industrial automation environments and can be incorporated into compatible Allen Bradley control architectures using the appropriate control and communication arrangements.

4. What should be verified before replacing a 20BC105A3ANNANC0?
Verify the motor requirements, input power, output requirements, enclosure and installation conditions, control configuration, feedback requirements where applicable, communication architecture, and the complete original catalog number.

5. What can cause an AC drive to trip during motor acceleration?
Possible causes include excessive acceleration demand, motor overload, incorrect drive parameters, supply problems, mechanical loading, motor issues, or wiring faults. Drive diagnostic information should be reviewed before changing components.

6. Why is motor parameter configuration important?
The drive uses motor-related information to control the motor correctly. Incorrect voltage, current, frequency, speed, or other relevant parameters can result in poor performance, nuisance trips, or potentially damaging operating conditions.

7. What should be checked when the motor does not start?
Check the incoming power, drive status, fault history, enable and start commands, control wiring, motor connections, programmed parameters, and any interlocks within the automation system.

8. Can an overloaded motor cause a PowerFlex drive fault?
Yes. Excessive mechanical load or incorrect motor/drive configuration can cause overcurrent or overload conditions. The mechanical system should be inspected alongside the drive's diagnostic information.

9. Is preventive maintenance important for PowerFlex drives?
Yes. Keeping the drive enclosure clean, checking cooling and ventilation, inspecting electrical connections, and monitoring fault history can help identify developing problems before they result in an unexpected production stoppage.

10. Why should the complete catalog number be matched when sourcing a replacement?
The PowerFlex 700 family includes multiple configurations with different ratings, options, and hardware characteristics. Matching the complete 20BC105A3ANNANC0 catalog number reduces the risk of selecting a drive that does not meet the original system requirements.
