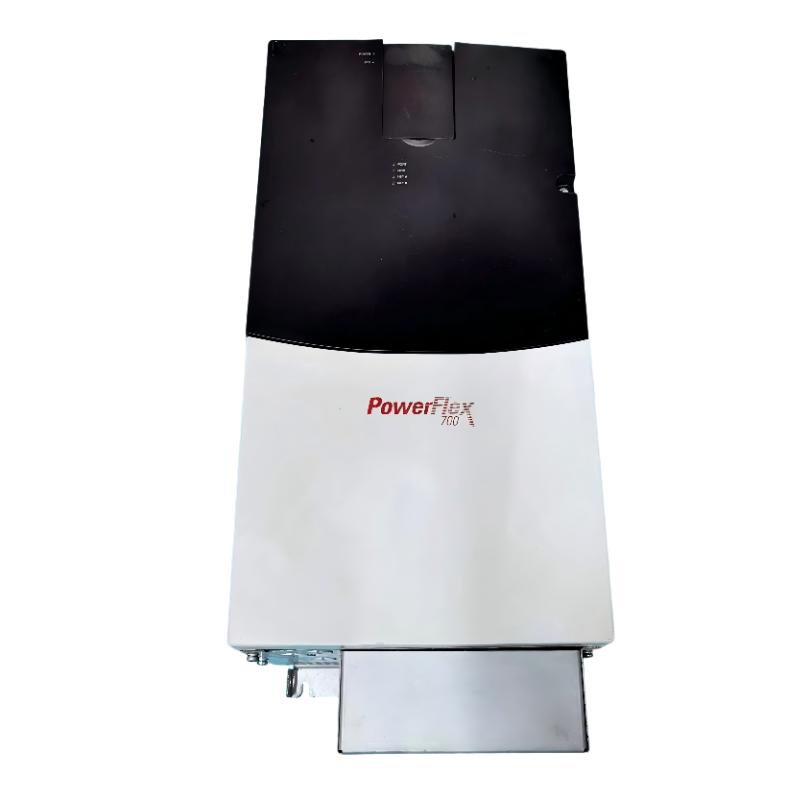

Allen Bradley 20BC105A3ANNAND0 PowerFlex 700 AC Drive

Industrial Applications

The Allen Bradley 20BC105A3ANNAND0 PowerFlex 700 AC Drive is an industrial adjustable-frequency drive designed for applications that demand controlled motor operation, dependable speed regulation, and integration with automation systems. Its PowerFlex 700 platform makes it a suitable fit for production equipment where motor performance directly affects machine productivity and process consistency.

The drive can be applied to conveyors, pumps, fans, compressors, material-handling systems, machine tools, mixers, and other industrial machinery requiring variable-speed AC motor control. It is particularly relevant to facilities already using Allen Bradley automation equipment, where maintaining a consistent drive platform can simplify engineering and service work.

For OEM machine builders, the 20BC105A3ANNAND0 provides a robust drive solution for applications requiring controlled motor acceleration, deceleration, and operating speed. For plant maintenance teams, it can also be considered as a replacement component for compatible PowerFlex 700 installations.

Common application areas include:

• Manufacturing and production machinery
• Conveyor and material-handling systems
• Pumps and industrial fans
• Compressors and rotating equipment
• Packaging machinery
• Machine-tool systems
• Process automation equipment
• Industrial motor-control panels
• PowerFlex 700 maintenance and replacement

Core Advantages

The 20BC105A3ANNAND0 is built around the PowerFlex 700 adjustable-speed drive platform, providing a flexible approach to industrial AC motor control.

Instead of operating a motor at a fixed speed, an appropriately configured drive can regulate motor operation according to the requirements of the process. This can provide smoother starting and stopping, improved machine control, and better matching between motor output and production demand.

Another advantage is its suitability for established Allen Bradley automation environments. When a production machine already uses PowerFlex drives, maintaining the same product family can make troubleshooting, spare-parts management, and technician familiarity easier.

The drive's substantial industrial form factor also reflects its use in applications requiring significant electrical and mechanical infrastructure. Proper cabinet design, cooling, mounting, and electrical protection remain essential to reliable operation.

Key advantages include:

• Adjustable-speed AC motor control
• PowerFlex 700 industrial drive platform
• Suitable for demanding automation applications
• Controlled acceleration and deceleration
• Flexible motor-speed management
• Suitable for continuous industrial operation
• Compatible with established Allen Bradley automation architectures
• Useful for OEM machine construction
• Practical for replacement and refurbishment projects
• Strong choice for industrial motor-control applications

Technical FAQs

1. What is the primary purpose of the 20BC105A3ANNAND0?
The Allen Bradley 20BC105A3ANNAND0 is an AC drive used to control an electric motor's operating characteristics, including speed and acceleration, within a compatible industrial system.

2. What is the PowerFlex 700 used for in an automation system?
The PowerFlex 700 provides adjustable-speed motor control and can operate as part of a larger automation architecture involving controllers, operator interfaces, sensors, and other industrial equipment.

3. Why use an adjustable-frequency drive for industrial motors?
An adjustable-frequency drive allows motor speed and acceleration to be controlled according to process requirements. This can improve machine behavior and reduce unnecessary mechanical stress compared with uncontrolled starting and stopping.

4. What should be checked before replacing this PowerFlex 700 drive?
Verify the motor's electrical data, incoming supply requirements, application duty, drive configuration, control method, communication requirements, enclosure arrangement, and complete catalog number.

5. What can cause an overcurrent fault during startup?
Potential causes include excessive acceleration settings, mechanical load, incorrect motor parameters, motor or cable problems, or an unsuitable drive configuration. The drive's fault information should be reviewed before making changes.

6. Why are motor parameters important when commissioning the drive?
The drive relies on accurate motor information to establish appropriate control behavior. Incorrect motor data can lead to poor torque response, excessive current, nuisance trips, or unstable operation.

7. What should technicians check if the motor will not run?
Check the drive's power status, fault condition, start and enable signals, control wiring, motor connections, programmed parameters, safety interlocks, and commands from the supervisory control system.

8. Can mechanical problems create drive faults?
Yes. A seized bearing, excessive load, blocked mechanism, or other mechanical issue can cause abnormal current demand and trigger drive protection. Electrical and mechanical causes should be investigated together.

9. How can unexpected PowerFlex drive trips be reduced?
Review the fault history, motor loading, acceleration and deceleration settings, thermal conditions, electrical connections, and motor parameters. Correctly matching the drive configuration to the actual application is also important.

10. Why is the full catalog number important when purchasing a replacement?
PowerFlex 700 drives are available in numerous configurations and option combinations. The complete 20BC105A3ANNAND0 catalog number should be matched to the original equipment to reduce compatibility and commissioning risks.
