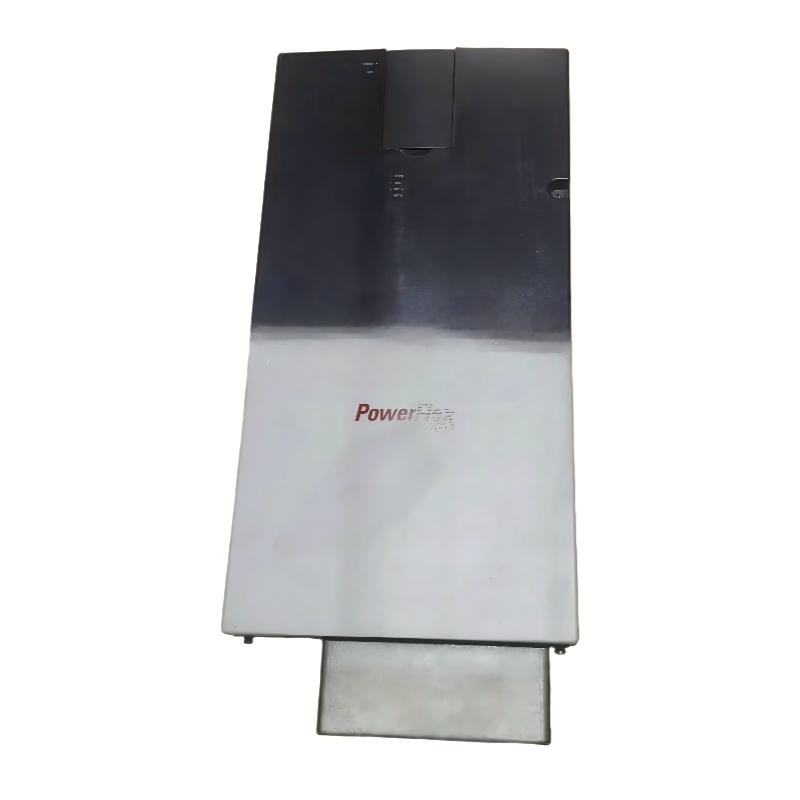

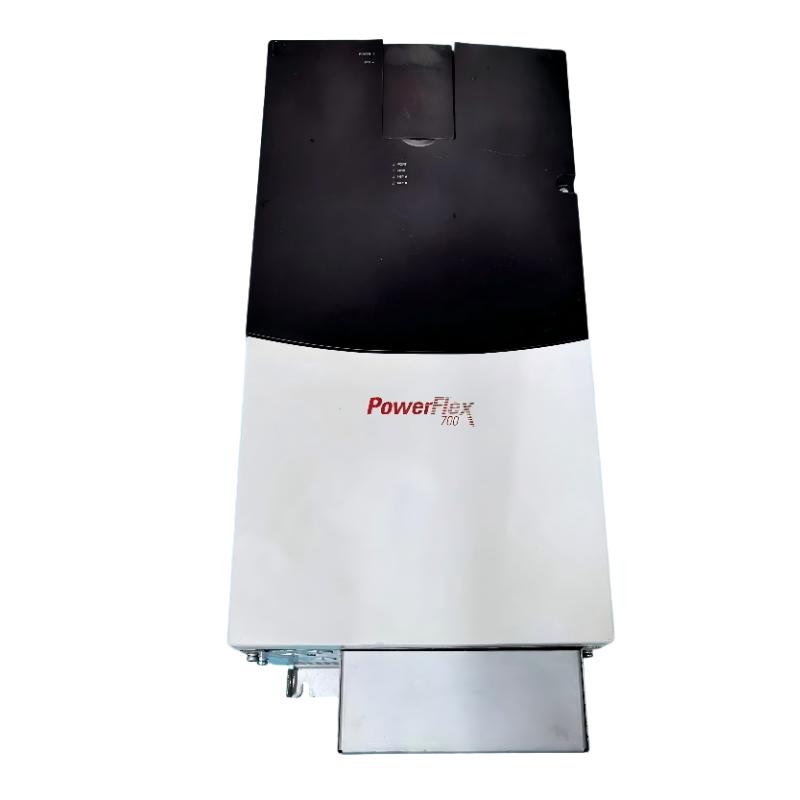

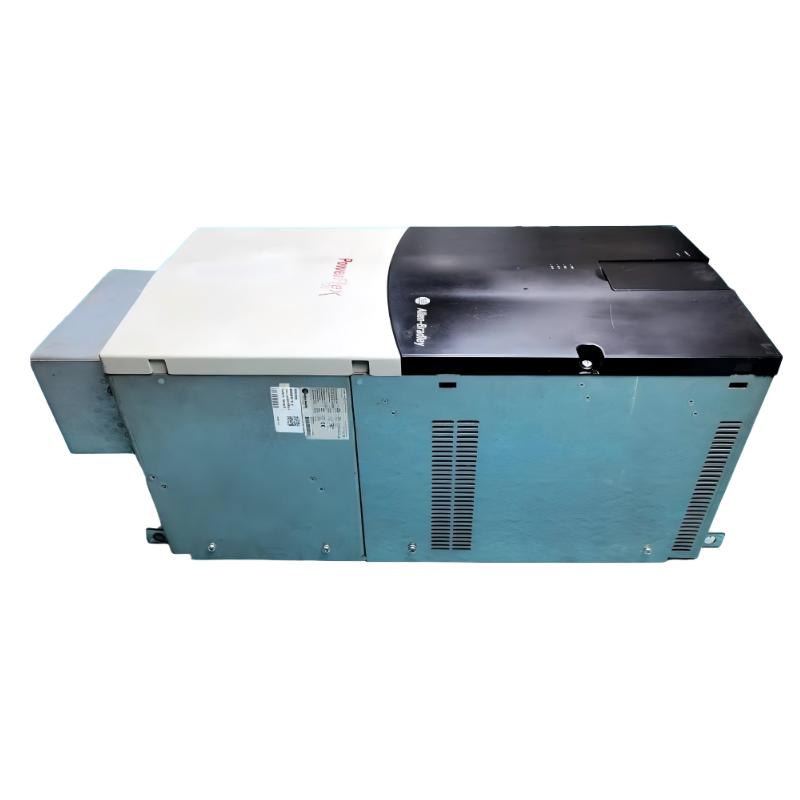

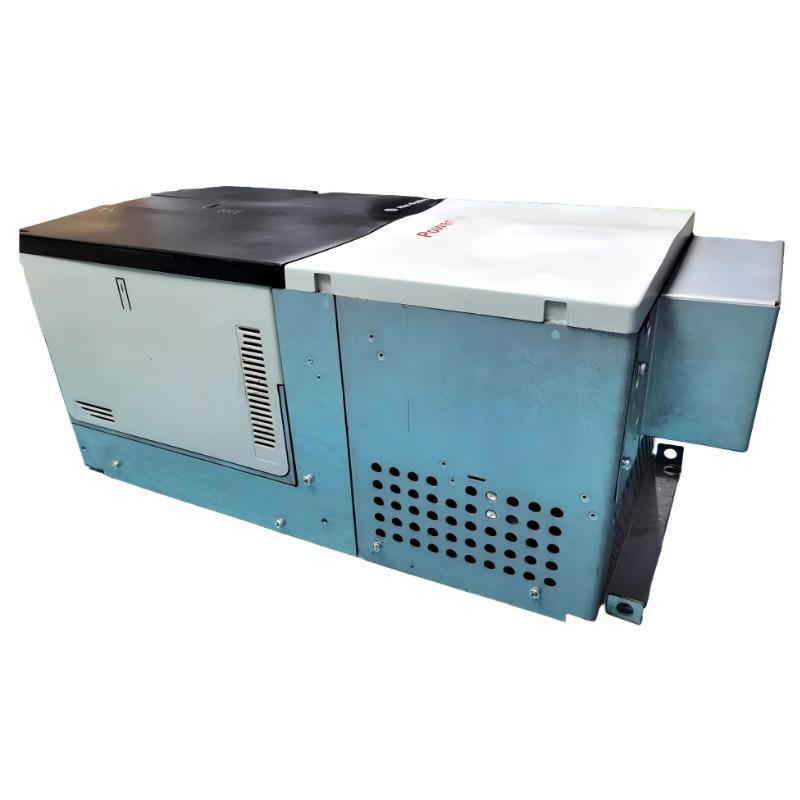

Allen Bradley 20BC125A3ANNACC0 PowerFlex 700 AC Drive

Industrial Applications

The Allen Bradley 20BC125A3ANNACC0 PowerFlex 700 AC Drive is an industrial variable-speed AC drive intended for machinery that requires controlled motor operation rather than fixed-speed starting and stopping. It can be integrated into compatible Allen Bradley automation systems where dependable motor regulation is an important part of the overall machine architecture.

The PowerFlex 700 platform is suitable for a broad range of industrial equipment, including material-handling systems, conveyors, pumps, fans, compressors, process machinery, and production equipment. By providing controlled motor operation, the drive can help equipment respond more smoothly to changing process demands.

For OEMs and system integrators, the 20BC125A3ANNACC0 can serve as a robust drive component within new or existing industrial control designs. For plant maintenance teams, its greatest value may be as a matching component for established PowerFlex 700 installations where preserving the existing control architecture is preferable to a complete drive-system redesign.

Typical applications include:

• Industrial conveyors
• Material-handling machinery
• Pumps and fluid-processing systems
• Industrial fans and ventilation equipment
• Compressors and rotating machinery
• Manufacturing and packaging equipment
• Process-control machinery
• Machine automation
• PowerFlex 700 replacement projects

Why Choose This PowerFlex 700 Drive

The 20BC125A3ANNACC0 combines adjustable-speed AC motor control with the established PowerFlex 700 platform. For industrial machinery, this means motor operation can be coordinated more closely with actual production requirements.

Controlled acceleration and deceleration are especially useful for large or heavily loaded mechanical systems. Rather than subjecting the machine to abrupt changes in motor speed, the drive can provide a more controlled transition between operating states.

Another practical advantage is platform consistency. Plants that already use Allen Bradley equipment can benefit from keeping compatible drive hardware within the same product family. This can make service procedures more familiar and simplify spare-parts planning.

For replacement work, however, the complete catalog number should always be verified. PowerFlex drives with similar physical characteristics can have different electrical or functional configurations.

Key benefits include:

• Industrial adjustable-speed AC motor control
• PowerFlex 700 drive architecture
• Controlled motor acceleration and deceleration
• Flexible speed regulation
• Suitable for demanding industrial machinery
• Well suited to Allen Bradley automation environments
• Useful for OEM machine builders
• Practical for system integration
• Suitable for drive replacement and refurbishment
• Supports established industrial control infrastructure

Technical FAQs

1. What is the Allen Bradley 20BC125A3ANNACC0 used for?
The 20BC125A3ANNACC0 is a PowerFlex 700 AC Drive used to control compatible industrial AC motors with adjustable-speed operation.

2. What is the role of a variable-frequency drive in an automation system?
The drive controls the electrical power delivered to the motor so that motor speed, acceleration, and deceleration can be managed according to the requirements of the machine.

3. Can this drive be used with an Allen Bradley PLC?
It can be incorporated into a compatible Allen Bradley automation architecture. The exact control method and communication arrangement depend on the machine design and installed options.

4. What should be checked before commissioning the drive?
Check the incoming electrical supply, motor nameplate information, motor connections, drive configuration, control wiring, command signals, programmed parameters, protective settings, and communication configuration.

5. Why can an incorrect motor parameter cause drive faults?
The drive uses motor data to establish its control behavior. Incorrect values can produce excessive current, poor torque response, unstable operation, or nuisance protective trips.

6. What can cause a drive to trip on overcurrent?
Possible causes include excessive mechanical load, acceleration that is too aggressive, incorrect motor data, motor or cable faults, mechanical binding, or an unsuitable drive configuration.

7. What should be checked when the motor runs but cannot reach the commanded speed?
Inspect the active speed reference, control mode, current limits, load conditions, motor parameters, acceleration settings, and any active limiting or protective functions.

8. Why might a drive trip during deceleration?
A rapid reduction in motor speed can produce regenerative energy. Excessive regeneration, unsuitable deceleration settings, or problems with the braking arrangement can contribute to DC-bus overvoltage conditions.

9. Can poor cooling affect PowerFlex drive performance?
Yes. Restricted airflow, excessive ambient temperature, blocked ventilation paths, or cooling-system problems can increase thermal stress and potentially cause protective trips.

10. What is the most important identification detail when replacing this drive?
The complete catalog number 20BC125A3ANNACC0 should be matched against the original equipment requirements. Family-level identification alone is not sufficient because PowerFlex 700 configurations vary.
