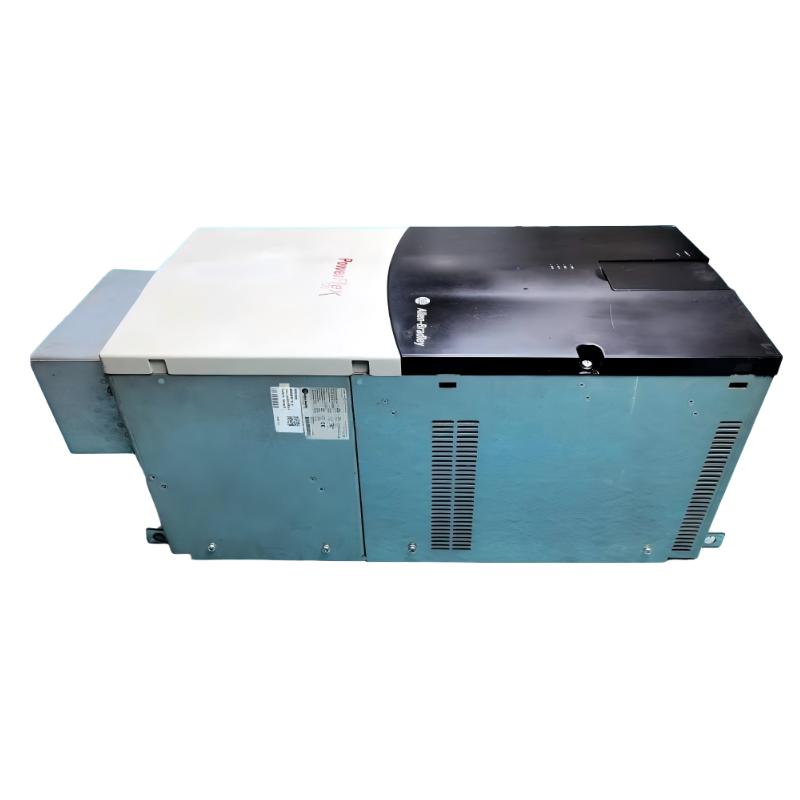

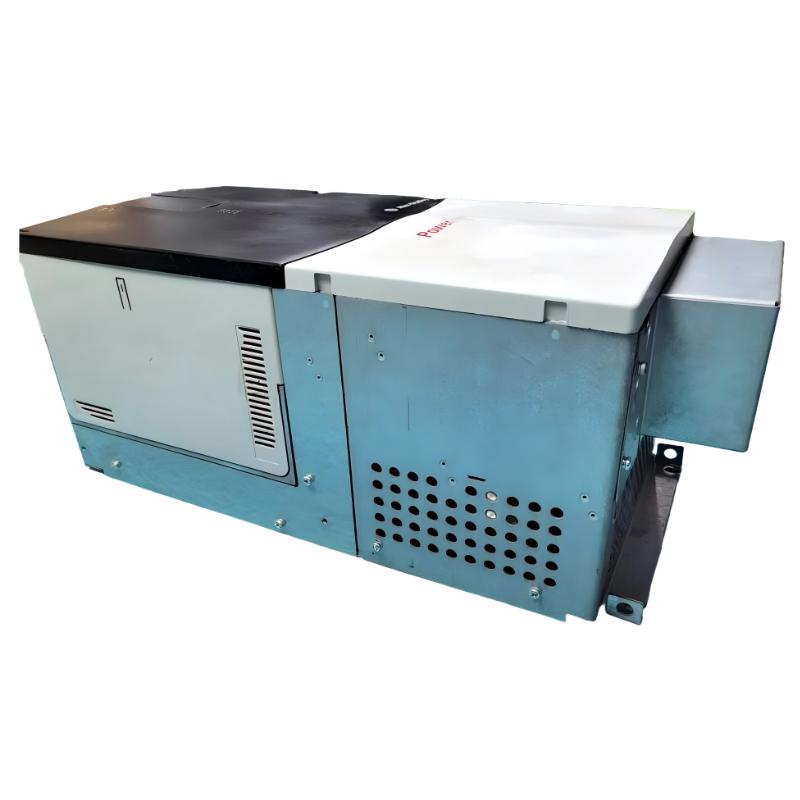

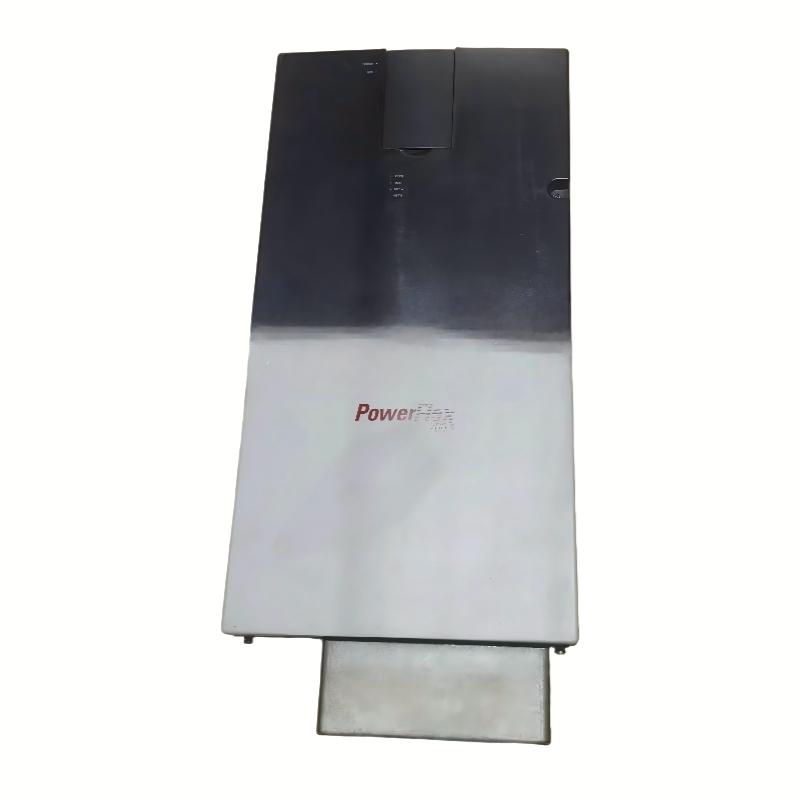

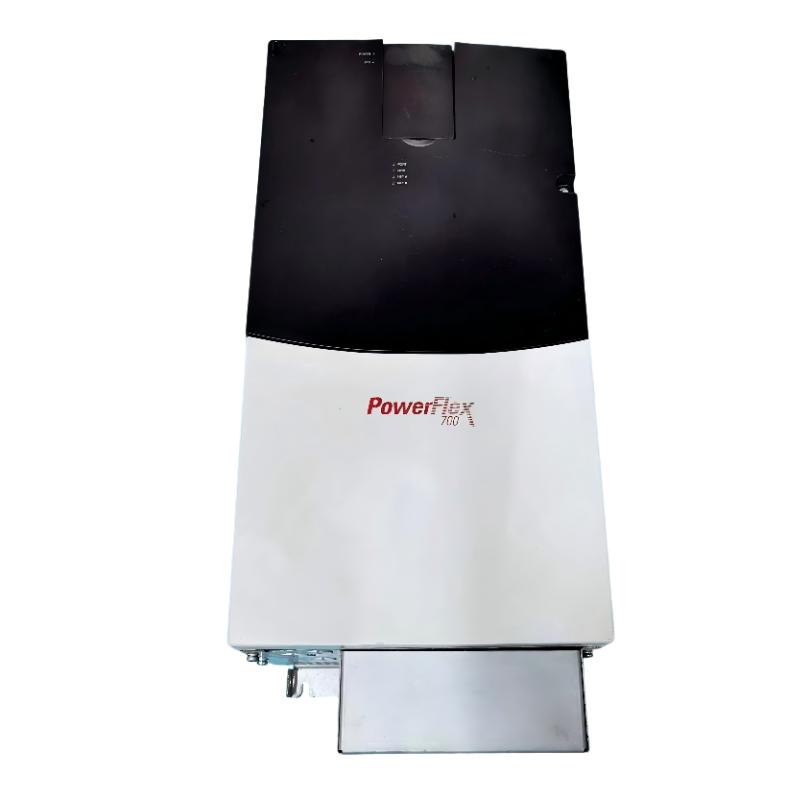

Allen Bradley 20BC125A3ANNANA0 PowerFlex 700 AC Drive

Industrial Applications

The Allen Bradley 20BC125A3ANNANA0 PowerFlex 700 AC Drive is an industrial AC motor drive intended for applications requiring dependable variable-speed operation and controlled motor performance. It is suited to machinery where speed, acceleration, deceleration, and load response need to be managed as part of the overall automation strategy.

The drive can be applied across manufacturing, material handling, process equipment, and general industrial machinery. Typical installations may include conveyors, pumps, fans, compressors, mixers, and production machines that use compatible AC motors.

For system integrators and OEMs, the PowerFlex 700 platform offers a practical way to incorporate adjustable-speed motor control into larger Allen Bradley automation systems. For maintenance teams, the 20BC125A3ANNANA0 is particularly relevant when an existing PowerFlex installation requires a matching replacement.

Common application areas include:

• Conveyor and material-handling systems
• Manufacturing machinery
• Pumps and process equipment
• Industrial fans
• Compressors and rotating machinery
• Packaging equipment
• Process automation
• Machine-building applications
• Industrial drive replacement projects

Engineering and Performance Benefits

The 20BC125A3ANNANA0 provides adjustable-speed control that allows motor operation to be matched to the requirements of the machine. This can be especially useful where fixed-speed operation would limit process flexibility or create unnecessary mechanical loading.

Controlled acceleration and deceleration can contribute to smoother machine behavior, while adjustable motor speed gives engineers greater control over production processes. For large industrial equipment, these characteristics can be important for maintaining stable operation throughout changing load conditions.

The PowerFlex 700 family also offers an advantage for facilities already using Allen Bradley automation hardware. Keeping the drive within an established platform can reduce the learning curve for maintenance personnel and make replacement planning more straightforward.

Key advantages include:

• Adjustable-speed AC motor control
• PowerFlex 700 industrial drive platform
• Controlled acceleration and deceleration
• Flexible motor-speed regulation
• Suitable for demanding industrial machinery
• Designed for integration into automation systems
• Useful for OEM machine applications
• Practical for system-integrator projects
• Suitable for maintenance and refurbishment
• Supports continued operation of established PowerFlex systems

Technical FAQs

1. What is the Allen Bradley 20BC125A3ANNANA0?
The 20BC125A3ANNANA0 is a PowerFlex 700 AC Drive designed to provide adjustable-speed control for compatible industrial motors.

2. What is the main benefit of using this type of AC drive?
It allows motor speed and operating behavior to be controlled according to the process, providing greater flexibility than fixed-speed motor operation.

3. Can the 20BC125A3ANNANA0 be used with Allen Bradley controllers?
It can be incorporated into compatible Allen Bradley automation systems. The specific control and communication method should be determined from the complete system architecture.

4. What information is needed before commissioning the drive?
Technicians should verify the motor nameplate data, incoming power requirements, motor connections, control signals, application parameters, protection settings, and any required communication configuration.

5. What can cause an overcurrent trip?
Possible causes include excessive motor load, overly aggressive acceleration, incorrect motor parameters, motor or cable problems, mechanical binding, or an unsuitable drive configuration.

6. Why can a motor run unevenly after a drive replacement?
Incorrect motor parameters, unsuitable control settings, feedback problems where applicable, wiring issues, or mechanical conditions can all affect motor behavior after replacement.

7. What should be checked if the drive powers up but does not accept a start command?
Check active faults, enable conditions, start/stop signals, control-source selection, digital inputs, interlocks, and commands from the connected automation controller.

8. What can cause an overvoltage fault during deceleration?
When the motor decelerates, regenerative energy can increase the drive's DC-bus voltage. Excessive deceleration, high-inertia loads, or an unsuitable braking arrangement can contribute to this condition.

9. How can repeated drive trips be diagnosed effectively?
Start with the drive's fault history and operating conditions. Then inspect motor loading, electrical connections, cooling, programmed parameters, control commands, and the driven mechanical system.

10. Why should the complete catalog number be confirmed before replacement?
PowerFlex 700 drives are available in different configurations. Confirming 20BC125A3ANNANA0 helps ensure that the replacement corresponds to the required hardware configuration rather than simply matching the product family.
