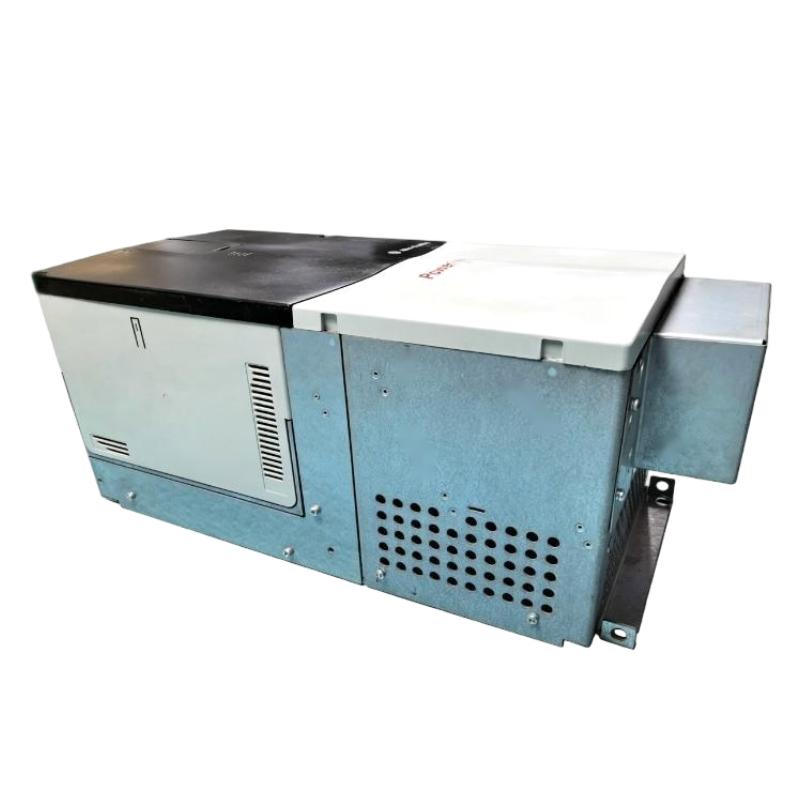

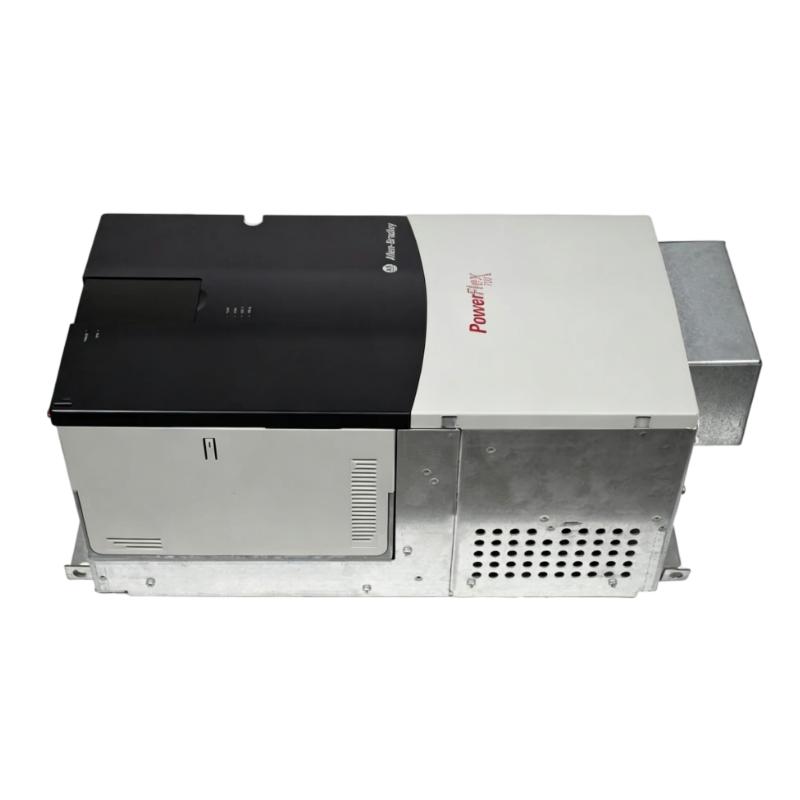

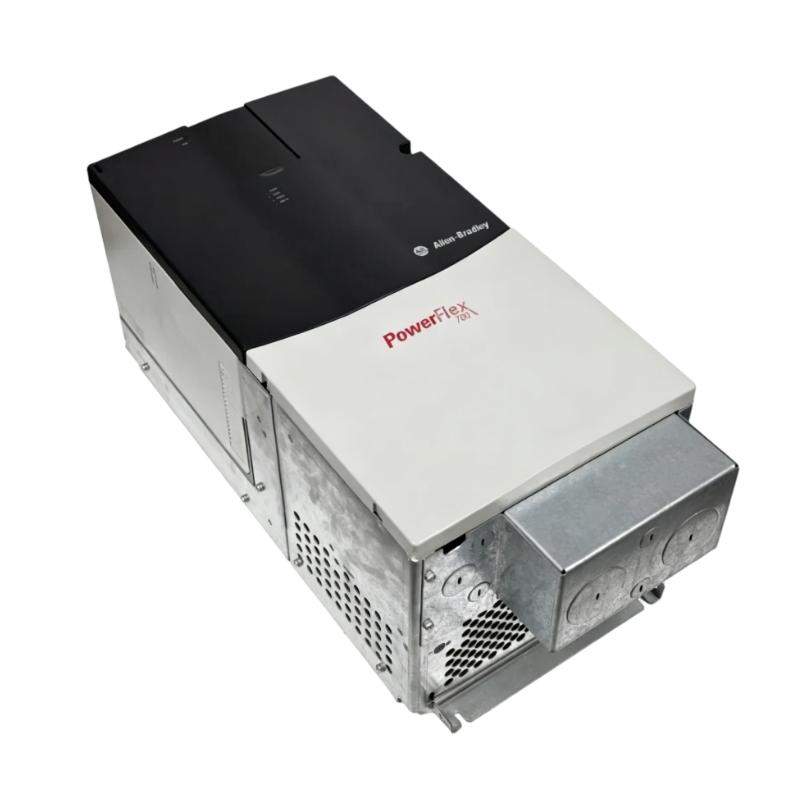

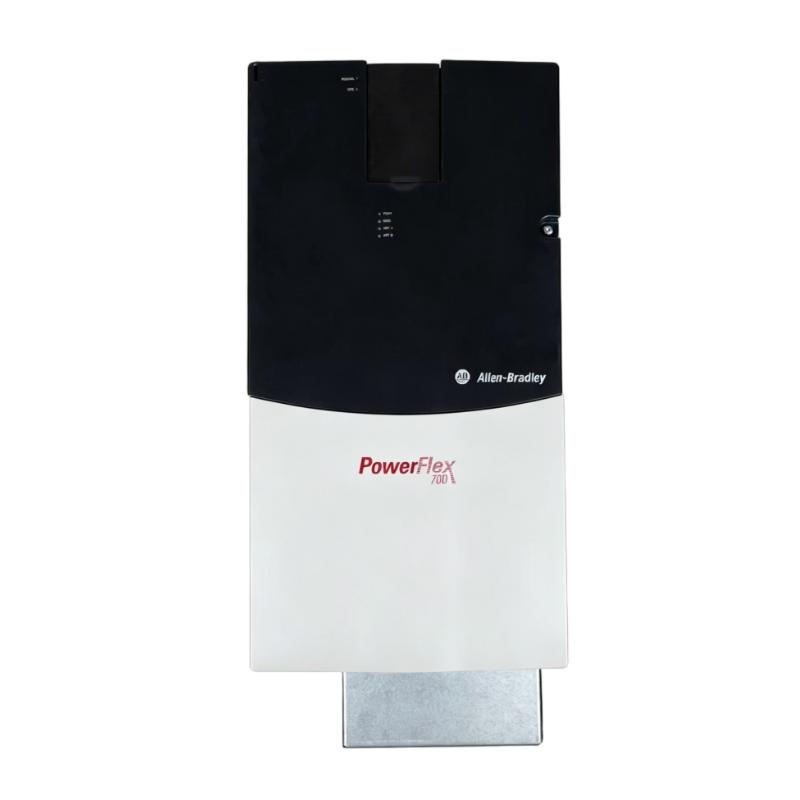

Allen Bradley 20BC140A0ANNANC0 PowerFlex 700 AC Drive

Industrial Applications

The Allen Bradley 20BC140A0ANNANC0 PowerFlex 700 AC Drive is an industrial adjustable-speed drive intended for applications where dependable AC motor control is essential to machine performance. It is designed for systems that require controlled motor speed, smooth acceleration and deceleration, and stable operation as production conditions change.

The drive is a suitable consideration for heavy-duty manufacturing equipment, conveyors, pumps, fans, compressors, material-handling systems, and process machinery using compatible AC motors. Its position within the PowerFlex 700 family also makes it practical for facilities that already operate Allen Bradley drive and control equipment.

For OEMs, the 20BC140A0ANNANC0 can provide a solid foundation for variable-speed motor applications. For plant engineers and maintenance teams, it can be particularly useful when servicing an existing PowerFlex 700 installation and maintaining a familiar automation platform.

Typical applications include:

• Heavy-duty conveyor systems
• Manufacturing and production lines
• Pumps and process equipment
• Industrial fans and ventilation systems
• Compressors and rotating machinery
• Material-handling equipment
• Packaging and processing machinery
• Machine automation
• Industrial motor-control systems

Drive Performance Advantages

The 20BC140A0ANNANC0 is designed for applications in which motor operation needs to be actively managed rather than simply switched on and off. Adjustable-speed control allows the motor to respond more closely to the requirements of the machine and process.

Controlled acceleration can reduce sudden mechanical loading during startup, while controlled deceleration can provide a smoother transition when equipment stops or changes operating conditions. Adjustable motor speed can also give operators and control engineers greater flexibility when production requirements vary.

For facilities standardized on Allen Bradley equipment, the PowerFlex 700 platform offers an additional practical benefit. Maintenance personnel can continue working with a familiar drive family, while spare-parts and service procedures can remain consistent across compatible installations.

Key advantages include:

• Adjustable-speed AC motor control
• PowerFlex 700 industrial drive platform
• Controlled acceleration and deceleration
• Flexible speed regulation
• Suitable for demanding industrial machinery
• Integration into compatible Allen Bradley automation systems
• Practical for OEM machine designs
• Useful for industrial system integration
• Suitable for maintenance and refurbishment
• Supports established motor-control architectures

Technical FAQs

1. What is the Allen Bradley 20BC140A0ANNANC0 used for?
The 20BC140A0ANNANC0 is a PowerFlex 700 AC Drive used to provide adjustable-speed control for compatible industrial AC motors.

2. What types of equipment can use this PowerFlex drive?
Suitable applications can include conveyors, pumps, fans, compressors, material-handling systems, process machinery, and other industrial equipment when the drive and motor requirements are properly matched.

3. Why use an AC drive instead of fixed-speed motor operation?
An AC drive allows motor speed and acceleration to be controlled according to process requirements. This can provide smoother machine operation and greater flexibility.

4. Can the 20BC140A0ANNANC0 work with an Allen Bradley PLC?
It can be integrated into a compatible Allen Bradley automation architecture. The exact control method depends on the system design, installed options, and communication requirements.

5. What should be checked before commissioning the drive?
Verify the incoming power, motor nameplate information, motor connections, drive configuration, control signals, application parameters, protective settings, and communication configuration.

6. What could cause an overcurrent fault?
Possible causes include excessive mechanical loading, overly aggressive acceleration, incorrect motor parameters, motor or cable faults, mechanical binding, or inappropriate drive configuration.

7. Why might the motor fail to reach its commanded speed?
Possible causes include excessive load, incorrect speed-reference settings, current limiting, incorrect motor data, control-mode configuration, or mechanical problems in the driven equipment.

8. What can cause an overvoltage fault while stopping the motor?
During deceleration, regenerative energy can raise the drive's DC-bus voltage. High-inertia loads, rapid deceleration, or an unsuitable braking arrangement can contribute to this condition.

9. What maintenance checks can help improve drive reliability?
Inspect cooling airflow, cabinet cleanliness, electrical connections, motor cables, operating temperature, and fault history. Abnormal noise, heat, or recurring faults should be investigated promptly.

10. Why should the complete catalog number be verified before replacement?
PowerFlex 700 drives are available in different configurations. Confirming 20BC140A0ANNANC0 helps ensure that the replacement corresponds to the required hardware and application configuration.
