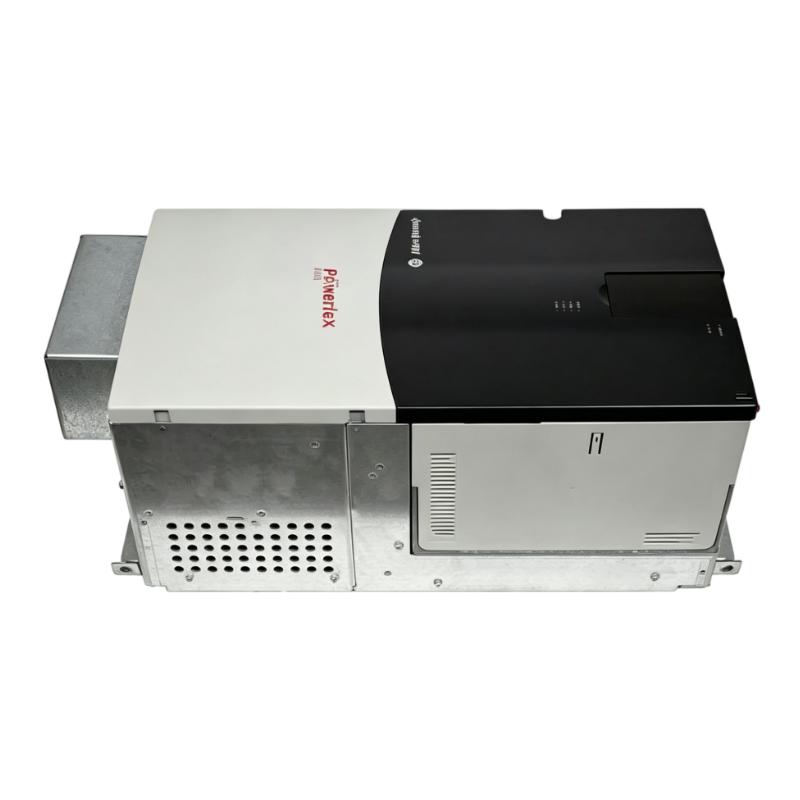

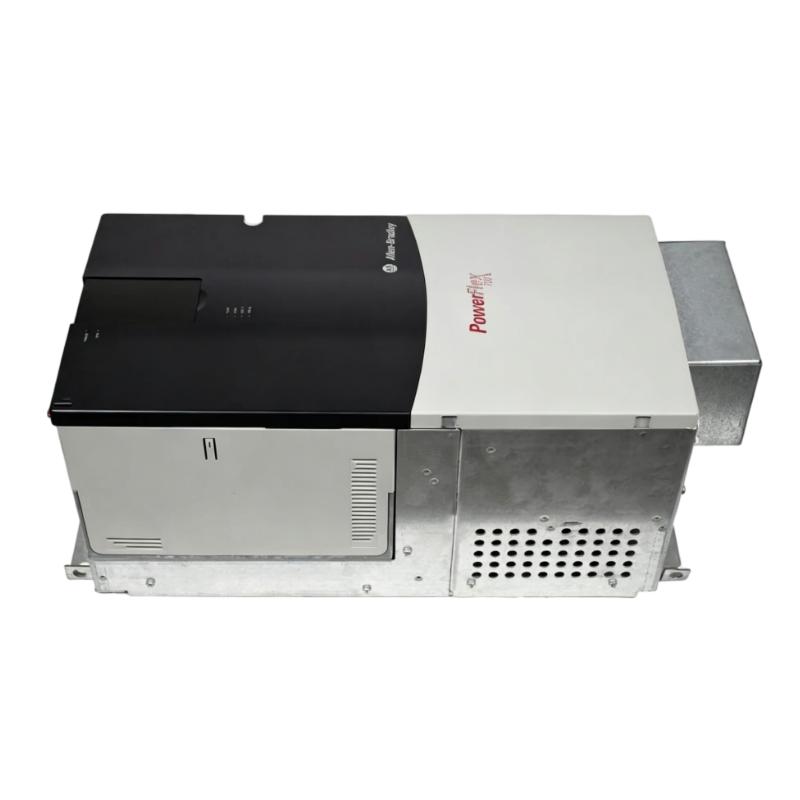

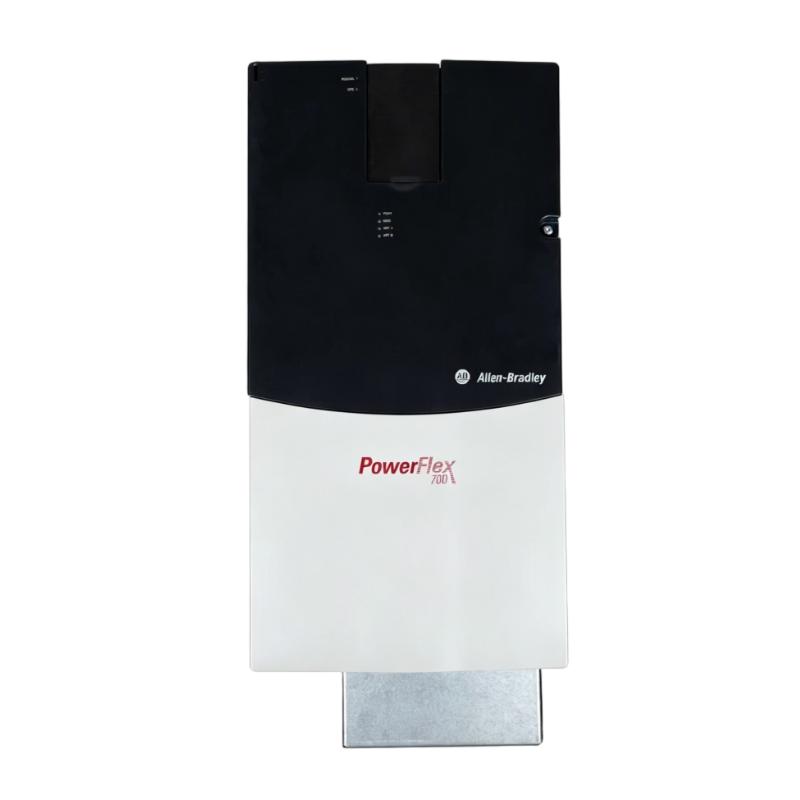

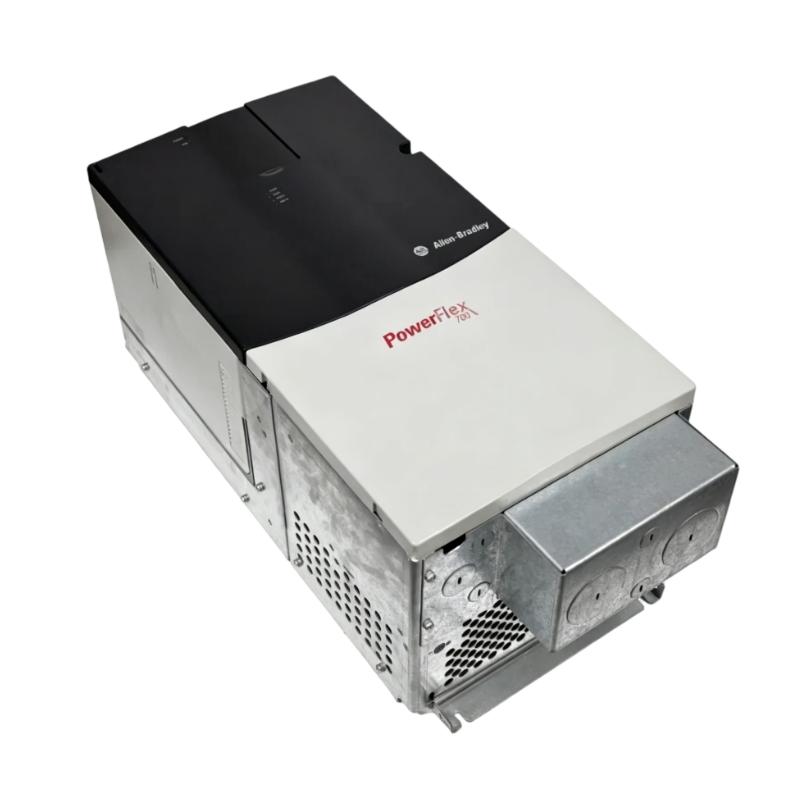

Allen Bradley 20BC140A0ANNAND0 PowerFlex 700 AC Drive
Allen Bradley 20BC140A0ANNAND0 PowerFlex 700 AC Drive
0.0
Points
Brand:Allen Bradley PLC Item No.:20BC140A0ANNAND0 Product Origin:USA Product Dimensions:689.6 x 308.9 x 275.4 mm Product Weight:37.19 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen Bradley 20BC140A0ANNAND0 PowerFlex 700 AC Drive is an industrial motor-control component designed for applications where adjustable-speed operation contributes directly to machine performance.
Industrial production equipment rarely operates under identical conditions throughout an entire cycle. Conveyor speeds may change with production requirements, pumps may need to adapt to process demand, and heavy machinery may require gradual acceleration to prevent unnecessary mechanical loading. A properly configured AC drive provides the control needed to manage these situations.
The PowerFlex 700 family is designed for industrial automation applications and can form part of a larger control architecture. Depending on the installation, the drive can operate alongside controllers, HMIs, sensors, and other automation equipment to coordinate motor operation with machine functions.
For maintenance departments, the 20BC140A0ANNAND0 can also be valuable in PowerFlex 700 refurbishment projects. Retaining the established drive family can reduce engineering changes and allow technicians to work within a familiar control environment.
Part-number verification is particularly important during replacement. PowerFlex products can share similar physical characteristics while differing in configuration. The complete 20BC140A0ANNAND0 catalog number should therefore be checked against the original unit and application requirements.
The drive measures 689.6 × 308.9 × 275.4 mm and weighs 37.19 kg, so installation planning should account for cabinet structure, mechanical support, safe handling, ventilation, electrical clearance, and service access.
For industrial operators, OEMs, and system integrators, the 20BC140A0ANNAND0 offers a substantial PowerFlex 700 platform for compatible variable-speed AC motor applications.
Technical Specifications
Parameter
Specification
Brand
Allen Bradley
Model / Catalog Number
20BC140A0ANNAND0
Product Family
PowerFlex 700
Product Type
AC Drive
Primary Function
Adjustable-speed AC motor control
Application
Industrial automation and motor control
Installation
Industrial control cabinet / electrical enclosure
Dimensions
689.6 × 308.9 × 275.4 mm
Weight
37.19 kg (82.00 lb)
The Allen Bradley 20BC140A0ANNAND0 measures 689.6 × 308.9 × 275.4 mm and weighs 37.19 kg (82.00 lb). Its substantial physical footprint requires appropriate cabinet support and installation planning, including adequate ventilation and maintenance clearance.
Recommended Related Models
The following Allen Bradley models may be relevant when evaluating related PowerFlex drives for replacement or expansion:
Model
Product Type
Allen Bradley 20BC140A0ANNANC0
PowerFlex 700 AC Drive
Allen Bradley 20BC125A0ANNANC0
PowerFlex 700 AC Drive
Allen Bradley 20BC125A0ANNANA0
PowerFlex 700 AC Drive
Allen Bradley 20BC125A3ANNANC0
PowerFlex 700 AC Drive
Allen Bradley 20BC105A3ANNAND0
PowerFlex 700 AC Drive
These models are related PowerFlex configurations, but compatibility should always be confirmed from the motor requirements, electrical ratings, configuration, control architecture, and original equipment specifications.
Popular Related Models
Model
Product Type
Allen Bradley 20BC140A0ANNAND0
PowerFlex 700 AC Drive
Allen Bradley 20BC140A0ANNANC0
PowerFlex 700 AC Drive
Allen Bradley 20BC125A0ANNANC0
PowerFlex 700 AC Drive
Allen Bradley 20BC125A3ANNANC0
PowerFlex 700 AC Drive
Allen Bradley 20F11NC2P1JA0NNNNN
PowerFlex 753 AC Drive
Industrial Applications
The Allen Bradley 20BC140A0ANNAND0 PowerFlex 700 AC Drive is an industrial AC drive designed for demanding variable-speed motor applications. It provides a practical control solution for machinery where motor speed, acceleration, and deceleration need to be coordinated with the production process.
As part of the PowerFlex 700 family, this drive is suitable for industrial automation environments that use compatible Allen Bradley control equipment. It can be considered for conveyors, pumps, fans, compressors, material-handling systems, process machinery, and other equipment requiring controlled AC motor operation.
The 20BC140A0ANNAND0 is also a useful option for maintenance and refurbishment projects. Where an existing PowerFlex 700 installation remains appropriate for the application, selecting a correctly matched drive can help preserve the existing machine architecture without unnecessary redesign.
Typical application areas include:
Heavy-duty conveyor equipment
Manufacturing and production machinery
Pumps and fluid-processing systems
Industrial fans and ventilation equipment
Compressors and rotating machinery
Material-handling systems
Packaging machinery
Process automation equipment
Industrial motor-control cabinets
Built for Controlled Motor Operation
The 20BC140A0ANNAND0 is intended for applications where motor control has a direct impact on machine performance. Adjustable-speed operation allows the motor to respond to production requirements instead of remaining locked to a single operating speed.
For machinery with substantial mechanical inertia, controlled acceleration and deceleration can help provide smoother transitions between operating states. Adjustable speed can also give engineers greater flexibility when production rates, process loads, or machine conditions change.
The PowerFlex 700 platform is another advantage for plants that already operate Allen Bradley drive systems. Familiar hardware and control concepts can make maintenance work more efficient and reduce the learning curve for service personnel.
Key advantages include:
Adjustable-speed AC motor control
PowerFlex 700 industrial platform
Controlled acceleration and deceleration
Flexible motor-speed management
Suitable for demanding industrial machinery
Compatible with suitable Allen Bradley automation systems
Practical for OEM equipment
Suitable for industrial system integration
Useful for refurbishment and replacement
Supports established drive architectures
Technical FAQs
1. What is the Allen Bradley 20BC140A0ANNAND0?
The 20BC140A0ANNAND0 is a PowerFlex 700 AC Drive used to provide adjustable-speed control for compatible industrial AC motors.
2. What is the main purpose of a PowerFlex 700 drive?
Its primary purpose is to control motor operation according to the needs of an industrial machine, including managing speed and controlled acceleration and deceleration.
3. What applications are suitable for this type of drive?
Suitable applications can include conveyors, pumps, fans, compressors, material-handling equipment, and process machinery when the motor and drive requirements are properly matched.
4. Can this drive be integrated with an Allen Bradley PLC?
It can be incorporated into a compatible Allen Bradley automation architecture. The exact interface and communication method depend on the control system and installed configuration.
5. What should be verified before commissioning a replacement drive?
Verify the motor nameplate data, electrical supply, motor connections, drive configuration, control signals, operating parameters, protection settings, and communication requirements.
6. What are common reasons for an overcurrent fault?
An overcurrent condition can result from excessive mechanical loading, rapid acceleration, incorrect motor data, motor or cable faults, mechanical binding, or unsuitable drive settings.
7. What should be checked if the motor runs but responds incorrectly to speed commands?
Check the speed reference source, control mode, programmed limits, motor parameters, command signals, and mechanical load. Any active limiting or protection functions should also be reviewed.
8. Why can deceleration produce a DC-bus overvoltage condition?
During deceleration, the motor can return energy to the drive. High-inertia loads or excessively rapid stopping can increase DC-bus voltage beyond the acceptable operating range.
9. Does cabinet ventilation affect drive reliability?
Yes. Excessive heat, blocked airflow, or inadequate cooling can increase internal component temperatures and may result in protective trips or reduced service life.
10. Why should the exact 20BC140A0ANNAND0 catalog number be confirmed?
PowerFlex 700 products are offered in multiple configurations. The complete catalog number should be matched to the original installation to avoid selecting a drive with unsuitable electrical or functional characteristics.
