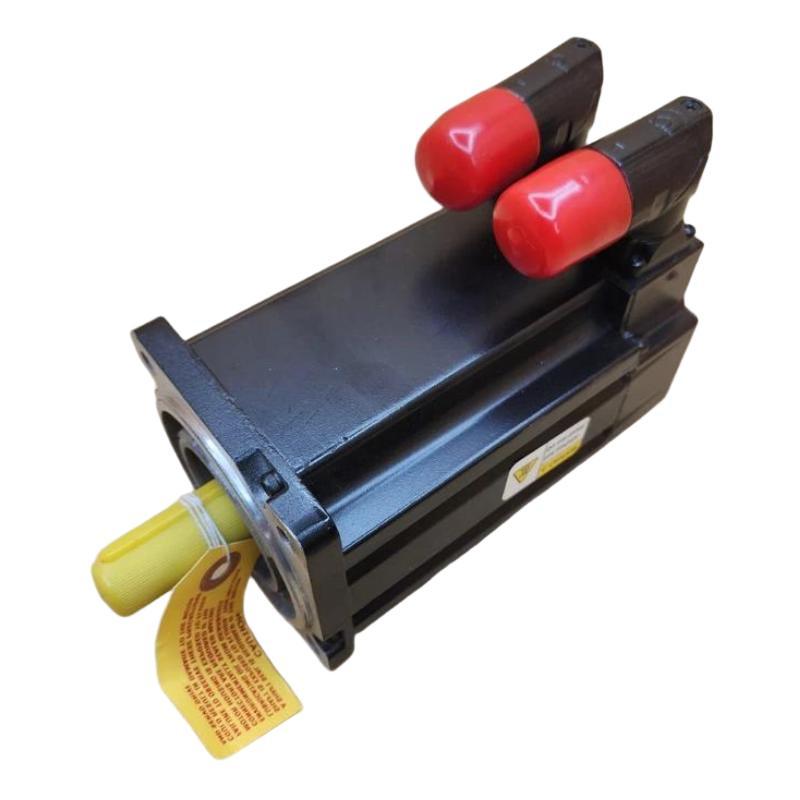

Allen Bradley MPL-A320H-HJ74AA Servo Motor

Industrial Applications

The Allen Bradley MPL-A320H-HJ74AA Servo Motor is a compact industrial servo motor designed for applications where controlled motion, repeatable positioning, and responsive machine performance are important. As part of the Allen Bradley MP-Series platform, it is well suited to automated machinery that requires coordinated motor movement rather than basic continuous-speed operation.

This servo motor can be considered for packaging machines, assembly equipment, material-handling systems, indexing mechanisms, machine tools, printing equipment, and other motion-control applications. Its compact 100 mm frame size makes it suitable for machine designs where installation space and mechanical integration need to be carefully managed.

For OEMs and system integrators, the MPL-A320H-HJ74AA offers a practical motion component for servo-based machine architectures. For maintenance teams, it is a useful replacement candidate for compatible MP-Series installations where preserving the existing mechanical and motion-control configuration is a priority.

Typical applications include:

• Automated assembly machinery
• Packaging equipment
• Precision indexing systems
• Material-handling machinery
• Machine tools
• Printing and converting equipment
• Pick-and-place mechanisms
• Production automation
• Servo-driven positioning systems

Motion Performance and Design Benefits

The MPL-A320H-HJ74AA is intended for machine builders who need responsive servo motion in a relatively compact package. Servo motors are commonly selected when the application demands coordinated movement, repeatable positioning, and controlled acceleration rather than simply maintaining a constant motor speed.

Its 100 mm frame size offers a useful balance between motor capability and installation footprint. This can be particularly valuable in compact machine modules where multiple axes, gearboxes, couplings, or other mechanical components must fit within a restricted space.

The motor is also a strong fit for Allen Bradley motion-control architectures when paired with the appropriate servo drive and feedback arrangement. Maintaining a consistent motion platform can simplify machine engineering and make service work more familiar for technicians.

Key advantages include:

• Compact 100 mm frame design
• Servo-based precision motion capability
• Suitable for automated machinery
• Responsive acceleration and deceleration
• Repeatable positioning applications
• Suitable for multi-axis machine architectures
• Practical for OEM machine construction
• Useful for motion-system refurbishment
• Compatible with suitable Allen Bradley servo-control systems
• Designed for demanding industrial motion applications

Technical FAQs

1. What is the Allen Bradley MPL-A320H-HJ74AA?
The MPL-A320H-HJ74AA is an Allen Bradley MP-Series servo motor intended for industrial motion-control applications requiring controlled and repeatable motor movement.

2. What is the difference between a servo motor and a conventional AC motor?
A servo system is designed for controlled motion and typically uses feedback to monitor motor position, speed, or other operating conditions. This makes servo technology particularly useful for positioning and coordinated motion.

3. What type of applications are suitable for the MPL-A320H-HJ74AA?
Suitable applications can include packaging, assembly, indexing, material handling, machine tools, and other automated equipment requiring controlled servo motion.

4. Can this motor be used in an Allen Bradley servo system?
Yes, it is intended for use within compatible Allen Bradley motion-control architectures. The motor must be paired with an appropriate servo drive, feedback interface, and mechanical system.

5. Why is motor-to-drive compatibility important?
The servo drive must be capable of correctly controlling the motor's electrical and feedback characteristics. Incorrect matching can result in poor motion performance, faults, or unsuitable operating conditions.

6. What should be checked if the servo motor does not rotate?
Check drive status, enable conditions, fault codes, motor wiring, feedback connections, commanded motion, mechanical restrictions, and the configuration of the motion-control system.

7. What can cause servo positioning errors?
Potential causes include incorrect tuning, mechanical backlash, coupling problems, feedback issues, excessive load, incorrect motion parameters, or unsuitable acceleration and deceleration settings.

8. Why is servo tuning important?
Tuning determines how the motion system responds to commands and disturbances. Poorly tuned parameters can cause overshoot, vibration, sluggish response, or instability.

9. What should be inspected when a servo motor overheats?
Check mechanical loading, operating duty, ambient conditions, cooling, motor current, drive parameters, and whether the motor is being operated within its intended application conditions.

10. What information should be verified before replacing an MPL-A320H-HJ74AA?
Verify the complete motor catalog number, servo-drive compatibility, feedback arrangement, mechanical mounting, shaft and coupling requirements, motor cabling, and the machine's motion parameters.
