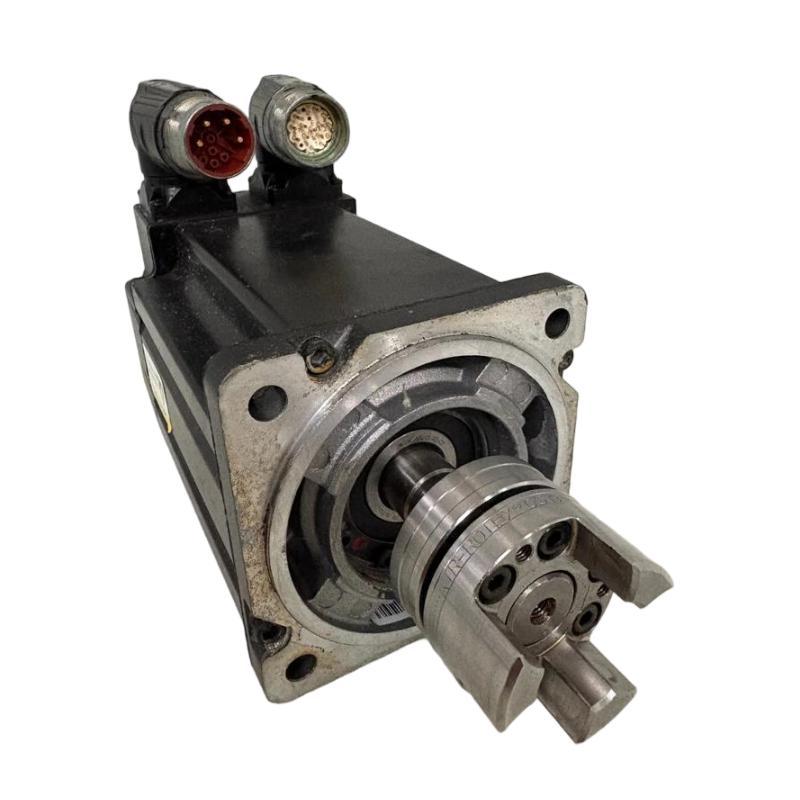

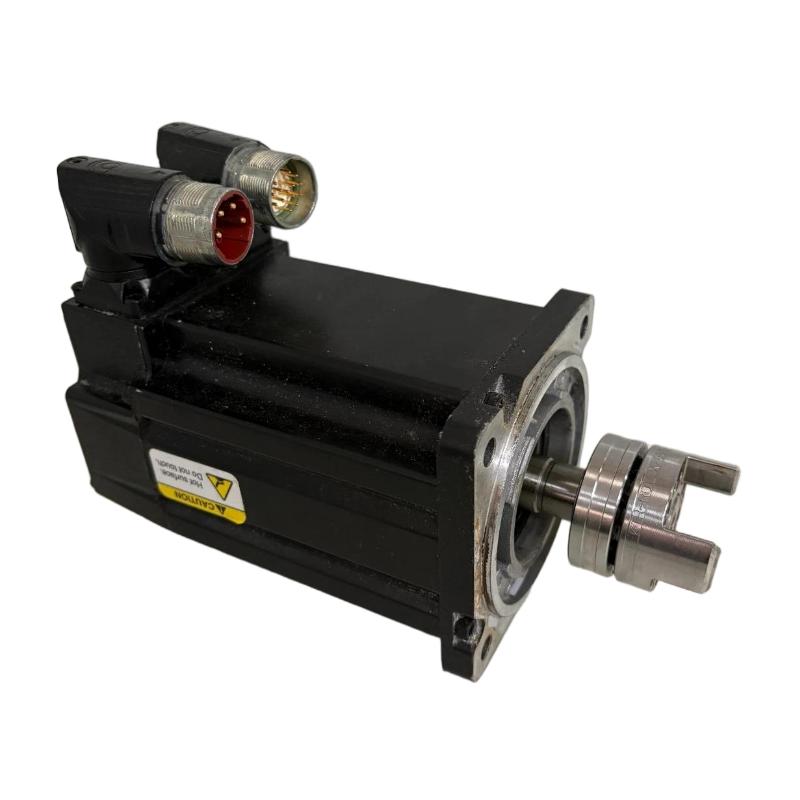

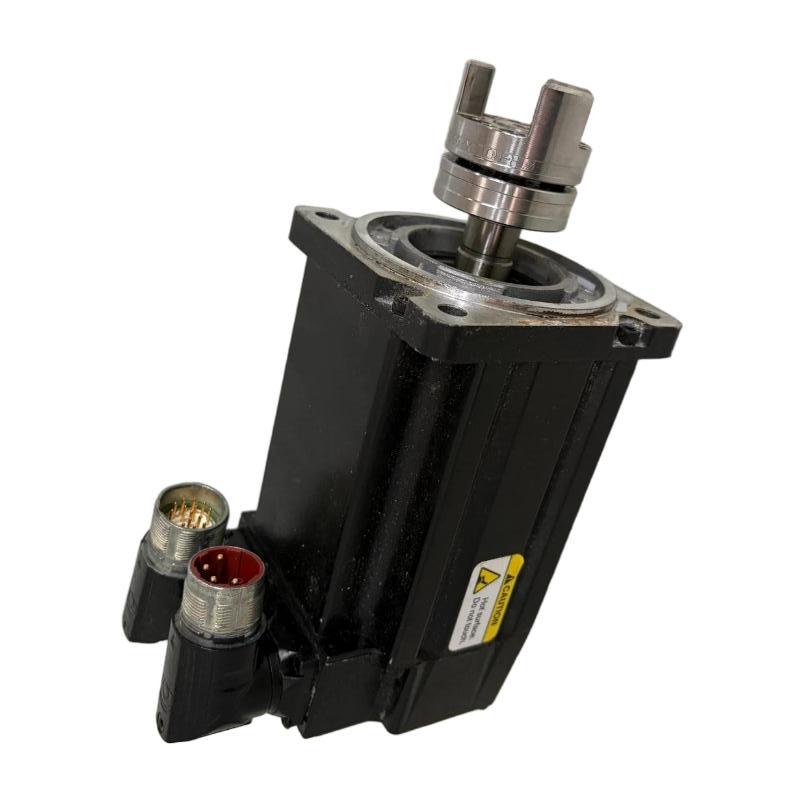

Allen Bradley MPL-A320H-HK72AA Servo Motor

Industrial Applications

The Allen Bradley MPL-A320H-HK72AA Servo Motor is a low-inertia industrial servo motor designed for precision motion applications where fast response, accurate positioning, and repeatable performance are essential. As part of the MP-Series servo motor family, it is intended for automated equipment that requires coordinated motion control rather than simple motor rotation.

With its compact 100 mm frame size, the MPL-A320H-HK72AA is suitable for machine designs where space efficiency and dynamic motion performance are both important considerations. It can be applied in packaging systems, assembly machinery, indexing equipment, material-handling systems, and other servo-driven automation platforms.

For OEM machine builders and system integrators, this servo motor provides a practical solution for developing reliable motion axes. For maintenance engineers, it is a useful replacement component for compatible Allen Bradley MP-Series installations where maintaining the original motion architecture is preferred.

Typical application areas include:

• Automated assembly equipment
• Packaging machinery
• Precision indexing systems
• Pick-and-place applications
• Material-handling equipment
• Machine tools
• Printing and converting machinery
• Semiconductor and electronics automation
• Multi-axis motion systems

Precision Motion Advantages

The MPL-A320H-HK72AA is engineered for applications where motion accuracy and response speed are critical. Unlike standard industrial motors designed mainly for continuous rotation, servo motors are optimized for controlled positioning, speed regulation, and synchronized movement.

Its low-inertia design allows the motor to respond quickly to changing motion commands, making it suitable for applications requiring frequent acceleration, deceleration, and direction changes. This characteristic is especially valuable in high-cycle automation equipment where consistent motion performance directly affects productivity.

The motor uses a 2000-line incremental encoder feedback system, helping the motion controller monitor position and speed during operation. Combined with a suitable servo drive, it can support precise machine movements in demanding industrial environments.

Key advantages include:

• Low-inertia servo motor design
• Compact 100 mm frame construction
• Suitable for precision motion applications
• Fast response to motion commands
• Encoder-based feedback capability
• Designed for automated machinery
• Suitable for multi-axis control systems
• Practical for OEM machine development
• Supports reliable motion-system maintenance
• Compatible with suitable Allen Bradley servo architectures

Technical FAQs

1. What is the Allen Bradley MPL-A320H-HK72AA used for?
The MPL-A320H-HK72AA is a servo motor designed for industrial motion-control applications requiring accurate positioning, controlled speed, and repeatable movement.

2. What makes a low-inertia servo motor different from a standard motor?
A low-inertia servo motor can accelerate and decelerate more quickly because it requires less energy to change rotational speed, making it suitable for dynamic motion applications.

3. What type of feedback does the MPL-A320H-HK72AA use?
This servo motor uses a 2000-line incremental encoder feedback system for position and motion monitoring.

4. Can this motor operate without a servo drive?
No. A servo motor requires a compatible servo drive and motion controller to provide the required electrical control, feedback processing, and positioning functions.

5. What should be checked when selecting a replacement servo motor?
Verify the complete catalog number, motor performance requirements, feedback type, connector configuration, mechanical mounting, shaft design, and compatibility with the existing servo drive.

6. Why is servo tuning important after installation?
Servo tuning adjusts the control response between the motor, drive, and mechanical system. Proper tuning helps reduce vibration, improve positioning accuracy, and achieve stable operation.

7. What can cause servo positioning errors?
Possible causes include incorrect tuning parameters, mechanical backlash, coupling problems, encoder issues, excessive load, incorrect motion settings, or external vibration.

8. Why might a servo motor generate excessive heat?
Potential causes include continuous operation beyond rated conditions, excessive mechanical load, incorrect drive settings, insufficient cooling, or improper system sizing.

9. What should be checked if the servo motor does not respond to commands?
Check drive status, enable signals, feedback connections, motor wiring, motion-controller commands, alarm codes, and mechanical restrictions.

10. Why is the exact MPL-A320H-HK72AA model number important?
MP-Series servo motors are available with different feedback devices, shaft configurations, connectors, and options. Matching the complete catalog number helps ensure proper system compatibility.
