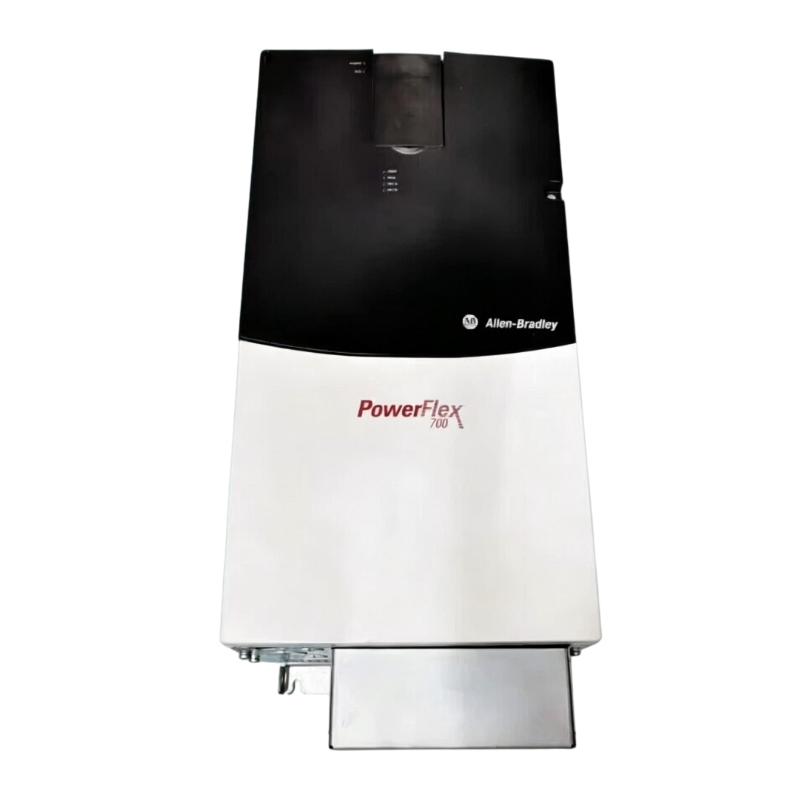

Allen Bradley 20BC170A3ANNANC0 PowerFlex 700 AC Drive

Industrial Applications

The Allen-Bradley 20BC170A3ANNANC0 PowerFlex 700 AC Drive is a large-format industrial variable frequency drive designed for demanding AC motor-control applications. It is suitable for machinery and process systems where controlled speed, smooth acceleration, dependable motor operation, and flexible automation integration are essential.

Typical applications include heavy-duty conveyors, pumps, fans, compressors, mixers, material-handling systems, machine tools, extruders, and other industrial production equipment. The ability to vary motor speed allows the drive to adapt motor operation to changing process requirements rather than relying on fixed-speed operation.

In conveyor applications, controlled acceleration can help minimize mechanical shock to belts, gearboxes, couplings, and shafts. For pumps and fans, adjustable speed can provide more precise process control. In production machinery, coordinated drive operation can also help maintain consistent machine-cycle performance.

The 20BC170A3ANNANC0 has a substantial physical format, measuring 976.3 × 403.9 × 275.5 mm and weighing 71.44 kg (157.50 lb). Its size and mass make it particularly appropriate for fixed industrial installations with properly engineered mounting structures, ventilation, electrical clearances, and service access.

For OEMs, system integrators, and industrial maintenance departments, this PowerFlex 700 drive offers a robust platform for integrating large AC motors into automated production systems.

Performance Advantages for Industrial Motor Control

The PowerFlex 700 platform is designed for applications that require considerably more control than a simple motor starter can provide. By regulating the electrical output delivered to an AC motor, the drive can control acceleration, deceleration, and operating speed according to the machine's requirements.

One major advantage is controlled acceleration. Large motors and high-inertia loads can demand substantial current during startup. A properly configured acceleration profile allows the motor to reach operating speed in a controlled manner, potentially reducing stress on the electrical system and mechanical transmission.

The drive can also provide controlled deceleration. This is particularly important when the connected equipment has significant rotating inertia. During deceleration, energy can be returned from the motor to the drive, making the braking strategy and drive configuration important factors in system design.

Variable-speed control provides additional flexibility for production equipment. A conveyor can operate at different speeds according to production stages, while pumps and fans can adjust operation according to process demand.

The PowerFlex 700 architecture also provides useful monitoring and diagnostic functions. When a machine stops unexpectedly, maintenance technicians can examine drive status and fault information together with motor and mechanical conditions to narrow down the cause.

The 20BC170A3ANNANC0 is therefore well suited to industrial installations where high-capacity AC motor control, operational flexibility, and maintainability are important.

Technical FAQs

1. What is the Allen-Bradley 20BC170A3ANNANC0?

The 20BC170A3ANNANC0 is an Allen-Bradley PowerFlex 700 AC drive designed for industrial variable-speed control of compatible AC motors.

2. What is the primary function of an AC drive?

An AC drive regulates the electrical output supplied to an AC motor, allowing the motor's speed and acceleration or deceleration behavior to be controlled according to the application.

3. Why is variable-speed operation valuable in industrial machinery?

Variable-speed operation allows the motor to run according to actual process requirements. This can improve process flexibility and provide smoother machine operation compared with fixed-speed motor control.

4. What motor information should be verified during commissioning?

The motor nameplate should be reviewed for applicable voltage, current, frequency, rated speed, and other information required by the selected control method. Correct motor data is important for reliable drive operation.

5. What can cause an overcurrent fault during startup?

Possible causes include excessive load, insufficient acceleration time, incorrect motor parameters, motor or cable problems, mechanical obstruction, or an unsuitable control configuration.

6. Why can fast deceleration cause overvoltage?

A high-inertia load can regenerate energy into the drive while slowing down. If the returned energy causes the DC-bus voltage to rise beyond the permitted level, an overvoltage fault may occur.

7. How should repeated drive faults be investigated?

Identify the exact fault code and determine the operating condition when it occurs. Check motor parameters, electrical connections, mechanical loading, acceleration and deceleration settings, and the incoming power supply as appropriate.

8. What could cause the motor to run at the wrong speed?

Potential causes include an incorrect speed reference, incorrect programmed parameters, control-source configuration problems, motor-data errors, or an issue with the command signal.

9. Why is proper grounding important when installing an AC drive?

Correct grounding helps provide a controlled electrical reference and can reduce the impact of electrical noise. The drive, motor, cabinet, and associated equipment should be grounded according to the applicable installation requirements.

10. What should be checked before replacing a 20BC170A3ANNANC0?

The complete catalog number should be verified along with the motor rating, electrical requirements, control configuration, installed options, communication functions, enclosure arrangement, and application requirements.
