Allen Bradley 20BC205A0ANNANA0 PowerFlex 700 AC Drive

Industrial Applications

The Allen-Bradley 20BC205A0ANNANA0 PowerFlex 700 AC Drive is a large-format industrial variable frequency drive intended for demanding AC motor-control applications. It is designed for equipment where dependable speed regulation, controlled acceleration and deceleration, and integration with an industrial automation system are important.

This type of drive is well suited to applications such as heavy-duty conveyors, pumps, fans, compressors, mixers, material-handling systems, machine tools, process equipment, and other production machinery. Variable-speed control allows the motor to operate according to the process instead of remaining at one fixed operating point.

For heavy conveyors and material-handling systems, controlled acceleration can help reduce sudden mechanical loading on belts, gearboxes, shafts, and couplings. In pumps and fans, adjustable motor speed can provide greater process flexibility, while machinery with changing production requirements can benefit from programmable speed profiles.

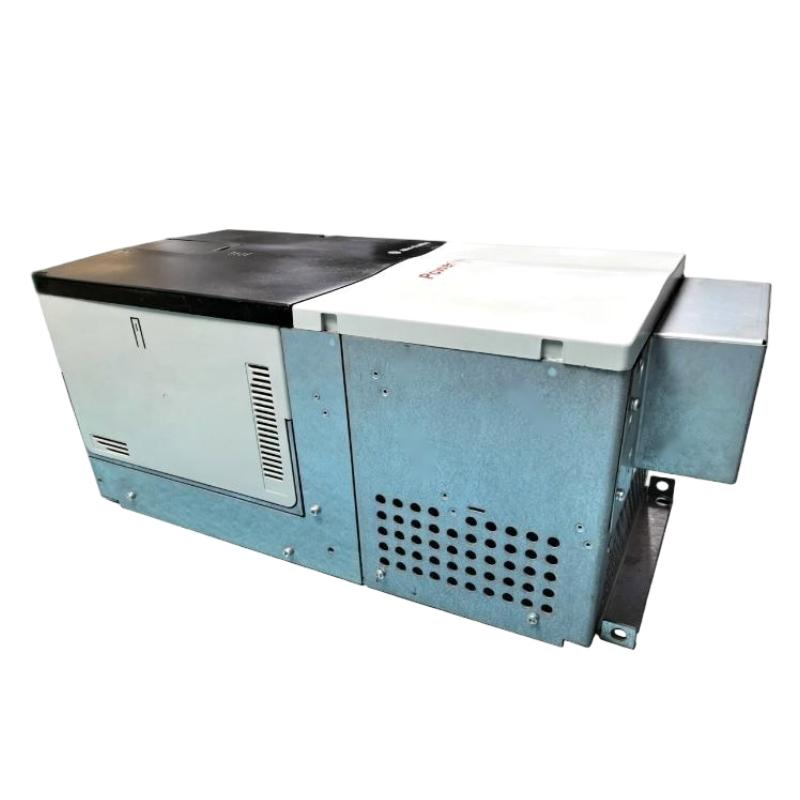

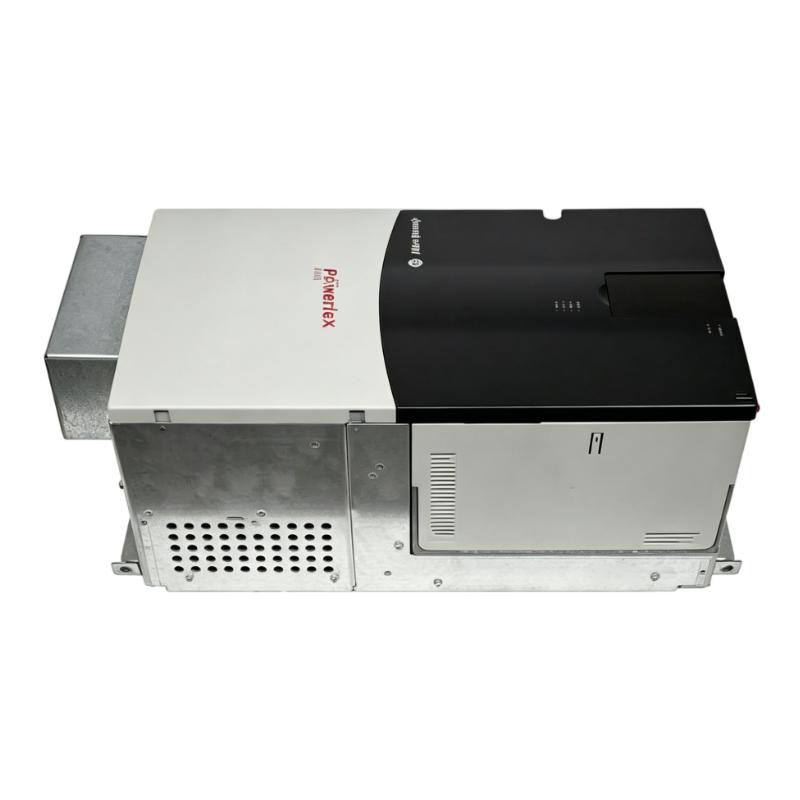

The 20BC205A0ANNANA0 has a substantial industrial enclosure format, measuring 976.3 × 403.9 × 275.5 mm and weighing 71.44 kg (157.50 lb). The physical size makes proper cabinet planning important, particularly regarding mounting strength, ventilation, electrical clearances, cable routing, and maintenance access.

For OEM machine builders, system integrators, and industrial maintenance teams, the PowerFlex 700 platform provides a robust solution for large AC motor-control installations.

Variable-Speed Control for Demanding Machinery

The PowerFlex 700 platform is designed for industrial applications that require more flexibility than conventional motor starting methods can provide. By controlling the electrical output delivered to the motor, the drive can manage motor speed and establish controlled acceleration and deceleration profiles.

One of the most important advantages is controlled acceleration. Large mechanical loads can require considerable current and torque when starting. A properly configured acceleration profile can reduce sudden stress on the electrical system and mechanical transmission.

Controlled deceleration is equally important. High-inertia machinery can return energy to the drive while slowing down, so the stopping profile and overall braking strategy should be selected according to the actual application.

Variable-speed operation can also improve process flexibility. A conveyor may require different speeds at different production stages, while a pump or fan may need to respond to changing process conditions. An AC drive provides the electrical control needed for these changes.

For maintenance personnel, drive monitoring and diagnostic functions can make troubleshooting more systematic. A fault should be investigated in the context of the complete system, including the motor, wiring, load, configuration, and incoming power.

The 20BC205A0ANNANA0 is therefore a practical choice for industrial motor-control systems where a large, robust PowerFlex 700 drive is required.

Technical FAQs

1. What is the Allen-Bradley 20BC205A0ANNANA0?

It is a PowerFlex 700 AC drive designed for industrial variable-speed control of compatible AC motors.

2. What is the primary purpose of an AC drive?

An AC drive controls electrical power delivered to an AC motor, allowing the motor's speed and acceleration or deceleration characteristics to be adjusted according to the application.

3. Why is variable-speed control useful in industrial machinery?

It allows the motor to operate at speeds appropriate to actual process requirements and can provide smoother acceleration and stopping than direct motor starting.

4. What should be checked before configuring the drive for a motor?

Verify the motor nameplate information and application requirements, including voltage, current, frequency, rated speed, and other parameters required by the selected control mode.

5. What can cause an overcurrent fault?

Potential causes include excessive mechanical load, an acceleration time that is too short, incorrect motor data, motor or cable problems, mechanical obstruction, or inappropriate drive settings.

6. Why can rapid deceleration cause an overvoltage fault?

A high-inertia load can regenerate energy into the drive during deceleration. If the DC-bus voltage rises beyond the allowable level, the drive may trip on overvoltage.

7. How should recurring drive faults be diagnosed?

Identify the exact fault code and determine when it occurs. Then inspect the motor, wiring, mechanical load, drive parameters, control signals, and electrical supply as appropriate.

8. What can cause an AC motor to operate at an unexpected speed?

Possible causes include an incorrect speed reference, incorrect parameter settings, control-source configuration issues, incorrect motor data, or a problem with the command signal.

9. Why is grounding important for PowerFlex drives?

Correct grounding provides an appropriate electrical reference and helps control electrical noise. The drive, motor, enclosure, and associated equipment should be grounded according to the applicable installation requirements.

10. What should be verified before replacing the 20BC205A0ANNANA0?

The complete catalog number should be checked along with motor requirements, input and output characteristics, control configuration, options, communication functions, enclosure arrangement, and the intended application.
