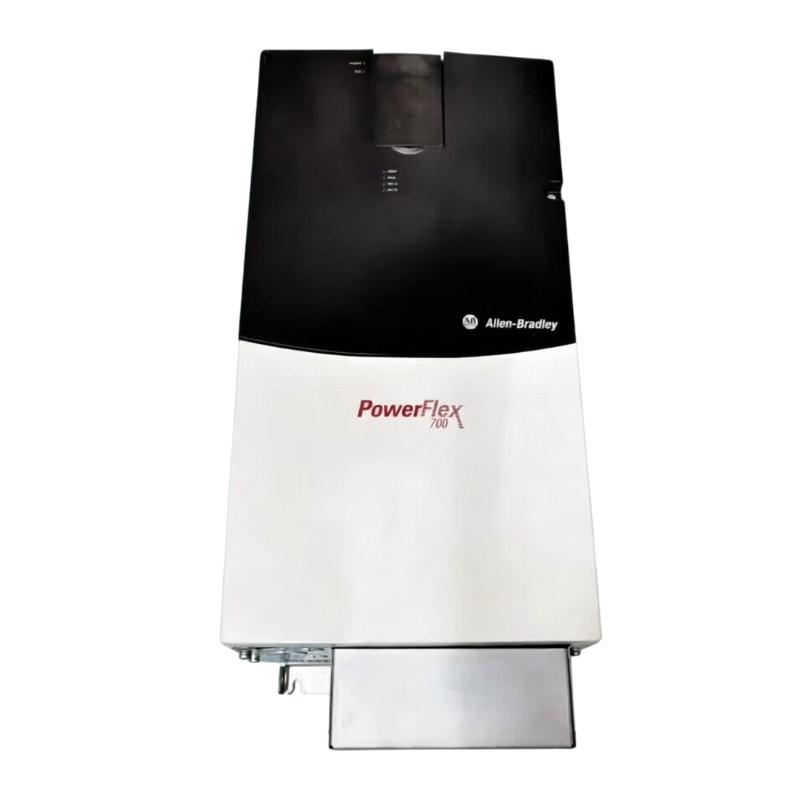

Allen Bradley 20BC205A0ANNANC0 PowerFlex 700 AC Drive

Industrial Applications

The Allen-Bradley 20BC205A0ANNANC0 PowerFlex 700 AC Drive is a large-format industrial variable frequency drive designed for demanding motor-control applications. It is a strong fit for production equipment where controlled motor speed, smooth acceleration, reliable stopping, and integration with industrial automation systems are important.

Typical applications include heavy-duty conveyors, pumps, fans, compressors, mixers, material-handling machinery, process equipment, machine tools, and other large motor-driven systems. By allowing motor speed to be adjusted according to process requirements, an AC drive provides greater operating flexibility than fixed-speed motor starting.

In conveyor applications, controlled acceleration can help reduce sudden torque loading on belts, couplings, gearboxes, and shafts. For pumps and fans, variable-speed operation can help match motor operation to changing process demand. In automated production machinery, adjustable speed can also support different production stages without requiring mechanical speed changes.

The 20BC205A0ANNANC0 measures 976.3 × 403.9 × 275.5 mm and weighs 71.44 kg (157.50 lb). Its substantial dimensions and weight require appropriate mounting support, cabinet space, ventilation, cable routing, and maintenance clearance.

For industrial automation integrators and maintenance teams, the PowerFlex 700 platform provides a practical foundation for large AC motor-control systems where dependable operation and flexible configuration are key priorities.

Engineered for Flexible AC Motor Control

The PowerFlex 700 platform is intended for industrial applications that require more than basic motor start/stop functionality. By controlling the electrical output delivered to an AC motor, the drive can provide adjustable speed and controlled acceleration and deceleration.

A controlled acceleration profile can be especially valuable when a machine has a heavy mechanical load. Instead of demanding maximum starting torque immediately, the drive can bring the motor toward its operating condition in a controlled manner.

The same consideration applies to deceleration. Large rotating loads can return energy to the drive as they slow down. Applications with frequent or rapid stopping therefore require appropriate configuration and a braking strategy that matches the actual mechanical system.

Variable-speed control can also improve production flexibility. Conveyor speed, pump operation, fan output, and other motor-driven processes can be adjusted to suit changing operating requirements.

For maintenance personnel, the drive's diagnostic information can help distinguish between different types of problems. An unexpected trip should be investigated together with the motor, wiring, mechanical load, programmed parameters, and incoming electrical conditions.

The 20BC205A0ANNANC0 is a compelling option for industrial installations requiring a substantial PowerFlex 700 drive with flexible AC motor-control capabilities.

Technical FAQs

1. What is the Allen-Bradley 20BC205A0ANNANC0?

It is an Allen-Bradley PowerFlex 700 AC drive intended for industrial variable-speed control of compatible AC motors.

2. What does the drive regulate?

The drive regulates electrical output to the connected AC motor, allowing motor speed and acceleration or deceleration behavior to be controlled.

3. What applications commonly benefit from an AC drive?

Conveyors, pumps, fans, compressors, mixers, process machinery, material-handling systems, and other motor-driven equipment can benefit from adjustable-speed control.

4. What motor information should be verified during commissioning?

The motor nameplate should be checked for applicable voltage, current, frequency, rated speed, and other information required for the selected motor-control method.

5. What are typical causes of overcurrent faults?

Excessive mechanical loading, an overly short acceleration time, incorrect motor parameters, motor or cable faults, mechanical obstruction, and unsuitable drive configuration can all contribute to an overcurrent condition.

6. Why can deceleration cause a DC-bus overvoltage fault?

When a high-inertia load decelerates, the motor can regenerate electrical energy into the drive. Excessive regenerated energy may raise the DC-bus voltage beyond the permitted level.

7. How should a recurring drive fault be investigated?

Record the exact fault code and operating condition. Determine whether the fault occurs during startup, acceleration, steady-state operation, or deceleration, then inspect the motor, electrical connections, mechanical load, and relevant parameters.

8. What can cause incorrect motor speed?

An incorrect speed reference, unsuitable parameter settings, incorrect control-source configuration, incorrect motor data, or a faulty command signal can cause unexpected motor speed.

9. What should be checked when the motor will not start?

Check active faults, enable and interlock conditions, start commands, speed reference, control-source settings, motor connections, and relevant configuration parameters.

10. What should be verified before replacing this drive?

The complete catalog number should be matched. Motor requirements, electrical ratings, control configuration, communication functions, options, enclosure arrangement, and application requirements should also be verified.
