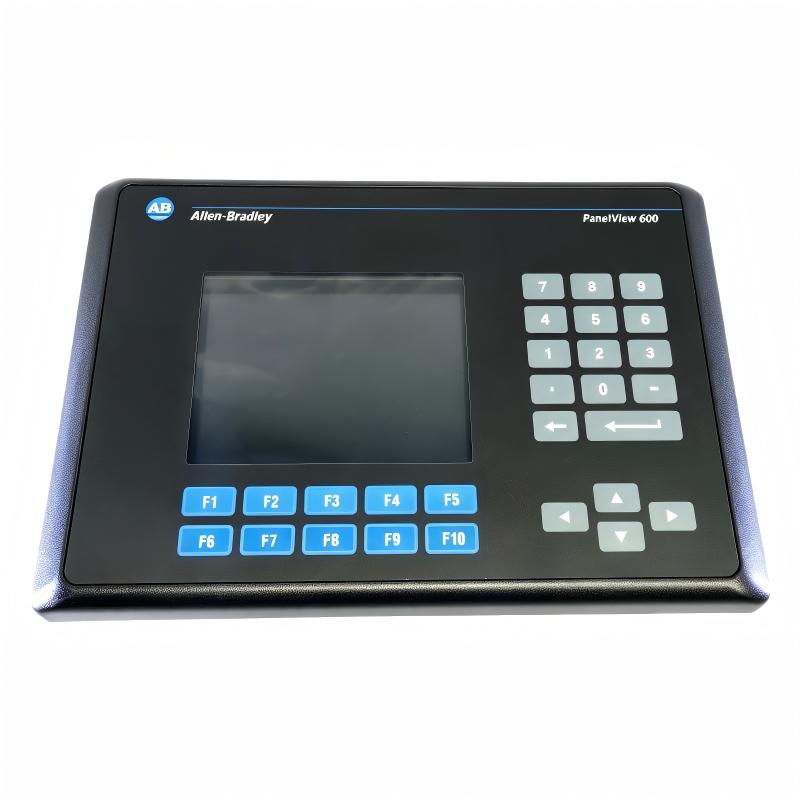

Allen Bradley 2711-K6C5 PanelView 600 Operator Interface

Industrial Applications

The Allen-Bradley 2711-K6C5 PanelView 600 Operator Interface is an industrial human-machine interface designed to provide operators with direct access to machine and process information. It can serve as a practical operator station for PLC-controlled equipment, allowing users to monitor operating conditions, enter commands, acknowledge alarms, and interact with production processes from a dedicated panel.

PanelView 600 terminals are particularly useful in manufacturing environments where clear operator interaction is required without installing a full industrial computer. Typical applications include packaging machinery, material-handling systems, assembly equipment, machine control panels, pumping systems, conveyors, and process-control equipment.

The 2711-K6C5 can be incorporated into an automation architecture in which the operator interface communicates with a controller and displays relevant machine information. Properly designed screens can present operating status, alarm conditions, setpoints, counters, and diagnostic information in a format that operators can understand quickly.

For equipment builders, a dedicated PanelView terminal can also provide a more consistent operator experience. Frequently used commands and process parameters can be organized into application-specific screens, helping operators perform routine tasks without directly accessing the underlying control logic.

With dimensions of 290 × 116 × 192 mm and a weight of 2 kg (4.41 lb), the terminal is relatively compact for panel-mounted industrial equipment. Its physical dimensions make it suitable for control panels where operator access and enclosure space need to be balanced.

Practical Operator Control for Automation Systems

An effective operator interface does more than display values. It provides a communication layer between the machine and the person responsible for operating or maintaining it.

The PanelView 600 family was designed for industrial HMI applications, making it suitable for presenting machine states, process values, alarms, commands, and user-adjustable parameters. A well-organized HMI application can reduce the time required for operators to identify machine conditions and respond to routine events.

For production equipment, the ability to display important information at the machine can be especially valuable. Operators can monitor process status without depending entirely on a programming workstation or external computer.

The 2711-K6C5 can also support a more structured approach to machine operation. Frequently used functions can be presented through dedicated screens, while alarms and status information can be grouped according to the process.

For maintenance teams, an HMI can provide a useful window into the control system. Diagnostic screens can display selected PLC values, machine states, counters, interlocks, and alarm information, helping technicians understand what the automation system is doing at the time of a fault.

Its compact form factor and 2 kg (4.41 lb) weight also make it practical for panel-mounted applications where installation space is limited.

For customers maintaining legacy Allen-Bradley automation equipment, the 2711-K6C5 can be an attractive component when the existing HMI architecture and application requirements call for a PanelView 600 terminal.

Technical FAQs

1. What is the Allen-Bradley 2711-K6C5?

The 2711-K6C5 is an Allen-Bradley PanelView 600 Operator Interface terminal used as an industrial HMI for monitoring and controlling automated machinery and processes.

2. What is the role of an HMI in a PLC system?

An HMI provides an operator-facing interface to the control system. It can display process information and provide commands or parameter inputs while the PLC continues to execute the machine-control logic.

3. Can the 2711-K6C5 be used with Allen-Bradley PLC systems?

PanelView terminals are commonly used within Allen-Bradley automation architectures. Compatibility should be verified against the specific PLC family, communication method, application file, and firmware requirements of the existing system.

4. What information can an operator interface display?

Depending on the application, an HMI can display machine status, process values, alarms, counters, setpoints, operating modes, and diagnostic information.

5. Why should HMI communication parameters be checked during replacement?

The replacement terminal must communicate using the same or an appropriately supported communication architecture. Incorrect communication settings can prevent the HMI from exchanging data with the controller.

6. What can cause an HMI to lose communication with a PLC?

Possible causes include incorrect communication settings, damaged cables, network problems, controller configuration issues, incompatible firmware or application settings, or a fault in the communication hardware.

7. What should be checked if the HMI powers on but displays incorrect machine values?

Check the communication status first, then verify tag or address mapping, controller data, application configuration, scaling, and data types. Incorrect values do not necessarily indicate a hardware failure.

8. Why is HMI application backup important?

The application contains the operator screens, configuration, tags, alarms, and other project-specific information. Maintaining a suitable backup can significantly simplify replacement and recovery after terminal failure.

9. Can an HMI replace PLC control logic?

No. An HMI is primarily an operator interface. The PLC or other controller normally performs the real-time machine-control logic, while the HMI provides visualization and operator interaction.

10. What should be considered when replacing a legacy PanelView terminal?

Check the exact catalog number, communication architecture, application compatibility, firmware requirements, panel cutout, wiring, power requirements, and the availability of the original HMI project before selecting a replacement.
