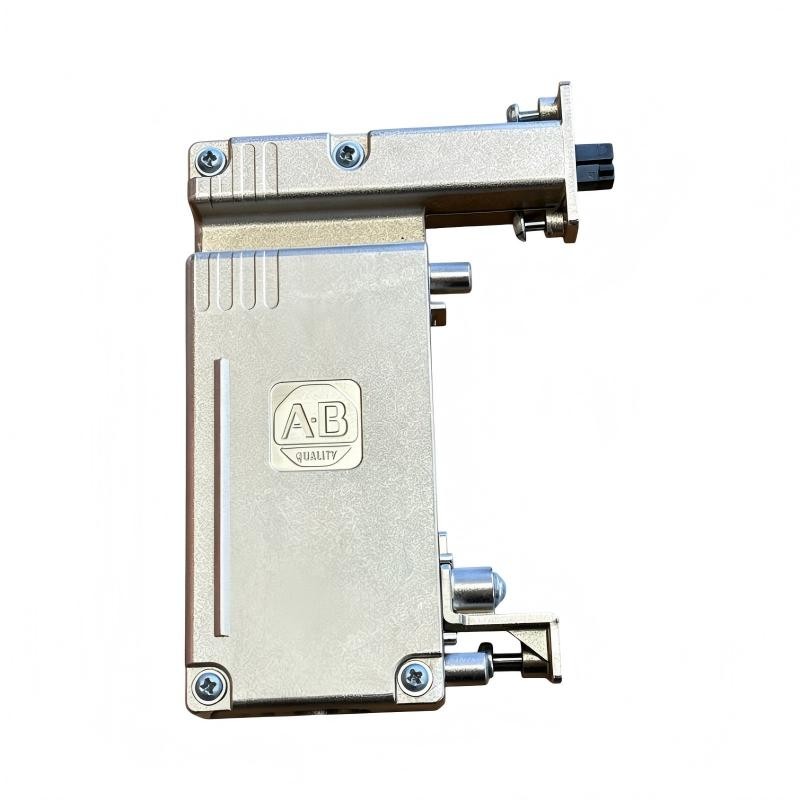

Allen Bradley 2198-H2DCK Kinetix 5500 Feedback Converter Kit

Servo Motion Applications

The Allen-Bradley 2198-H2DCK Kinetix 5500 Feedback Converter Kit is a compact motion-control accessory designed for use within Kinetix 5500 servo systems. Its primary role is to support feedback connectivity between compatible motor feedback interfaces and the servo drive architecture, helping engineers integrate suitable motor and feedback combinations into an automated motion system.

Feedback is fundamental to closed-loop servo control. The controller and drive need reliable information about motor position and operating conditions to regulate motion accurately. A suitable feedback interface helps preserve the communication path between the motor and the drive, which is particularly important in applications requiring repeatable positioning and coordinated machine movement.

Typical applications include packaging machinery, automated assembly equipment, material handling, indexing systems, converting machinery, robotics-related equipment, and other precision motion applications. The 2198-H2DCK is particularly useful when a Kinetix 5500 installation requires the appropriate feedback conversion arrangement for a compatible motor configuration.

With dimensions of 130 × 42 × 76 mm and a weight of 0.10 kg (0.22 lb), the converter kit occupies very little physical space compared with the surrounding servo equipment. Its compact design can simplify integration inside motion-control cabinets where space and cable organization are important.

For machine builders and motion-system integrators, the 2198-H2DCK provides a practical way to complete the feedback interface within a Kinetix 5500 servo architecture without introducing a large additional hardware footprint.

Compact Feedback Integration for Kinetix 5500 Systems

In a servo system, feedback is what allows the control system to determine how the motor is actually moving rather than simply assuming that the commanded motion has occurred. This closed-loop relationship is essential for accurate positioning, speed regulation, and coordinated machine movement.

The Allen-Bradley 2198-H2DCK Kinetix 5500 Feedback Converter Kit is designed to support the feedback interface required by compatible Kinetix 5500 applications. Its value is therefore not based on power conversion but on establishing the appropriate feedback connection between compatible motion components.

This distinction is important when specifying replacement parts. A feedback converter should be selected according to the motor, feedback technology, drive family, and system architecture rather than solely by physical appearance.

For OEM machine builders, compact feedback hardware can also simplify cabinet layout. The 130 × 42 × 76 mm dimensions allow the component to occupy a relatively small amount of space, while its 0.10 kg (0.22 lb) weight has minimal impact on the overall mounting structure.

The converter can be particularly valuable in machine designs where existing motor technology needs to be integrated into a Kinetix 5500 motion platform. However, compatibility should always be confirmed using the complete motor and drive configuration before commissioning.

A correctly engineered feedback path contributes to stable servo operation. Problems in feedback wiring, connector engagement, shielding, or device compatibility can lead to position errors, feedback-related faults, or unexpected servo behavior. Proper installation and commissioning are therefore essential.

Technical FAQs

1. What is the Allen-Bradley 2198-H2DCK?

The 2198-H2DCK is a Kinetix 5500 Feedback Converter Kit used to support feedback connectivity within compatible Allen-Bradley servo motion systems.

2. What is the function of a feedback converter in a servo system?

It provides the appropriate interface between compatible motor feedback and the servo drive, allowing the drive to receive the feedback information required for closed-loop motion control.

3. Why is feedback important in servo applications?

Feedback allows the control system to compare commanded motion with actual motor behavior. This information is important for position control, speed regulation, and accurate machine movement.

4. Can any servo motor be connected through the 2198-H2DCK?

No. Compatibility depends on the motor feedback technology, motor family, Kinetix 5500 drive configuration, and applicable system requirements. The complete motor and drive combination should be verified before installation.

5. What can cause a feedback fault after installation?

Possible causes include incorrect feedback connections, damaged cables, loose connectors, incompatible motor or feedback hardware, electrical noise, incorrect configuration, or a problem within the feedback device itself.

6. Why is feedback cable routing important?

Servo feedback signals can be affected by electrical interference. Proper cable routing, shielding, grounding, separation from high-power conductors, and correct connector installation can help maintain signal integrity.

7. What should be checked if the servo motor cannot establish proper position control?

Check the feedback connection first, followed by motor configuration, drive parameters, feedback compatibility, cable condition, and controller configuration.

8. Can a feedback converter solve a defective motor encoder?

No. A converter provides an interface between compatible components; it does not repair a damaged or malfunctioning motor feedback device.

9. Why should the exact catalog number be verified before replacement?

Kinetix motion accessories can have specific compatibility requirements. Matching the complete catalog number helps prevent selecting a component that has a similar appearance but a different intended function.

10. What is important when commissioning a feedback circuit?

Verify the correct hardware combination, connector installation, feedback wiring, shielding and grounding, motor configuration, and drive status. The servo system should then be tested under controlled conditions before normal production operation.
