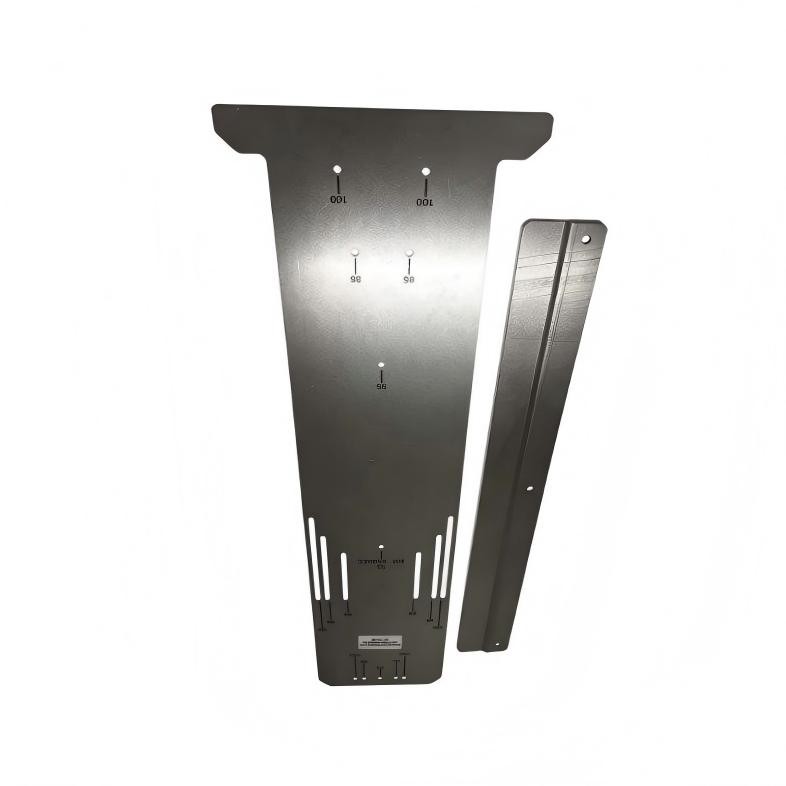

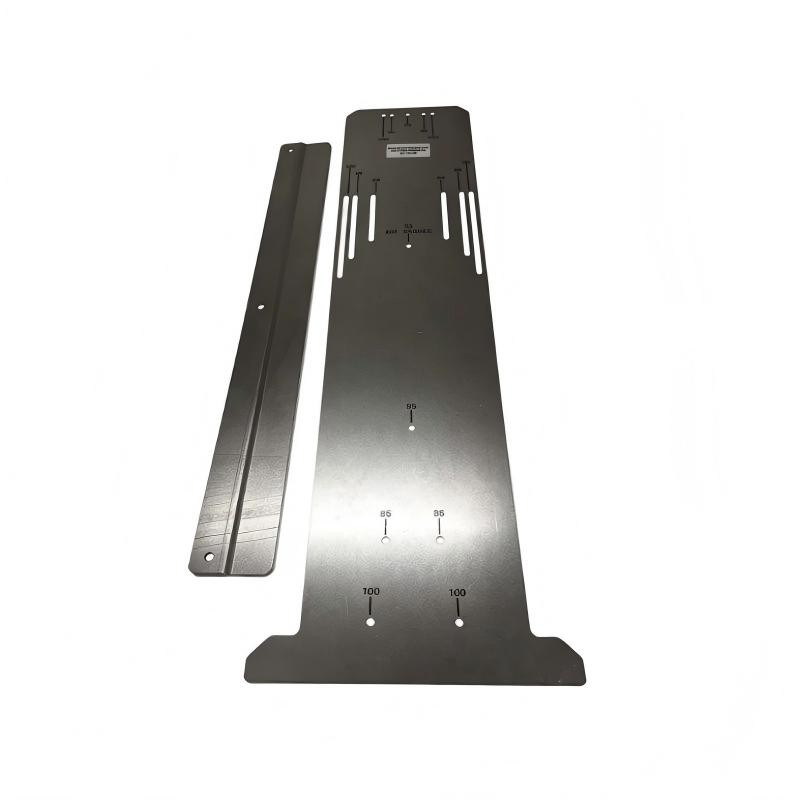

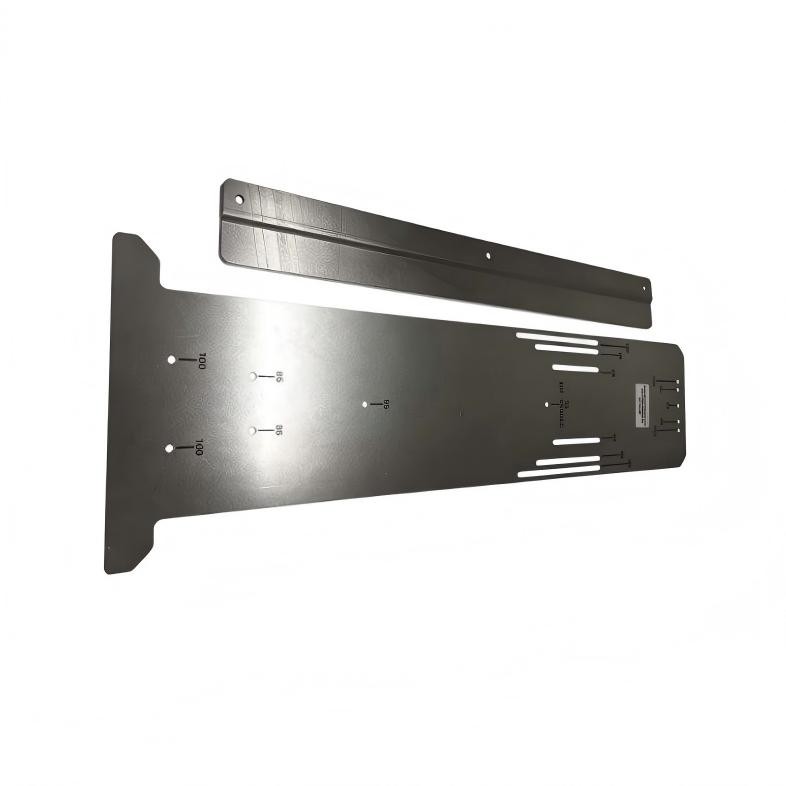

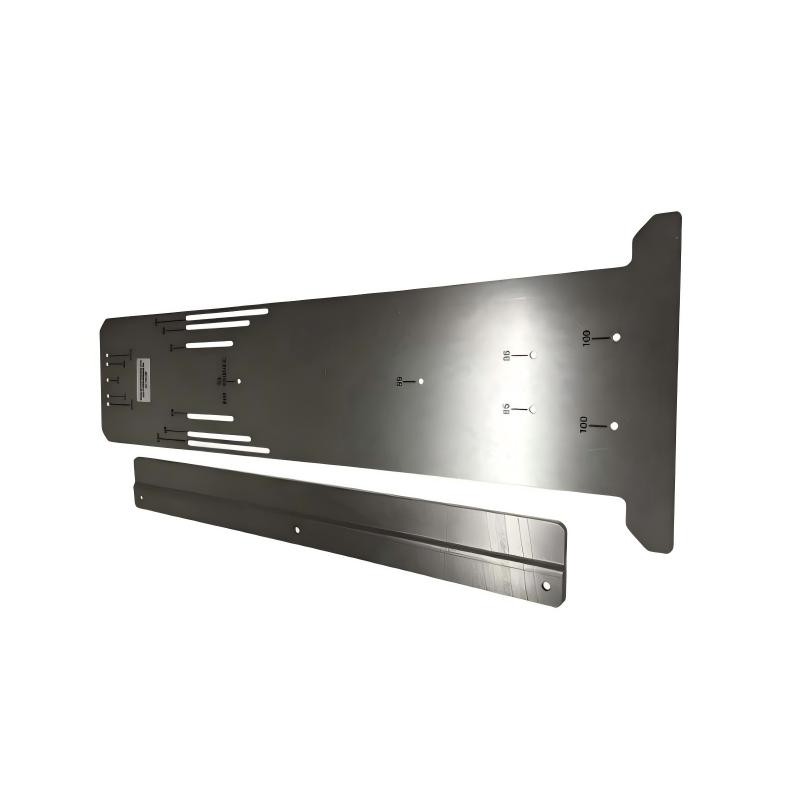

Allen Bradley 2198-K5700-MOUNTKIT Kinetix 5700 System Installation Kit

Industrial Motion System Applications

The Allen-Bradley 2198-K5700-MOUNTKIT Kinetix 5700 System Installation Kit is an installation accessory designed for Kinetix 5700 servo system integration. As part of a large-scale motion-control installation, mounting hardware plays an important role in establishing a secure, orderly, and serviceable cabinet arrangement.

The Kinetix 5700 platform is commonly associated with multi-axis motion systems where several servo drives and supporting components are installed within the same control architecture. In these applications, precise positioning of the hardware is important for maintaining proper mechanical support, cabinet organization, wiring access, and system serviceability.

The 2198-K5700-MOUNTKIT is particularly relevant to OEM machine builders, system integrators, and maintenance teams working with Kinetix 5700 installations. It can support applications such as packaging machinery, automated assembly systems, material handling, converting equipment, coordinated machine axes, and other high-performance industrial automation systems.

Its listed dimensions are 584 × 3 × 132 mm, with a weight of 1.36 kg (3.00 lb). The elongated format is appropriate for installation arrangements where components must be positioned consistently across a motion-control system.

For customers maintaining or expanding an existing Kinetix 5700 system, using the appropriate installation hardware can help preserve the intended mechanical arrangement and simplify cabinet assembly.

Designed for Organized Kinetix 5700 Integration

A high-performance servo system depends on more than drives and motors. Mechanical installation hardware provides the foundation that keeps the motion-control equipment correctly positioned and securely supported.

The Allen-Bradley 2198-K5700-MOUNTKIT is designed specifically around Kinetix 5700 system installation requirements. Its role is therefore closely connected to cabinet construction and motion-system assembly rather than servo power conversion or feedback processing.

For machine builders, an organized installation can make a significant difference during commissioning. Correct component positioning helps keep wiring paths predictable and provides technicians with better access to terminals, connectors, power connections, and communication interfaces.

The kit's 584 mm length also makes accurate cabinet planning particularly important. Before installation, the available mounting area and relationship between the kit and the associated Kinetix 5700 hardware should be evaluated.

At 1.36 kg (3.00 lb), the installation kit adds relatively little weight compared with the overall servo system, but the mounting structure must still be capable of supporting the complete installed assembly.

For retrofit projects, replacing damaged or missing installation hardware with the correct catalog-numbered component can be preferable to modifying the cabinet with improvised mounting arrangements. Proper mechanical compatibility helps maintain a clean and repeatable installation.

Technical FAQs

1. What is the Allen-Bradley 2198-K5700-MOUNTKIT?

The 2198-K5700-MOUNTKIT is a Kinetix 5700 System Installation Kit intended to support the mechanical installation of compatible Kinetix 5700 motion-system equipment.

2. What is the purpose of an installation kit in a servo system?

It provides the appropriate mechanical hardware or arrangement needed to install compatible motion-control components securely and consistently.

3. Why is proper mounting important for servo drives?

Secure mounting helps prevent movement, vibration, mechanical stress, and unwanted strain on connected wiring and components.

4. Can the mounting kit be used with other Kinetix families?

The kit is associated with the Kinetix 5700 system. Compatibility with other product families should not be assumed without checking the applicable mechanical interface.

5. What can happen if servo equipment is mounted incorrectly?

Poor mounting can contribute to vibration, mechanical interference, cable strain, inadequate clearances, and difficulties during maintenance or commissioning.

6. Why should cabinet dimensions be checked before installation?

The available mounting area must accommodate the complete hardware arrangement while maintaining the necessary clearances and access for wiring, ventilation, inspection, and servicing.

7. Does the mounting kit affect servo motor performance directly?

The kit is primarily an installation component. It does not directly control motor speed or torque, but correct mechanical installation supports the reliable operation of the overall motion system.

8. What should be inspected if mounted equipment becomes loose?

Inspect the mounting hardware, supporting structure, fastening points, vibration conditions, and any mechanical interference that could place additional stress on the assembly.

9. Should a damaged mounting component be repaired or replaced?

Replacement with the correct compatible component is generally preferable when the original hardware is damaged or deformed. The installation should maintain the intended mechanical support and alignment.

10. What should be verified when installing a replacement kit?

Verify the complete catalog number, compatible Kinetix 5700 hardware, mounting arrangement, cabinet dimensions, fastening points, clearances, and cable-routing requirements before completing the installation.
