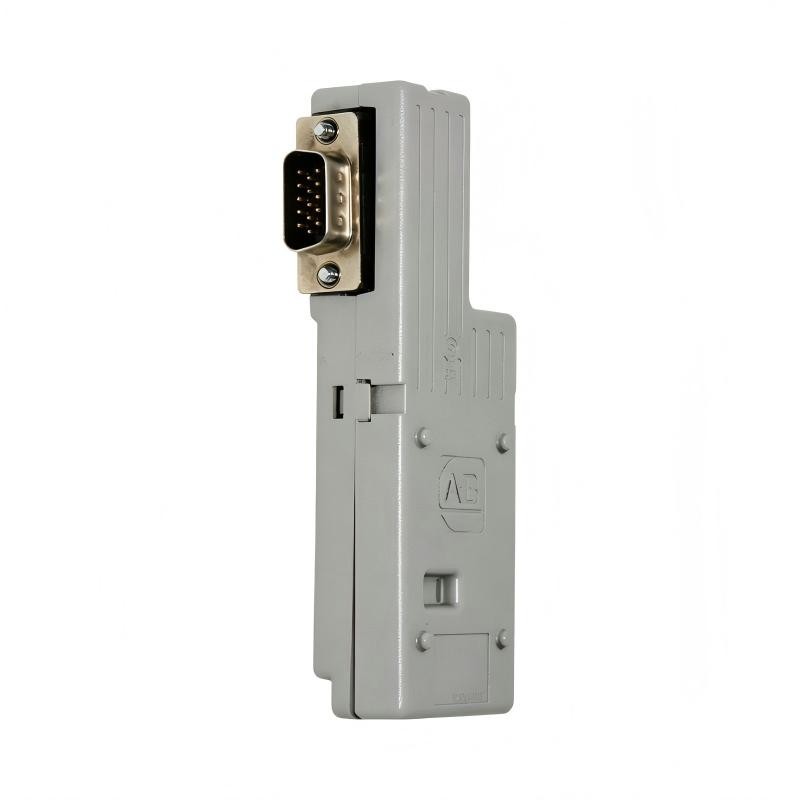

Allen Bradley 2198-K57CK-D15M Kinetix 5700 Feedback Connector Kit

Precision Motion Applications

The Allen-Bradley 2198-K57CK-D15M Kinetix 5700 Feedback Connector Kit is a dedicated feedback connection accessory for compatible Kinetix 5700 servo motion systems. It is designed to support the interface between feedback wiring and the associated motion-control equipment, helping establish a dependable signal path between the servo motor feedback device and the drive system.

In closed-loop motion control, feedback is essential because the controller and servo drive need information about actual motor behavior. Accurate feedback allows the system to regulate position and motion according to the commanded operating profile.

The 2198-K57CK-D15M is well suited to industrial applications where precise and repeatable motion is required. Potential applications include packaging machines, automated assembly systems, indexing equipment, converting machinery, material handling, semiconductor-related automation, and coordinated multi-axis production equipment.

Its compact dimensions of 92 × 32 × 24 mm make it easy to accommodate within a Kinetix 5700 control cabinet. At only 0.07 kg (0.15 lb), it adds minimal weight while providing a purpose-designed connection solution for the compatible feedback architecture.

For OEMs and automation integrators, using the correct feedback connector kit can simplify wiring work and help maintain an organized motion-control cabinet. For replacement projects, matching the exact catalog number is particularly important because feedback connectors are closely tied to the intended drive and motor interface.

Reliable Feedback Connectivity for Kinetix 5700

Servo performance depends heavily on the quality and integrity of the feedback signal. The drive uses information from the motor feedback device to determine actual motion and make continuous control adjustments.

The Allen-Bradley 2198-K57CK-D15M is designed to support this critical connection within compatible Kinetix 5700 systems. Rather than functioning as an independent controller, it serves as an interface component within the feedback path.

A secure feedback connection can help maintain reliable communication between the motor and drive. Conversely, loose connections, damaged conductors, incorrect wiring, or electrical interference can cause feedback-related faults and unstable machine behavior.

For machine builders, the connector kit also contributes to a cleaner cabinet layout. Feedback cables can be routed and terminated in an organized manner, making future inspection and maintenance easier.

The compact 92 × 32 × 24 mm footprint is especially useful in densely populated motion-control cabinets. Its 0.07 kg (0.15 lb) weight places little mechanical demand on the surrounding installation.

When replacing a connector kit, it is important to identify the complete Kinetix 5700 system configuration first. The motor feedback technology, cable arrangement, drive interface, and application requirements should all be considered before selecting the replacement.

For industrial motion applications where repeatability and precise positioning matter, the 2198-K57CK-D15M provides a practical connection solution within its intended Kinetix 5700 architecture.

Technical FAQs

1. What is the Allen-Bradley 2198-K57CK-D15M?

The 2198-K57CK-D15M is an Allen-Bradley Kinetix 5700 Feedback Connector Kit designed for compatible servo feedback connections.

2. Why is feedback important in a Kinetix 5700 servo system?

Feedback provides the drive with information about actual motor movement, allowing the control system to regulate position and motion more accurately.

3. Does the connector kit control the servo motor?

No. The connector kit is a connection accessory. Servo control is performed by the motion-control system, while the connector provides the required feedback interface.

4. What can cause a feedback-related fault?

Possible causes include loose connectors, incorrect wiring, damaged feedback cables, incompatible feedback hardware, electrical interference, or a malfunctioning motor feedback device.

5. Why should feedback cables be separated from high-power wiring?

High-power conductors can generate electromagnetic interference that may affect sensitive feedback signals. Appropriate routing and shielding practices help maintain signal integrity.

6. Can the 2198-K57CK-D15M be used with any Kinetix servo motor?

Compatibility should be confirmed for the specific Kinetix 5700 drive, motor, feedback technology, cable, and connector arrangement. A similar physical connector does not automatically guarantee compatibility.

7. What should be checked if the servo drive reports a feedback error immediately after replacement?

Check connector seating, terminal assignments, cable condition, motor feedback configuration, drive configuration, and the compatibility of the installed feedback components.

8. Why should feedback connections be protected from mechanical strain?

Repeated vibration or cable movement can place stress on terminals and connectors. Proper cable support helps reduce the risk of intermittent feedback signals.

9. Can a feedback connector repair a defective encoder?

No. The connector provides the interface for the feedback circuit. A defective encoder or other motor feedback device requires separate diagnosis and appropriate corrective action.

10. What should be verified before commissioning a replaced feedback connector kit?

Verify the exact component, wiring, connector engagement, cable routing, feedback configuration, motor compatibility, and drive status before operating the servo axis under normal production conditions.
