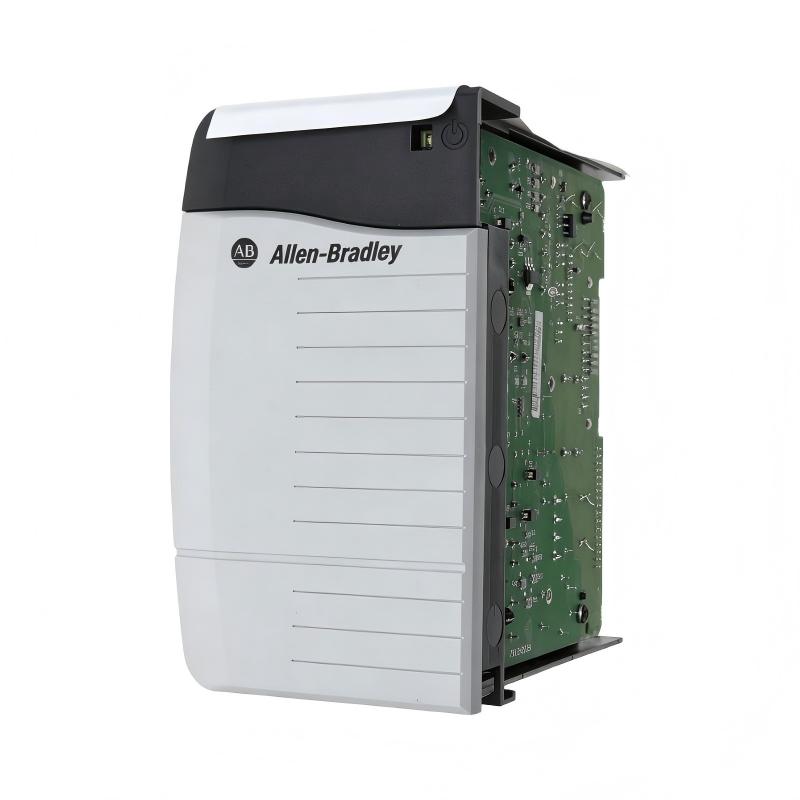

Allen Bradley 1756-PA50 ControlLogix AC Power Supply

Industrial Control Applications

The Allen-Bradley 1756-PA50 ControlLogix AC Power Supply is a dedicated power supply component for ControlLogix automation systems. It provides the electrical power required by compatible ControlLogix chassis components, supporting the operation of controllers, communication modules, I/O modules, and other chassis-based equipment.

In a ControlLogix architecture, a stable power source is fundamental to system reliability. The power supply works as part of the overall chassis infrastructure, helping provide the required operating power to installed modules.

The 1756-PA50 is suitable for industrial automation environments where ControlLogix systems are used for machine control, process automation, material handling, packaging, production lines, and large-scale manufacturing applications. It can be particularly valuable in control cabinets where dependable power distribution is essential for continuous operation.

For system integrators and OEMs, the power supply is an important part of the ControlLogix platform rather than simply an auxiliary component. A correctly matched power supply helps ensure that the installed chassis and modules receive the appropriate power capacity for the configured system.

The listed dimensions are 140 × 78 × 145 mm, while the weight is 0.77 kg (1.70 lb). Its relatively compact chassis-mounted format allows it to be incorporated into industrial control cabinets without requiring excessive space.

Stable Power for ControlLogix Chassis

A ControlLogix system can contain a substantial number of processing, communication, and I/O modules. All of these components depend on the chassis power architecture, making power-supply selection an important part of system engineering.

The Allen-Bradley 1756-PA50 provides AC power for compatible ControlLogix chassis applications. Its role is to convert the incoming AC supply into the power required by the chassis backplane and installed modules.

One of the most important considerations when selecting a ControlLogix power supply is system loading. The required capacity depends on the modules installed in the chassis and the overall power demand of the configuration. A replacement should therefore be selected according to the complete chassis arrangement rather than physical appearance alone.

Power-related problems can produce symptoms throughout an automation system. A system that unexpectedly shuts down, experiences module faults, or fails to initialize may require inspection of the power supply, incoming power, chassis connections, and module loading.

For maintenance teams, the 1756-PA50 can be an important replacement component when troubleshooting an existing ControlLogix installation. Before replacing it, however, technicians should verify incoming AC power and inspect the chassis for signs of wiring, connection, or module-related problems.

With dimensions of 140 × 78 × 145 mm and a weight of 0.77 kg (1.70 lb), the unit is designed for practical integration into a ControlLogix chassis environment.

Technical FAQs

1. What is the Allen-Bradley 1756-PA50?

The 1756-PA50 is an Allen-Bradley ControlLogix AC Power Supply designed to provide power for compatible ControlLogix chassis systems.

2. What does the power supply provide to the ControlLogix chassis?

It converts the applicable incoming AC power into the power required by the ControlLogix chassis backplane and installed modules.

3. Why is power-supply capacity important in a ControlLogix system?

The installed modules consume power from the chassis. The selected power supply must be appropriate for the total system load and chassis configuration.

4. Can a power supply fault cause multiple modules to stop operating?

Yes. Because the chassis power supply supports the system's backplane power, a power-related problem can affect multiple installed modules simultaneously.

5. What can cause a ControlLogix system to lose power unexpectedly?

Possible causes include incoming AC supply problems, loose connections, power-supply faults, excessive system loading, wiring problems, or other electrical issues.

6. How can a power-supply problem be distinguished from a failed module?

Check the incoming supply, power-supply status, chassis condition, and behavior of multiple modules. A problem affecting several modules at the same time may indicate a common power or backplane issue.

7. What should be checked before replacing the 1756-PA50?

Verify the incoming AC supply, chassis configuration, module loading, connections, and power-supply status. This helps prevent replacing a healthy power supply when the actual fault exists elsewhere.

8. Can additional ControlLogix modules be added without checking power capacity?

No. Adding modules changes the chassis power demand. The total load should be evaluated before expanding the system.

9. Why should the complete catalog number be matched during replacement?

ControlLogix power supplies have different electrical capabilities and system applications. Matching the complete catalog number helps ensure the replacement is appropriate for the existing chassis.

10. What should be checked after installing a replacement power supply?

Confirm secure mounting, correct wiring, appropriate incoming power, chassis compatibility, module operation, and normal system initialization before returning the equipment to production.
