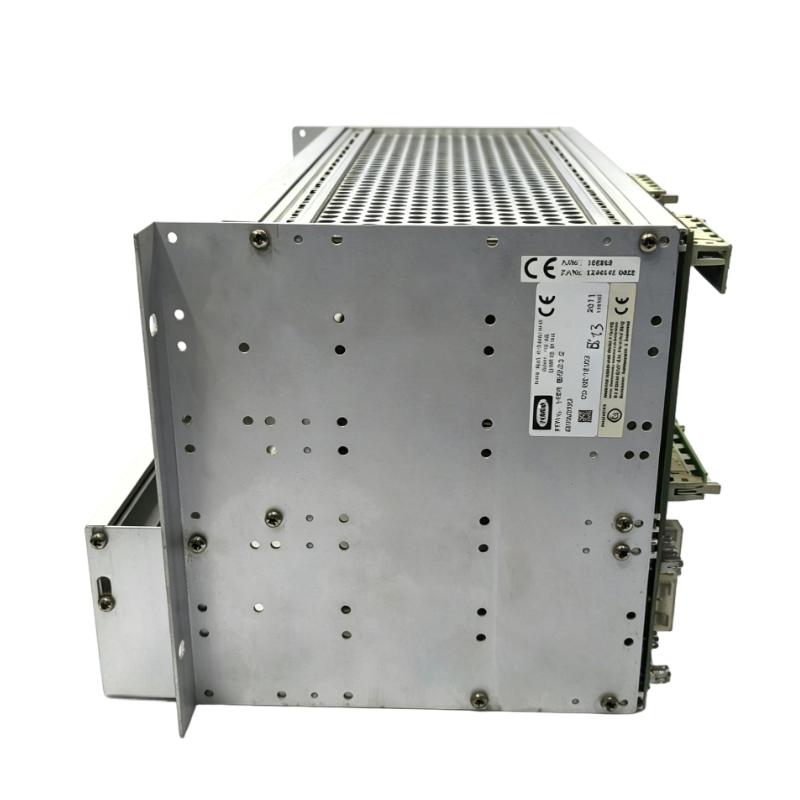

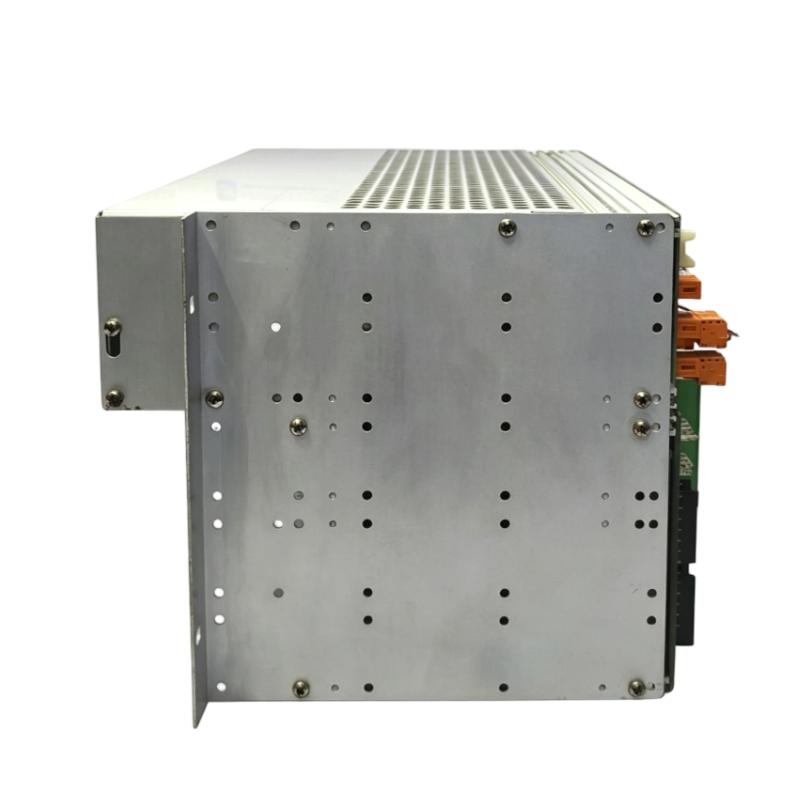

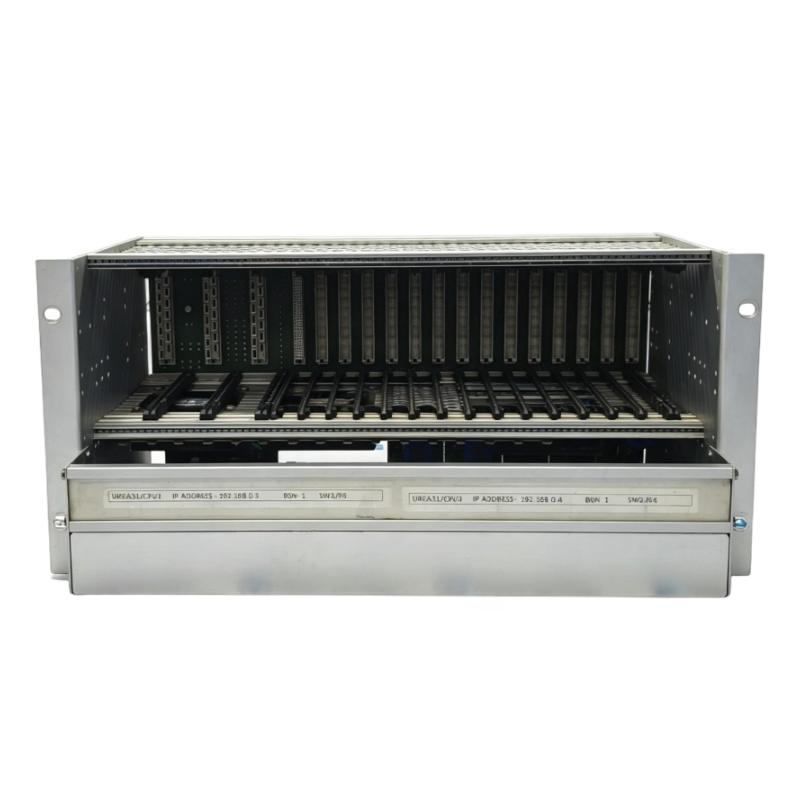

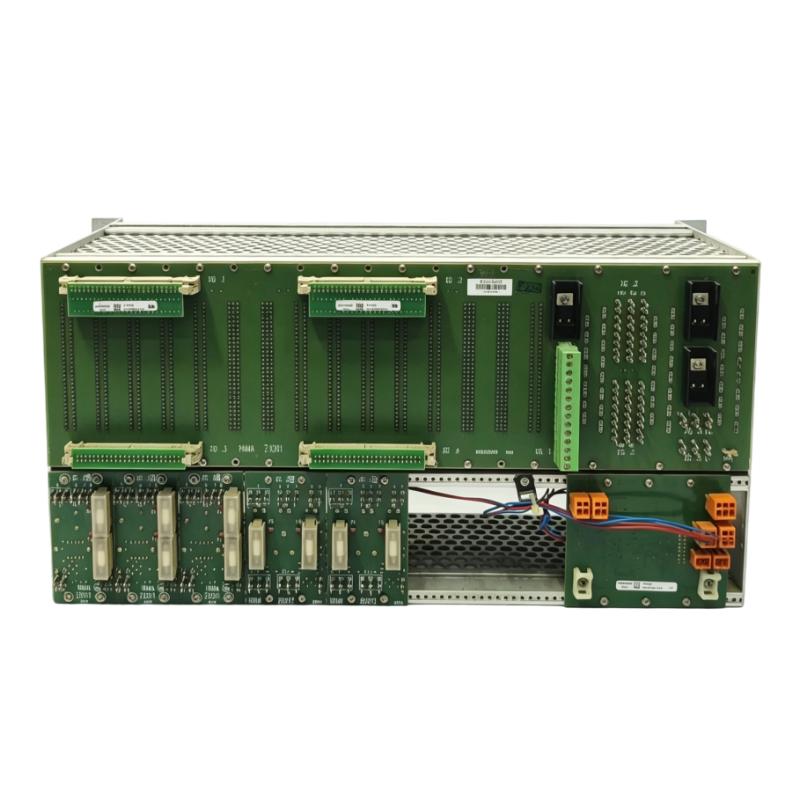

HIMA H51Q-HRS B5233-2 997205233 System Assembly Rack

Safety Control System Applications

The HIMA H51Q-HRS B5233-2 997205233 System Assembly Rack is a dedicated hardware component for HIMA safety automation systems. As a mechanical and system-level assembly component, the rack provides an organized foundation for installing compatible safety-system hardware and maintaining a structured control architecture.

HIMA safety systems are used in applications where dependable control and fault handling are critical. Typical environments include process plants, oil and gas facilities, chemical production, power generation, transportation infrastructure, and other industrial installations where safety-related automation must operate predictably.

A suitable assembly rack helps maintain the physical organization of the safety system while providing an appropriate mounting environment for compatible modules. This is especially important in control cabinets where multiple system components must be arranged with clear access for wiring, inspection, and maintenance.

The H51Q-HRS B5233-2 997205233 has listed dimensions of 350 × 248 × 222 mm and a weight of 1.80 kg (3.97 lb). Its relatively compact footprint makes it suitable for industrial cabinet installations where mechanical organization and service accessibility are important.

For plant operators, OEMs, and safety-system integrators, maintaining the correct assembly hardware can help preserve the intended structure of an existing HIMA installation and simplify replacement or modernization work.

A Structured Foundation for HIMA Safety Hardware

In a safety-related automation system, mechanical installation is not merely a matter of placing components inside a cabinet. Hardware needs to be securely positioned, properly supported, and arranged so that technicians can safely inspect and maintain the system.

The HIMA H51Q-HRS B5233-2 997205233 System Assembly Rack provides the physical framework for compatible HIMA safety-system hardware. Its role is primarily structural, allowing associated components to be organized within the intended system architecture.

A well-arranged rack installation can provide several practical benefits. It can simplify cabinet construction, keep modules positioned consistently, improve access to connections, and make future maintenance work easier.

This becomes increasingly important in safety-related installations because maintenance activities should be performed in a controlled and documented manner. Engineers need to be able to identify individual components and understand their relationship to the overall safety architecture.

The rack's 350 × 248 × 222 mm dimensions should be incorporated into the cabinet layout during system design. Adequate space should also be allowed around the installed equipment for wiring, inspection, ventilation where applicable, and maintenance access.

With a weight of 1.80 kg (3.97 lb), the rack adds a manageable mechanical load, but the complete installed assembly should still be considered when evaluating cabinet mounting and structural support.

For replacement projects, the complete identification H51Q-HRS B5233-2 / 997205233 should be checked carefully. Safety-system components are highly application-dependent, and substituting hardware based only on physical similarity can introduce compatibility risks.

Technical FAQs

1. What is the HIMA H51Q-HRS B5233-2 997205233?

It is a HIMA System Assembly Rack intended to provide a structured mechanical installation arrangement for compatible HIMA safety-system hardware.

2. What is the main function of a system assembly rack?

Its primary function is to support and organize compatible system components within an industrial control cabinet or safety-system installation.

3. Does the assembly rack perform safety logic?

No. The rack is a mechanical system component and does not independently execute safety logic or process-control functions.

4. Why is secure mounting important for safety-system hardware?

Secure mounting helps prevent unwanted movement, mechanical stress, wiring strain, and installation problems that could affect the physical integrity of the system.

5. Can the H51Q-HRS rack be used with any HIMA module?

Compatibility should be confirmed for the specific HIMA system architecture. A rack designed for one system arrangement should not automatically be assumed to support another.

6. What should be checked before replacing an assembly rack?

Verify the complete catalog identification, associated HIMA system, compatible modules, mechanical interface, mounting arrangement, and cabinet requirements.

7. Can poor rack installation contribute to electrical problems?

Indirectly, yes. Improper mounting can cause mechanical stress on connectors or wiring and may make proper cable routing more difficult.

8. Why is cabinet layout important for safety-system maintenance?

A clear layout allows maintenance personnel to identify components and wiring more efficiently and helps reduce unnecessary disturbance to adjacent safety-system hardware.

9. Should the rack be inspected during maintenance?

Yes. Inspect the mounting structure, fastening points, mechanical condition, component positioning, and any signs of deformation or damage.

10. What should be verified after installing a replacement rack?

Confirm mechanical security, correct component placement, wiring condition, connector engagement, cabinet clearances, and the overall safety-system configuration before returning the installation to service.
