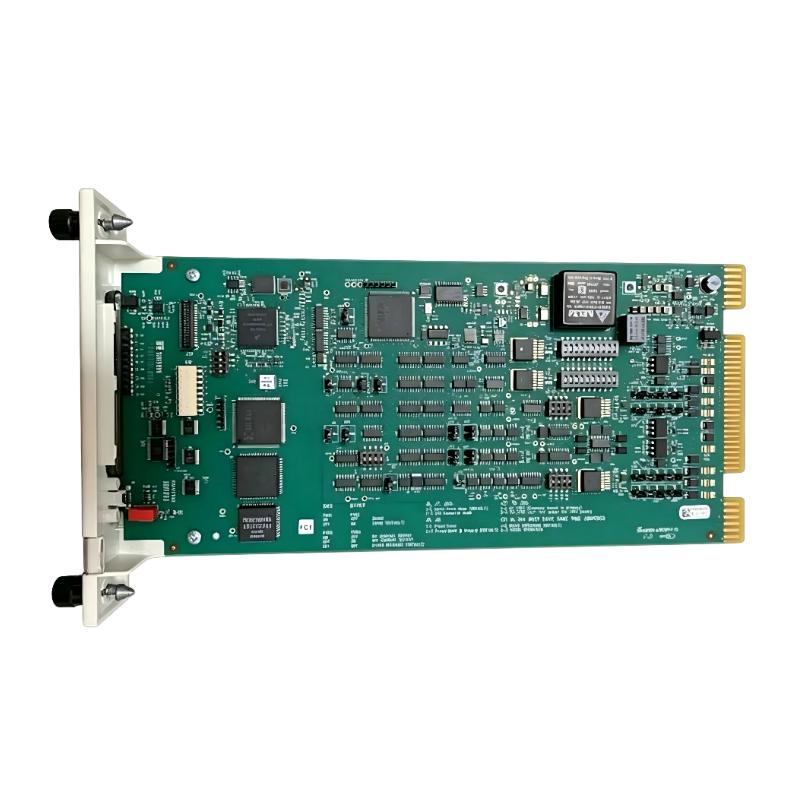

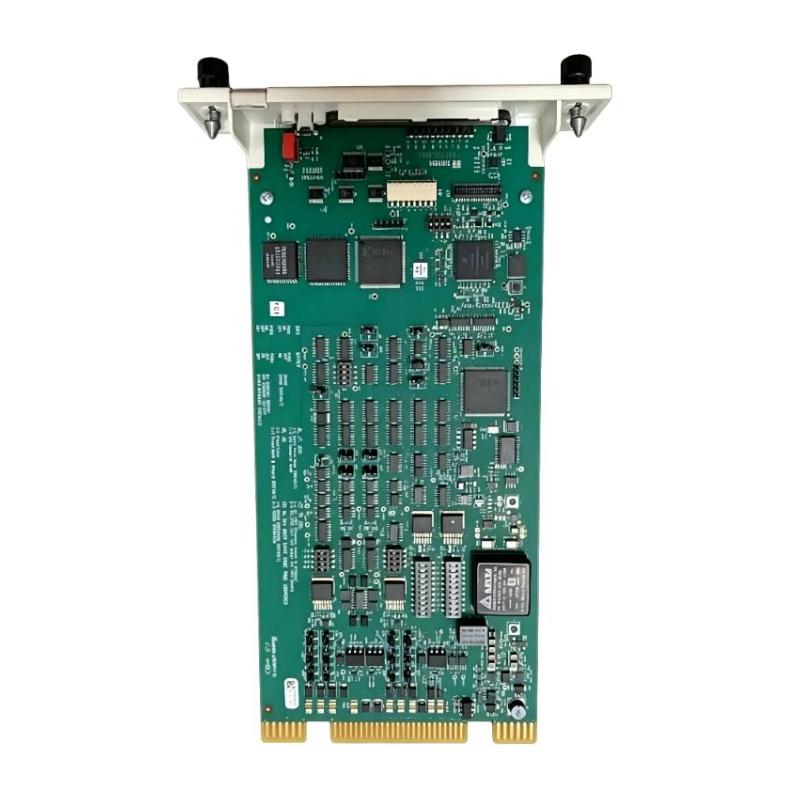

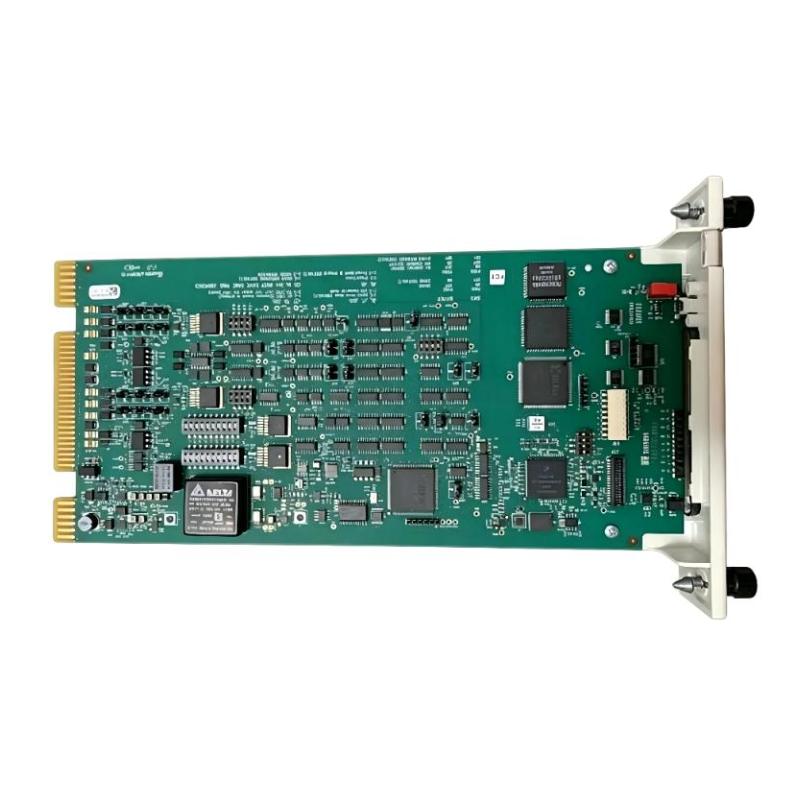

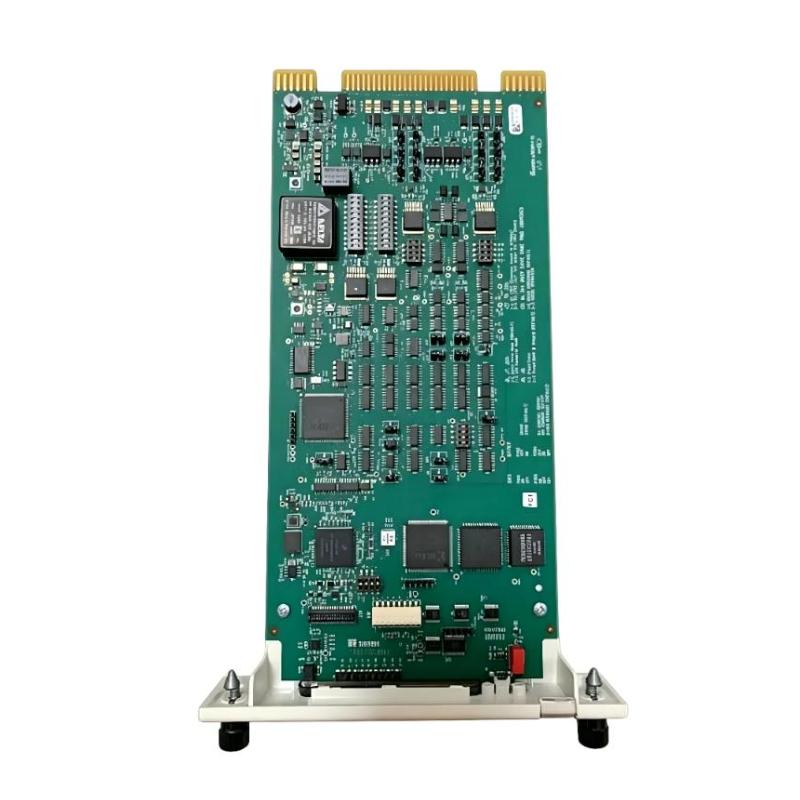

ABB Bailey SPTPS13 Turbine Protection Module

Turbine Protection and Critical Monitoring Applications

The ABB Bailey SPTPS13 Turbine Protection Module is a specialized industrial automation component designed for turbine protection applications where dependable monitoring and rapid response are essential. Turbine protection systems play a critical role in preventing abnormal operating conditions from developing into equipment damage, production interruptions, or unsafe operating situations.

In power generation and industrial turbine installations, operating parameters must be continuously supervised. Conditions such as excessive speed, abnormal vibration, overspeed events, temperature deviations, or other process abnormalities may require immediate protective action. A dedicated turbine protection architecture provides an additional layer of supervision around the normal control system.

The SPTPS13 is particularly relevant to industrial environments using ABB Bailey automation and protection equipment. It can be considered for turbine-related applications in power plants, industrial generation facilities, process industries, and other installations where turbine availability and equipment protection are major operational priorities.

With listed dimensions of 350 × 25 × 150 mm, the module has a slim form factor that can be advantageous in dense control-system installations. Its listed weight is 0.33 kg (0.73 lb).

For plant operators, maintenance engineers, and automation integrators, maintaining the correct turbine protection hardware is essential when supporting an existing protection architecture. Accurate identification of the complete SPTPS13 model is therefore important for replacement and maintenance planning.

Dedicated Protection for Turbine-Critical Systems

Turbines operate under demanding mechanical and thermal conditions, and abnormal operating states can develop rapidly. For this reason, turbine protection is normally treated as a dedicated engineering function rather than relying solely on conventional process-control logic.

The ABB Bailey SPTPS13 Turbine Protection Module is intended to form part of such a protection-oriented architecture. Its role is associated with turbine protection and monitoring rather than ordinary production-control functions.

A properly designed protection system provides independent or appropriately prioritized monitoring of critical turbine conditions. When a dangerous operating state is detected, the protection architecture can initiate the appropriate protective response according to the system design.

For maintenance teams, reliable protection hardware is particularly important because a turbine protection system may remain in standby for long periods but must respond correctly when abnormal conditions occur. Components should therefore be maintained with the same level of care applied to other critical automation equipment.

The SPTPS13 has listed dimensions of 350 × 25 × 150 mm and a weight of 0.33 kg (0.73 lb). Its slim 25 mm dimension can be useful where cabinet or rack space is constrained.

During replacement work, engineers should verify the complete hardware configuration rather than selecting a module solely according to its general description. Turbine protection equipment can have application-specific interfaces, system dependencies, and configuration requirements.

For power-generation and industrial-process operators, a correctly maintained protection architecture can provide an important layer of defense against abnormal turbine operation.

Technical FAQs

1. What is the ABB Bailey SPTPS13?

The SPTPS13 is an ABB Bailey Turbine Protection Module intended for compatible turbine protection and monitoring applications.

2. Why is turbine protection necessary?

Turbine protection helps detect potentially damaging operating conditions and provides a dedicated protective layer that can respond according to the engineered protection strategy.

3. Is turbine protection the same as normal turbine control?

No. Turbine control manages normal operating functions, while protection systems are primarily concerned with detecting abnormal or hazardous conditions and initiating protective actions.

4. What types of conditions can turbine protection systems monitor?

Depending on the system architecture, protection systems may monitor conditions such as speed, vibration, temperature, pressure, or other parameters associated with turbine operation.

5. Can a failed protection module affect turbine operation?

It can affect protection-system availability or diagnostic status. The actual operational consequence depends on the redundancy and architecture of the complete turbine protection system.

6. What should be checked if a turbine protection channel reports a fault?

Review system diagnostics, field instrumentation, wiring, signal interfaces, module status, power conditions, and the relevant protection-channel configuration.

7. Why is redundancy important in turbine protection?

Redundancy can reduce the impact of an individual hardware or signal-path failure and improve the availability of critical protection functions when appropriately engineered.

8. Can a standard PLC module replace a turbine protection module?

A conventional PLC module should not automatically be treated as a substitute for dedicated turbine protection hardware. Protection functions require appropriate architecture, performance, diagnostics, and engineering validation.

9. What should be considered before replacing an SPTPS13?

Confirm the exact model, associated ABB Bailey system, electrical interfaces, system configuration, protection architecture, and applicable installation requirements.

10. What should be verified after replacing the module?

The installation should be checked for correct connections, module recognition, diagnostics, signal integrity, channel status, and proper operation of the engineered protection functions before the turbine is returned to normal service.
