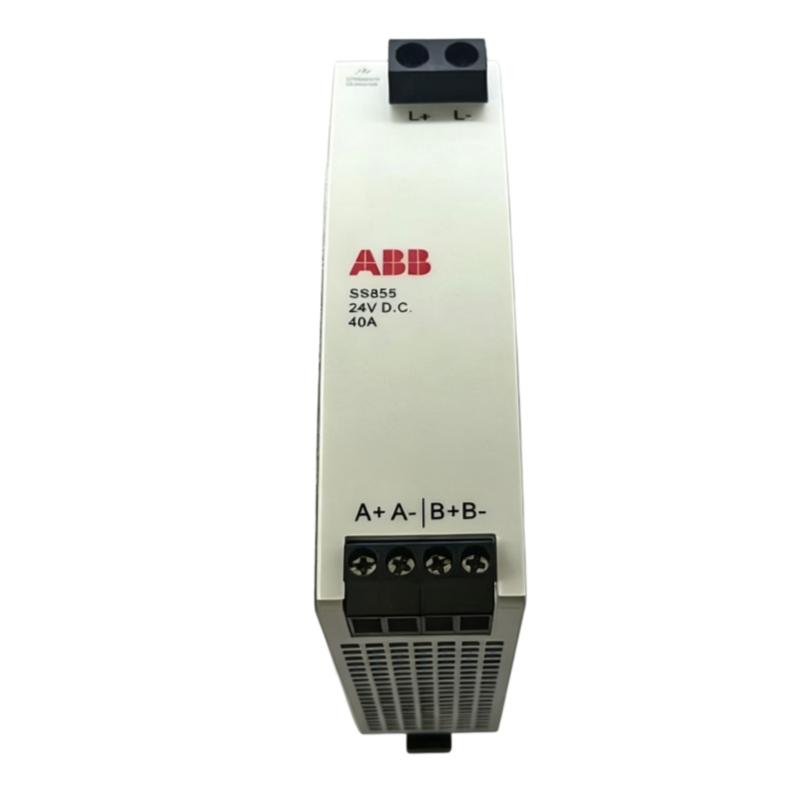

ABB SS855 2PAA125624R1 Power Voting Unit

Redundant Power Management Applications

The ABB SS855 2PAA125624R1 Power Voting Unit is a compact industrial automation component designed for power redundancy and availability applications within compatible ABB control-system architectures. Power voting is an important concept in high-availability automation because critical control equipment may require a dependable power path even if an individual power source experiences a fault.

In industrial process environments, control systems are expected to remain operational for long periods with minimal interruption. Redundant power arrangements can help improve system availability by allowing appropriately designed power architectures to continue supporting connected equipment when one supply path becomes unavailable.

The SS855 is particularly relevant to ABB automation installations where redundant power sources need to be managed through a dedicated voting arrangement. Applications may include process automation, energy facilities, chemical plants, oil and gas installations, manufacturing systems, and other industrial environments where control-system availability is a major operational requirement.

The listed dimensions are 127 × 36 × 124 mm, while the weight is 0.28 kg (0.62 lb). Its compact form factor allows efficient installation in control cabinets where power-management hardware must coexist with controllers, I/O modules, communication equipment, and other system components.

For system integrators and maintenance engineers, the correct power voting hardware can provide an important layer of redundancy management while preserving an organized cabinet architecture.

Redundant Power Architecture for High-Availability Control

A reliable automation system depends not only on the performance of controllers and I/O modules but also on the availability of their power infrastructure. If a critical control system relies on a single power source, a failure in that source can potentially interrupt multiple system functions.

A power voting arrangement addresses this type of architecture by managing multiple power inputs according to the design of the control system. The ABB SS855 2PAA125624R1 Power Voting Unit is intended to support this type of redundant power arrangement within compatible ABB systems.

The value of power redundancy becomes particularly clear in continuous-process industries. A short interruption to control hardware can create significant operational consequences, especially when restarting equipment requires extensive procedures.

A properly engineered redundant power system can help reduce this risk. The voting unit forms part of the power-management path, while the associated power supplies, wiring, protection devices, and connected loads complete the overall architecture.

The SS855 measures 127 × 36 × 124 mm and weighs 0.28 kg (0.62 lb). Its 36 mm width provides a compact installation footprint, making it suitable for densely populated automation cabinets.

During commissioning, engineers should verify the complete power architecture rather than evaluating the voting unit independently. Both power sources, connection integrity, system loading, and diagnostic conditions should be checked according to the applicable installation design.

For replacement applications, the complete designation SS855 / 2PAA125624R1 should be confirmed. Power redundancy components can have specific system interfaces, and using an incorrectly matched component may compromise the intended redundancy arrangement.

For industrial automation users, maintaining a properly configured power-voting architecture can help support system availability and reduce the operational impact of individual power-source failures.

Technical FAQs

1. What is the ABB SS855 2PAA125624R1?

The ABB SS855 2PAA125624R1 is identified as a Power Voting Unit designed for compatible ABB industrial automation power-redundancy architectures.

2. What does a power voting unit do?

A power voting unit forms part of a redundant power arrangement, managing multiple power sources according to the system's engineered power architecture.

3. Why is power redundancy important in industrial automation?

Redundant power can help maintain system availability when one power source or power path becomes unavailable.

4. Is the SS855 itself a power supply?

No. The SS855 is a power voting component. The complete redundant power architecture also includes the appropriate power sources and associated wiring.

5. What can cause a redundant power system to report a fault?

Possible causes include a failed power source, loose wiring, incorrect connections, overload conditions, protection-device operation, or a fault within the power-management path.

6. Can a problem with one power source affect the system if redundancy is working correctly?

A properly engineered redundant system may continue operating after an individual source failure, depending on its design. The failed source should nevertheless be investigated and restored promptly.

7. What should be checked when a power-voting alarm appears?

Check the status of each power source, input connections, output conditions, protective devices, system diagnostics, and the wiring associated with the voting arrangement.

8. Why should both redundant power paths be tested?

Testing both paths helps confirm that the redundancy architecture is available when required rather than discovering a second fault during an actual power failure.

9. Can a generic diode or power-combining device replace the SS855?

It should not be assumed to be a suitable substitute. The electrical characteristics, system interface, protection behavior, and ABB system compatibility must be verified.

10. What should be verified after replacing the SS855?

Verify the wiring, power-source status, redundancy behavior, diagnostic condition, connected load, and overall system operation before returning the installation to normal service.
