Introduction

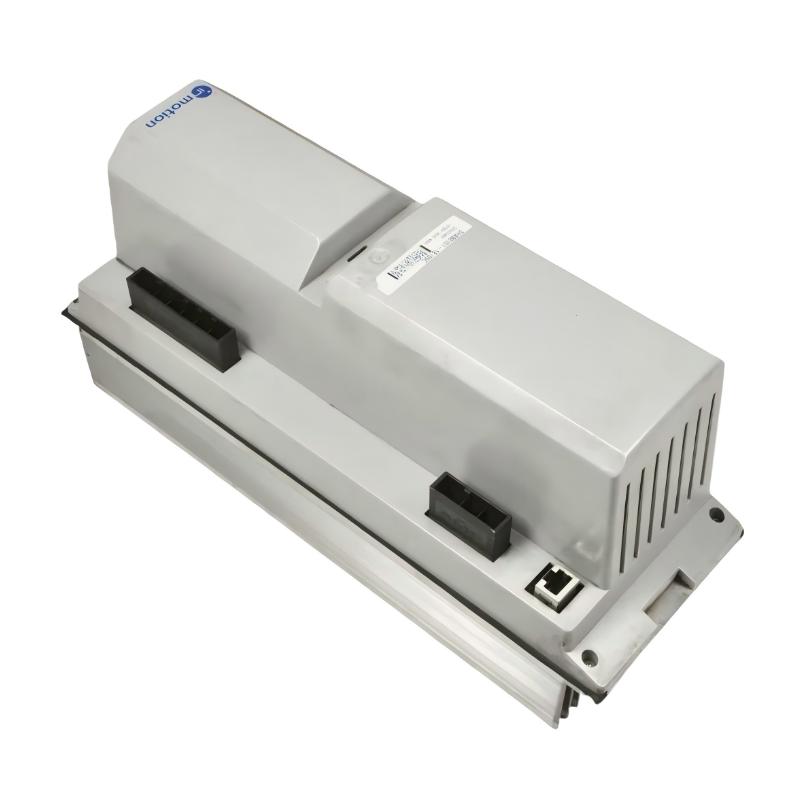

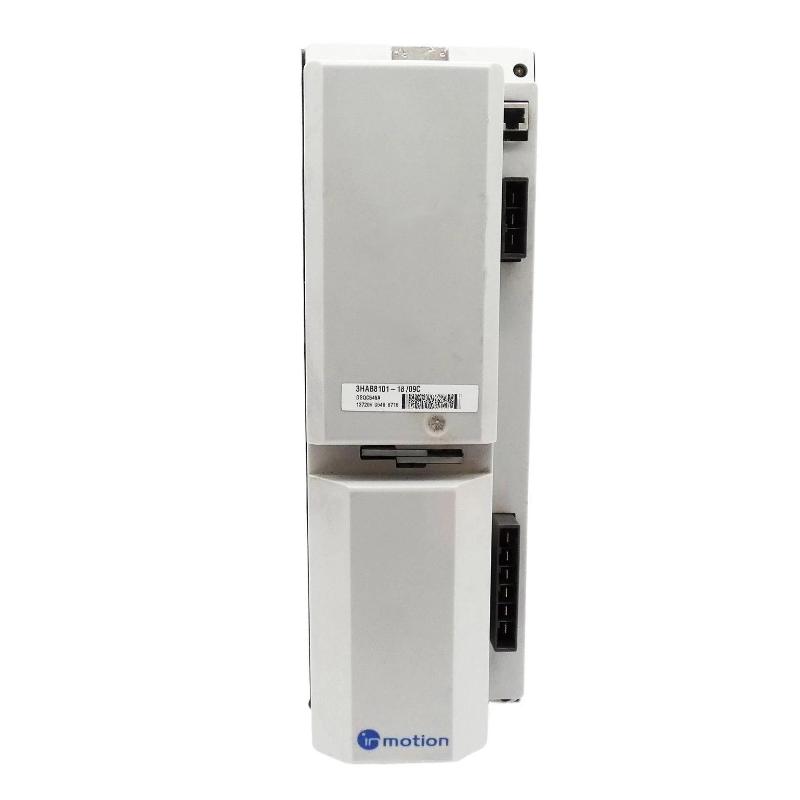

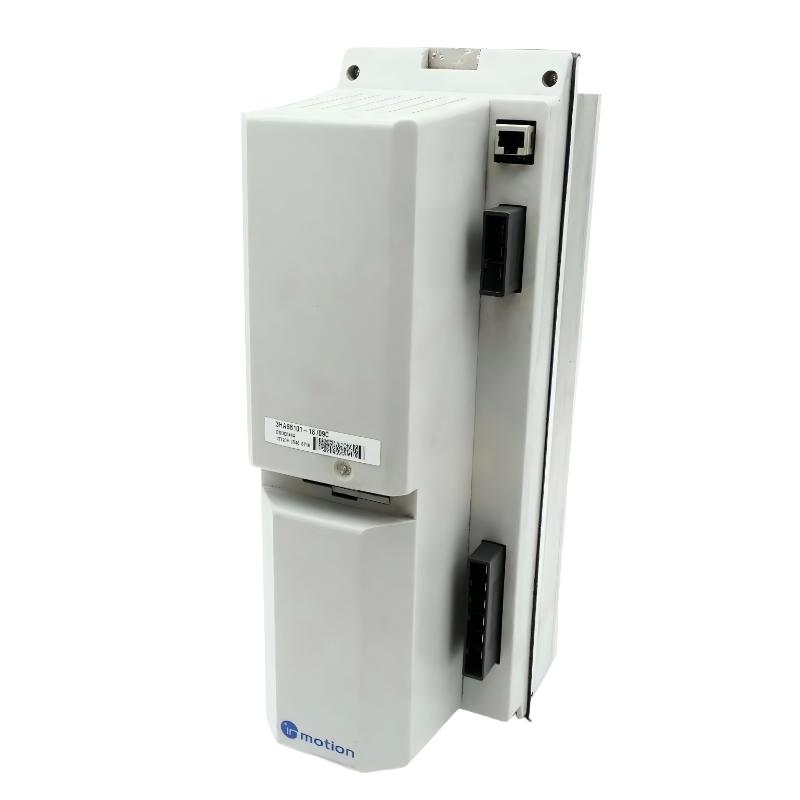

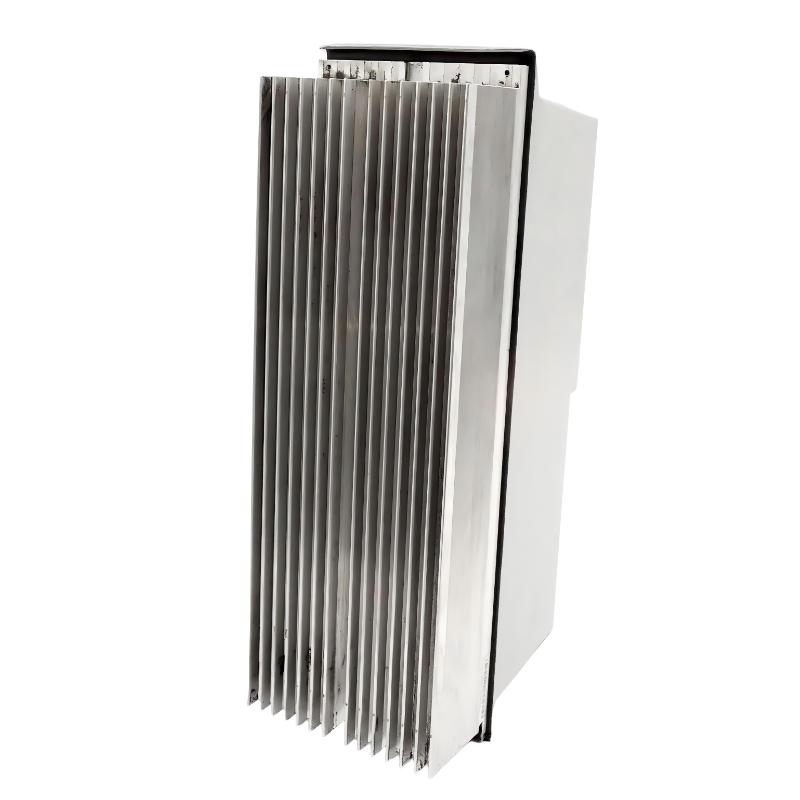

The ABB DSQC 546A 3HAB8101-18/09C Servo Driver is a specialized component designed to work within compatible ABB industrial robot motion systems. Servo drivers are among the most important electrical elements in a robot controller because they directly influence the way the robot's motors respond to motion commands.

In a production environment, robot axes may perform thousands of movements every day. Controlled speed, torque, acceleration, and positioning are required to maintain cycle-time consistency and product quality. When servo-drive hardware begins to fail, even a relatively localized electrical problem can bring an entire robotic cell to a halt.

The DSQC 546A is therefore a valuable maintenance component for facilities operating ABB robotic equipment. It can be used when a compatible drive requires replacement due to electronic failure, abnormal operation, or other drive-system problems.

A proper troubleshooting process remains important before replacement. A controller alarm does not automatically prove that the servo driver is defective. Motor insulation, encoder feedback, cable assemblies, power connections, and mechanical loads should be evaluated as part of the diagnosis.

For older ABB installations, maintaining suitable spare drive hardware can be particularly beneficial. Rather than replacing an entire controller because of an individual drive fault, a correctly identified replacement unit may help restore the existing system more efficiently.

Technical Specifications

Specification	Details
Brand	ABB
Model	DSQC 546A
Part Number	3HAB8101-18/09C
Product Type	Servo Driver
Application	ABB Industrial Robot Servo System
Primary Function	Servo Power and Motion Control
System Type	Industrial Robot Controller
Dimensions	285 × 65 × 150 mm
Length	285 mm
Width	65 mm
Height	150 mm
Weight	4.20 kg (9.26 lb)
Installation	Robot Controller / Servo Drive Assembly
Application Area	Robot Axis Control

Weight: 4.20 kg (9.26 lb)

The dimensions and weight are based on the product information supplied for this item. Electrical ratings, connector configuration, supported robot systems, and drive-system compatibility should be confirmed against the target ABB equipment before replacement.

Recommended Related Models

For ABB industrial robot drive maintenance, the following models are useful related references when evaluating servo-system components:

ABB DSQC 545A 3HAB8101-19/07E – Servo Driver
ABB DSQC 545A 3HAB8101-19/07D – Servo Drive
ABB DSQC 345C 3HAB8101-3/07B – Servo Drive
ABB DSQC 345C 3HAB8101-3/07E – Servo Drive
ABB DSQC 345E 3HAB8101-14 – Servo Drive Rectifier

These models belong to related ABB servo-drive families, but they should not be treated as direct replacements without confirming the complete robot and controller configuration.

Popular Related Models

For customers maintaining ABB robotic motion-control systems, the following related drive components may also be encountered in service and refurbishment applications:

ABB DSQC 345A 3HAB8101-1 – Servo Drive Unit
ABB DSQC 346A 3HAB8101-5 – Servo Drive Component
ABB DSQC 345C 3HAB8101-3/07B – Servo Drive Unit
ABB DSQC 345C 3HAB8101-3/07E – Servo Drive Unit
ABB DSQC 545A 3HAB8101-19/07E – Servo Driver

When purchasing the ABB DSQC 546A 3HAB8101-18/09C Servo Driver, the complete part number should be provided during procurement and maintenance planning. For legacy ABB robot systems, confirming the controller type, hardware revision, and servo configuration before installation is essential for dependable operation.

Applications

The ABB DSQC 546A 3HAB8101-18/09C Servo Driver is a dedicated drive-system component for compatible ABB industrial robot installations. It forms part of the robot's servo power and motion-control architecture, where controlled electrical power is required to operate servo motors and achieve accurate axis movement.

In an industrial production cell, robot motion must remain stable and predictable through repeated acceleration, deceleration, positioning, and coordinated multi-axis operation. A properly functioning servo driver is therefore essential to maintaining the performance of the overall robot system.

The DSQC 546A can be used in applications such as:

ABB industrial robot servo systems
Robot controller drive assemblies
Multi-axis robot motion control
Automated assembly and handling
Robotic welding systems
Machine tending applications
Legacy ABB robot maintenance
Robot controller refurbishment
Servo-system troubleshooting
Replacement of failed drive components

For maintenance departments operating established ABB robot equipment, the DSQC 546A can provide a practical replacement option while preserving the existing servo architecture.

Advantages

Reliable servo power management
The DSQC 546A is designed to operate as part of an ABB robot drive system, supporting the controlled delivery of electrical power required by the servo section.

Supports accurate robot movement
Stable servo-drive operation is essential for precise positioning, coordinated axis movement, and repeatable production cycles.

Suitable for legacy automation equipment
The 3HAB8101-18/09C is particularly useful for service teams maintaining older ABB robotic systems where replacement of individual drive components can extend the useful life of the installation.

Simplifies maintenance planning
Identifying the exact DSQC 546A part number allows maintenance teams to prepare an appropriate spare instead of relying on generic drive hardware.

Useful for robot refurbishment
When a legacy robot controller remains suitable for the production process, replacing a defective servo driver can be a cost-effective part of a broader refurbishment strategy.

Supports reduced downtime
Having the correct drive available can shorten the time between fault identification and equipment restoration.

Industrial automation design
The component is intended for use within an ABB robot-drive environment, making system-level compatibility more important than simply matching physical dimensions.

Technical FAQs

1. What is the ABB DSQC 546A 3HAB8101-18/09C?
The DSQC 546A 3HAB8101-18/09C is an ABB servo driver used within compatible industrial robot control and motion systems.

2. What does a servo driver do in an industrial robot?
A servo driver manages the electrical power and control signals required by a servo motor. It enables controlled acceleration, deceleration, torque, speed, and positioning of the robot axis.

3. What symptoms can indicate a servo-driver problem?
Possible symptoms include servo faults, axis enable failure, unexpected drive alarms, abnormal motor response, intermittent axis operation, or an axis that refuses to move when commanded.

4. Can a robot servo alarm be caused by something other than the driver?
Yes. Motors, encoder feedback, motor cables, connectors, mechanical assemblies, power supplies, and controller circuitry can all produce symptoms that resemble a servo-driver failure.

5. What should be checked before replacing the DSQC 546A?
Technicians should verify the complete part number, controller configuration, electrical connections, associated motor circuits, feedback wiring, and recorded diagnostic information before replacing the unit.

6. Is the 3HAB8101-18/09C interchangeable with other DSQC servo drivers?
It should not be assumed to be interchangeable with another DSQC drive solely because the physical dimensions are similar. Electrical ratings, hardware revision, controller architecture, and motor configuration must be checked.

7. Can a damaged robot cable cause a drive fault?
Yes. Short circuits, insulation damage, broken conductors, or poor connector contact can create overcurrent, feedback, or communication faults that may be reported by the servo system.

8. What safety precautions apply when replacing the servo driver?
The controller should be properly shut down and electrically isolated before service. Stored electrical energy must also be addressed, and qualified personnel should follow the site's established lockout and electrical safety procedures.

9. How should a replacement DSQC 546A be commissioned?
After confirming the installation and connections, technicians should follow the applicable ABB controller commissioning procedure. Initial testing should be controlled, with servo alarms, axis response, abnormal noise, and other unexpected behavior monitored carefully.

10. Why is the complete ABB part number important when sourcing this drive?
Servo drive hardware is highly configuration-dependent. Matching DSQC 546A 3HAB8101-18/09C helps reduce the risk of installing a drive with an incompatible electrical or hardware configuration.
