Brand:ABB PLC Item No.:DSQC 504 Product Origin:Sweden (SE) Product Dimensions:200 x 25 x 185 mm Product Weight:0.54 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

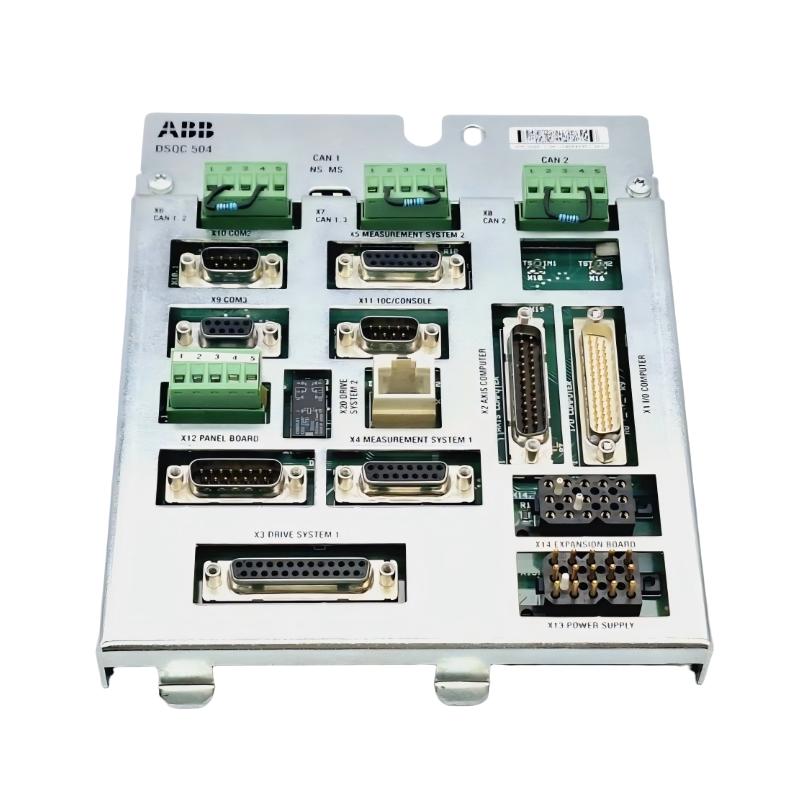

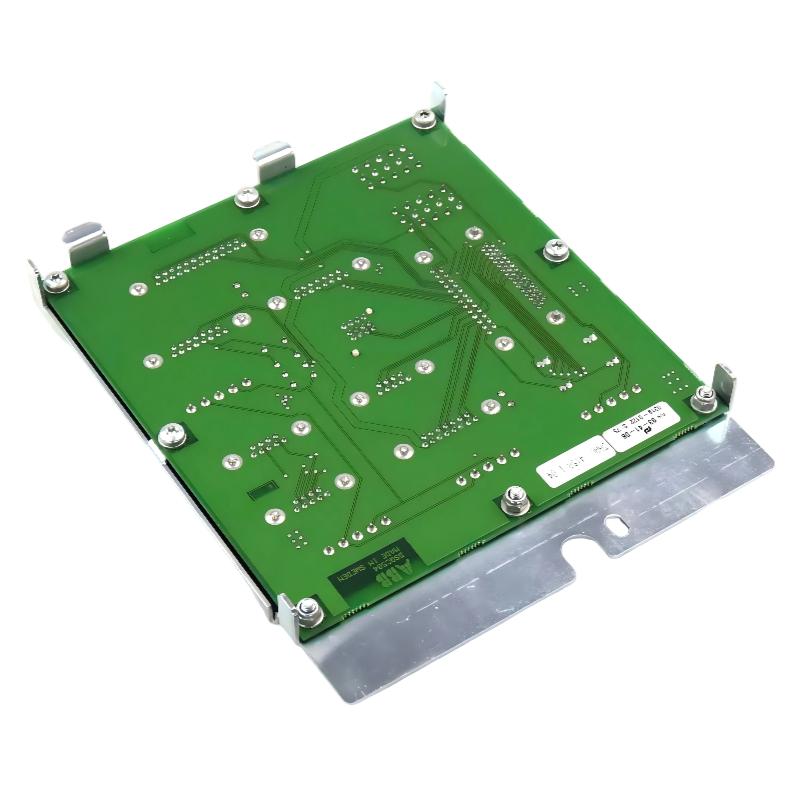

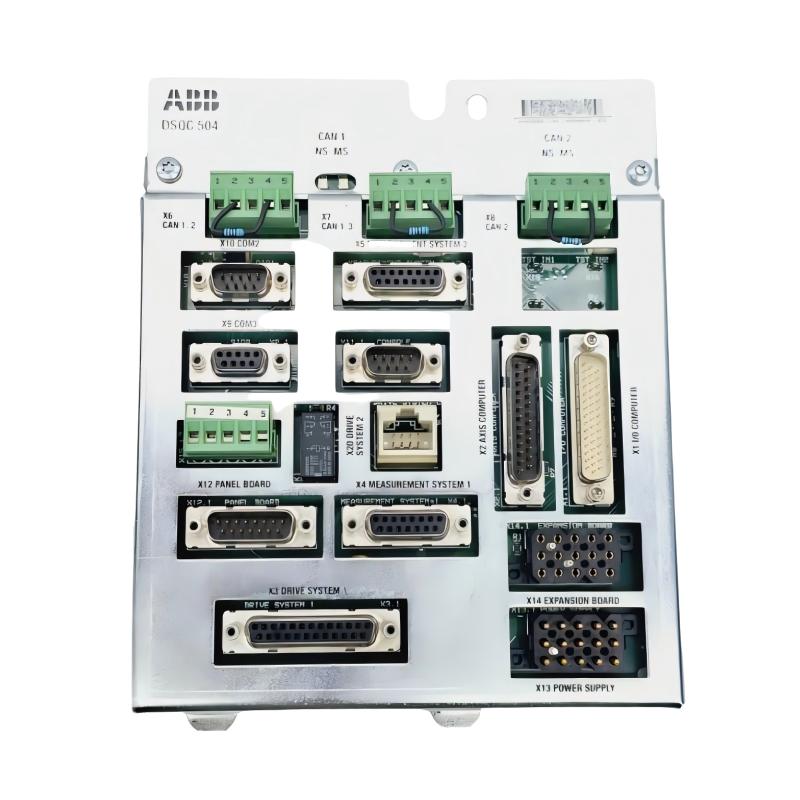

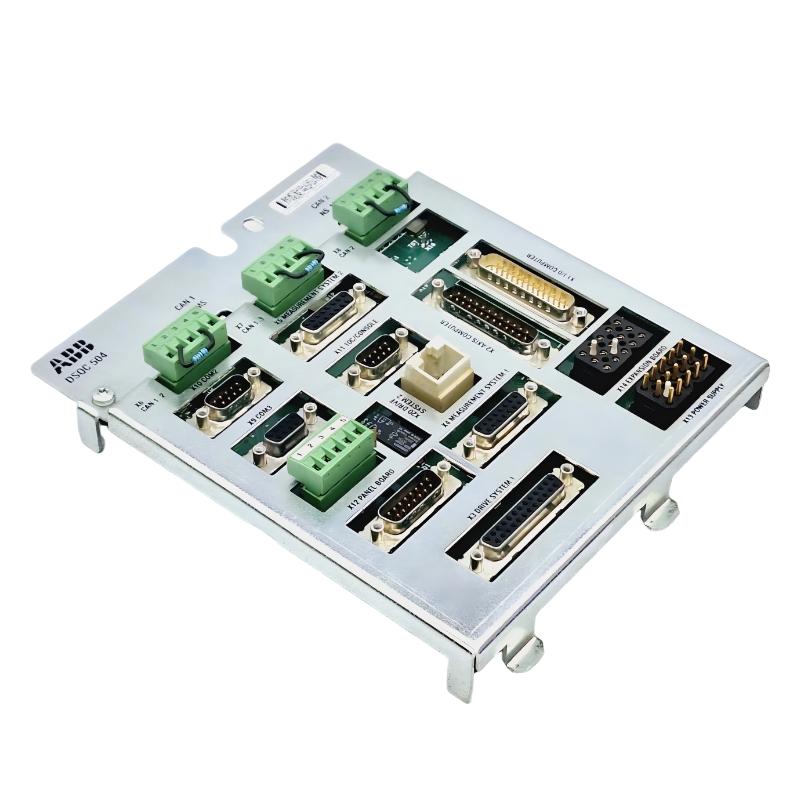

The ABB DSQC 504 3HAC5689-1 Base Connection Unit is an important interface component for compatible ABB industrial robot control systems. While it does not perform the same processing or motion-control functions as a CPU or servo driver, its role in maintaining organized electrical connections makes it essential to dependable controller operation.
Industrial robot controllers contain numerous electrical connections linking control electronics, power-related assemblies, input/output circuits, communication interfaces, and other system components. These connections must remain mechanically secure and electrically stable throughout the equipment's operating life.
A deteriorated connection unit can create difficult-to-diagnose problems. Unlike a complete electronic failure, an intermittent connection fault may appear only under vibration, temperature changes, or movement of a wiring harness. This makes careful inspection particularly important during troubleshooting.
The DSQC 504 is therefore a useful replacement component for maintenance teams responsible for ABB legacy robotic equipment. Replacing a damaged or unreliable base connection unit can help restore a clean, structured connection arrangement while minimizing changes to the established controller architecture.
For procurement purposes, the complete part number 3HAC5689-1 should be retained along with the DSQC 504 designation. This provides maintenance personnel with a clear identification reference when matching a replacement component to an existing controller.
Technical Specifications
Specification
Details
Brand
ABB
Model
DSQC 504
Part Number
3HAC5689-1
Product Type
Base Connection Unit
Application
ABB Industrial Robot Control Systems
Primary Function
Electrical Interconnection
System Role
Controller Interface Component
Dimensions
200 × 25 × 185 mm
Length
200 mm
Width
25 mm
Height
185 mm
Weight
0.54 kg (1.19 lb)
Installation
Robot Controller / Control Cabinet
Application Area
Wiring and System Interconnection
Weight: 0.54 kg (1.19 lb)
The dimensions and weight are based on the product information supplied for this item. Connector layout, electrical interface details, mounting arrangements, and controller compatibility should be verified against the actual ABB system before installation.
Recommended Related Models
For ABB robot controller maintenance, the following models are relevant related components that may be considered when servicing associated legacy control-system hardware:
ABB DSQC 513 3HAC010280-001 – Controller System Component
The exact replacement or related component should always be selected according to the robot controller model and existing hardware configuration.
Popular Related Models
For maintenance and refurbishment of ABB industrial robot control systems, the following DSQC-series components may also be useful references:
ABB DSQC 504 3HAC5689-1 – Base Connection Unit
ABB DSQC 505 – Controller Connection Component
ABB DSQC 506 – Robot Controller Interface
ABB DSQC 509 – Robot System Component
ABB DSQC 512 – Controller Interface Component
For the ABB DSQC 504 3HAC5689-1 Base Connection Unit, accurate part-number matching is recommended before purchase or installation. In legacy robot controllers, even physically similar connection components may have different wiring layouts, making correct identification essential for reliable maintenance and system restoration.
Applications
The ABB DSQC 504 3HAC5689-1 Base Connection Unit is an interface component used in ABB industrial robot control systems. Positioned within the controller architecture, a base connection unit provides an organized connection point for associated electrical assemblies and helps maintain a reliable interconnection between the different sections of the robot control system.
In legacy ABB robotic installations, connection units are particularly important because they bring multiple wiring and interface functions together in a structured hardware arrangement. A dependable connection point can simplify service work, reduce wiring complexity, and help technicians trace electrical circuits during commissioning or troubleshooting.
The DSQC 504 can be considered for applications including:
ABB industrial robot controller systems
Robot control cabinet interfaces
Internal controller wiring
Industrial automation interconnections
Robot controller refurbishment
Legacy ABB robot maintenance
Control-system troubleshooting
Electrical connection management
Preventive maintenance and spare-parts replacement
For service teams working with established ABB robotic equipment, the correct base connection unit can help preserve the original controller configuration while providing a practical solution for replacing damaged or deteriorated interface hardware.
Advantages
Structured electrical interconnection
The DSQC 504 provides a dedicated interface point within compatible ABB robot-control equipment, helping organize electrical connections between system components.
Supports reliable controller wiring
A properly installed connection unit helps maintain stable electrical continuity between the associated assemblies and wiring harnesses.
Designed for industrial automation service
Its application within ABB robot systems makes it a practical component for maintenance and refurbishment work on compatible controllers.
Helps simplify troubleshooting
A structured connection arrangement can make it easier for maintenance engineers to identify wiring paths, inspect terminals, and isolate potential connection faults.
Useful for legacy equipment
The DSQC 504 is particularly relevant when maintaining older ABB robot controllers where retaining the established hardware architecture is important.
Reduces unnecessary system modification
Replacing the specified connection unit can help maintain the existing wiring layout instead of introducing an improvised interface solution.
Valuable maintenance spare
Keeping the correct component available can shorten service time when a damaged connection unit affects controller operation.
Technical FAQs
1. What is the ABB DSQC 504 3HAC5689-1?
The DSQC 504 3HAC5689-1 is a Base Connection Unit used within compatible ABB industrial robot control systems. It provides an organized interface for associated electrical connections.
2. What is the role of a base connection unit in a robot controller?
A base connection unit serves as an electrical interface between designated controller components and wiring. It helps establish the required connections in a structured and serviceable arrangement.
3. What symptoms may indicate a connection-unit problem?
Possible symptoms include intermittent electrical signals, unexpected controller faults, unstable communication with connected components, or system behavior that changes when wiring or connectors are disturbed.
4. Can loose wiring cause the same symptoms as a defective DSQC 504?
Yes. Loose terminals, damaged wires, poor connector contact, oxidation, or mechanical stress can produce similar symptoms. Connections should therefore be inspected before replacing the unit itself.
5. What should be checked before replacing the 3HAC5689-1?
Verify the complete ABB part number, controller configuration, connector arrangement, wiring harnesses, and mounting position. Existing alarm information and electrical continuity should also be checked during diagnosis.
6. Is the DSQC 504 interchangeable with other ABB connection units?
It should not be assumed to be interchangeable. Similar-looking connection units can have different connection layouts, electrical functions, or controller compatibility.
7. How can poor electrical contact affect robot operation?
A high-resistance or intermittent connection can cause unstable signals, unexpected controller alarms, loss of communication, or intermittent equipment behavior that may be difficult to reproduce.
8. What maintenance should be performed on connection units?
Maintenance personnel should inspect connectors, wiring, terminals, mounting points, contamination, signs of overheating, and mechanical damage. Any loose or deteriorated connection should be addressed promptly.
9. Does replacing the connection unit require controller configuration?
A passive connection unit normally does not require independent software configuration, but the overall controller system may require inspection, testing, or commissioning after replacement. The actual procedure depends on the equipment configuration.
10. Why is exact part-number verification important?
The internal connection layout and electrical interfaces are system-specific. Matching DSQC 504 3HAC5689-1 helps prevent installation of an incompatible connection component.
