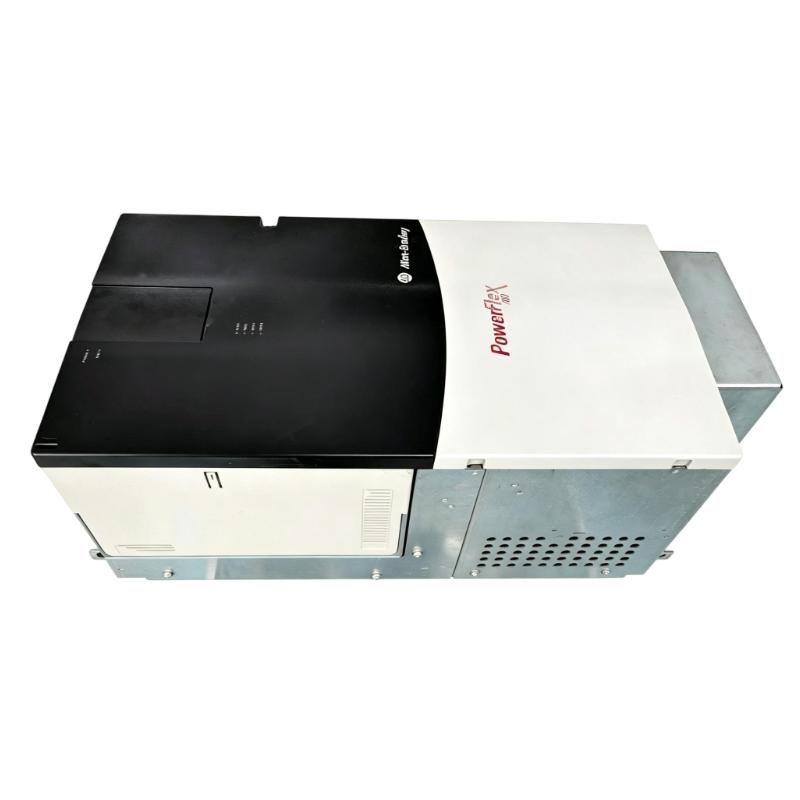

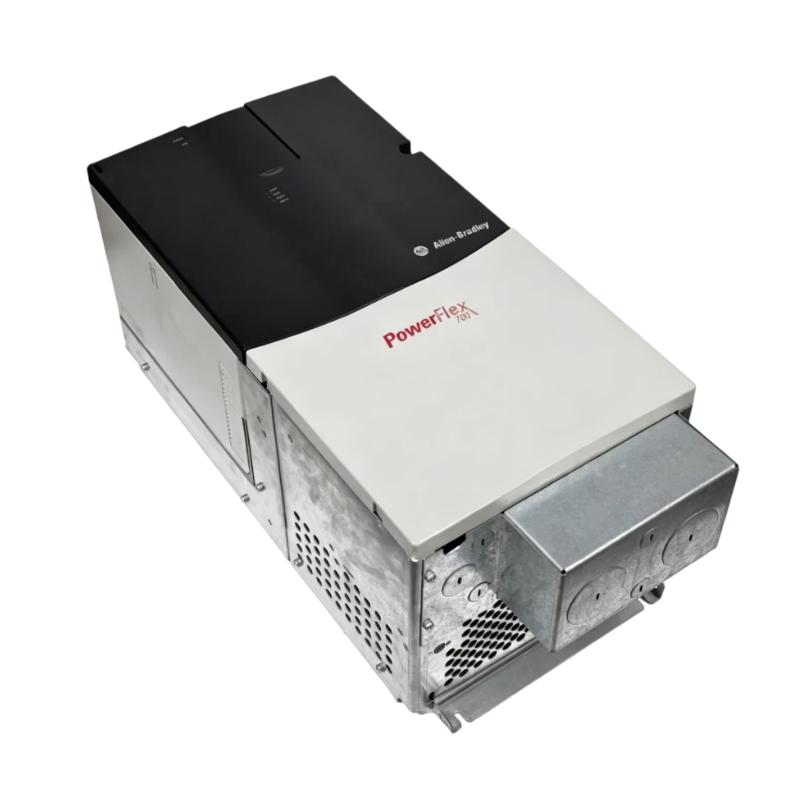

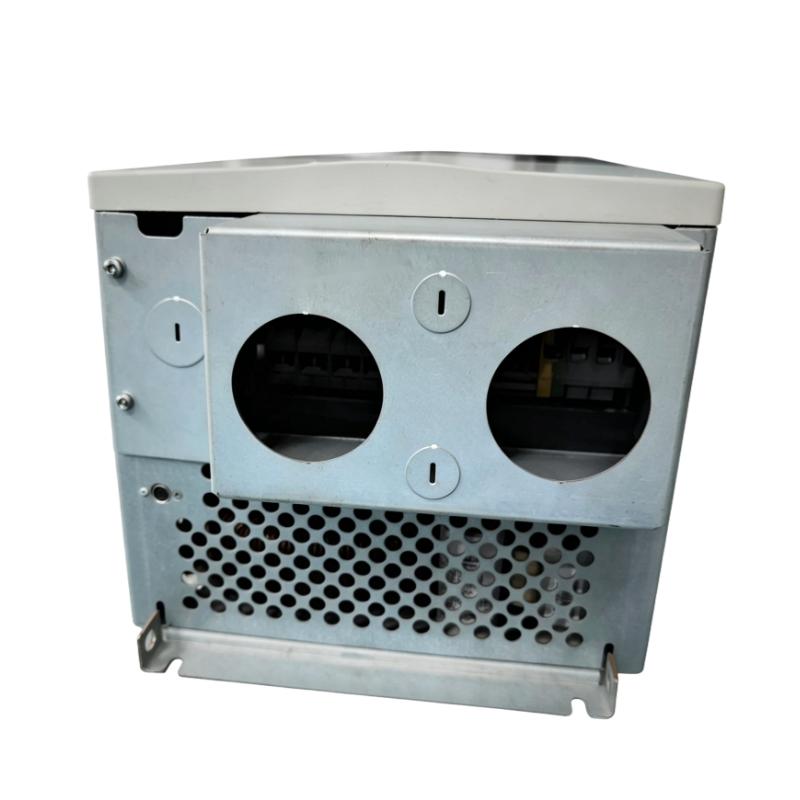

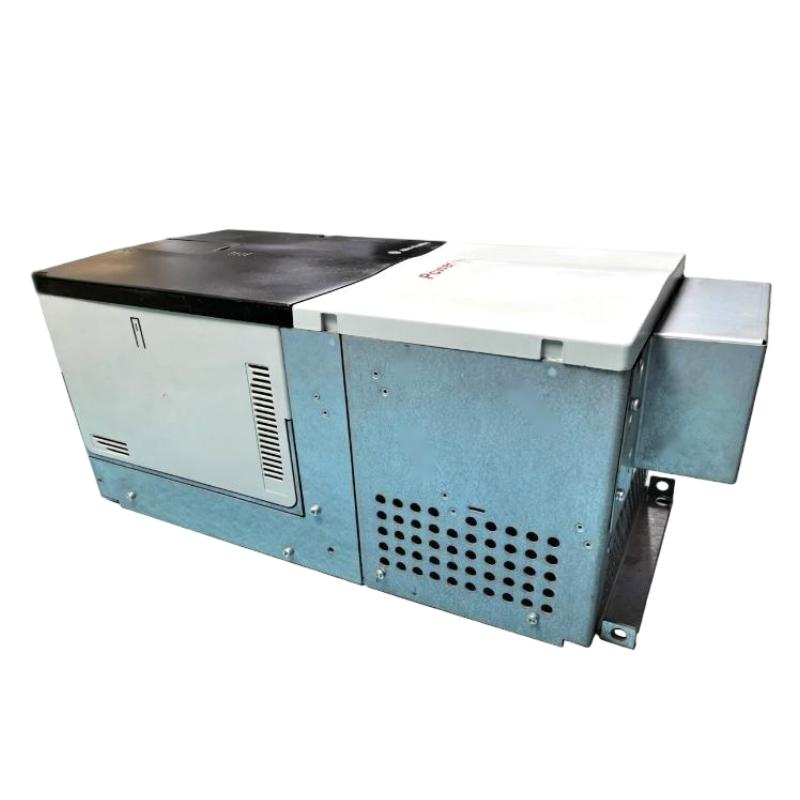

Allen Bradley 20BC205A3ANNAEC0 PowerFlex 700 AC Drive

Applications

The Allen Bradley 20BC205A3ANNAEC0 PowerFlex 700 AC Drive is designed for industrial applications requiring dependable variable-speed control of AC motors. As a member of the PowerFlex 700 family, it provides a flexible platform for controlling motor speed and torque in machinery where accurate and repeatable operation is essential.

A variable-frequency drive can adapt motor performance to the actual requirements of the process instead of forcing the motor to operate continuously at a fixed speed. This makes the PowerFlex 700 suitable for production equipment where acceleration, deceleration, speed regulation, and controlled stopping are important.

Typical applications include:

• Industrial conveyor systems
• Material handling equipment
• Pumping and fluid-processing machinery
• Fans and air-handling systems
• Packaging machines
• Manufacturing equipment
• Automated production lines
• Processing machinery
• Machine-building applications
• Industrial motor-control retrofits
• PowerFlex 700 replacement projects

For factories already using Allen Bradley automation hardware, the PowerFlex 700 platform provides a practical foundation for maintaining established motor-control systems while retaining the flexibility required by modern industrial processes.

Advantages

Flexible variable-speed control
The PowerFlex 700 enables AC motors to operate at adjustable speeds, allowing the machine to better match motor output with actual production requirements.

Controlled acceleration and deceleration
Programmable ramping can help reduce mechanical shock when starting and stopping heavy loads, protecting both the motor and driven machinery.

Reliable industrial motor management
The drive is designed for industrial environments where stable motor operation is directly linked to equipment availability and production efficiency.

Strong automation integration
PowerFlex drives are well suited to Allen Bradley control architectures, allowing motor-control functions to form part of a larger PLC, HMI, and machine-control strategy.

Supports process optimization
Adjustable motor speed gives engineers greater control over conveyor throughput, pump performance, fan operation, and other variable-load processes.

Practical for replacement applications
The 20BC205A3ANNAEC0 can be considered for existing PowerFlex 700 installations where replacing the drive is more efficient than redesigning the complete motor-control system.

Suitable for demanding machinery
Its industrial drive architecture makes it appropriate for applications where motors must operate predictably under changing production loads.

Technical FAQs

1. What is the Allen Bradley 20BC205A3ANNAEC0?
The 20BC205A3ANNAEC0 is an Allen Bradley PowerFlex 700 AC Drive designed for variable-speed control of industrial AC motors.

2. What is the main function of the PowerFlex 700 drive?
The drive regulates the electrical output supplied to an AC motor, allowing the motor's speed, acceleration, deceleration, and torque behavior to be controlled according to the application.

3. Where are PowerFlex 700 AC drives commonly used?
They can be applied to conveyors, pumps, fans, material-handling systems, processing equipment, packaging machinery, and other industrial systems requiring adjustable motor operation.

4. What are common causes of PowerFlex 700 drive faults?
Faults can result from excessive motor current, overvoltage, undervoltage, motor overload, incorrect parameter settings, poor ventilation, communication problems, grounding issues, or mechanical overloads.

5. Could a motor or cable problem cause the drive to trip?
Yes. A damaged motor, deteriorated insulation, shorted cable, improper grounding, or excessive mechanical load can create conditions that cause the drive to enter a protective fault state.

6. What should be checked when the drive powers on but the motor does not start?
Check active faults, start-command source, speed reference, enable inputs, interlocks, control wiring, motor connections, and configured control parameters. The drive being energized does not necessarily mean it has received a valid run command.

7. Why should drive parameters be backed up before replacement?
The original configuration may contain important motor data, command sources, speed references, acceleration and deceleration settings, protection thresholds, and application-specific adjustments. Preserving these values can make replacement commissioning considerably easier.

8. What can cause an AC drive to overheat?
Restricted cabinet airflow, blocked filters, excessive ambient temperature, contaminated cooling passages, inadequate ventilation, or prolonged operation under high load can contribute to elevated drive temperature.

9. Can another PowerFlex 700 model be used as a direct replacement?
Not automatically. PowerFlex 700 catalog numbers can differ in electrical ratings, option packages, input configuration, control functionality, and installation requirements. The exact configuration must be matched to the application.

10. What should be tested after installing the replacement drive?
Verify power connections, motor wiring, parameter configuration, command sources, protection settings, and communication interfaces. Controlled motor testing should then be performed while checking for abnormal current, temperature, vibration, or fault conditions.
