Brand:Siemens Item No.:6ES7550-1AA01-0AB0 Product Origin:Germany Product Dimensions:35 x 147 x 129 mm Product Weight:0.357 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
Counting is one of the most common measurement functions in industrial automation. A production machine may need to count products on a conveyor, monitor machine cycles, measure pulses from an encoder, control batch quantities, or track repetitive events. When these signals occur quickly, dedicated counting hardware becomes an important part of the control architecture.

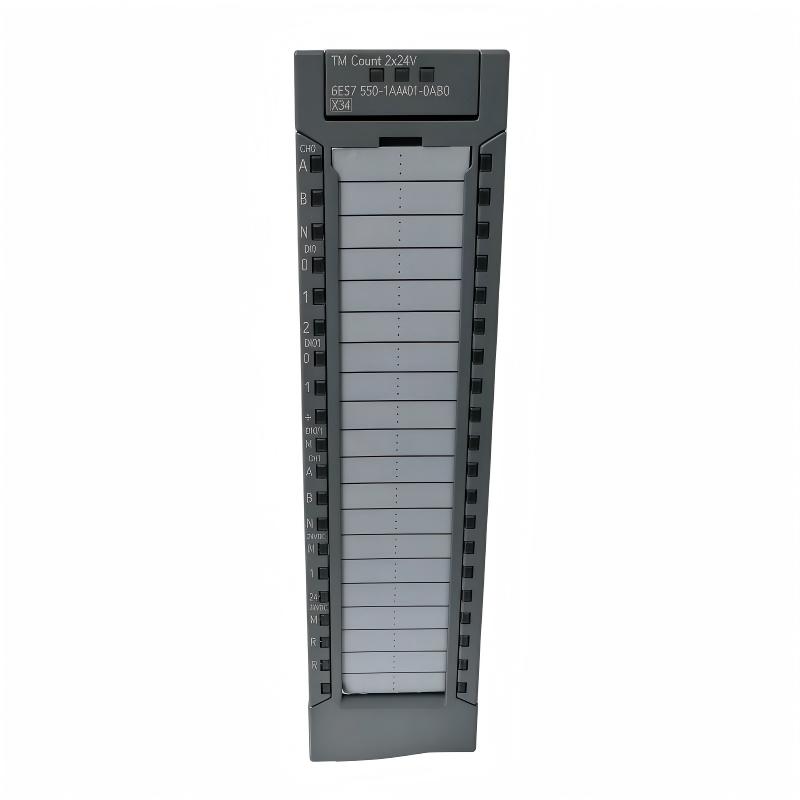

The Siemens 6ES7550-1AA01-0AB0 is an S7-1500 Counter Module designed for counting applications within compatible Siemens automation systems. It provides dedicated hardware resources for pulse-based counting tasks and can be incorporated into a modular S7-1500 control architecture.
A major advantage of dedicated counting hardware is its ability to address applications where signal events can occur faster than a conventional PLC program can comfortably process through normal scan-cycle logic. Instead of repeatedly polling an input in the user program, an appropriately designed counter system can handle counting functions through dedicated module hardware.
This approach is particularly useful in production environments. On a conveyor, for example, each sensor pulse may correspond to a product passing a defined point. In packaging equipment, counting information can be used to determine when a required quantity has been reached. In manufacturing machinery, pulse information may represent machine cycles or other repetitive operations.
Encoder-related applications can also benefit from dedicated counting functionality. Depending on the selected hardware, sensor, and system configuration, pulse signals can provide information associated with rotational or linear movement. The PLC can then use the resulting count information as part of a larger machine-control strategy.
For OEM machine builders, a dedicated counter module provides a repeatable way to incorporate counting into standardized control architectures. Different machine variants can use the same basic PLC platform while the counting resources are adapted according to the number and type of measurement points required.
Correct signal engineering is essential. The performance of a counting system depends not only on the module but also on the sensor, wiring, signal quality, electrical environment, and configuration. Electromagnetic interference or unsuitable signal characteristics can lead to missed or false counts, making careful installation and commissioning particularly important.
The module measures 35 × 147 × 129 mm and weighs 0.357 kg (0.79 lb). Its standardized modular format allows it to occupy a defined position within an S7-1500 control cabinet while providing dedicated counting capability.
For industrial automation engineers and system integrators, the 6ES7550-1AA01-0AB0 provides a strong solution when fast pulse acquisition, dedicated counting, accurate event processing, and modular PLC integration are important to machine performance. Properly configured, it can help improve the reliability and responsiveness of counting functions across a wide range of automated equipment.
Technical Specifications
Parameter
Specification
Brand
Siemens
Model
6ES7550-1AA01-0AB0
Product Family
SIMATIC S7-1500
Product Type
Counter Module
Module Function
High-Speed Counting
Application
Industrial Automation
PLC Platform
S7-1500
Installation
Modular PLC System
Dimensions
35 × 147 × 129 mm
Weight
0.357 kg (0.79 lb)
Recommended Related Models
Model
Product Type
Typical Role
Siemens 6ES7550-1AA00-0AB0
Counter Module
High-speed counting
Siemens 6ES7551-1AB00-0AB0
Counter Module
Counting and measurement
Siemens 6ES7521-1BH10-0AA0
Digital Input Module
Digital signal acquisition
Siemens 6ES7521-1BH50-0AA0
Digital Input Module
Digital signal acquisition
Siemens 6AG1531-7NF10-7AB0
Analog Input Module
Analog measurement
Siemens 6AG1532-5HF00-7AB0
Analog Output Module
Analog control output
Popular Related Models
Model
Product Type
Siemens 6ES7550-1AA01-0AB0
S7-1500 Counter Module
Siemens 6ES7551-1AB00-0AB0
Counter Module
Siemens 6ES7521-1BH10-0AA0
Digital Input Module
Siemens 6ES7521-1BH50-0AA0
Digital Input Module
Siemens 6AG1221-1BF32-2XB0
Digital Input Module
Siemens 6AG1221-1BH32-2XB0
Digital Input Module
Siemens 6AG1531-7NF10-7AB0
Analog Input Module
Siemens 6AG1532-5HF00-7AB0
Analog Output Module
Siemens 6ES7547-1JF00-0AB0
Communication Module
Applications
The 6ES7550-1AA01-0AB0 is suited to industrial applications where accurate counting and pulse acquisition are important.
High-speed counting – Captures repetitive pulses and counting events in suitable automation applications.
Encoder-based measurement – Can be used in systems where pulse signals are generated by compatible encoder equipment.
Conveyor systems – Supports counting products, packages, components, or other moving items.
Production machinery – Helps monitor machine cycles, workpiece quantities, and repetitive production events.
Material handling – Supports counting and position-related measurement tasks in automated handling systems.
Packaging equipment – Useful for counting products or machine cycles in automated packaging processes.
Rotational measurement – Can contribute to applications requiring pulse-based monitoring of rotating equipment.
Batch processing – Supports counting functions used to control production quantities.
Dedicated counting functionality The module is designed specifically for counting applications, allowing pulse-related tasks to be handled by dedicated hardware rather than depending exclusively on conventional PLC program execution.
Better suited to fast pulse signals High-speed counting applications can generate events faster than a standard PLC scan can reliably process. A dedicated counter module provides an appropriate hardware-based approach for such applications.
Flexible machine integration Counting functions are common across many industries, from packaging and conveying to material handling and production machinery. The modular format makes the function easy to incorporate into suitable S7-1500 architectures.
Accurate event processing For applications where every pulse represents a product, machine cycle, or measurement event, dependable counting is essential for maintaining production accuracy.
Reduced CPU workload Handling appropriate counting functions through dedicated module hardware can help keep the main PLC CPU focused on sequencing, control logic, communication, and other automation tasks.
Compact cabinet footprint At 35 mm wide, the module can be installed efficiently alongside other S7-1500 components without requiring excessive control-panel space.
Scalable control architecture The modular design makes it possible to expand counting capability as machine functions develop or additional measurement points are introduced.
OEM-friendly engineering For machine builders, a dedicated counter module provides a professional solution for integrating repeatable counting functions into standardized Siemens control architectures.
Technical FAQs
1. What is the Siemens 6ES7550-1AA01-0AB0? It is an S7-1500 Counter Module designed for counting and pulse-related measurement tasks in compatible Siemens industrial automation systems.
2. Why use a dedicated counter module instead of standard PLC logic? Fast or time-critical pulse signals may occur between normal PLC scan cycles. Dedicated counter hardware is designed to handle appropriate counting tasks more directly.
3. What types of signals can be relevant to counter applications? Counter applications commonly involve pulse or switching signals generated by sensors, encoders, or other compatible field devices.
4. Can a counter module be used for production counting? Yes. Counter functionality is commonly applied to product counting, machine-cycle monitoring, batch quantities, and other repetitive production events.
5. Why is signal quality important for accurate counting? Noise, incorrect wiring, poor signal levels, or unsuitable signal characteristics can result in missed pulses or false counts. The field signal should meet the module's applicable input requirements.
6. What can cause incorrect counter values? Possible causes include signal interference, incorrect configuration, unsuitable input signals, wiring problems, faulty sensors, or incorrect software handling of counter data.
7. How should a counting fault be diagnosed? Check the field sensor and wiring first, then inspect module diagnostics and signal behavior. Configuration and PLC program logic should also be reviewed to determine where the counting error occurs.
8. Why is sensor selection important in high-speed counting? The sensor must be capable of generating a clean signal at the required operating frequency. A sensor that cannot respond quickly enough may cause missed counting events.
9. Can counting be integrated with machine control logic? Yes. Counter information can be used by the PLC program for functions such as quantity control, sequencing, batching, monitoring, or triggering subsequent machine operations, depending on the system configuration.
10. What should be verified before commissioning a counter application? Check module compatibility, signal type, sensor characteristics, wiring, configuration, counting parameters, diagnostic status, and the expected relationship between physical pulses and the values processed by the PLC program.
