Introduction

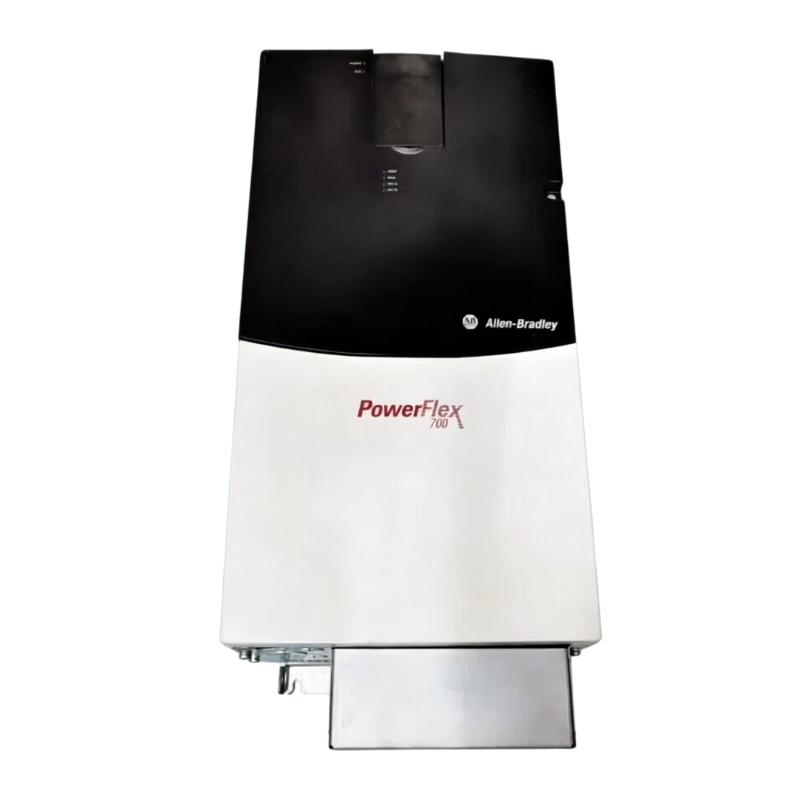

The Allen Bradley 20BC260A0ANNACA0 PowerFlex 700 AC Drive is a large industrial drive designed to provide controlled AC motor operation in automation and manufacturing systems. It is intended for applications where reliable variable-speed operation is an important part of machine performance.

Traditional fixed-speed motor systems can be adequate for simple equipment, but many industrial processes require more control. A conveyor may need a slow startup to prevent material from shifting, a pump may need to respond to changing process demand, or production machinery may require several operating speeds throughout the manufacturing cycle.

A PowerFlex 700 drive provides the electronic control required to make these adjustments. Through controlled frequency and voltage output, the drive can regulate motor operation and provide smoother transitions between different operating conditions.

For maintenance engineers, this type of drive also represents an important service asset. When an existing production line depends on PowerFlex 700 hardware, a drive failure can affect an entire machine or process. Having a properly identified replacement available can therefore shorten the path from fault diagnosis to equipment restoration.

However, careful troubleshooting remains essential. A drive alarm does not automatically indicate an internal drive failure. Motor faults, damaged cables, incoming power problems, excessive loads, incorrect parameters, and inadequate cooling can all create similar symptoms.

Before replacing the 20BC260A0ANNACA0, technicians should document the original configuration wherever possible and inspect the complete motor circuit. After installation, the replacement drive should be configured carefully and tested under controlled conditions.

For facilities operating mature Allen Bradley automation systems, the 20BC260A0ANNACA0 offers a practical solution for maintaining dependable variable-speed motor control without unnecessarily rebuilding the surrounding automation architecture.

Technical Specifications

Specification	Details
Brand	Allen Bradley
Manufacturer	Rockwell Automation
Model	20BC260A0ANNACA0
Product Family	PowerFlex 700
Product Type	AC Drive
Application	Industrial Variable-Speed Motor Control
Primary Function	AC Motor Speed and Torque Control
Dimensions	976.3 × 403.9 × 275.5 mm
Length / Height	976.3 mm
Width	403.9 mm
Depth	275.5 mm
Weight	71.44 kg (157.50 lb)
Installation	Industrial Drive Cabinet / Control System
Application Area	Manufacturing and Industrial Automation

Weight: 71.44 kg (157.50 lb)

The dimensions and weight are based on the product information supplied for this item. Electrical ratings, voltage configuration, current capacity, control options, braking arrangement, communication interfaces, and enclosure requirements should be verified against the exact drive configuration before installation.

Recommended Related Models

For customers maintaining PowerFlex 700 systems, the following models are useful related references within the same drive family:

Allen Bradley 20BC205A0ANNAND0 – PowerFlex 700 AC Drive
Allen Bradley 20BC205A3ANNANC0 – PowerFlex 700 AC Drive
Allen Bradley 20BC205A3ANNADC0 – PowerFlex 700 AC Drive
Allen Bradley 20BC205A3ANNAEC0 – PowerFlex 700 AC Drive
Allen Bradley 20BC156A0AYNANC0 – PowerFlex 700 AC Drive

These models belong to the PowerFlex 700 family but should not be considered direct substitutes without checking electrical ratings, catalog-number configuration, control requirements, and the target machine application.

Popular Related Models

For industrial users working with Allen Bradley variable-frequency drives, the following models are also relevant to broader motor-control applications:

Allen Bradley 20AD5P0A0AYYNNG0 – PowerFlex 70 AC Drive
Allen Bradley 20AC5P0A0AYNNNC0 – PowerFlex 70 AC Drive
Allen Bradley 20G1ANC140JA0NNNNN – PowerFlex 755 AC Drive
Allen Bradley 20F11ND2P1AA0NNNNN – PowerFlex 753 AC Drive
Allen Bradley 20P41AD8P0RA0NNNNN – PowerFlex DC Drive

When sourcing the Allen Bradley 20BC260A0ANNACA0 PowerFlex 700 AC Drive, always use the complete catalog number rather than relying only on the PowerFlex 700 series name. Precise identification helps ensure that the replacement matches the required electrical, mechanical, and control configuration of the existing industrial system.

Applications

The Allen Bradley 20BC260A0ANNACA0 PowerFlex 700 AC Drive is an industrial variable-frequency drive designed for demanding AC motor-control applications. As part of the PowerFlex 700 family, it is suited to machinery requiring controlled motor speed, adjustable acceleration and deceleration, and dependable operation under changing production conditions.

Large industrial drive systems are commonly used where motors must respond precisely to the process rather than operate continuously at a fixed speed. By controlling motor output according to machine requirements, the drive can support smoother operation, improved process flexibility, and better coordination between motor-driven equipment and the wider automation system.

Typical applications include:

Heavy-duty conveyor systems
Material handling equipment
Industrial pumps
Fans and air-handling machinery
Processing equipment
Packaging and production machinery
Automated manufacturing lines
Machine-building systems
Industrial material transport
Existing PowerFlex 700 installations
Drive replacement and refurbishment projects

The 20BC260A0ANNACA0 is particularly suitable for industrial users who need to maintain established Allen Bradley drive systems while keeping their existing machine-control architecture in service.

Advantages

Flexible AC motor-speed control
The PowerFlex 700 platform enables controlled motor operation over a range of operating conditions, making it suitable for machines where production speed needs to be adjusted according to process requirements.

Controlled acceleration and deceleration
Adjustable ramping can help reduce mechanical shock during motor starting and stopping. This can be especially beneficial for heavy conveyors, high-inertia loads, and process machinery.

Strong industrial-duty capability
The PowerFlex 700 family is designed around industrial motor-control applications where dependable performance and equipment availability are important.

Suitable for Allen Bradley automation environments
The drive can form part of a larger Rockwell Automation control architecture involving PLCs, HMIs, communication networks, and other industrial control components.

Supports process consistency
By maintaining a controlled motor operating condition, the drive can contribute to more repeatable production cycles and smoother machine performance.

Useful for replacement applications
The 20BC260A0ANNACA0 can be valuable when an existing PowerFlex 700 installation requires drive replacement without redesigning the entire motor-control system.

Reduces unnecessary mechanical stress
Controlled speed changes can reduce abrupt torque transmission and help protect connected mechanical equipment during normal production cycles.

Practical for long-term maintenance planning
Maintaining correctly identified spare drives and related components allows service teams to respond more effectively when critical motor-control equipment develops a fault.

Technical FAQs

1. What is the Allen Bradley 20BC260A0ANNACA0?
The 20BC260A0ANNACA0 is an Allen Bradley PowerFlex 700 AC Drive used for variable-speed control of industrial AC motors.

2. What is the primary function of the PowerFlex 700 AC Drive?
The drive electronically controls the power delivered to an AC motor, allowing motor speed and acceleration behavior to be adjusted according to machine requirements.

3. What types of industrial equipment can use this drive?
Typical applications include conveyors, pumps, fans, material-handling equipment, processing machinery, production lines, and other machines requiring adjustable-speed AC motor control.

4. What can cause a PowerFlex 700 drive to trip unexpectedly?
Possible causes include motor overload, excessive current, overvoltage, undervoltage, excessive temperature, incorrect parameters, grounding problems, mechanical overload, or faults elsewhere in the motor circuit.

5. Why might a motor fail to start even though the drive is powered?
The drive may not be receiving a valid run command or speed reference. Technicians should check command sources, enable conditions, interlocks, active faults, control wiring, digital inputs, and motor connections.

6. Can motor-cable problems damage or trip the drive?
Yes. Insulation breakdown, short circuits, poor grounding, loose connections, or damaged cable conductors can create abnormal electrical conditions that cause the drive to enter a protective state.

7. What parameters should be recorded before replacing a PowerFlex 700 drive?
Important information may include motor nameplate data, command and reference sources, acceleration and deceleration settings, protection values, control-mode settings, communication configuration, and application-specific parameters.

8. What should be checked if the drive overheats?
Inspect cabinet ventilation, cooling fans, filters, airflow passages, ambient temperature, installation clearance, drive loading, and surrounding equipment. Poor ventilation can significantly affect thermal performance.

9. Can another PowerFlex 700 model replace the 20BC260A0ANNACA0?
Not automatically. Different catalog numbers can have different electrical ratings, options, enclosure arrangements, and control configurations. The complete catalog number and machine requirements must be compared before substitution.

10. What should be done after installing the replacement drive?
Verify all power and motor connections, restore the required configuration, check command and reference signals, confirm protective settings, and perform a controlled test run before returning the equipment to normal production.
