Introduction

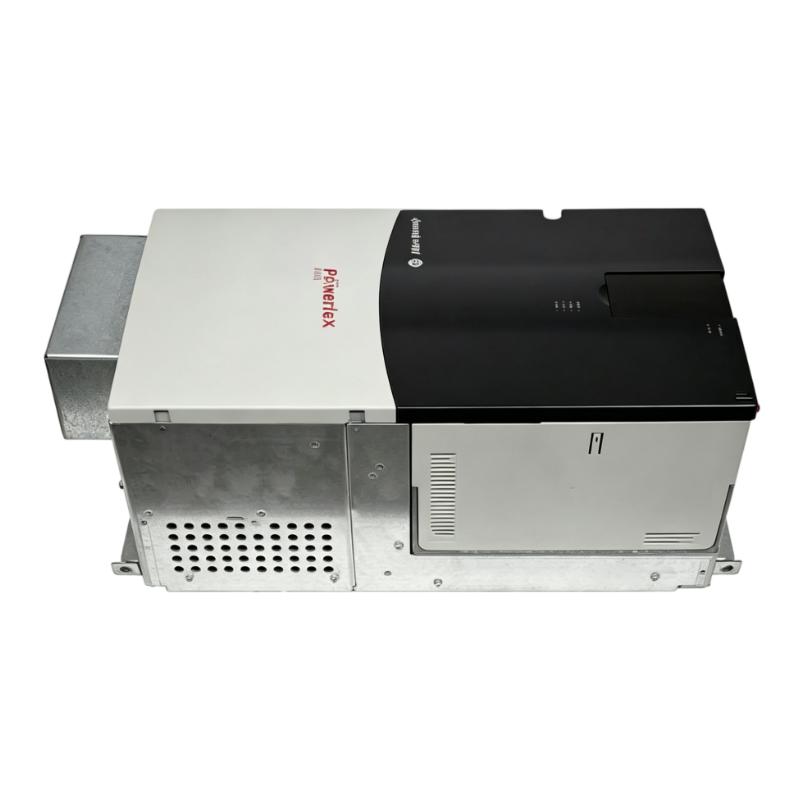

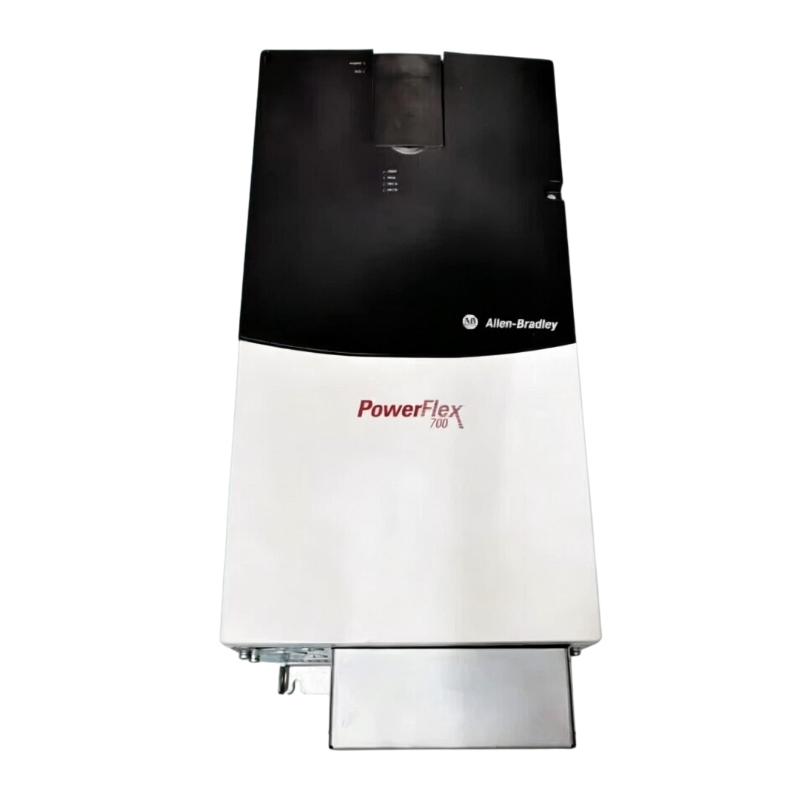

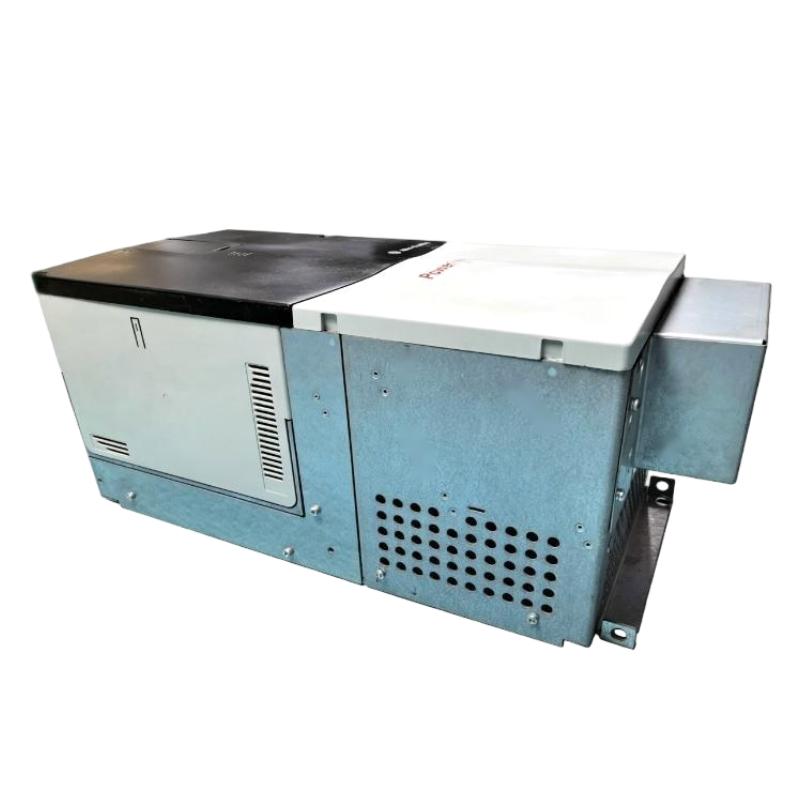

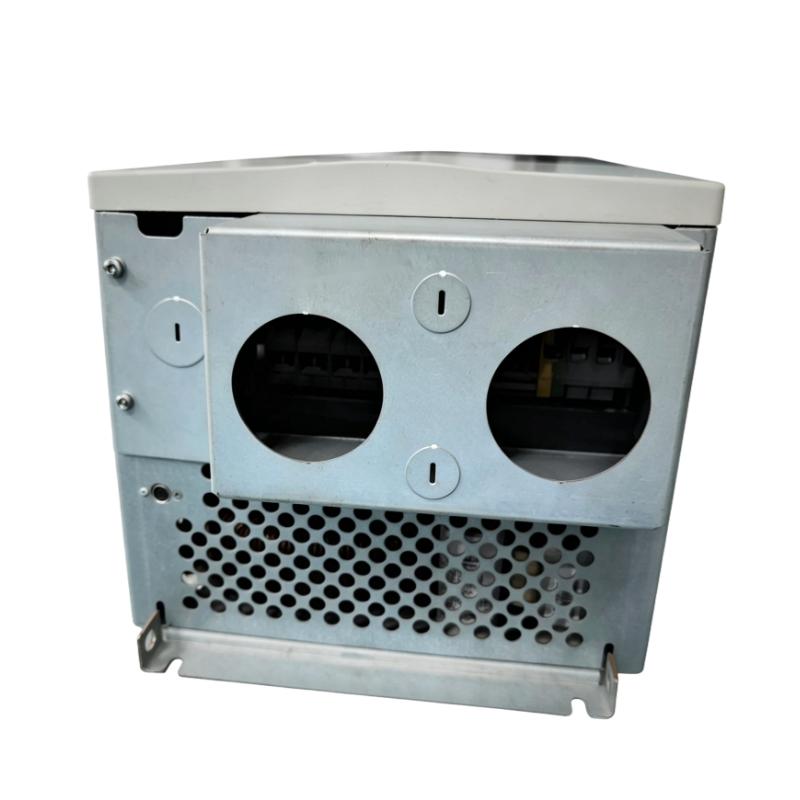

The Allen Bradley 20BC260A0ANNAND0 PowerFlex 700 AC Drive is a large industrial variable-frequency drive intended for applications that demand controlled AC motor operation. In automated machinery, the drive provides the electronic interface between the power system and the motor, allowing the machine to control motor speed and operating behavior according to production requirements.

Many industrial machines cannot operate efficiently with a motor that simply runs at full speed whenever power is applied. Conveyors may need gradual acceleration, pumps may require process-dependent speed adjustment, and heavy machinery may need controlled stopping to reduce mechanical stress.

A PowerFlex 700 drive provides the flexibility required for these types of applications. By controlling motor operation electronically, it can help machinery respond more smoothly to changing production conditions and improve the overall controllability of the process.

The 20BC260A0ANNAND0 is also relevant to maintenance and refurbishment work. Industrial plants frequently keep automation systems in service for many years, and replacing an individual drive can be more practical than redesigning an entire motor-control system.

When a PowerFlex 700 installation develops a fault, however, the drive should not be blamed automatically. A defective motor, damaged cable, unstable power supply, inadequate cooling, excessive load, or incorrect configuration can all create similar symptoms. Proper diagnosis should therefore be completed before replacing the drive.

For replacement work, preserving the original parameter set is highly recommended whenever the existing drive remains accessible. This information can simplify commissioning and help ensure that the replacement operates consistently with the machine's established control strategy.

For industrial customers, the 20BC260A0ANNAND0 is therefore not simply a motor-speed controller. It is a key component within the broader machine-control system, and accurate identification is important for maintenance efficiency, compatibility, and reliable production.

Technical Specifications

Specification	Details
Brand	Allen Bradley
Manufacturer	Rockwell Automation
Model	20BC260A0ANNAND0
Product Family	PowerFlex 700
Product Type	AC Drive
Application	Industrial Variable-Speed Motor Control
Primary Function	AC Motor Speed and Torque Control
Dimensions	976.3 × 403.9 × 275.5 mm
Length / Height	976.3 mm
Width	403.9 mm
Depth	275.5 mm
Weight	71.44 kg (157.50 lb)
Installation	Industrial Drive Cabinet / Control System
Application Area	Manufacturing and Industrial Automation

Weight: 71.44 kg (157.50 lb)

The dimensions and weight above are based on the product information supplied for this item. Because PowerFlex 700 catalog numbers can represent different electrical and option configurations, the exact voltage, current rating, control arrangement, communication features, braking requirements, and other technical parameters should be verified against the equipment configuration before installation.

Recommended Related Models

For customers maintaining PowerFlex 700 systems, the following models are closely related and useful for maintenance planning, replacement evaluation, and system comparison:

Allen Bradley 20BC260A0ANNACA0 – PowerFlex 700 AC Drive
Allen Bradley 20BC260A0ANNAED0 – PowerFlex 700 AC Drive
Allen Bradley 20BC205A0ANNAND0 – PowerFlex 700 AC Drive
Allen Bradley 20BC205A3ANNANC0 – PowerFlex 700 AC Drive
Allen Bradley 20BC205A3ANNAND0 – PowerFlex 700 AC Drive

These models are part of the PowerFlex 700 family, but their catalog configurations are not necessarily interchangeable. Electrical ratings, option combinations, and system requirements should be compared carefully before replacement.

Popular Related Models

For industrial automation customers working with Allen Bradley variable-frequency drives, the following models are also useful related products:

Allen Bradley 20BC205A3ANNAEC0 – PowerFlex 700 AC Drive
Allen Bradley 20BC205A3ANNADC0 – PowerFlex 700 AC Drive
Allen Bradley 20BC205A3ANNANC0 – PowerFlex 700 AC Drive
Allen Bradley 20AD5P0A0AYYNNG0 – PowerFlex 70 AC Drive
Allen Bradley 20G1ANC140JA0NNNNN – PowerFlex 755 AC Drive

When sourcing the Allen Bradley 20BC260A0ANNAND0 PowerFlex 700 AC Drive, always provide the complete catalog number. For large industrial drives, precise model identification is essential because small differences in catalog suffixes can indicate significant differences in electrical configuration, communication capability, control options, and installation requirements.

Applications

The Allen Bradley 20BC260A0ANNAND0 PowerFlex 700 AC Drive is an industrial AC drive designed for demanding motor-control applications where adjustable speed, controlled acceleration, and dependable operation are essential. As part of the PowerFlex 700 family, it is suitable for production equipment that requires a more flexible approach to motor operation than conventional fixed-speed starting.

Variable-frequency drive technology allows the motor to respond to process requirements rather than continuously operating at one fixed speed. This can be especially useful in machinery with changing material flow, varying production rates, frequent starts and stops, or substantial mechanical inertia.

Typical applications include:

Heavy-duty conveyor systems
Material handling equipment
Industrial pumps
Large fans and ventilation machinery
Processing systems
Manufacturing production lines
Packaging and transport equipment
Automated machinery
Industrial retrofit projects
Existing PowerFlex 700 installations
Motor-control maintenance and refurbishment

The 20BC260A0ANNAND0 is a practical option for facilities maintaining established Allen Bradley automation systems and looking to keep existing production equipment operating with dependable variable-speed motor control.

Advantages

Flexible motor-speed control
The PowerFlex 700 platform allows engineers to adjust motor speed to suit the process, providing greater control over machine throughput and operating conditions.

Controlled acceleration and deceleration
Adjustable ramping can help reduce mechanical shock during startup and stopping, which is particularly valuable for high-inertia or heavily loaded machinery.

Designed for industrial environments
The PowerFlex 700 family is intended for industrial motor-control applications where equipment availability and stable operation have a direct impact on production.

Integration with automation systems
PowerFlex drives can operate as part of broader Allen Bradley control architectures involving PLCs, HMIs, operator stations, and industrial communication systems.

Better process flexibility
Variable-speed operation makes it possible to adapt motor performance to changing production conditions without changing the basic mechanical drive system.

Useful for replacement projects
The 20BC260A0ANNAND0 can be considered when servicing an existing PowerFlex 700 installation and replacing a failed drive while keeping the surrounding automation architecture intact.

Supports preventive maintenance
Maintaining a suitable replacement drive in stock can reduce response time when a critical motor-control component develops a fault.

Suitable for long-term equipment support
For industrial plants with mature Allen Bradley installations, the availability of the correct PowerFlex 700 spare can be an important part of asset-maintenance planning.

Technical FAQs

1. What is the Allen Bradley 20BC260A0ANNAND0?
The 20BC260A0ANNAND0 is an Allen Bradley PowerFlex 700 AC Drive designed for variable-speed control of industrial AC motors.

2. What is the main purpose of an AC drive?
An AC drive regulates the electrical output supplied to a motor, allowing the motor to operate at controlled speeds and follow defined acceleration and deceleration profiles.

3. What types of machinery can use a PowerFlex 700 drive?
Applications can include conveyors, pumps, fans, material-handling systems, processing equipment, packaging machinery, and other industrial machines requiring controlled AC motor operation.

4. What are common symptoms of a PowerFlex 700 drive fault?
Possible symptoms include unexpected trips, motor overcurrent conditions, overload faults, overvoltage or undervoltage alarms, failure to start, communication problems, or unstable motor operation.

5. Can a motor fault trigger a drive fault?
Yes. Motor winding problems, insulation deterioration, incorrect connections, mechanical overload, damaged cables, or grounding issues can cause the drive to enter a protective state.

6. Why might the drive power up but the motor not run?
The drive may not be receiving a valid run command, enable signal, or speed reference. Technicians should also check active faults, control inputs, interlocks, parameter settings, and motor connections.

7. What should be recorded before replacing an existing drive?
Maintenance personnel should document the original motor data, command and reference sources, acceleration and deceleration settings, protection parameters, communication settings, and application-specific configuration.

8. What can cause the drive to overheat?
Restricted ventilation, blocked filters, contaminated cooling passages, high ambient temperature, inadequate cabinet airflow, or sustained operation under heavy load can contribute to excessive temperature.

9. Can another PowerFlex 700 model be used as a direct replacement?
Not automatically. PowerFlex 700 catalog numbers can represent different electrical and functional configurations. The complete catalog number and application requirements should be checked before substitution.

10. What should be checked after installing a replacement drive?
Verify incoming power, motor wiring, grounding, drive parameters, control signals, communication connections, and protective settings. A controlled test run should be completed before returning the machine to normal production.
