Allen Bradley 20BC260A3ANNACC0 PowerFlex 700 AC Drive_Allen Bradley PLC

Introduction

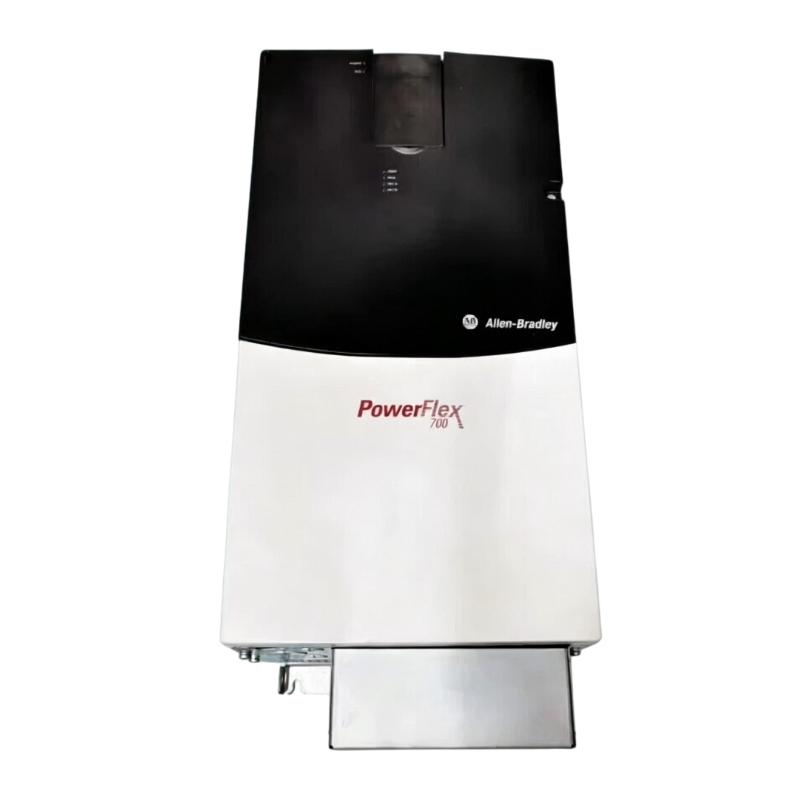

The Allen Bradley 20BC260A3ANNACC0 PowerFlex 700 AC Drive is a large industrial variable-frequency drive designed for applications that require dependable control of substantial AC motors. In a production system, the drive is responsible for translating control commands into regulated electrical output so that the motor can operate according to the mechanical and process requirements of the machine.

The importance of this control becomes clear in heavy machinery. A conveyor carrying significant material may require controlled acceleration to avoid belt shock. A process pump may need to change speed as demand changes. Large fans and other rotating equipment may also benefit from controlled startup and speed regulation.

The PowerFlex 700 platform provides the foundation for these applications by allowing motor operation to be controlled rather than simply switching the motor between stopped and full-speed conditions.

The 20BC260A3ANNACC0 is also relevant to industrial maintenance and refurbishment. Production equipment often remains in service for many years, and replacing a failed drive can be considerably more practical than replacing an entire motor-control system.

Before replacement, however, technicians should diagnose the complete drive system. Motor faults, damaged cables, unstable supply voltage, mechanical problems, cooling deficiencies, and incorrect parameters can all generate drive alarms. Replacing the drive without identifying the actual cause can lead to repeated failures.

Maintaining a backup of the original configuration is equally important. A replacement drive may require the same motor and control settings as the original unit, and having this information available can significantly simplify commissioning.

For industrial users, the 20BC260A3ANNACC0 provides a robust PowerFlex 700 platform for large-scale AC motor applications while remaining practical for long-term maintenance and equipment-support programs.

Technical Specifications

Specification	Details
Brand	Allen Bradley
Manufacturer	Rockwell Automation
Model	20BC260A3ANNACC0
Product Family	PowerFlex 700
Product Type	AC Drive
Application	Industrial Variable-Speed Motor Control
Primary Function	AC Motor Speed and Torque Control
Dimensions	976.3 × 403.9 × 275.5 mm
Length / Height	976.3 mm
Width	403.9 mm
Depth	275.5 mm
Weight	71.44 kg (157.50 lb)
Installation	Industrial Drive Cabinet / Control System
Application Area	Manufacturing and Industrial Automation

Weight: 71.44 kg (157.50 lb)

The dimensions and weight above are based on the product information supplied for this item. Electrical ratings, voltage class, output current, control configuration, communication options, braking arrangement, and other catalog-specific characteristics should be confirmed against the complete drive configuration before installation.

Recommended Related Models

For PowerFlex 700 maintenance and replacement planning, the following models are closely related and can be useful when evaluating other drive configurations:

Allen Bradley 20BC260A0ANNACA0 – PowerFlex 700 AC Drive
Allen Bradley 20BC260A0ANNANC0 – PowerFlex 700 AC Drive
Allen Bradley 20BC260A0ANNAED0 – PowerFlex 700 AC Drive
Allen Bradley 20BC205A0ANNAND0 – PowerFlex 700 AC Drive
Allen Bradley 20BC205A3ANNANC0 – PowerFlex 700 AC Drive

These models belong to the PowerFlex 700 family, but different catalog numbers may represent different electrical and functional configurations. They should not be considered direct replacements without confirming the complete application requirements.

Popular Related Models

For industrial facilities maintaining Allen Bradley variable-frequency-drive systems, the following models are also useful references for broader motor-control requirements:

Allen Bradley 20BC205A3ANNADC0 – PowerFlex 700 AC Drive
Allen Bradley 20BC205A3ANNAEC0 – PowerFlex 700 AC Drive
Allen Bradley 20BC205A3ANNAND0 – PowerFlex 700 AC Drive
Allen Bradley 20AD5P0A0AYYNNG0 – PowerFlex 70 AC Drive
Allen Bradley 20G1ANC140JA0NNNNN – PowerFlex 755 AC Drive

When sourcing the Allen Bradley 20BC260A3ANNACC0 PowerFlex 700 AC Drive, always use the complete catalog number. Large PowerFlex 700 drives can differ substantially in electrical ratings, option configuration, communication capability, and control architecture, so precise model identification is essential for reliable replacement and commissioning.

Applications

The Allen Bradley 20BC260A3ANNACC0 PowerFlex 700 AC Drive is a large-capacity industrial AC drive designed for variable-speed motor control in demanding automation and manufacturing environments. It is part of the PowerFlex 700 family and is suitable for machinery where controlled motor speed, torque response, acceleration, and deceleration are essential to stable production.

Large industrial motors are often connected to equipment with considerable inertia or changing load conditions. A properly configured AC drive allows the motor to respond progressively to these demands instead of relying on direct starting or fixed-speed operation.

The 20BC260A3ANNACC0 can be considered for applications such as:

Heavy-duty conveyor systems
Large material-handling machinery
Industrial pumps
Fans and ventilation equipment
Processing machinery
Manufacturing production lines
Packaging and transportation systems
Automated machine systems
Industrial retrofit projects
Existing PowerFlex 700 installations
Motor-control replacement and refurbishment

For plants operating Allen Bradley control equipment, this PowerFlex 700 drive is a practical solution for maintaining established motor-control systems while retaining adjustable-speed operation and industrial-grade control capabilities.

Advantages

High-capacity motor control
The PowerFlex 700 platform is designed for substantial industrial motor applications where dependable variable-speed performance is essential.

Smooth speed transitions
Adjustable acceleration and deceleration profiles help machinery transition between operating conditions more smoothly, reducing sudden mechanical loading.

Flexible process control
Motor speed can be adjusted according to production requirements, making the drive useful for equipment with changing throughput or process demand.

Suitable for demanding automation systems
The drive architecture is intended for industrial applications where motor-control reliability directly affects equipment availability.

Allen Bradley system compatibility
PowerFlex 700 drives can be integrated into broader Allen Bradley automation environments containing PLCs, HMIs, industrial networks, and machine-control components.

Useful for maintenance and replacement
The 20BC260A3ANNACC0 provides a practical option for replacing an existing PowerFlex drive when preserving the surrounding machine architecture is preferable to a complete redesign.

Supports heavy industrial machinery
Its large-format construction makes it suitable for substantial drive installations where a small compact inverter would not provide the required capacity.

Valuable for spare-parts planning
Keeping the correct PowerFlex catalog configuration available can help maintenance teams reduce downtime when a critical drive fails.

Technical FAQs

1. What is the Allen Bradley 20BC260A3ANNACC0?
The 20BC260A3ANNACC0 is an Allen Bradley PowerFlex 700 AC Drive intended for industrial variable-speed AC motor control.

2. What is the primary purpose of this type of AC drive?
It regulates the electrical output supplied to an AC motor, allowing the machine to control motor speed, acceleration, deceleration, and operating response.

3. Why is variable-speed control useful for industrial machinery?
Many machines do not need to operate at one fixed speed. Adjustable-speed control allows motor operation to better match process demand, load conditions, and production requirements.

4. What can cause a PowerFlex 700 drive to trip unexpectedly?
Potential causes include overcurrent, overload, overvoltage, undervoltage, excessive temperature, incorrect motor parameters, grounding problems, mechanical overload, or abnormal motor-cable conditions.

5. Can a defective motor cause the drive to report a fault?
Yes. Motor winding faults, insulation deterioration, incorrect connections, excessive mechanical loading, and damaged motor cables can all cause protective drive functions to activate.

6. What should be checked when the drive powers up but the motor remains stopped?
Check active faults, start-command source, speed reference, enable signals, interlocks, digital inputs, control wiring, motor connections, and relevant parameter settings.

7. What information should be saved before replacing a working drive?
Record motor nameplate data, acceleration and deceleration settings, command sources, reference sources, protection settings, communication parameters, and any application-specific configuration.

8. What can cause a PowerFlex 700 drive to run hot?
Poor cabinet ventilation, blocked filters, contaminated cooling passages, high ambient temperature, restricted airflow, excessive loading, and insufficient installation clearance can contribute to overheating.

9. Can another PowerFlex 700 model be used instead of this unit?
Not automatically. Similar models can have different voltage ratings, current capacities, control arrangements, network options, feedback configurations, or braking capabilities. The complete catalog number should be matched before substitution.

10. What should be checked during commissioning after replacement?
Verify power connections, motor wiring, grounding, drive configuration, control signals, communication interfaces, protection settings, and motor response. The first test should be performed under controlled operating conditions.
