Introduction

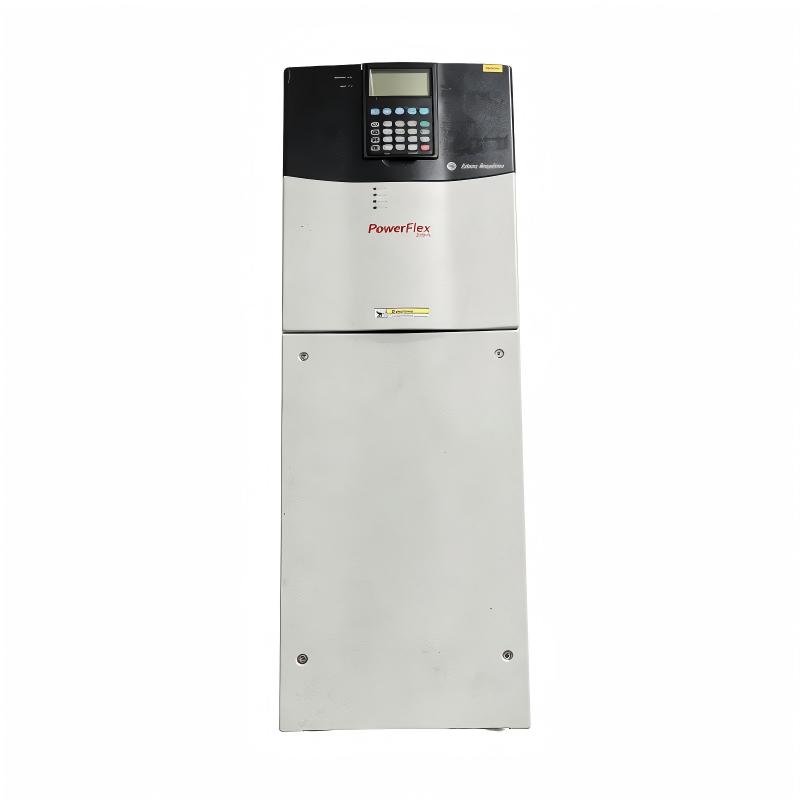

The Allen Bradley 20BD077A3ANNAND0 PowerFlex 700 AC Drive is an industrial variable-frequency drive designed to provide controlled AC motor operation in automated machinery and production equipment. It combines the flexibility of adjustable-speed motor control with the industrial architecture expected in Allen Bradley automation systems.

Motor control is often directly related to machine productivity. A conveyor that starts too aggressively can experience unnecessary mechanical stress, while a process pump running continuously at maximum speed may not match actual production requirements. Variable-frequency control allows engineers to establish more appropriate operating conditions for the connected motor.

The PowerFlex 700 platform is particularly useful in installations where reliable operation needs to be combined with flexible machine control. Depending on the overall system design, the drive can work alongside PLCs, operator interfaces, industrial communication networks, and other automation components.

For maintenance teams, the 20BD077A3ANNAND0 is also a useful replacement reference for established PowerFlex 700 installations. Drive failures can stop an entire production process, especially when the affected motor operates a critical conveyor, pump, fan, or production machine.

A systematic diagnosis should be completed before replacing the drive. Overcurrent and motor faults, for example, may originate from a damaged cable, incorrect motor parameters, excessive mechanical loading, or insulation problems rather than from the drive itself.

When replacement is necessary, technicians should preserve the original configuration whenever possible. Recording parameters before removing the failed unit can simplify setup of the new drive and help reproduce the machine's established operating behavior.

The compact industrial form factor of the 20BD077A3ANNAND0 makes it a practical solution for applications where cabinet space matters without compromising the requirements of an industrial variable-speed drive system.

Technical Specifications

Specification	Details
Brand	Allen Bradley
Manufacturer	Rockwell Automation
Model	20BD077A3ANNAND0
Product Family	PowerFlex 700
Product Type	AC Drive
Application	Industrial Variable-Speed Motor Control
Primary Function	AC Motor Speed and Torque Control
Dimensions	758.8 × 201.7 × 220 mm
Length / Height	758.8 mm
Width	201.7 mm
Depth	220 mm
Weight	24.49 kg (54.00 lb)
Installation	Industrial Drive Cabinet / Control System
Application Area	Manufacturing and Automation

Weight: 24.49 kg (54.00 lb)

The dimensions and weight above are based on the product information supplied for this item. Electrical ratings, input configuration, output capacity, control options, communication interfaces, braking configuration, and enclosure requirements should be confirmed against the exact catalog configuration before installation.

Recommended Related Models

For PowerFlex 700 maintenance and replacement planning, the following related models are useful references within the same general product family:

Allen Bradley 20BD077A0ANNAND0 – PowerFlex 700 AC Drive
Allen Bradley 20BC205A0ANNAND0 – PowerFlex 700 AC Drive
Allen Bradley 20BC205A3ANNANC0 – PowerFlex 700 AC Drive
Allen Bradley 20BC205A3ANNAND0 – PowerFlex 700 AC Drive
Allen Bradley 20BC260A0ANNANC0 – PowerFlex 700 AC Drive

These models belong to the PowerFlex 700 family, but they are not automatically interchangeable. Drive rating, voltage class, control configuration, communication options, and installation requirements must be checked before selecting a substitute.

Popular Related Models

For industrial users maintaining Allen Bradley variable-frequency-drive systems, the following models are also relevant to broader motor-control applications:

Allen Bradley 20AD5P0A0AYYNNG0 – PowerFlex 70 AC Drive
Allen Bradley 20AC5P0A0AYNNNC0 – PowerFlex 70 AC Drive
Allen Bradley 20F11ND2P1AA0NNNNN – PowerFlex 753 AC Drive
Allen Bradley 20G1ANC140JA0NNNNN – PowerFlex 755 AC Drive
Allen Bradley 20P41AD8P0RA0NNNNN – PowerFlex DC Drive

When sourcing the Allen Bradley 20BD077A3ANNAND0 PowerFlex 700 AC Drive, use the complete catalog number rather than relying only on the PowerFlex 700 series designation. Accurate identification is especially important for replacement projects because differences in drive configuration can directly affect electrical compatibility, communication, commissioning, and long-term machine performance.

Applications

The Allen Bradley 20BD077A3ANNAND0 PowerFlex 700 AC Drive is a compact industrial variable-frequency drive designed for applications that require controlled AC motor speed, acceleration, and deceleration. It is part of the PowerFlex 700 family and is well suited to automated machinery where dependable motor control is essential to productivity and process stability.

Variable-speed operation allows a machine to adjust motor performance according to changing production requirements. Instead of continuously running at a fixed speed, the connected motor can be controlled to match material flow, machine cycles, process demand, or load conditions.

The 20BD077A3ANNAND0 can be considered for applications such as:

Industrial conveyor systems
Packaging machinery
Material handling equipment
Pumps and fluid-processing systems
Fans and ventilation equipment
Manufacturing machinery
Automated assembly equipment
Processing lines
Machine tools
OEM equipment
PowerFlex 700 replacement projects
Industrial drive refurbishment

Its relatively compact physical size also makes it suitable for control cabinets where installation space needs to be managed carefully while maintaining professional industrial drive functionality.

Advantages

Flexible motor-speed control
The PowerFlex 700 provides adjustable-speed operation, giving machine builders and plant engineers greater control over motor performance and production processes.

Smooth acceleration and deceleration
Controlled ramp profiles can reduce mechanical shock during motor starting and stopping, helping protect belts, couplings, gearboxes, and other connected equipment.

Compact industrial format
The supplied 758.8 × 201.7 × 220 mm dimensions provide a practical form factor for machinery and control cabinets where space is limited.

Reliable automation integration
The PowerFlex 700 platform is suitable for integration into Allen Bradley automation architectures involving PLCs, HMIs, machine controls, and industrial communication systems.

Supports process flexibility
Adjustable motor speed allows equipment to operate at different production rates without requiring fundamental mechanical changes.

Useful for replacement and retrofit work
The 20BD077A3ANNAND0 can be a practical choice for maintaining existing PowerFlex installations and replacing aging drive hardware.

Suitable for industrial duty
The drive is intended for machine-control applications where stable motor operation and dependable equipment availability are important.

Supports maintenance efficiency
Keeping the exact catalog number available as a spare can shorten recovery time when a production machine experiences a drive-related failure.

Technical FAQs

1. What is the Allen Bradley 20BD077A3ANNAND0?
The 20BD077A3ANNAND0 is an Allen Bradley PowerFlex 700 AC Drive used for variable-speed control of industrial AC motors.

2. What is the main function of this AC drive?
The drive regulates electrical output to the connected motor, allowing speed, acceleration, deceleration, and overall motor operation to be controlled according to machine requirements.

3. What applications are suitable for the PowerFlex 700?
Typical applications include conveyors, pumps, fans, packaging machinery, material-handling systems, processing equipment, and automated production machinery.

4. What can cause the drive to generate an overcurrent fault?
Possible causes include excessive mechanical load, incorrect motor parameters, motor-cable problems, motor winding faults, acceleration that is too aggressive, or a short circuit in the output circuit.

5. Why might the motor fail to start even when the drive is energized?
The drive may not have received a valid run command or speed reference. Technicians should also check enable conditions, digital inputs, interlocks, active faults, control wiring, and motor connections.

6. Can incorrect motor parameters affect drive performance?
Yes. Incorrect motor voltage, current, frequency, speed, or other configuration values can result in poor torque response, excessive current, unstable operation, or repeated protective trips.

7. What should be checked before replacing a failed PowerFlex 700 drive?
Inspect the motor, motor cables, incoming power, grounding, cooling system, mechanical load, control wiring, and recorded fault history. The cause of the original failure should be identified before installing a replacement.

8. What can cause an AC drive to overheat?
Restricted airflow, high cabinet temperature, blocked filters, inadequate ventilation, contaminated cooling passages, excessive loading, or insufficient installation clearance can contribute to overheating.

9. Can another PowerFlex 700 model replace the 20BD077A3ANNAND0?
Not automatically. Catalog numbers can differ in voltage class, current rating, control configuration, communication options, feedback capability, and other functions. Full compatibility should be confirmed before substitution.

10. What should technicians do after replacing the drive?
Verify all electrical connections, restore the required parameters, check command and reference sources, confirm protective settings, and perform a controlled motor test before returning the equipment to normal operation.
