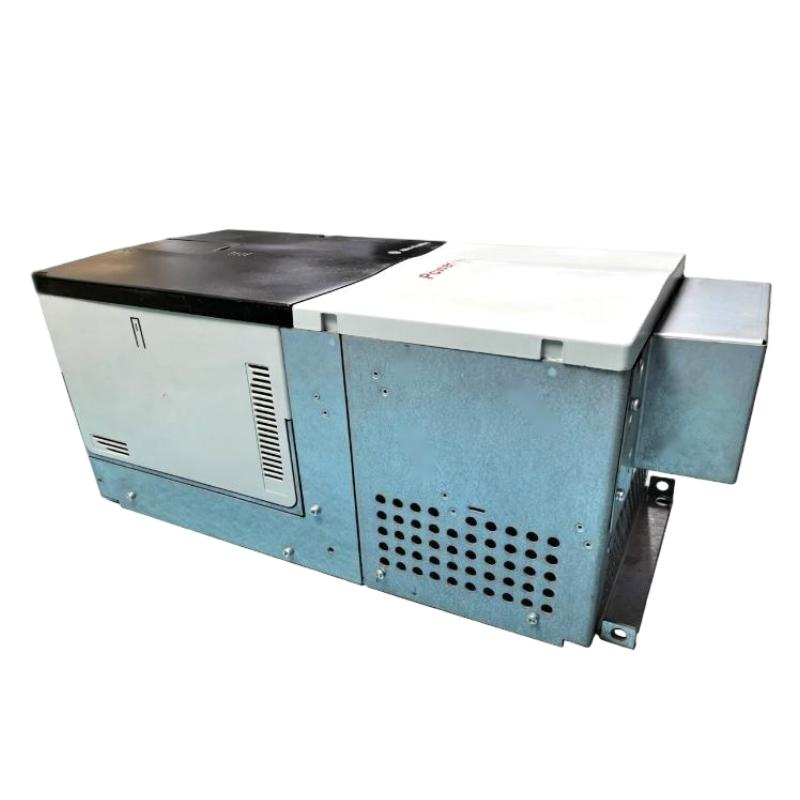

Allen Bradley 20BD096A3ANNANC0 PowerFlex 700 AC Drive

Applications

The Allen Bradley 20BD096A3ANNANC0 PowerFlex 700 AC Drive is an industrial variable-frequency drive designed for controlled AC motor operation in manufacturing, processing, and automated machinery. As part of the PowerFlex 700 family, it is suited to applications where adjustable motor speed, controlled acceleration, and dependable operation are important to overall machine performance.

Variable-frequency control allows motors to respond more closely to actual production requirements. Instead of relying on fixed-speed operation, engineers can establish controlled operating conditions for different stages of a production cycle, helping machinery handle changing loads and process demands more effectively.

The 20BD096A3ANNANC0 can be considered for applications such as:

• Industrial conveyor systems
• Material handling machinery
• Pumping and fluid-processing systems
• Fans and ventilation equipment
• Packaging machinery
• Automated assembly systems
• Manufacturing production lines
• Processing equipment
• Machine-building applications
• OEM automation equipment
• Existing PowerFlex 700 installations
• Industrial drive replacement and refurbishment

For facilities already using Allen Bradley automation equipment, the PowerFlex 700 platform provides a practical way to maintain established motor-control architectures while retaining flexible speed regulation.

Advantages

Flexible variable-speed motor control
The PowerFlex 700 platform allows motor speed to be adjusted according to machine requirements, making it easier to match motor operation with production demand.

Controlled acceleration and deceleration
Adjustable ramping helps reduce sudden mechanical forces during startup and stopping, which can be beneficial for conveyors, rotating machinery, and high-inertia loads.

Suitable for continuous industrial operation
The drive is designed around industrial motor-control requirements where reliable performance and reduced downtime are important priorities.

Easy integration into automation systems
The PowerFlex 700 family can operate as part of larger Allen Bradley control architectures involving PLCs, operator interfaces, industrial networks, and machine-level control equipment.

Supports process flexibility
Adjustable motor operation gives engineers greater freedom to establish different production speeds without making mechanical changes to the machine.

Practical replacement solution
The 20BD096A3ANNANC0 can be used as a replacement reference for compatible PowerFlex 700 installations where maintaining the existing control architecture is preferable to a complete system redesign.

Useful for equipment refurbishment
For mature industrial machines, replacing an aging drive can be a cost-effective way to extend the service life of the overall equipment.

Maintenance-friendly approach
Keeping the correct catalog number available as a spare can help shorten repair cycles when an important motor-control component fails.

Technical FAQs

1. What is the Allen Bradley 20BD096A3ANNANC0?
The 20BD096A3ANNANC0 is an Allen Bradley PowerFlex 700 AC Drive designed for variable-speed control of industrial AC motors.

2. What is the primary function of this drive?
It regulates the electrical output supplied to an AC motor, allowing technicians and machine-control systems to manage motor speed, acceleration, deceleration, and operating behavior.

3. What types of machinery are suitable for a PowerFlex 700 drive?
Typical applications include conveyors, pumps, fans, packaging equipment, material-handling machinery, processing systems, and automated production equipment.

4. What can cause a drive to generate an overcurrent fault?
Possible causes include excessive mechanical loading, incorrect motor parameters, motor winding problems, damaged motor cables, short circuits, grounding issues, or acceleration settings that are too aggressive for the application.

5. Can an external motor problem cause a drive fault?
Yes. The drive monitors the electrical behavior of the motor circuit, so problems with the motor, cable, mechanical load, or grounding can trigger drive protection functions.

6. Why might the drive power on but the motor fail to run?
Possible causes include an incorrect start-command source, missing enable signal, absent speed reference, active interlock, unresolved fault, incorrect control settings, or a problem with motor wiring.

7. What information should be saved before replacing the drive?
Technicians should record motor nameplate information, command sources, reference sources, acceleration and deceleration settings, control parameters, protection settings, and communication configuration where applicable.

8. What can cause the PowerFlex 700 to overheat?
Restricted airflow, blocked filters, contaminated cooling passages, excessive ambient temperature, inadequate cabinet ventilation, insufficient clearance, or sustained operation under a heavy load can contribute to overheating.

9. Can another PowerFlex 700 catalog number replace this model?
Not automatically. Different catalog numbers can represent different voltage ratings, current capabilities, control configurations, communication options, or other hardware features. The complete configuration should be checked before substitution.

10. What should be checked during commissioning after replacement?
Verify incoming power, motor connections, grounding, drive parameters, control signals, command and reference sources, communication interfaces, and protective settings. The motor should then be tested under controlled conditions before normal production resumes.
