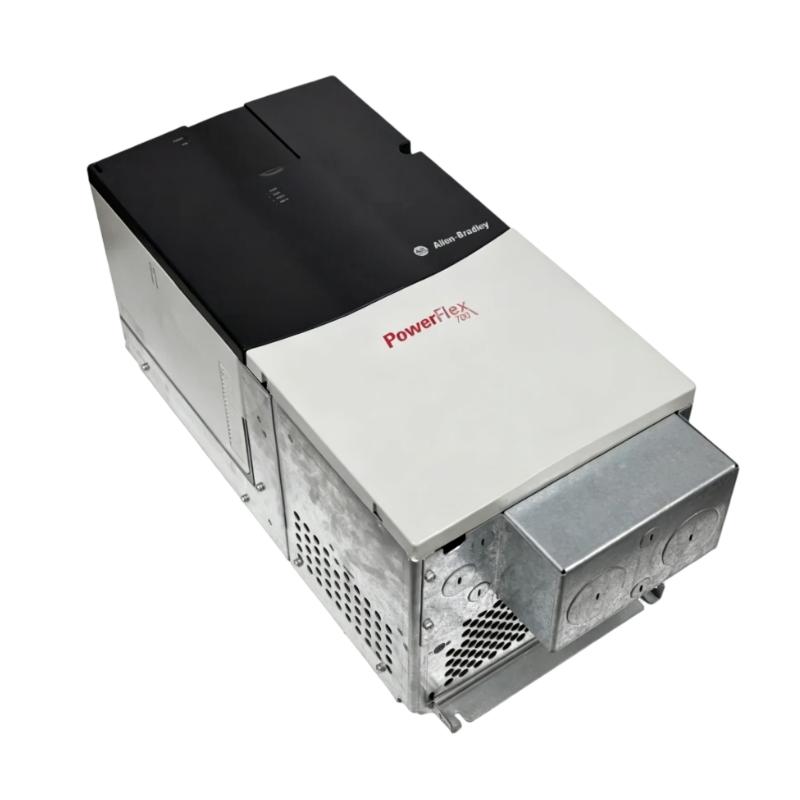

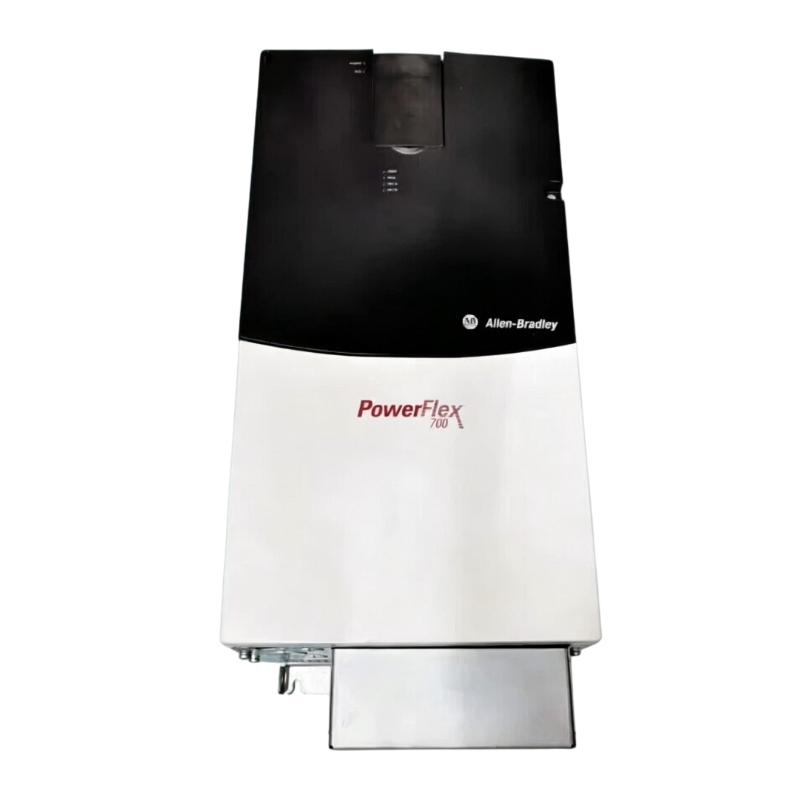

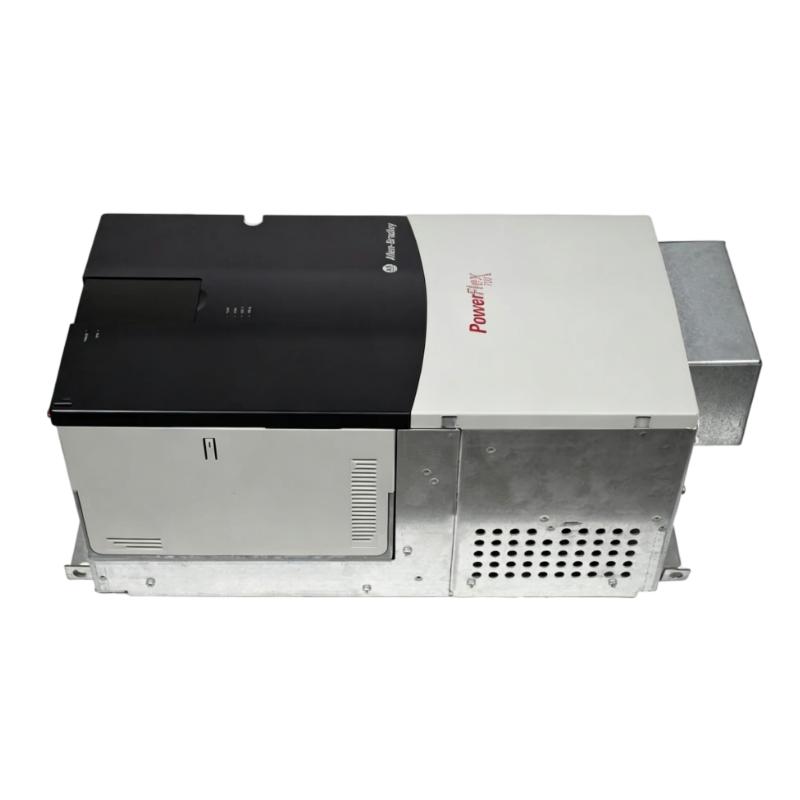

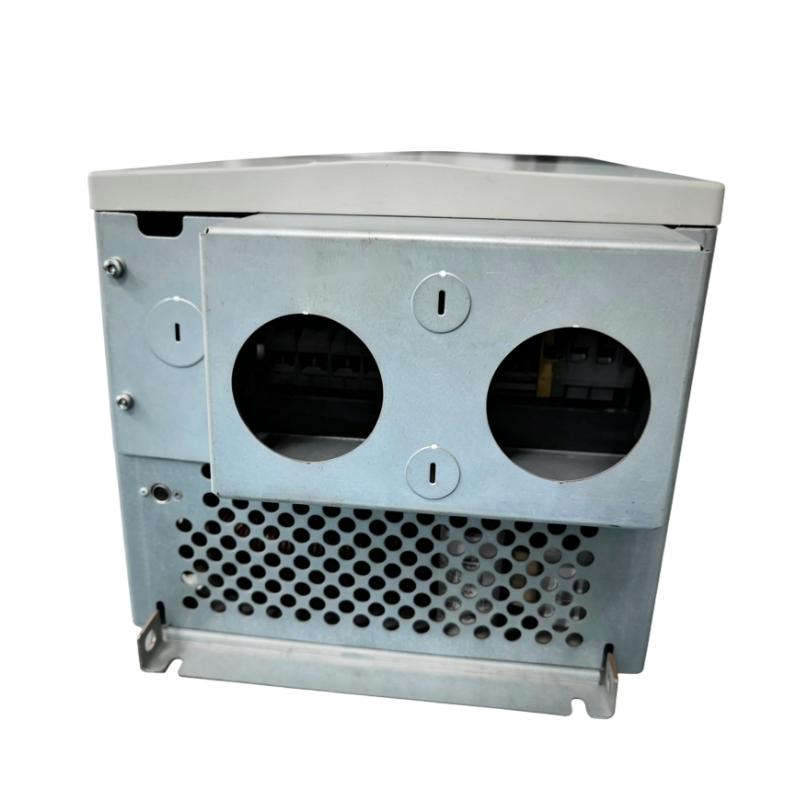

Allen Bradley 20BD125A0ANNANC0 PowerFlex 700 AC Drive

Applications

The Allen Bradley 20BD125A0ANNANC0 PowerFlex 700 AC Drive is an industrial variable-frequency drive designed for applications requiring reliable and adjustable control of AC motors. It is part of the PowerFlex 700 family and is well suited to production equipment where motor speed, acceleration, deceleration, and load response need to be managed precisely.

In industrial automation, motor performance can directly influence production quality and equipment life. A conveyor may require gradual acceleration to prevent material shifting, while pumps, fans, and processing machines may need different operating speeds depending on production demand. Variable-frequency control provides the flexibility needed for these situations.

The 20BD125A0ANNANC0 can be considered for:

• Industrial conveyor systems
• Material handling machinery
• Pumping and fluid-processing equipment
• Fans and ventilation systems
• Packaging machinery
• Automated assembly equipment
• Processing and manufacturing lines
• Machine-building applications
• OEM industrial equipment
• Production transport systems
• PowerFlex 700 replacement projects
• Industrial drive refurbishment

For plants already using Allen Bradley automation equipment, this drive can be a practical component for maintaining an existing variable-speed motor-control system without unnecessary changes to the surrounding machine architecture.

Advantages

Flexible variable-speed motor control
The PowerFlex 700 platform provides adjustable motor operation, allowing speed to be matched to the actual process rather than relying on fixed-speed operation.

Controlled acceleration and deceleration
Adjustable ramping can reduce mechanical shock during motor starting and stopping, which can help protect connected equipment such as conveyors, gearboxes, couplings, and pumps.

Suitable for demanding industrial machinery
The PowerFlex 700 family is designed for industrial applications where stable motor operation and equipment availability are important.

Strong Allen Bradley integration
The drive can form part of a larger automation architecture incorporating Allen Bradley PLCs, HMIs, operator stations, and industrial communication systems.

Supports process flexibility
Adjustable-speed operation allows machinery to handle different production rates and load conditions without requiring fundamental mechanical changes.

Practical replacement solution
The 20BD125A0ANNANC0 can be considered when maintaining existing PowerFlex 700 installations and replacing a failed or aging drive.

Useful for retrofit projects
Replacing an individual drive can be an efficient approach when the existing motor, machine, and control architecture remain suitable for continued operation.

Maintenance-friendly spare
Keeping an accurately identified replacement drive available can reduce downtime when an important motor-control component fails unexpectedly.

Technical FAQs

1. What is the Allen Bradley 20BD125A0ANNANC0?
The 20BD125A0ANNANC0 is an Allen Bradley PowerFlex 700 AC Drive designed for variable-speed control of industrial AC motors.

2. What is the primary purpose of this AC drive?
The drive controls the electrical output supplied to an AC motor, allowing motor speed and acceleration characteristics to be adjusted according to machine requirements.

3. What types of industrial equipment can use a PowerFlex 700 drive?
Typical applications include conveyors, pumps, fans, material-handling equipment, packaging machinery, processing systems, and automated production equipment.

4. What can cause a PowerFlex 700 drive to trip?
Possible causes include excessive motor current, overload, overvoltage, undervoltage, excessive temperature, incorrect motor parameters, grounding faults, mechanical overload, or problems within the motor circuit.

5. Can a motor fault cause the drive to report an alarm?
Yes. Motor winding problems, insulation deterioration, damaged cables, incorrect wiring, excessive mechanical loading, or grounding issues can all trigger drive protection functions.

6. Why might the drive power up but the motor fail to start?
Possible causes include an incorrect start-command source, missing enable condition, absent speed reference, active interlock, unresolved fault, incorrect parameters, or a motor-side problem.

7. What should be saved before replacing the original drive?
Technicians should record motor nameplate information, command sources, speed-reference settings, acceleration and deceleration values, protection parameters, communication settings, and other application-specific configuration.

8. What can cause the drive to overheat?
Restricted airflow, blocked filters, contaminated cooling passages, high ambient temperature, insufficient cabinet ventilation, inadequate clearance, or prolonged operation under high load can all contribute to overheating.

9. Is another PowerFlex 700 model a direct replacement?
Not necessarily. Catalog numbers can represent different electrical ratings, control arrangements, communication options, and hardware configurations. The complete catalog number should be checked against the application before substitution.

10. What should be verified after installing a replacement drive?
Check incoming power, motor wiring, grounding, drive parameters, command signals, speed references, communication connections, and protective settings. A controlled test run should be completed before returning the machine to full production.
