Introduction

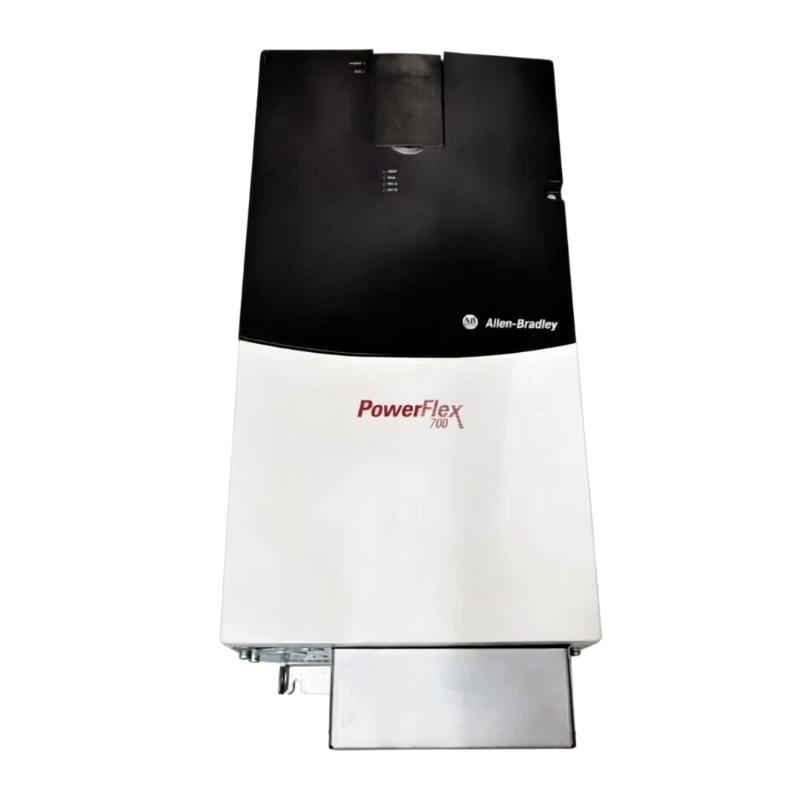

The Allen Bradley 20BD125A0ANNAND0 PowerFlex 700 AC Drive is an industrial variable-frequency drive designed to provide controlled AC motor operation in automated machinery. By regulating motor speed and operating characteristics electronically, it gives machine designers and plant engineers greater control over how motors respond to different production conditions.

A fixed-speed motor may be adequate for simple equipment, but many industrial processes require more flexibility. Conveyors may need controlled acceleration when handling heavy loads, pumps may need speed adjustment as process demand changes, and manufacturing machines may require different motor speeds at different stages of a production cycle.

The PowerFlex 700 platform is designed for this type of requirement. It can operate as part of a wider automation system and support motor-driven machinery where speed regulation and controlled operation are important.

The 20BD125A0ANNAND0 is also relevant to industrial maintenance and retrofit projects. Production equipment often remains in service for many years, and replacing an individual drive can be considerably more practical than replacing a complete control system.

When a drive begins producing faults, however, replacement should not be the first assumption. Motor condition, cable integrity, mechanical loading, incoming power, cooling, and parameter configuration should all be considered during diagnosis. A drive alarm can sometimes be the result of a problem elsewhere in the system.

For maintenance teams, preserving the original drive configuration is an important part of replacement preparation. Saving the existing motor settings, control sources, acceleration and deceleration values, and other application parameters can make commissioning considerably easier.

The 20BD125A0ANNAND0 is therefore well suited to industrial facilities that need dependable variable-speed motor control together with a practical approach to long-term equipment maintenance.

Technical Specifications

Specification	Details
Brand	Allen Bradley
Manufacturer	Rockwell Automation
Model	20BD125A0ANNAND0
Product Family	PowerFlex 700
Product Type	AC Drive
Application	Industrial Variable-Speed Motor Control
Primary Function	AC Motor Speed and Torque Control
Dimensions	689.6 × 308.9 × 275.4 mm
Length / Height	689.6 mm
Width	308.9 mm
Depth	275.4 mm
Weight	37.19 kg (82.00 lb)
Installation	Industrial Drive Cabinet / Control System
Application Area	Manufacturing and Industrial Automation

Weight: 37.19 kg (82.00 lb)

The dimensions and weight are based on the product information supplied for this item. Exact voltage, current rating, motor capacity, control configuration, communication options, braking functions, and enclosure requirements should be verified against the complete catalog configuration before installation.

Recommended Related Models

For PowerFlex 700 maintenance, replacement, and retrofit planning, the following related models are useful references:

Allen Bradley 20BD125A0ANNANC0 – PowerFlex 700 AC Drive
Allen Bradley 20BD096A0ANNAND0 – PowerFlex 700 AC Drive
Allen Bradley 20BD096A3ANNAND0 – PowerFlex 700 AC Drive
Allen Bradley 20BD077A3ANNAND0 – PowerFlex 700 AC Drive
Allen Bradley 20BC205A0ANNAND0 – PowerFlex 700 AC Drive

These models belong to the PowerFlex 700 family, but they should not be treated as direct substitutes without comparing electrical ratings, configuration options, control requirements, and the intended machine application.

Popular Related Models

For customers maintaining Allen Bradley variable-frequency-drive systems, the following models are also relevant to broader industrial motor-control requirements:

Allen Bradley 20BC205A3ANNANC0 – PowerFlex 700 AC Drive
Allen Bradley 20BC205A3ANNAND0 – PowerFlex 700 AC Drive
Allen Bradley 20BC260A0ANNANC0 – PowerFlex 700 AC Drive
Allen Bradley 20AD5P0A0AYYNNG0 – PowerFlex 70 AC Drive
Allen Bradley 20G1ANC140JA0NNNNN – PowerFlex 755 AC Drive

When sourcing the Allen Bradley 20BD125A0ANNAND0 PowerFlex 700 AC Drive, always use the complete catalog number. PowerFlex 700 models can share similar physical designs while differing in electrical ratings, control functions, communications, braking options, and other configuration details, so precise identification is essential for dependable replacement and commissioning.

Applications

The Allen Bradley 20BD125A0ANNAND0 PowerFlex 700 AC Drive is an industrial variable-frequency drive designed for controlled AC motor operation in manufacturing, process, and automated machinery. It provides the adjustable-speed control needed when motor performance must respond to production requirements rather than remain fixed at one operating point.

In practical automation systems, controlled motor operation can improve machine behavior during startup, production, and shutdown. Conveyors can accelerate progressively, pumps can respond to changing process demand, and rotating machinery can be operated at a speed appropriate to the current load.

The 20BD125A0ANNAND0 is suitable for applications such as:

Industrial conveyor systems
Material handling machinery
Pumping and fluid-processing equipment
Fans and ventilation systems
Packaging machinery
Manufacturing production lines
Automated assembly equipment
Processing machinery
Machine-building systems
OEM automation equipment
PowerFlex 700 retrofit projects
Industrial drive replacement programs

For facilities using Allen Bradley automation equipment, this PowerFlex 700 drive offers a practical solution for maintaining established motor-control systems while retaining flexible variable-speed operation.

Advantages

Adjustable motor performance
The PowerFlex 700 platform allows motor speed to be adapted to changing production conditions, providing greater control than conventional fixed-speed motor starting.

Smooth acceleration and deceleration
Configurable ramping can reduce sudden torque changes and mechanical shock, helping protect belts, couplings, gearboxes, and other connected machinery.

Reliable industrial motor control
The drive is intended for demanding automation environments where stable motor operation is closely connected to productivity and equipment availability.

Allen Bradley system integration
The PowerFlex 700 family can form part of a broader industrial automation architecture that includes Allen Bradley controllers, operator interfaces, communication networks, and machine-level control equipment.

Flexible production operation
Adjustable motor speed allows machines to accommodate different production rates, operating conditions, and load requirements.

Useful for replacement and retrofit work
The 20BD125A0ANNAND0 can provide a practical replacement path when an existing PowerFlex 700 installation needs a new drive while the surrounding machinery remains serviceable.

Supports preventive maintenance
Maintaining the correct replacement drive as a spare can help reduce recovery time when a critical motor-control component develops a fault.

Suitable for established automation assets
For long-running industrial machinery, replacing individual drive hardware can extend useful equipment life while avoiding unnecessary modifications to the wider control system.

Technical FAQs

1. What is the Allen Bradley 20BD125A0ANNAND0?
The 20BD125A0ANNAND0 is an Allen Bradley PowerFlex 700 AC Drive used for variable-speed control of industrial AC motors.

2. What is the main function of a PowerFlex 700 drive?
It regulates the electrical power supplied to an AC motor, allowing motor speed and acceleration behavior to be controlled according to the requirements of the connected machine.

3. What equipment can use this type of drive?
Typical applications include conveyors, pumps, fans, packaging machinery, material-handling equipment, processing systems, and automated manufacturing machinery.

4. What can cause a PowerFlex 700 drive to trip during operation?
Potential causes include overcurrent, overload, overvoltage, undervoltage, excessive temperature, incorrect motor parameters, grounding problems, mechanical overload, or faults in the motor circuit.

5. Can a defective motor create a drive fault?
Yes. Motor winding problems, insulation deterioration, damaged motor cables, incorrect wiring, mechanical overload, and grounding issues can all trigger drive protection functions.

6. Why might the drive be energized while the motor does not run?
The drive may not be receiving a valid run command or speed reference. Technicians should also check enable signals, digital inputs, interlocks, active faults, control wiring, and motor connections.

7. What should be documented before replacing the original drive?
Record motor nameplate data, command and reference sources, acceleration and deceleration settings, protection parameters, communication settings, and any application-specific adjustments whenever possible.

8. What can cause excessive drive temperature?
Restricted airflow, blocked filters, contaminated cooling paths, high ambient temperature, inadequate cabinet ventilation, insufficient clearance, or continuous operation under heavy load can increase operating temperature.

9. Can another PowerFlex 700 model be used as a replacement?
Not automatically. Different catalog numbers can represent different electrical ratings, control configurations, communication options, and hardware arrangements. The full application and catalog number should be compared before substitution.

10. What should be checked after installing a replacement drive?
Verify power connections, motor wiring, grounding, drive parameters, command signals, speed references, communication interfaces, and protective settings. Perform a controlled test run before returning the machine to normal production.

Look forward to your comments!Comment
