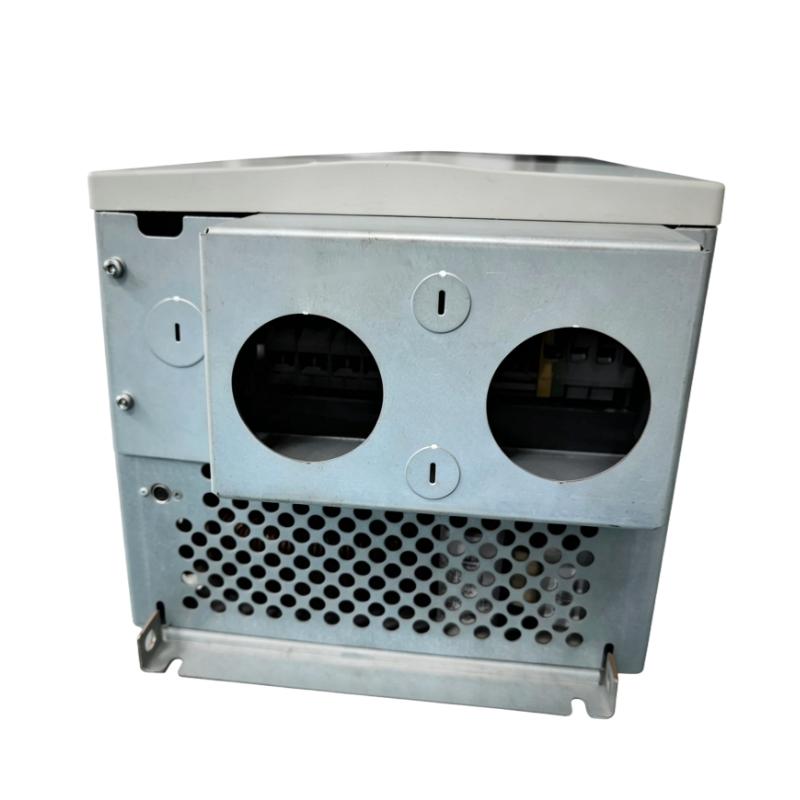

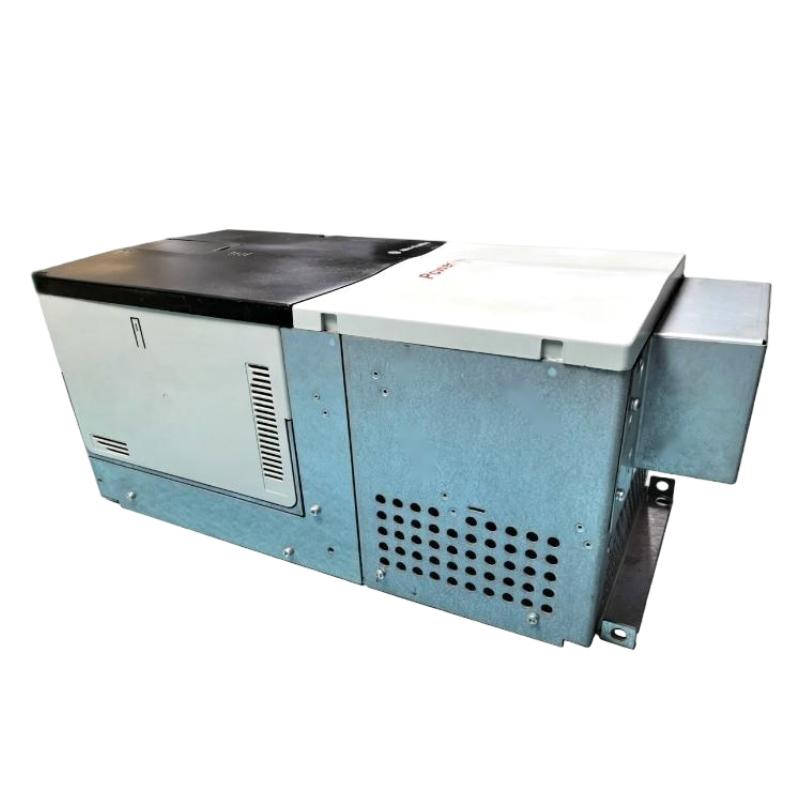

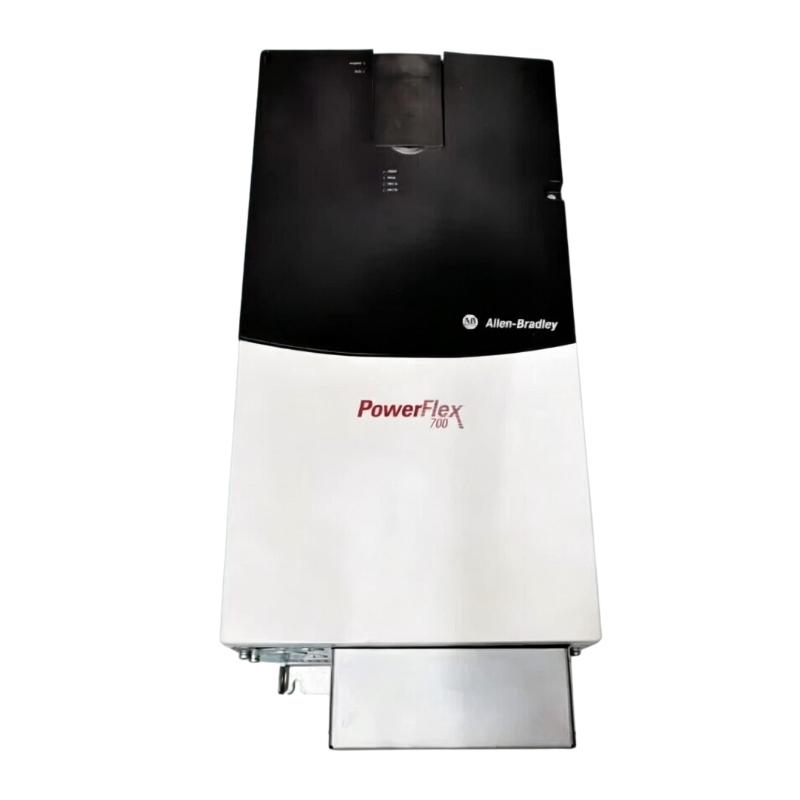

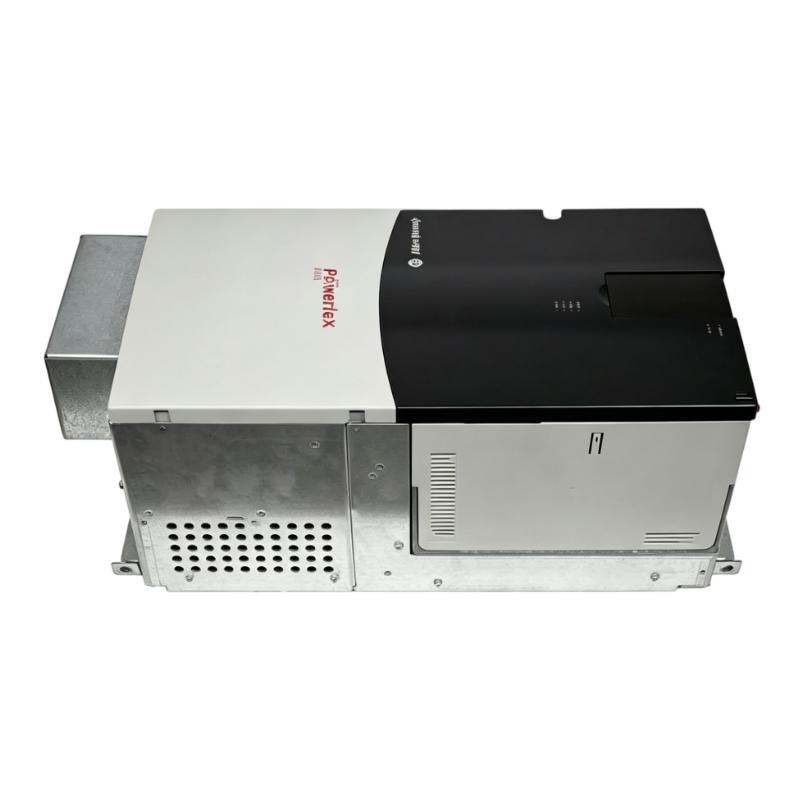

Allen Bradley 20BD125A3ANNACA0 PowerFlex 700 AC Drive
Allen Bradley 20BD125A3ANNACA0 PowerFlex 700 AC Drive
0.0
Points
Brand:Allen Bradley PLC Item No.:20BD125A3ANNACA0 Product Origin:USA Product Dimensions:689.6 x 308.9 x 275.4 mm Product Weight:37.19 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen Bradley 20BD125A3ANNACA0 PowerFlex 700 AC Drive is a specialized industrial drive for controlling AC motors in automated machinery and production systems. It is designed for applications where motor speed needs to be controlled precisely instead of relying on fixed-speed operation.
In a typical manufacturing environment, motor requirements can vary considerably throughout the production cycle. A conveyor may need gradual acceleration when loaded, while processing equipment may require different operating speeds depending on material conditions. Pumps and fans may also need to respond continuously to changing process demand.
A variable-frequency drive provides the control necessary for these situations. By managing motor operating conditions electronically, it gives engineers greater control over machine performance while allowing acceleration and deceleration to be adjusted according to the mechanical characteristics of the equipment.
The PowerFlex 700 family is also well suited to maintenance-oriented applications. Many industrial facilities keep their automation systems in service for extended periods, making replacement of individual drive components an important part of asset management. A correctly matched drive can restore motor-control functionality without requiring a complete machine redesign.
When troubleshooting a drive-related problem, it is important to investigate the surrounding system rather than immediately replacing the drive. Motor winding faults, cable damage, excessive mechanical loading, power-quality issues, inadequate ventilation, and incorrect parameters can all produce drive alarms.
For replacement work, preserving the original drive configuration can significantly simplify commissioning. Recording the existing settings before removing the old unit gives technicians a useful reference for restoring the machine's established operating behavior.
The 20BD125A3ANNACA0 is therefore a practical choice for industrial automation applications that require flexible AC motor control together with efficient maintenance and replacement strategies.
Technical Specifications
Specification
Details
Brand
Allen Bradley
Manufacturer
Rockwell Automation
Model
20BD125A3ANNACA0
Product Family
PowerFlex 700
Product Type
AC Drive
Application
Industrial Variable-Speed Motor Control
Primary Function
AC Motor Speed and Torque Control
Dimensions
689.6 × 308.9 × 275.4 mm
Length / Height
689.6 mm
Width
308.9 mm
Depth
275.4 mm
Weight
37.19 kg (82.00 lb)
Installation
Industrial Drive Cabinet / Control System
Application Area
Manufacturing and Industrial Automation
Weight: 37.19 kg (82.00 lb)
The dimensions and weight are based on the product information supplied for this item. Exact electrical ratings, voltage class, output current, control configuration, communication options, braking functions, and enclosure requirements should be confirmed against the complete catalog configuration before installation.
Recommended Related Models
For PowerFlex 700 maintenance and replacement planning, the following related models provide useful comparison points within the same product family:
Allen Bradley 20BD125A0ANNANC0 – PowerFlex 700 AC Drive
Allen Bradley 20BD125A0ANNAND0 – PowerFlex 700 AC Drive
Allen Bradley 20BD096A3ANNANC0 – PowerFlex 700 AC Drive
Allen Bradley 20BD096A3ANNANC1 – PowerFlex 700 AC Drive
Allen Bradley 20BD077A3ANNAND0 – PowerFlex 700 AC Drive
These models belong to the PowerFlex 700 family, but catalog-number differences can indicate different electrical or functional configurations. Proper application matching is required before selecting a replacement.
Popular Related Models
For customers maintaining Allen Bradley variable-frequency-drive systems, these PowerFlex models are also relevant to industrial motor-control applications:
Allen Bradley 20BC205A0ANNAND0 – PowerFlex 700 AC Drive
Allen Bradley 20BC205A3ANNANC0 – PowerFlex 700 AC Drive
Allen Bradley 20BC205A3ANNAND0 – PowerFlex 700 AC Drive
Allen Bradley 20BC260A0ANNANC0 – PowerFlex 700 AC Drive
Allen Bradley 20BC260A0ANNAND0 – PowerFlex 700 AC Drive
When sourcing the Allen Bradley 20BD125A3ANNACA0 PowerFlex 700 AC Drive, use the complete catalog number during procurement and maintenance planning. PowerFlex 700 drives with similar physical dimensions can have different electrical ratings and configuration options, so precise part-number matching is essential for reliable replacement, commissioning, and long-term machine operation.
Applications
The Allen Bradley 20BD125A3ANNACA0 PowerFlex 700 AC Drive is an industrial variable-frequency drive designed for applications that require controlled AC motor speed, acceleration, deceleration, and torque response. As part of the PowerFlex 700 family, it is suitable for automated machinery where dependable motor control is an important factor in production performance.
Variable-speed control provides greater flexibility than fixed-speed motor operation. Machine engineers can adjust motor speed to match material flow, process demand, production cycles, or load conditions, while controlled acceleration and deceleration can help reduce unnecessary stress on connected mechanical equipment.
The 20BD125A3ANNACA0 can be used in applications such as:
Industrial conveyor systems
Material handling machinery
Pumping and fluid-processing equipment
Fans and ventilation systems
Packaging machinery
Automated assembly equipment
Manufacturing production lines
Process machinery
Machine-building applications
OEM automation equipment
PowerFlex 700 retrofit projects
Industrial drive replacement and refurbishment
For plants with established Allen Bradley control systems, this PowerFlex 700 drive offers a practical solution for maintaining an existing motor-control architecture while providing flexible and responsive AC motor operation.
Advantages
Flexible motor-speed management
The PowerFlex 700 platform allows the connected motor to operate at controlled speeds according to the actual requirements of the machine and production process.
Controlled acceleration and deceleration
Adjustable ramping helps prevent abrupt changes in motor output, reducing mechanical shock on belts, couplings, gearboxes, conveyors, and other driven equipment.
Reliable industrial motor control
The drive is intended for industrial automation applications where stable operation and equipment availability are essential to production.
Suitable for Allen Bradley automation environments
PowerFlex 700 drives can operate within broader control architectures incorporating Allen Bradley PLCs, HMIs, industrial networks, and machine-level control equipment.
Supports process flexibility
Variable-speed operation allows machinery to work at different production rates without requiring mechanical changes to the motor or driven equipment.
Practical replacement option
The 20BD125A3ANNACA0 is useful for maintenance and retrofit projects where an existing PowerFlex 700 installation needs replacement drive hardware.
Helps reduce production interruptions
Having the correct catalog configuration available as a spare can shorten the time between drive failure and machine recovery.
Well suited to long-term equipment support
For facilities operating mature automation assets, maintaining the correct PowerFlex 700 components can extend the useful service life of existing production machinery.
Technical FAQs
1. What is the Allen Bradley 20BD125A3ANNACA0?
The 20BD125A3ANNACA0 is an Allen Bradley PowerFlex 700 AC Drive designed for variable-speed control of industrial AC motors.
2. What is the primary function of this drive?
The drive regulates the electrical output supplied to an AC motor, allowing the motor's speed and acceleration characteristics to be controlled according to the application.
3. What types of machines can use a PowerFlex 700 drive?
Typical applications include conveyors, pumps, fans, packaging equipment, material-handling machinery, processing systems, and automated manufacturing equipment.
4. What can cause a PowerFlex 700 drive to produce an overcurrent fault?
Possible causes include excessive mechanical load, incorrect motor parameters, motor winding problems, damaged output cables, short circuits, grounding faults, or an acceleration profile that is too aggressive for the application.
5. Can a motor or cable fault be mistaken for a drive failure?
Yes. The drive monitors the electrical conditions of the motor circuit, so faults outside the drive can produce similar alarm conditions. The complete motor circuit should be checked before replacing the drive.
6. Why would the drive power up without starting the motor?
The drive may not be receiving a valid run command or speed reference. Check command-source settings, enable conditions, digital inputs, interlocks, active faults, control wiring, and motor connections.
7. What should be recorded before removing the original drive?
Technicians should document motor nameplate information, command and reference sources, acceleration and deceleration settings, protection parameters, communication settings, and application-specific configuration values.
8. What can cause the drive to overheat?
Common factors include restricted airflow, blocked filters, contaminated cooling passages, excessive ambient temperature, inadequate cabinet ventilation, insufficient clearance, and sustained operation at high load.
9. Is another PowerFlex 700 model automatically compatible?
No. PowerFlex 700 catalog numbers can represent different electrical ratings, control configurations, communication options, braking arrangements, and other hardware characteristics. The complete configuration must be compared before substitution.
10. What should be checked after installing a replacement drive?
Verify incoming power, motor connections, grounding, drive parameters, command signals, speed-reference settings, communication interfaces, and protective functions. A controlled test run should be completed before returning the machine to full production.
