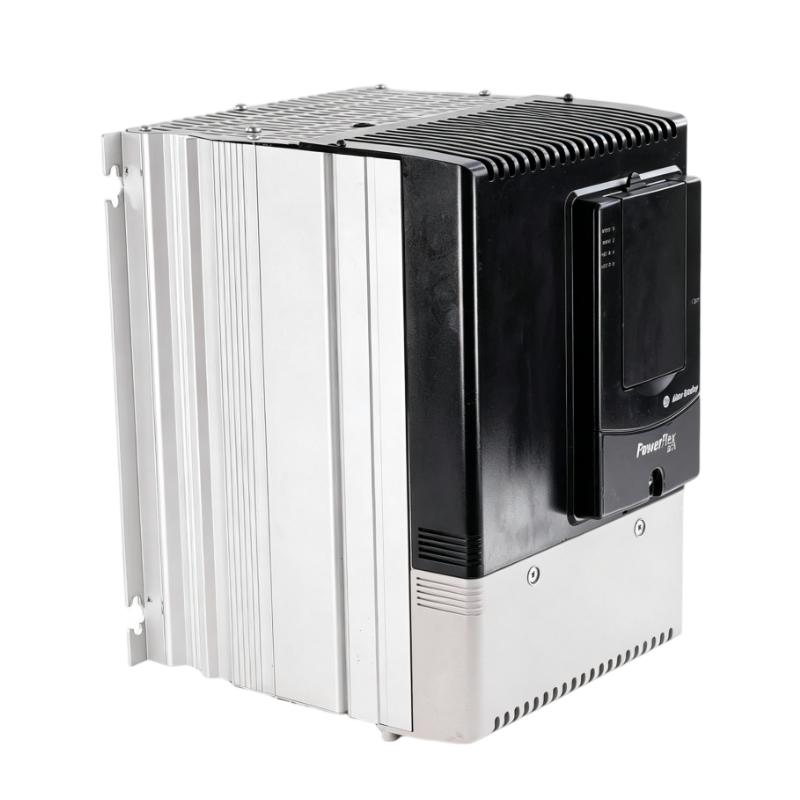

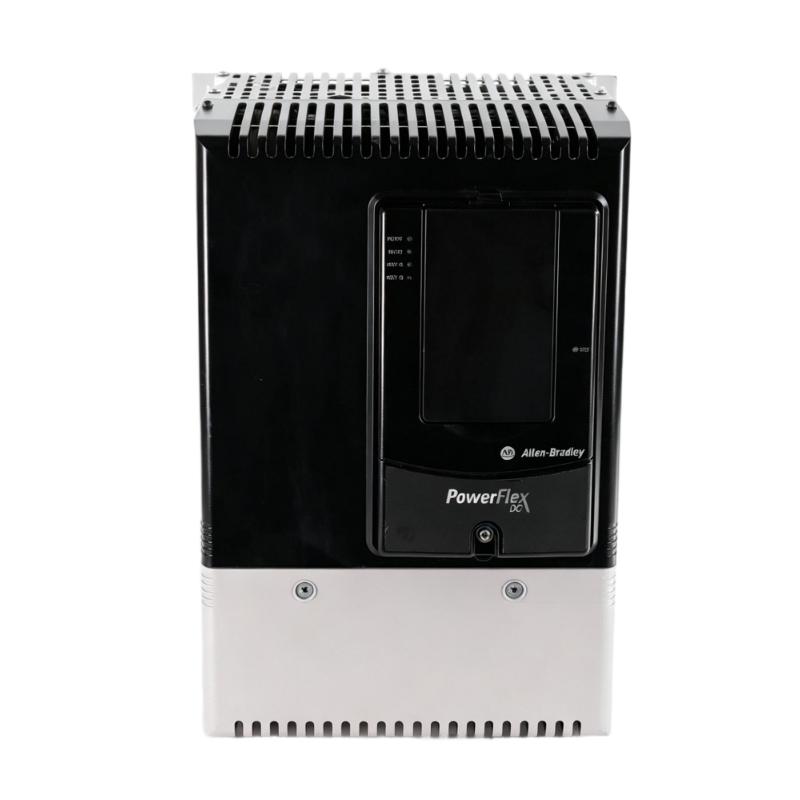

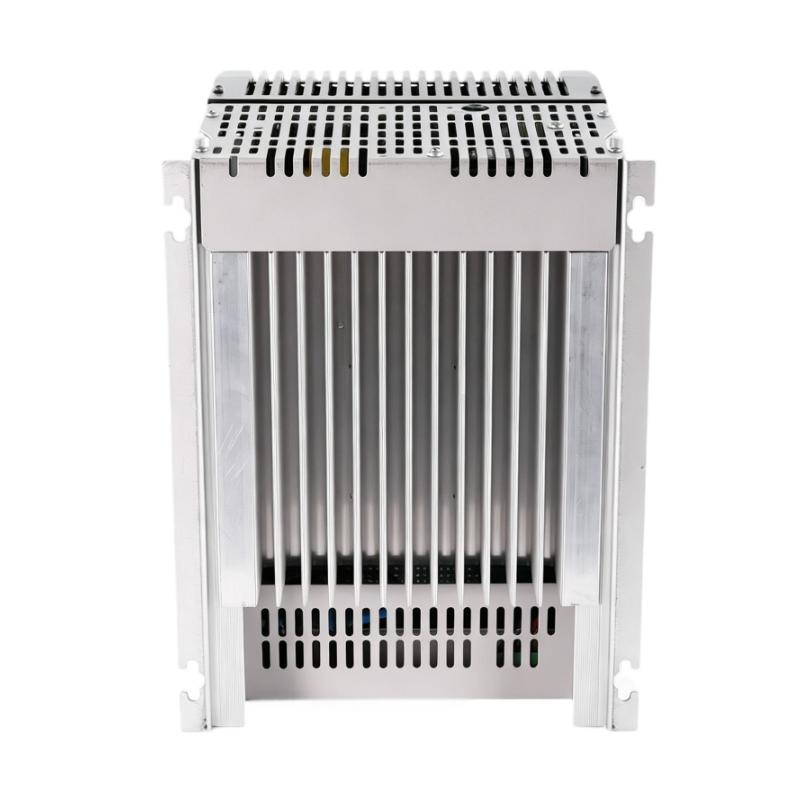

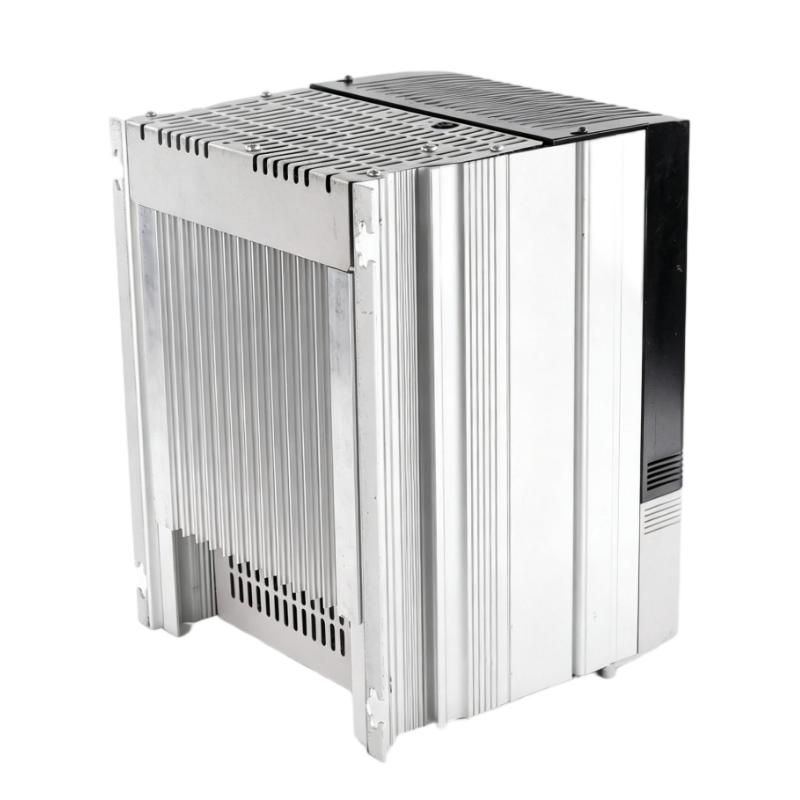

Allen Bradley 20P41AB7P0RA0NNN PowerFlex DC Driver

Applications

The Allen Bradley 20P41AB7P0RA0NNN PowerFlex DC Drive is designed for industrial DC motor-control applications where precise speed regulation, controlled starting, and dependable torque management are required. As part of the PowerFlex DC family, it is suited to machinery that depends on the characteristics of DC motors and requires more sophisticated control than a conventional motor starter can provide.

DC drives remain valuable in many established industrial systems, particularly where existing motors, mechanical transmission systems, or production processes were originally engineered around DC technology. Maintaining the correct drive can therefore be an effective way to keep mature production equipment operating without undertaking an unnecessary full-system conversion.

The 20P41AB7P0RA0NNN can be considered for applications such as:

• Industrial DC motor systems
• Conveyor and material-handling equipment
• Web handling machinery
• Printing and converting equipment
• Industrial winding and unwinding machines
• Process lines
• Rolling and tension-control systems
• Legacy manufacturing equipment
• DC motor retrofit and replacement projects
• Industrial drive refurbishment
• Production machinery requiring precise speed control

For maintenance teams supporting established Allen Bradley installations, the PowerFlex DC platform provides a practical solution for servicing DC motor applications while retaining the existing electrical and mechanical architecture.

Advantages

Precise DC motor-speed regulation
The PowerFlex DC platform is designed to control DC motors with adjustable speed and controlled operating characteristics, making it suitable for machinery where speed consistency is important.

Excellent fit for legacy equipment
Many long-running industrial machines still depend on DC motors. Maintaining the original drive technology can often be more practical than converting the entire machine to an AC-based system.

Controlled acceleration and deceleration
The drive can provide controlled motor transitions, helping reduce mechanical shock and supporting smoother machine operation.

Supports torque-sensitive applications
DC motors can provide strong low-speed torque characteristics, making DC drive systems useful in applications where controlled torque and speed response are important.

Suitable for industrial process equipment
The PowerFlex DC family can be used in production machinery where stable speed and repeatable motor behavior contribute directly to process quality.

Practical replacement solution
The 20P41AB7P0RA0NNN can be a valuable replacement option for compatible PowerFlex DC installations where preserving the existing motor and machine architecture is a priority.

Compact industrial form factor
With supplied dimensions of 359 × 267 × 287 mm, the drive provides a relatively compact package for industrial DC motor-control applications.

Useful for maintenance inventory
Keeping the exact catalog number available can help maintenance teams reduce downtime when an installed DC drive experiences an unexpected failure.

Technical FAQs

1. What is the Allen Bradley 20P41AB7P0RA0NNN?
The 20P41AB7P0RA0NNN is an Allen Bradley PowerFlex DC Drive designed for controlled operation of compatible industrial DC motors.

2. What is the main function of a DC drive?
A DC drive regulates the electrical power supplied to a DC motor so that motor speed and torque can be controlled according to the machine's operating requirements.

3. Why are DC drives still used in industry?
Many established machines were engineered around DC motors and their specific speed and torque characteristics. Replacing only the drive can therefore be more economical and less disruptive than converting the entire system.

4. What applications commonly use industrial DC drives?
Typical applications include web handling, winding, printing, converting, conveyors, rolling systems, material handling, and other machinery requiring controlled DC motor operation.

5. What can cause a DC drive to trip?
Potential causes include excessive armature current, field-related faults, overvoltage, undervoltage, motor problems, grounding issues, incorrect configuration, or excessive mechanical loading.

6. Can the DC motor itself cause a drive fault?
Yes. Armature insulation problems, commutator issues, brush wear, field-circuit problems, mechanical overload, or damaged motor cabling can create abnormal conditions that cause the drive to enter a protective state.

7. What should be checked if the motor does not accelerate correctly?
Check the drive configuration, speed reference, current limits, motor feedback where applicable, armature connections, field circuit, mechanical load, and fault history. Incorrect tuning or motor data can also affect acceleration.

8. What should be checked before replacing the PowerFlex DC drive?
Verify the complete catalog number, motor nameplate information, armature and field requirements, control connections, feedback arrangement, incoming power, and the application's operating parameters.

9. Is another PowerFlex DC model automatically a suitable replacement?
No. DC drives can differ in voltage, current capacity, field-control arrangement, feedback options, regenerative capability, and other configuration details. The complete model must be matched to the application.

10. What should be done after installing a replacement DC drive?
Verify all power and control connections, configure the motor data and operating parameters, check the armature and field circuits, and perform a controlled test run while monitoring current, speed response, and fault conditions.
