Introduction

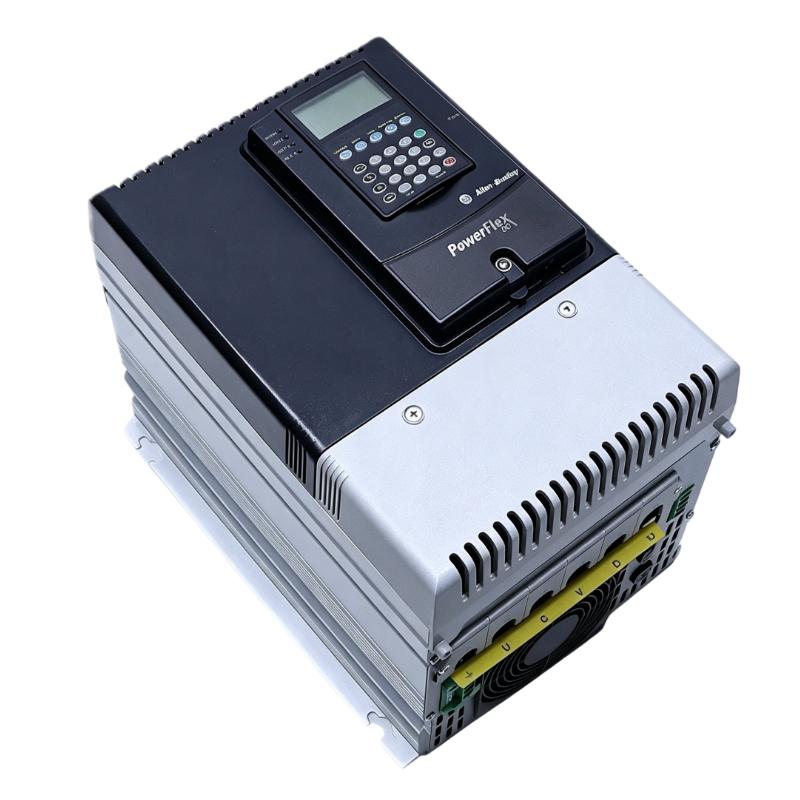

The Allen Bradley 20P41AD073RA0NNN PowerFlex DC Drive is intended for industrial environments where reliable DC motor control remains an important part of the production process. While AC drives are widely used in newer installations, many established machines continue to depend on DC motors because their mechanical construction, operating characteristics, and production controls were designed around them.

In processes such as winding, web handling, printing, converting, and material processing, motor behavior can have a direct effect on production quality. Changes in speed or torque may influence material tension, line synchronization, machine timing, and overall process stability. The drive must therefore provide predictable motor response rather than simply switching power on and off.

A PowerFlex DC system provides the control framework needed for these applications. For maintenance teams, this is especially useful when an older production machine remains mechanically productive and there is no immediate need to replace the complete machine or convert its motor technology.

When a drive begins showing abnormal behavior, however, the drive itself should not be considered the automatic source of the problem. Motor condition, armature wiring, field circuitry, feedback components, mechanical loading, and control parameters can all influence drive performance.

A disciplined troubleshooting process can therefore prevent unnecessary component replacement. Once the drive has been identified as the failed component, using the exact catalog number helps reduce the risk of introducing an incompatible unit into the system.

For replacement work, retaining the original configuration is also valuable. Existing motor data, operating limits, control settings, and other application parameters can significantly simplify commissioning of the new drive.

The 20P41AD073RA0NNN is consequently a practical choice for industrial maintenance, refurbishment, and replacement projects where established DC motor technology continues to provide reliable production value.

Technical Specifications

Specification	Details
Brand	Allen Bradley
Manufacturer	Rockwell Automation
Model	20P41AD073RA0NNN
Product Family	PowerFlex DC
Product Type	DC Drive
Application	Industrial DC Motor Control
Primary Function	DC Motor Speed and Torque Control
Dimensions	359 × 267 × 287 mm
Length	359 mm
Width	267 mm
Depth	287 mm
Weight	12.00 kg (26.46 lb)
Installation	Industrial Drive Cabinet / Control System
Application Area	Manufacturing and Industrial Process Control

Weight: 12.00 kg (26.46 lb)

The dimensions and weight are based on the product information supplied for this item. Exact armature voltage, armature current, field requirements, feedback configuration, regenerative capability, control terminals, and other electrical characteristics should be confirmed against the complete catalog configuration before installation.

Recommended Related Models

For PowerFlex DC maintenance and replacement planning, the following models are useful related references:

Allen Bradley 20P41AD052RA0NNN – PowerFlex DC Drive
Allen Bradley 20P41AD045RA0NNN – PowerFlex DC Drive
Allen Bradley 20P41AD035RA0NNN – PowerFlex DC Drive
Allen Bradley 20P41AD027RA0NNN – PowerFlex DC Drive
Allen Bradley 20P41AD019RA0NNN – PowerFlex DC Drive

These models belong to the PowerFlex DC family, but differences in electrical ratings and configuration can affect compatibility. They should not be treated as direct substitutes without checking the target motor and control system.

Popular Related Models

For customers maintaining Allen Bradley DC motor-control systems, the following related products are also useful references:

Allen Bradley 20P41AD014RA0NNN – PowerFlex DC Drive
Allen Bradley 20P41AB9P0RA0NNN – PowerFlex DC Drive
Allen Bradley 20P41AB7P0RA0NNN – PowerFlex DC Drive
Allen Bradley 20P41AD019RA0NNN – PowerFlex DC Drive
Allen Bradley 20P41AD027RA0NNN – PowerFlex DC Drive

When sourcing the Allen Bradley 20P41AD073RA0NNN PowerFlex DC Drive, always provide the complete catalog number. PowerFlex DC drives can differ in armature capacity, field-control arrangement, feedback capability, and other electrical characteristics, so precise model matching is essential for reliable replacement, commissioning, and long-term industrial operation.

Applications

The Allen Bradley 20P41AD073RA0NNN PowerFlex DC Drive is an industrial DC motor-control component intended for machinery where dependable speed regulation, controlled acceleration, and repeatable motor performance are essential. As part of the PowerFlex DC family, it is particularly suitable for established production equipment that continues to rely on DC motor technology.

DC drive systems remain an effective choice for many industrial machines with proven mechanical designs. Replacing an aging drive while retaining the existing motor, transmission, and production equipment can offer a simpler maintenance path than converting an entire machine to a different motor technology.

The 20P41AD073RA0NNN can be considered for applications such as:

Industrial DC motor control
Conveyor and material handling systems
Web handling machinery
Winding and unwinding equipment
Printing and converting machines
Rolling and processing equipment
Tension-control systems
Continuous-production lines
Legacy manufacturing machinery
Industrial retrofit projects
PowerFlex DC replacement applications
Automation refurbishment programs

For industrial maintenance teams, the availability of the correct PowerFlex DC drive can be particularly valuable when a mature production machine remains mechanically sound but its drive system requires replacement.

Advantages

Dependable DC motor regulation
The PowerFlex DC platform provides a dedicated control solution for industrial DC motors, helping maintain stable motor operation across demanding production cycles.

Strong fit for existing machinery
Facilities can continue using established DC motors and mechanical systems without automatically committing to a complete AC conversion.

Controlled motor response
A properly configured drive supports controlled acceleration, deceleration, and speed changes, helping the motor respond smoothly to process requirements.

Suitable for demanding processes
DC motor technology remains useful in winding, web handling, converting, printing, conveying, and other applications where motor response directly influences the process.

Practical replacement value
The 20P41AD073RA0NNN provides a useful replacement reference for compatible PowerFlex DC installations requiring maintenance or refurbishment.

Supports long-term equipment service
Replacing individual drive hardware can extend the productive life of established machinery and avoid unnecessary capital expenditure on a complete control-system redesign.

Compact industrial package
With supplied dimensions of 359 × 267 × 287 mm, the unit provides a practical format for compatible industrial control-cabinet installations.

Useful for spare-parts planning
Maintaining the exact catalog number in inventory can help maintenance personnel react faster when an installed DC drive fails.

Technical FAQs

1. What is the Allen Bradley 20P41AD073RA0NNN?
The 20P41AD073RA0NNN is an Allen Bradley PowerFlex DC Drive used for controlled operation of compatible industrial DC motors.

2. What is the main purpose of a DC drive?
A DC drive controls the electrical power supplied to a DC motor, allowing motor speed and operating behavior to be regulated according to machine requirements.

3. Why would an industrial plant continue using DC motor technology?
Many established production machines were designed around DC motors. Maintaining the existing drive system can be less disruptive than replacing the motor, mechanical transmission, feedback system, and control infrastructure.

4. What types of applications are suitable for a PowerFlex DC drive?
Applications can include winding, web handling, printing, converting, conveying, rolling, tension control, and other industrial processes requiring regulated DC motor operation.

5. What can cause a DC drive to trip during operation?
Possible causes include excessive armature current, motor faults, field-circuit problems, incorrect configuration, grounding faults, mechanical overload, abnormal incoming power, or damaged wiring.

6. Can a DC motor problem produce a drive fault?
Yes. Armature winding faults, insulation deterioration, brush and commutator problems, mechanical overload, and damaged motor cables can create abnormal conditions that cause the drive to enter a protective state.

7. What should be checked if motor speed becomes unstable?
Check the speed reference, drive configuration, motor condition, armature circuit, field circuit, feedback components where applicable, control wiring, and mechanical load. Incorrect operating parameters should also be considered.

8. What should technicians verify before replacing the 20P41AD073RA0NNN?
The complete catalog number, motor requirements, armature and field configuration, control wiring, feedback arrangement, incoming power, and existing drive parameters should be checked before installation.

9. Can another PowerFlex DC model be used as a replacement?
Not automatically. Different models can have different armature ratings, field configurations, feedback capabilities, and control functions. A replacement must be matched to the complete motor-control system.

10. What should be done after installing the replacement drive?
Verify all armature, field, control, and feedback connections, restore the necessary configuration, and perform a controlled test. Motor current, speed response, and drive status should be monitored before full production operation.
