Introduction

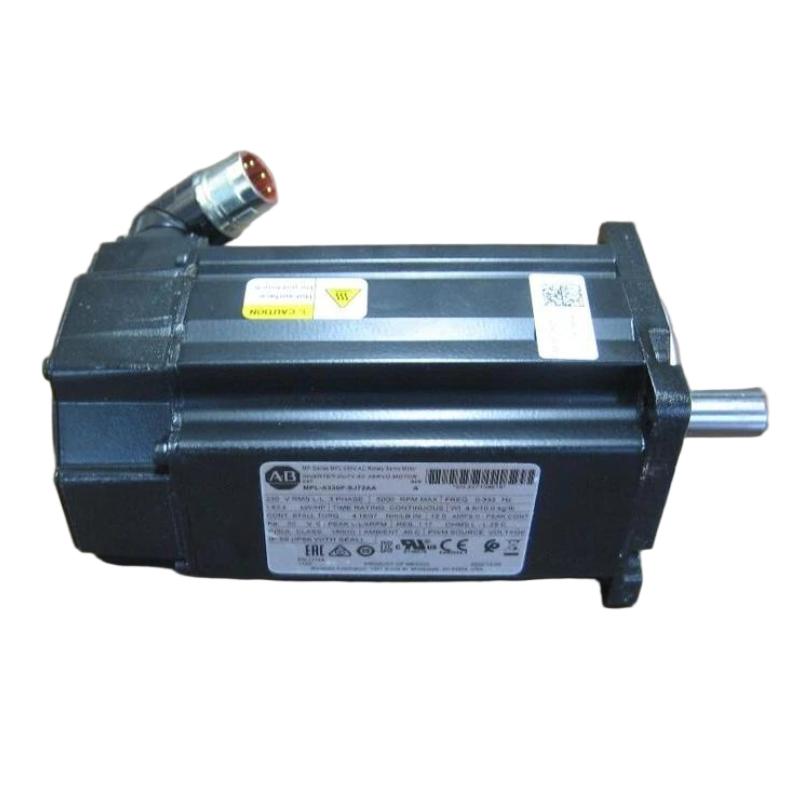

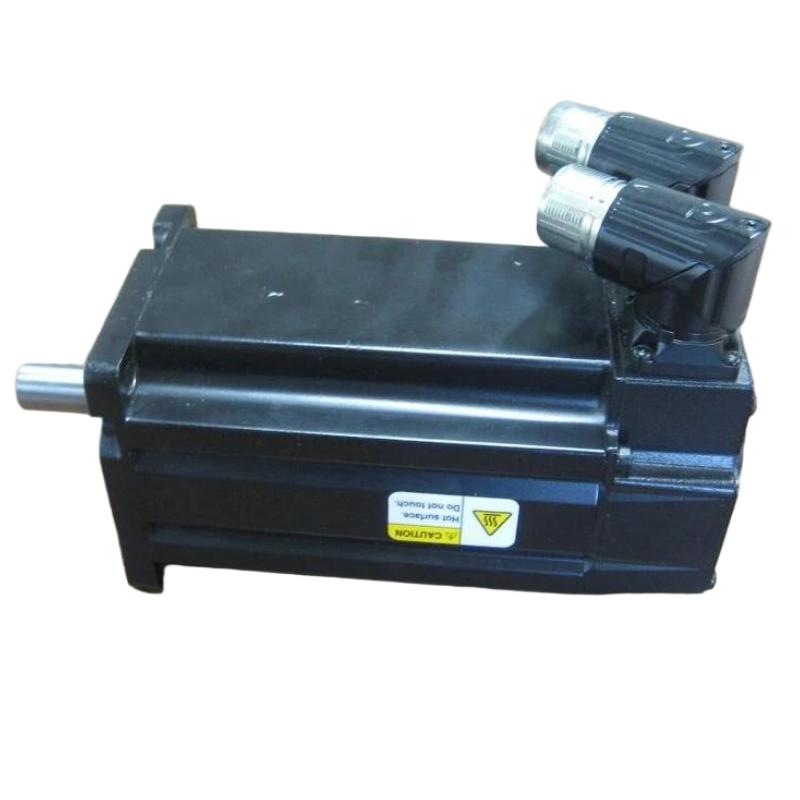

The Allen Bradley MPL-A330P-SJ72AA Servo Motor is a low-inertia brushless AC motor developed for demanding industrial motion-control systems. Its design focuses on rapid dynamic response, accurate feedback, and dependable operation in automated machinery.

In high-speed production equipment, the ability to change motor speed quickly can directly affect machine cycle time. Pick-and-place systems, packaging machines, indexing equipment, and automated assembly machines may require the motor to accelerate, stop, reverse, and reposition repeatedly throughout each production cycle. A low-inertia servo motor is particularly well suited to this type of workload.

The 100 mm frame size provides a relatively compact mechanical package, while the 76.2 mm magnet stack length gives the motor a useful balance between size and output capability. Its 5,000 RPM speed capability further expands its usefulness in high-cycle applications.

Feedback is another major part of the motor's performance. The MPL-A330P-SJ72AA uses a high-resolution single-turn encoder, allowing the servo system to monitor shaft position and speed and continuously correct motor behavior during operation.

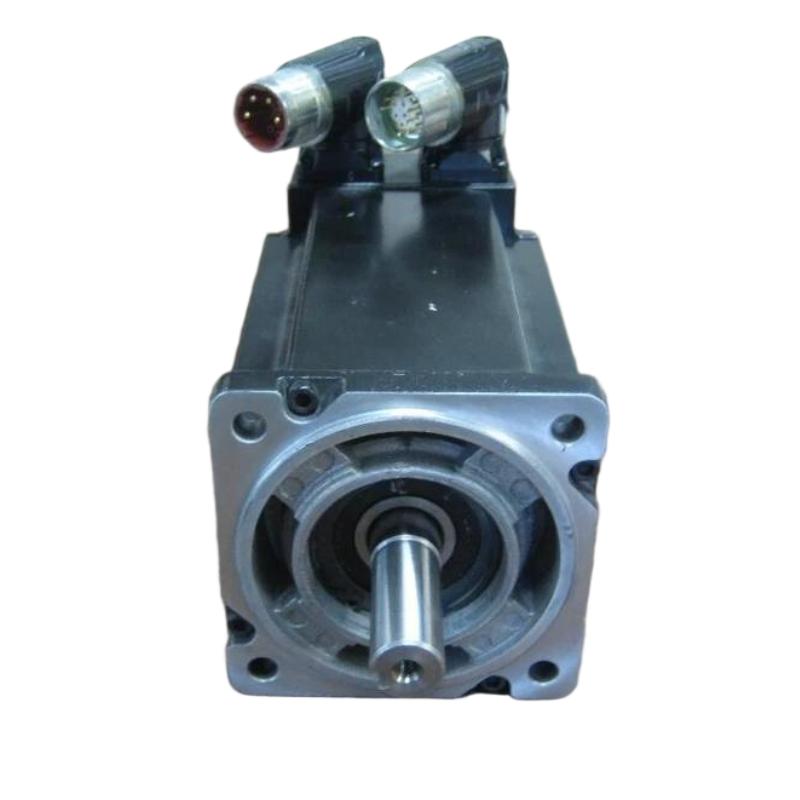

The motor's keyed shaft provides a familiar mechanical connection method, while the right-angle connector arrangement can make cable routing easier in confined machine layouts. However, the motor has no integral brake, so applications requiring shaft holding—especially vertical axes—need an appropriate external holding strategy.

For maintenance teams, exact model matching is essential. Servo motors from the same MPL family may look similar while having different feedback systems, shaft configurations, brake options, stack lengths, and electrical characteristics.

The MPL-A330P-SJ72AA is therefore a strong option for industrial motion systems that demand fast response, accurate feedback, compact construction, and reliable servo performance.

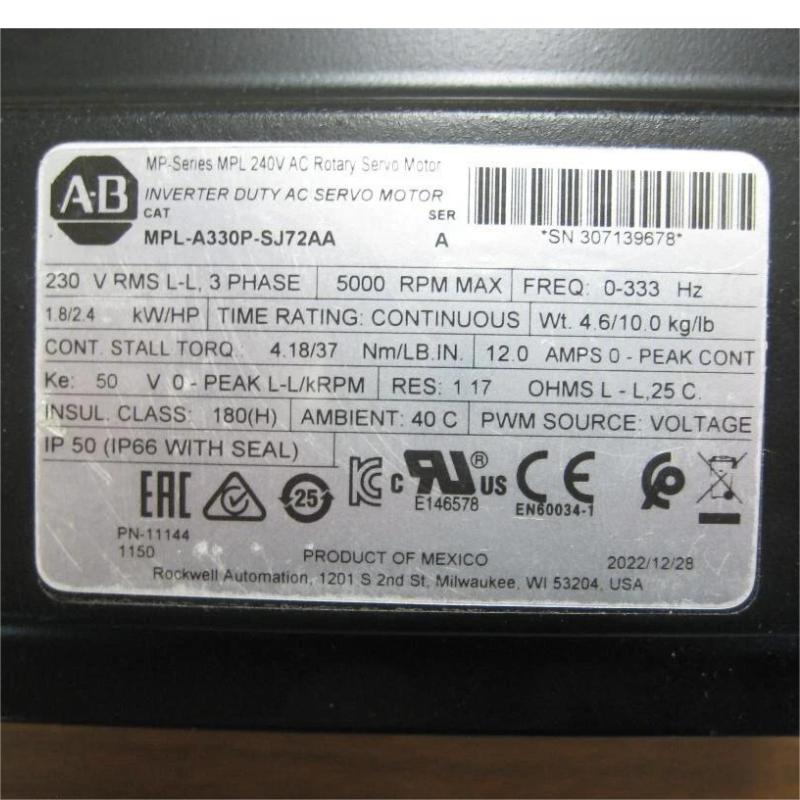

Technical Specifications

Specification	Details
Brand	Allen Bradley
Manufacturer	Rockwell Automation
Product Family	MP-Series MPL
Model	MPL-A330P-SJ72AA
Product Type	AC Servo Motor
Motor Type	Low-Inertia Brushless Servo Motor
Voltage Class	230 V AC
Frame Size	100 mm
Frame	3
Magnet Stack Length	76.2 mm (3.00 in.)
Rated Speed	5,000 RPM
Maximum Speed	5,000 RPM
Continuous Output Torque	4.18 N·m
Peak Output Torque	11.10 N·m
Continuous Power	1.80 kW
Feedback	Single-Turn High-Resolution Encoder
Encoder Resolution	1024 cycles/rev Sin/Cos
Feedback Protocol	Hiperface
Shaft Type	Keyed Shaft Extension
Brake	No Brake
Connector	SpeedTEC DIN, Right Angle
Connector Orientation	180° Rotatable
Mounting	IEC Metric, Free Mounting Holes
Enclosure	IP50
Frame Housing	Metric
Weight	4.60 kg (10.14 lb)
Application	Industrial Motion Control

Weight: 4.60 kg (10.14 lb)

The overall motor dimensions were not provided with the supplied product information, so no unsupported dimensional value has been added.

Recommended Related Models

For Allen Bradley MP-Series MPL servo applications, the following models are useful related references:

Allen Bradley MPL-A310P-SJ72AA – Servo Motor
Allen Bradley MPL-A320P-SJ72AA – Servo Motor
Allen Bradley MPL-A330P-MK74AA – Servo Motor
Allen Bradley MPL-A430P-SJ74AA – Servo Motor
Allen Bradley MPL-A450P-SJ74AA – Servo Motor

These models may differ in frame size, magnet-stack length, feedback configuration, shaft style, brake option, or other characteristics. Compatibility should be checked against the complete servo system before replacement.

Popular Related Models

For customers maintaining Allen Bradley motion-control systems, the following servo motors are also useful related products:

Allen Bradley MPL-A310P-SJ72AA – Servo Motor
Allen Bradley MPL-A320P-SJ72AA – Servo Motor
Allen Bradley MPL-A330P-MK74AA – Servo Motor
Allen Bradley MPL-A430P-SJ74AA – Servo Motor
Allen Bradley MPL-A454F-MK74AA – Servo Motor

When sourcing the Allen Bradley MPL-A330P-SJ72AA Servo Motor, always provide the complete catalog number. The SJ72AA configuration identifies important motor characteristics, including its feedback arrangement, keyed shaft, connector configuration, and no-brake design. Accurate model matching is essential for reliable mechanical installation, feedback compatibility, servo tuning, and commissioning.

Applications

The Allen Bradley MPL-A330P-SJ72AA Servo Motor is a low-inertia brushless AC servo motor designed for industrial motion-control applications where fast response, accurate positioning, and repeatable operation are essential.

With a 100 mm frame size, compact construction, and high-speed capability, this motor is well suited to automated machinery where limited installation space must be combined with responsive servo performance. Its single-turn high-resolution feedback system provides the motion controller with detailed shaft-position information, making it suitable for applications where repeatable positioning matters.

Typical applications include:

Automated assembly machinery
Packaging equipment
Material handling systems
Pick-and-place machines
Electronic manufacturing equipment
Printing and converting machinery
Machine tools
Precision indexing systems
Automated production lines
Robotic auxiliary motion
High-cycle manufacturing equipment
Industrial retrofit and replacement projects

The MPL-A330P-SJ72AA is especially attractive for machine builders and maintenance teams looking for a compact servo motor that can deliver responsive motion while integrating into an established Allen Bradley motion-control environment.

Advantages

Low-inertia servo design
The motor's low-inertia construction supports rapid acceleration and deceleration, making it a strong choice for high-cycle motion applications.

High-speed capability
The motor supports speeds up to 5,000 RPM, providing sufficient rotational performance for fast automated equipment.

High-resolution feedback
The integrated single-turn high-resolution encoder provides detailed position and speed feedback for closed-loop motion control.

Compact 100 mm frame
The 100 mm frame size provides a useful balance between motor performance and installation requirements, particularly in machines with limited cabinet or mechanical space.

230 V class servo motor
The motor is designed for compatible 230 V class motion-control systems, making it suitable for Allen Bradley servo applications using the appropriate drive platform.

Keyed shaft configuration
The keyed shaft provides a conventional mechanical connection for compatible couplings and driven components.

No integrated brake
The no-brake configuration simplifies applications where a separate holding solution is already included in the machine design.

Flexible connector orientation
The right-angle SpeedTEC DIN connector arrangement supports practical cable routing in compact machine installations.

Useful replacement option
For existing MP-Series motion systems, a correctly matched MPL-A330P-SJ72AA can provide an efficient replacement solution without unnecessarily modifying the machine's servo architecture.

Technical FAQs

1. What is the Allen Bradley MPL-A330P-SJ72AA?
It is a low-inertia brushless AC servo motor from the Allen Bradley MP-Series MPL family, designed for industrial motion-control applications.

2. What type of feedback does this motor use?
The MPL-A330P-SJ72AA uses a single-turn high-resolution encoder for closed-loop position and speed feedback.

3. What is the maximum speed of the MPL-A330P-SJ72AA?
The specified maximum operating speed is 5,000 RPM.

4. Does the motor have an integrated brake?
No. The MPL-A330P-SJ72AA is configured without an integrated brake.

5. Why is low rotor inertia important in servo applications?
Low rotor inertia allows the motor to change speed rapidly, which can improve machine response during repeated acceleration, deceleration, and positioning movements.

6. What can cause a servo motor to vibrate excessively?
Possible causes include incorrect servo tuning, mechanical resonance, coupling misalignment, damaged bearings, unstable feedback signals, mounting problems, or an improperly matched load.

7. What can cause the motor to overheat?
High continuous load, excessive duty cycle, mechanical binding, insufficient cooling, incorrect drive configuration, excessive acceleration demand, or operation outside the intended conditions can increase motor temperature.

8. What should be checked if the motor does not rotate?
Check the servo drive enable condition, active alarms, motor power connections, encoder feedback, command signals, drive parameters, and mechanical restrictions.

9. Can the MPL-A330P-SJ72AA be connected to any Allen Bradley servo drive?
No. The motor must be paired with a compatible servo drive that supports its voltage class, feedback system, electrical characteristics, and motor capacity.

10. What should be verified before replacing this servo motor?
Confirm the complete catalog number, frame size, magnet-stack configuration, feedback type, shaft design, connector arrangement, brake configuration, and compatibility with the installed servo drive.
