Introduction

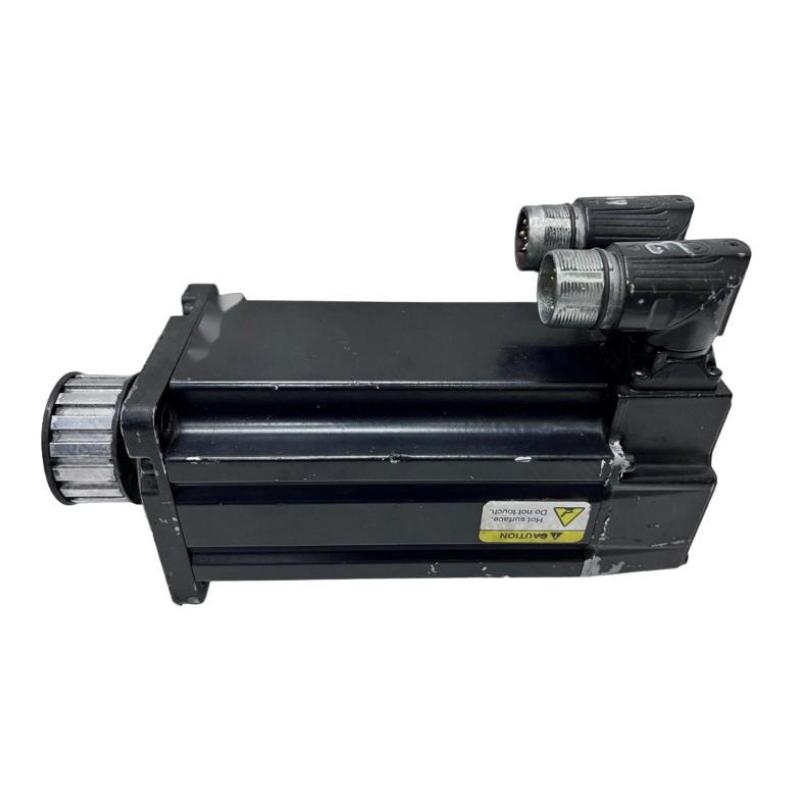

The Allen Bradley MPL-A330P-SJ74AA Servo Motor is a low-inertia brushless AC servo motor developed for demanding industrial motion-control applications. It combines a 100 mm frame size, 76.2 mm magnet stack, 5,000 RPM speed capability, high-resolution single-turn feedback, and a 24 V DC holding brake in a compact servo package.

The low-inertia design is particularly valuable in automated machinery where rapid motion changes are part of the normal operating cycle. Packaging systems, indexing machines, assembly equipment, and high-speed material-handling mechanisms can require the motor to accelerate and decelerate repeatedly with minimal response delay.

Feedback performance is equally important. The MPL-A330P-SJ74AA uses a high-resolution single-turn encoder with Hiperface feedback, allowing the motion system to monitor shaft position and speed and make continuous corrections during operation. This is essential in applications where accurate positioning and repeatability influence product quality.

The integrated 24 V DC holding brake adds another layer of machine functionality. It can hold the motor shaft when the servo is disabled, which is particularly useful for applications where shaft position must be maintained at rest. The brake should be regarded as a holding mechanism rather than as the primary method of controlled machine stopping.

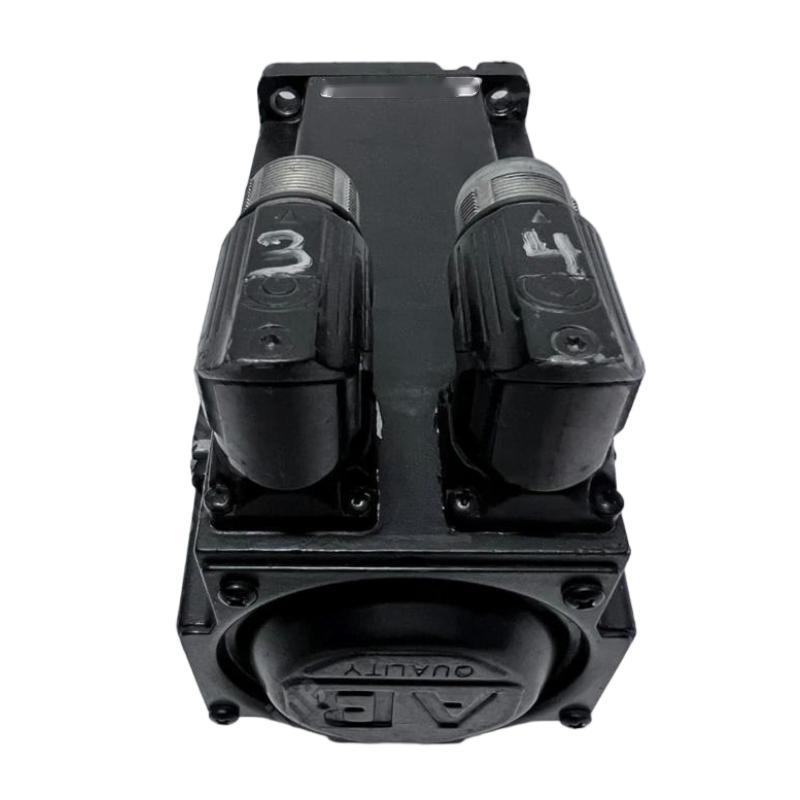

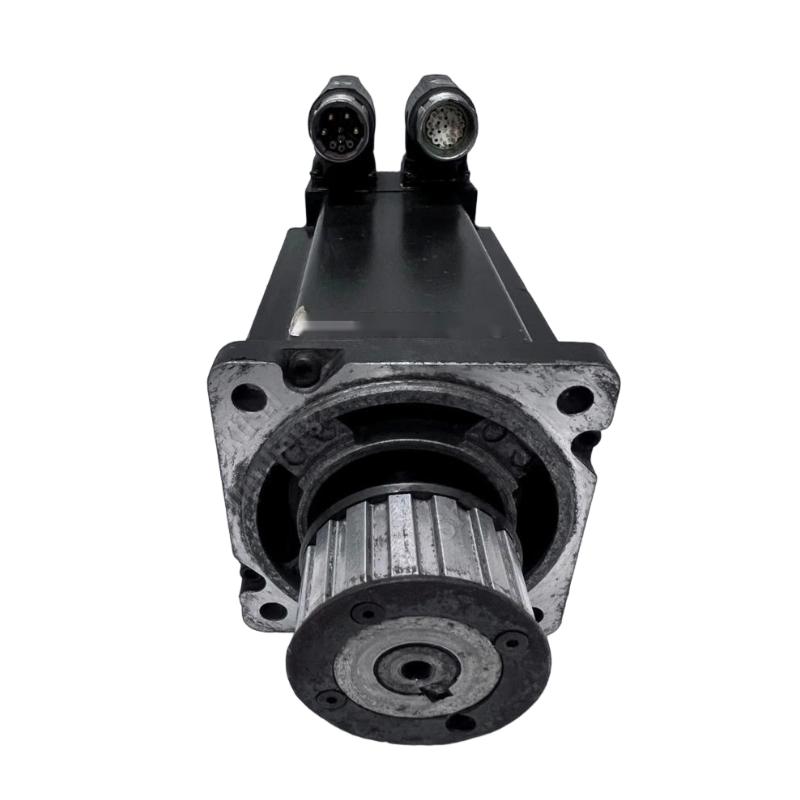

Mechanical integration is also straightforward for compatible applications. The motor uses a keyed shaft extension, while its right-angle SpeedTEC DIN connector can be rotated through 180 degrees to accommodate different machine cable-routing requirements.

For maintenance teams, exact model identification is especially important. Motors within the MPL family can appear similar while differing in feedback architecture, shaft design, brake configuration, connector arrangement, and magnet-stack length.

The MPL-A330P-SJ74AA is therefore a strong option for precision industrial motion systems that require high-speed operation, fast dynamic response, reliable feedback, and integrated shaft holding capability.

Technical Specifications

Specification	Details
Brand	Allen Bradley
Manufacturer	Rockwell Automation
Product Family	MP-Series MPL
Model	MPL-A330P-SJ74AA
Product Type	AC Servo Motor
Motor Type	Low-Inertia Brushless Servo Motor
Voltage Class	230 V AC
Frame Size	100 mm
Frame	3
Magnet Stack Length	76.2 mm
Rated Speed	5,000 RPM
Maximum Speed	5,000 RPM
Continuous Output Torque	4.18 N·m
Peak Output Torque	11.10 N·m
Continuous Power	1.80 kW
Feedback	Single-Turn High-Resolution Encoder
Feedback Protocol	Hiperface
Encoder Resolution	1024 cycles/rev Sin/Cos
Shaft Type	Keyed Shaft Extension
Brake	24 V DC Holding Brake
Connector	SpeedTEC DIN, Right Angle
Connector Rotation	180° Rotatable
Mounting	IEC Metric, Free Mounting Holes
Housing	IP50 Standard / IP66 with Optional Shaft Seal
Weight	4.60 kg (10.14 lb)
Application	Industrial Motion Control

Weight: 4.60 kg (10.14 lb)

The overall motor dimensions were not supplied with the product information provided, so no unverified dimensional values have been added.

Recommended Related Models

For Allen Bradley MP-Series MPL servo applications, the following models are useful related references:

Allen Bradley MPL-A310P-SJ72AA – Servo Motor
Allen Bradley MPL-A320P-SJ72AA – Servo Motor
Allen Bradley MPL-A330P-SJ72AA – Servo Motor
Allen Bradley MPL-A330P-MK74AA – Servo Motor
Allen Bradley MPL-A430P-SJ74AA – Servo Motor

These motors can differ in frame size, stack length, feedback configuration, shaft arrangement, and brake characteristics, so the complete machine and servo-drive requirements should be verified before selecting a replacement.

Popular Related Models

For customers maintaining Allen Bradley servo-motion systems, the following MP-Series motors are also useful related products:

Allen Bradley MPL-A310P-SJ72AA – Servo Motor
Allen Bradley MPL-A320P-SJ72AA – Servo Motor
Allen Bradley MPL-A330P-SJ72AA – Servo Motor
Allen Bradley MPL-A330P-MK74AA – Servo Motor
Allen Bradley MPL-A454F-MK74AA – Servo Motor

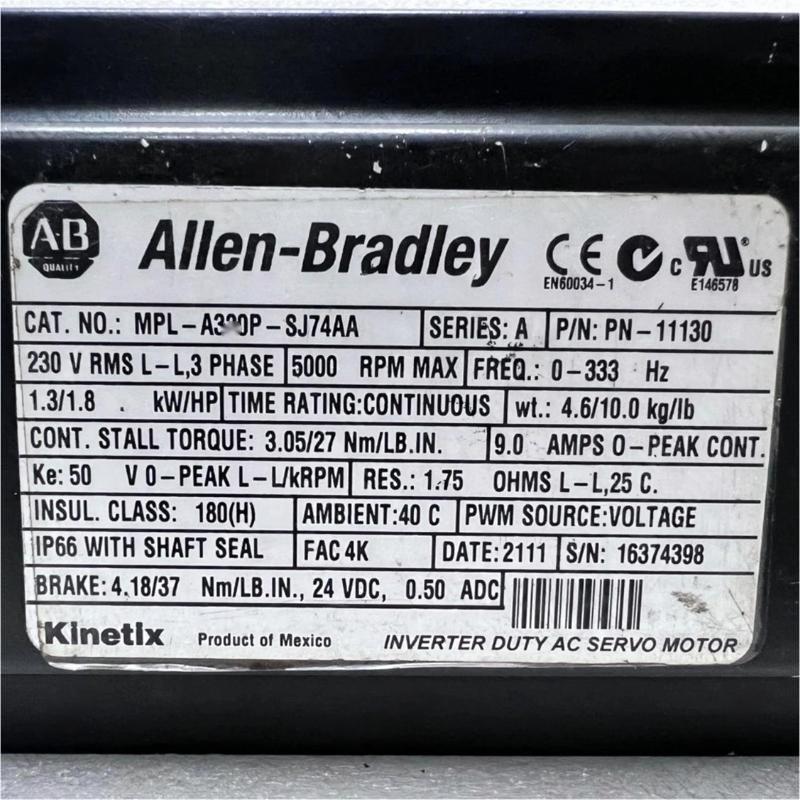

When sourcing the Allen Bradley MPL-A330P-SJ74AA Servo Motor, always provide the complete catalog number. The SJ74AA configuration identifies important characteristics including the 230 V class, 100 mm frame, keyed shaft, high-resolution single-turn feedback, right-angle SpeedTEC DIN connector, and 24 V DC holding brake. Accurate matching is essential for mechanical compatibility, feedback operation, servo tuning, and reliable commissioning.

Applications

The Allen Bradley MPL-A330P-SJ74AA Servo Motor is a low-inertia brushless AC servo motor designed for industrial motion applications where fast response, accurate positioning, and repeatable operation are essential.

With a 100 mm frame size, 76.2 mm magnet stack, 5,000 RPM maximum speed, high-resolution single-turn feedback, and an integrated 24 V DC holding brake, this motor is well suited to machine architectures that demand both dynamic performance and dependable shaft control.

Typical applications include:

Automated assembly machinery
Packaging and labeling equipment
Pick-and-place systems
Material handling equipment
Printing and converting machines
Precision indexing equipment
Machine tools
Electronics manufacturing systems
High-cycle production machinery
Robotic auxiliary axes
Automated positioning systems
Industrial servo replacement projects

The MPL-A330P-SJ74AA is particularly suitable for applications where frequent acceleration and deceleration are required. Its low-inertia construction allows the servo system to respond quickly to command changes, while the high-resolution feedback supports precise closed-loop motion control.

For machine builders and maintenance engineers, it offers a practical solution for both new motion systems and replacement of compatible MP-Series servo motors.

Advantages

Low-inertia dynamic response
The MPL-A330P-SJ74AA is built around a low-inertia brushless servo design that supports fast acceleration, deceleration, and direction changes.

5,000 RPM operating capability
The high-speed design makes the motor suitable for high-cycle machinery where rapid rotary movement is important to productivity.

High-resolution absolute feedback
A single-turn high-resolution encoder provides detailed position feedback for closed-loop servo control and repeatable machine movement.

Integrated holding brake
The 24 V DC brake provides shaft holding capability when the motor is disabled, making it useful in applications where maintaining shaft position is important.

100 mm frame size
The 100 mm frame provides a compact mechanical envelope while maintaining a useful combination of speed and torque performance.

Keyed shaft design
The keyed shaft extension provides a conventional mechanical interface for compatible couplings and machine-driven components.

Flexible connector orientation
The right-angle SpeedTEC DIN connector can be rotated through 180 degrees, helping simplify cable routing in compact equipment.

Suitable for established Allen Bradley motion systems
The motor is a strong replacement candidate for compatible MP-Series installations where accurate feedback and matching mechanical interfaces are required.

Built for precision automation
The combination of low inertia, high-speed operation, absolute feedback, and brake functionality makes the motor suitable for demanding industrial motion applications.

Technical FAQs

1. What type of servo motor is the MPL-A330P-SJ74AA?
It is a low-inertia brushless AC rotary servo motor from the Allen Bradley MP-Series MPL family.

2. What voltage class is the motor designed for?
The MPL-A330P-SJ74AA is a 230 V class servo motor intended for compatible Allen Bradley motion-control systems.

3. What is the maximum motor speed?
The motor is rated for operation up to 5,000 RPM.

4. What feedback system does the motor use?
The motor uses a single-turn high-resolution encoder with Hiperface feedback, providing detailed position information for closed-loop motion control.

5. Does this model include a brake?
Yes. The MPL-A330P-SJ74AA includes a 24 V DC holding brake.

6. What is the advantage of its low-inertia rotor?
Lower rotor inertia allows the motor to accelerate and decelerate rapidly, improving responsiveness in high-cycle positioning applications.

7. What can cause unstable servo operation?
Possible causes include incorrect servo tuning, unstable feedback, coupling misalignment, mechanical resonance, excessive load, damaged cables, or an incorrect motor-drive combination.

8. What can cause the servo motor to overheat?
Excessive continuous load, high duty cycle, mechanical binding, inadequate cooling, aggressive acceleration profiles, or incorrect drive configuration can raise motor temperature.

9. What should be checked if the motor does not move after enabling the servo system?
Check drive alarms, servo enable conditions, motor power connections, encoder feedback, brake release, motion commands, drive parameters, and mechanical restrictions.

10. What should be verified before replacing an existing MPL servo motor?
Confirm the complete catalog number, frame size, magnet-stack length, feedback type, shaft configuration, brake option, connector arrangement, voltage class, and compatibility with the servo drive and motion controller.
