Introduction

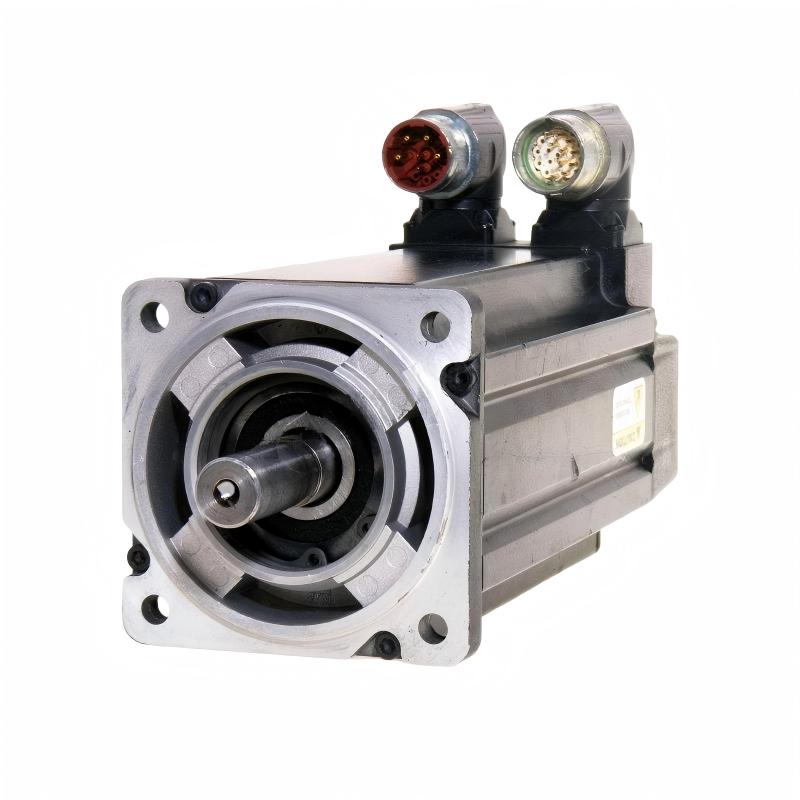

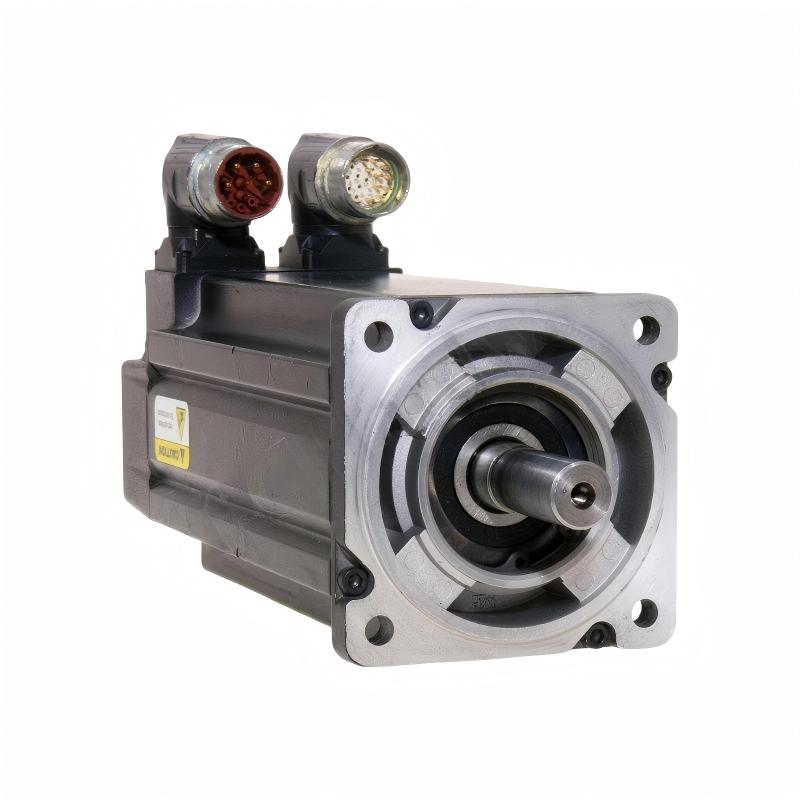

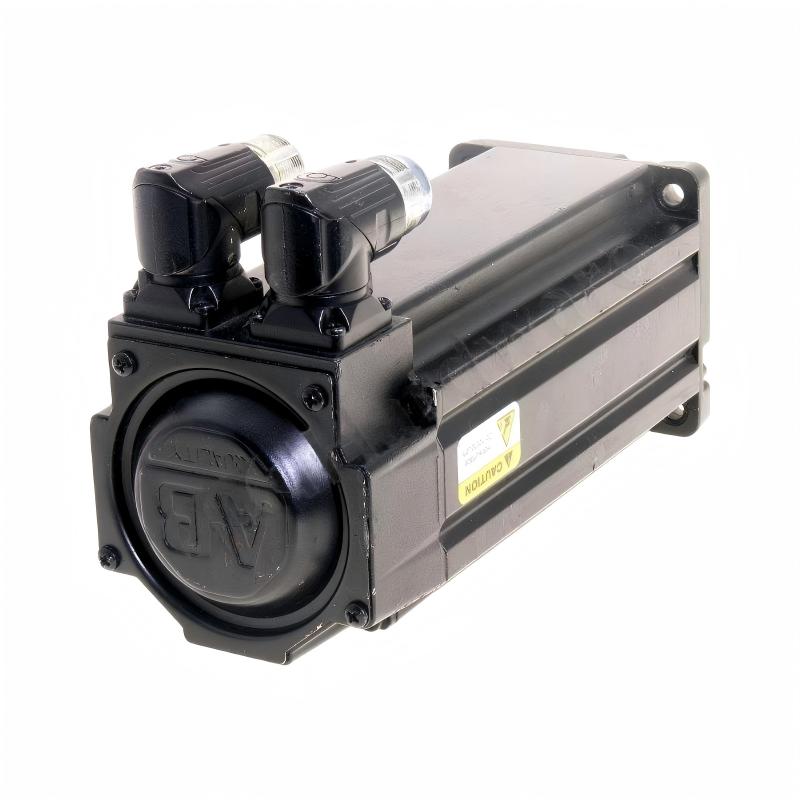

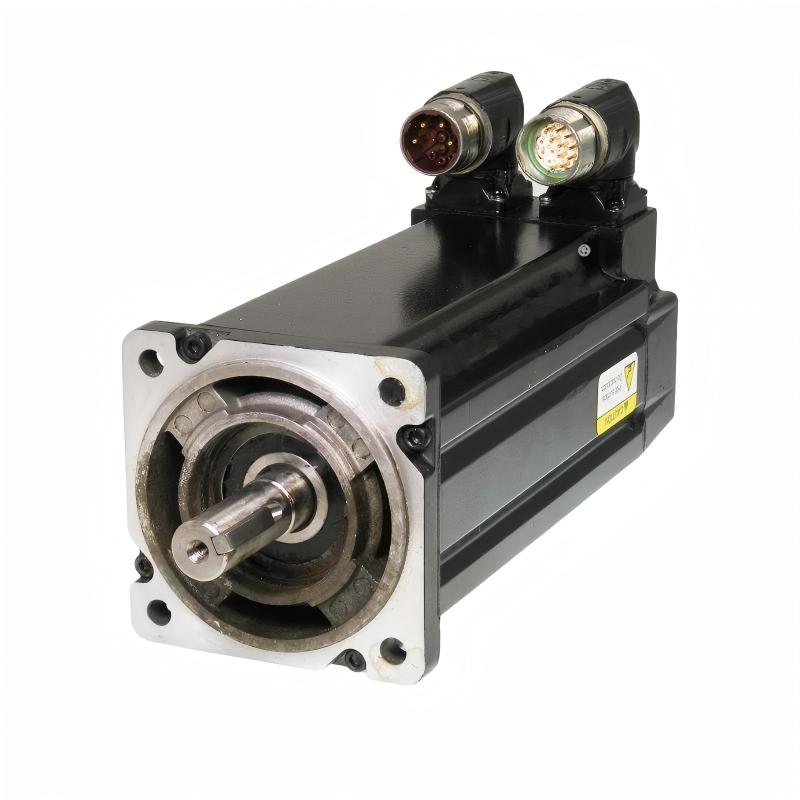

The Allen Bradley MPL-A330P-SK74AA Servo Motor is a compact low-inertia brushless AC servo motor developed for industrial motion systems where rapid response and accurate feedback are critical.

Its 100 mm frame size makes it suitable for machine designs that need a balance between compact installation and useful servo output. The motor is well suited to applications where frequent acceleration, deceleration, indexing, and positioning are part of the normal production cycle.

Low-inertia servo motors are particularly useful in packaging equipment, automated assembly machinery, indexing systems, and material-handling machines. In these applications, every motion cycle may require the motor to change speed rapidly and settle accurately at a commanded position.

The MPL-A330P-SK74AA combines this dynamic response with a single-turn high-resolution encoder. The feedback system allows the servo controller to monitor motor position and speed continuously, providing the information required for accurate closed-loop control.

The keyless shaft extension should be considered carefully when replacing an existing motor. Motors with the same frame size may use different shaft arrangements, and mechanical coupling compatibility is essential for a successful installation.

This model also incorporates a 24 V DC holding brake. The brake can help hold the shaft when the motor is not actively producing torque, which can be valuable in suitable vertical or positioning applications. It should be treated as a holding device rather than as the primary means of controlled dynamic stopping.

The right-angle SpeedTEC DIN connector provides additional flexibility when routing motor and feedback cables through compact equipment. This can simplify machine integration and help keep wiring organized.

For maintenance engineers, exact catalog-number verification remains essential. The MPL-A330P-SK74AA belongs to a family of motors with similar physical characteristics but different feedback, shaft, brake, and connector configurations.

Technical Specifications

Specification	Details
Brand	Allen Bradley
Manufacturer	Rockwell Automation
Product Family	MP-Series MPL
Model	MPL-A330P-SK74AA
Product Type	AC Servo Motor
Motor Type	Low-Inertia Brushless Servo Motor
Voltage Class	230 V AC
Frame Size	100 mm
Frame	3
Magnet Stack Length	76.2 mm (3.00 in.)
Rated Speed	5,000 RPM
Maximum Speed	5,000 RPM
Continuous Output Torque	4.18 N·m
Peak Output Torque	11.10 N·m
Continuous Power	1.80 kW
Feedback	Single-Turn High-Resolution Encoder
Encoder Resolution	1024 cycles/rev Sin/Cos
Feedback Protocol	Hiperface
Shaft Type	Keyless Shaft Extension
Brake	24 V DC Holding Brake
Connector	SpeedTEC DIN, Right Angle
Connector Orientation	180° Rotatable
Mounting	IEC Metric, Free Mounting Holes
Housing	IP50
Overall Dimensions	Not supplied
Weight	4.60 kg (10.14 lb)
Application	Industrial Motion Control

Weight: 4.60 kg (10.14 lb)

The supplied product information specifies the frame size and weight but does not provide complete overall motor dimensions. To avoid introducing unsupported data, no overall length, width, or height has been added.

Recommended Related Models

For Allen Bradley MP-Series MPL servo applications, the following models are useful related references:

Allen Bradley MPL-A310P-SK72AA – Servo Motor
Allen Bradley MPL-A320P-SK72AA – Servo Motor
Allen Bradley MPL-A330P-SK72AA – Servo Motor
Allen Bradley MPL-A330P-SJ74AA – Servo Motor
Allen Bradley MPL-A330P-MK74AA – Servo Motor

These motors can differ in shaft design, feedback configuration, brake arrangement, connector configuration, and magnet-stack length. Complete compatibility should be checked before replacement.

Popular Related Models

For customers maintaining Allen Bradley motion-control systems, the following MP-Series servo motors are also useful related products:

Allen Bradley MPL-A310P-SJ72AA – Servo Motor
Allen Bradley MPL-A320P-SJ72AA – Servo Motor
Allen Bradley MPL-A330P-SJ72AA – Servo Motor
Allen Bradley MPL-A330P-SJ74AA – Servo Motor
Allen Bradley MPL-A430P-SJ74AA – Servo Motor

When sourcing the Allen Bradley MPL-A330P-SK74AA Servo Motor, always provide the complete catalog number. The SK74AA configuration is important because it identifies the motor's keyless shaft, single-turn high-resolution feedback, right-angle SpeedTEC DIN connector, and 24 V DC holding-brake arrangement. Accurate matching with the servo drive, feedback system, and machine mechanics is essential for reliable installation and commissioning.

Applications

The Allen Bradley MPL-A330P-SK74AA Servo Motor is a low-inertia brushless AC servo motor designed for industrial motion-control systems that demand fast response, accurate positioning, and repeatable rotary movement.

With a 100 mm frame size, compact construction, high-speed operation, and high-resolution single-turn feedback, this motor is well suited to automated machinery where dynamic performance and precise motion must work together. The low-inertia design allows the motor to respond quickly to acceleration and deceleration commands, making it a strong fit for high-cycle production equipment.

Typical applications include:

Automated assembly systems
Packaging and labeling machinery
Pick-and-place equipment
Material handling systems
Precision indexing machines
Printing and converting machinery
Machine tools
Electronics manufacturing equipment
Automated production lines
High-cycle positioning equipment
Robotic auxiliary motion
Industrial servo replacement projects

The MPL-A330P-SK74AA is especially suitable for machines where rapid motion changes are combined with demanding positioning requirements. Its servo feedback architecture allows the drive and controller to continuously monitor motor position and regulate movement accordingly.

Advantages

Fast dynamic response
The low-inertia motor design supports rapid acceleration and deceleration, helping high-cycle machinery achieve responsive movement without unnecessarily long motion transitions.

High-speed operation
The motor supports speeds up to 5,000 RPM, making it suitable for automated equipment where machine throughput depends on rapid rotary movement.

High-resolution position feedback
The integrated single-turn high-resolution encoder provides detailed feedback for closed-loop servo control and repeatable positioning.

100 mm frame construction
The 100 mm frame offers a compact mechanical solution for machines that need servo performance without an oversized motor package.

230 V class servo platform
The motor is designed for compatible 230 V-class Allen Bradley motion systems and can be paired with an appropriate servo drive.

Keyless shaft configuration
The keyless shaft provides a clean mechanical interface for compatible couplings and machine mechanisms designed for this shaft arrangement.

Integrated holding brake
The 24 V DC holding brake can help secure the motor shaft when the servo system is disabled, making the configuration useful for applications where holding capability is required.

Flexible connector orientation
The right-angle SpeedTEC DIN connector can accommodate practical cable-routing requirements in compact machine layouts.

Strong replacement potential
For compatible MP-Series installations, the MPL-A330P-SK74AA offers a practical replacement solution when maintaining the existing servo architecture is more efficient than redesigning the machine.

Technical FAQs

1. What type of motor is the Allen Bradley MPL-A330P-SK74AA?
It is a low-inertia brushless AC rotary servo motor from the Allen Bradley MP-Series MPL family.

2. What voltage class is the motor designed for?
The MPL-A330P-SK74AA is designed for the 230 V AC class and must be paired with a compatible servo drive.

3. What is the maximum operating speed?
The motor supports a maximum speed of approximately 5,000 RPM.

4. What type of feedback does the motor provide?
The motor uses a single-turn high-resolution encoder for closed-loop position and speed feedback.

5. Does the MPL-A330P-SK74AA include a brake?
Yes. This configuration includes a 24 V DC holding brake.

6. What is the benefit of the low-inertia design?
Low rotor inertia allows the motor to respond rapidly to changes in speed commands, making it particularly useful for repeated positioning and high-cycle motion.

7. What can cause servo-motor vibration?
Possible causes include incorrect servo tuning, mechanical resonance, coupling misalignment, unstable feedback, mounting problems, excessive load, or damaged motor bearings.

8. What can cause the motor to overheat?
Excessive load, frequent high-acceleration cycles, mechanical binding, insufficient cooling, incorrect drive parameters, or operation outside the intended duty conditions can increase motor temperature.

9. What should be checked if the motor does not rotate after servo enable?
Check active drive faults, servo enable conditions, motor power wiring, encoder feedback, brake release, motion commands, drive configuration, and mechanical restrictions.

10. What should be verified before replacing an MPL-A330P-SK74AA?
Confirm the complete catalog number, frame size, magnet-stack length, feedback type, shaft configuration, brake option, connector arrangement, voltage class, and compatibility with the installed servo drive.
