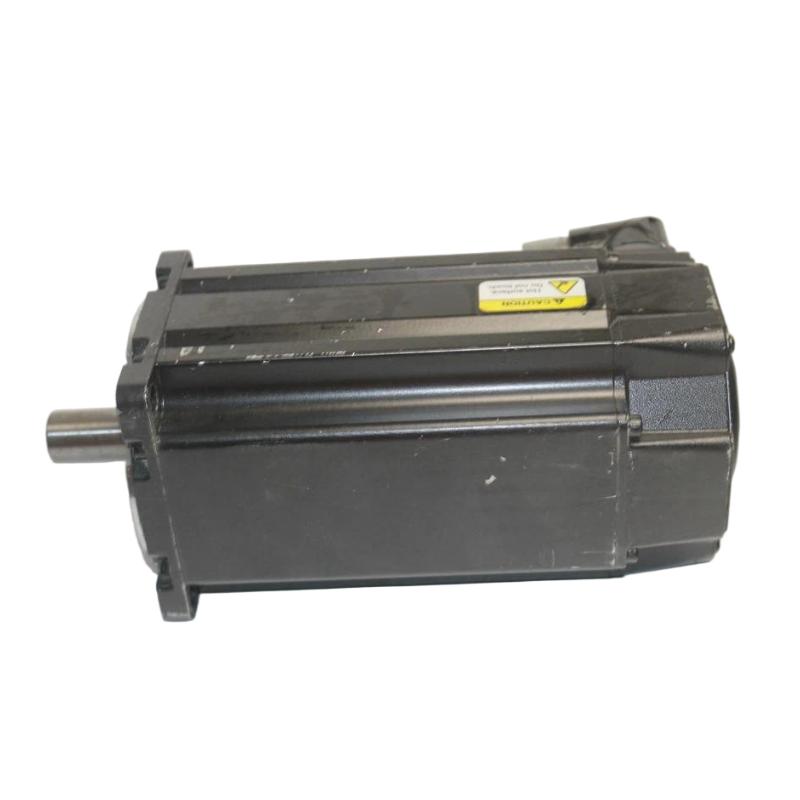

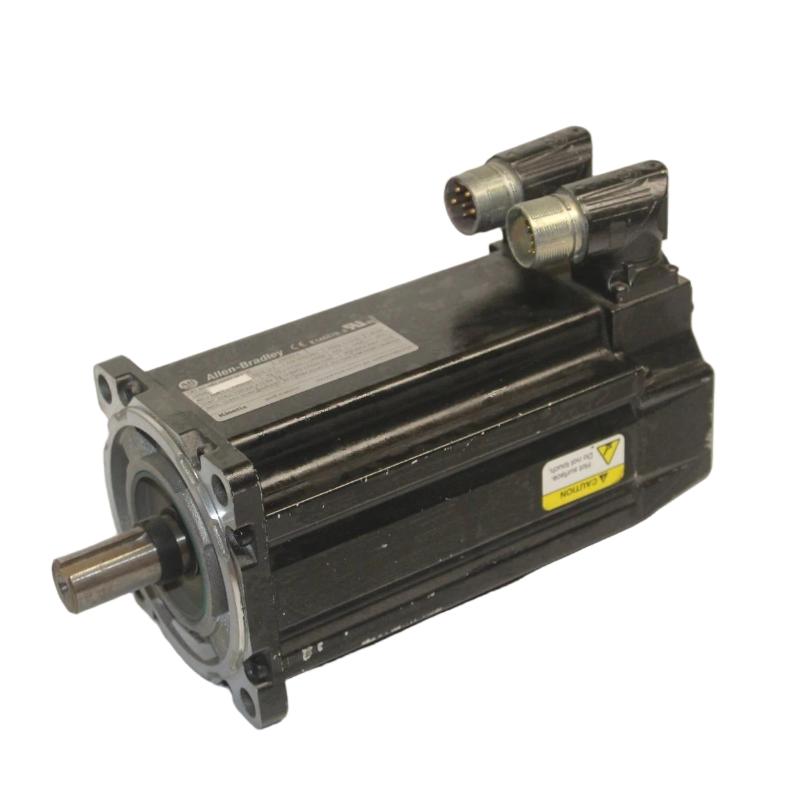

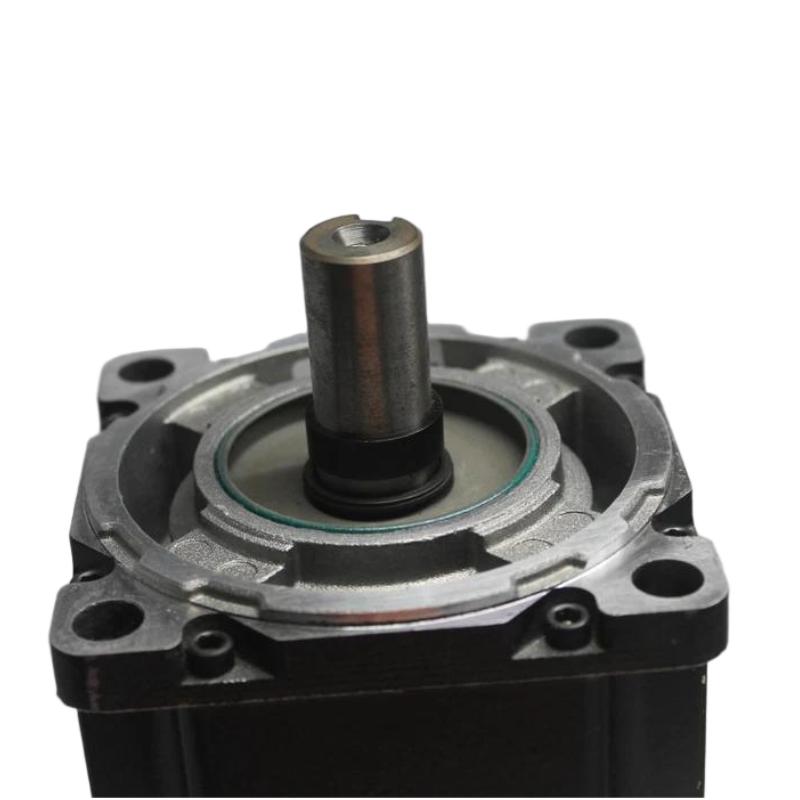

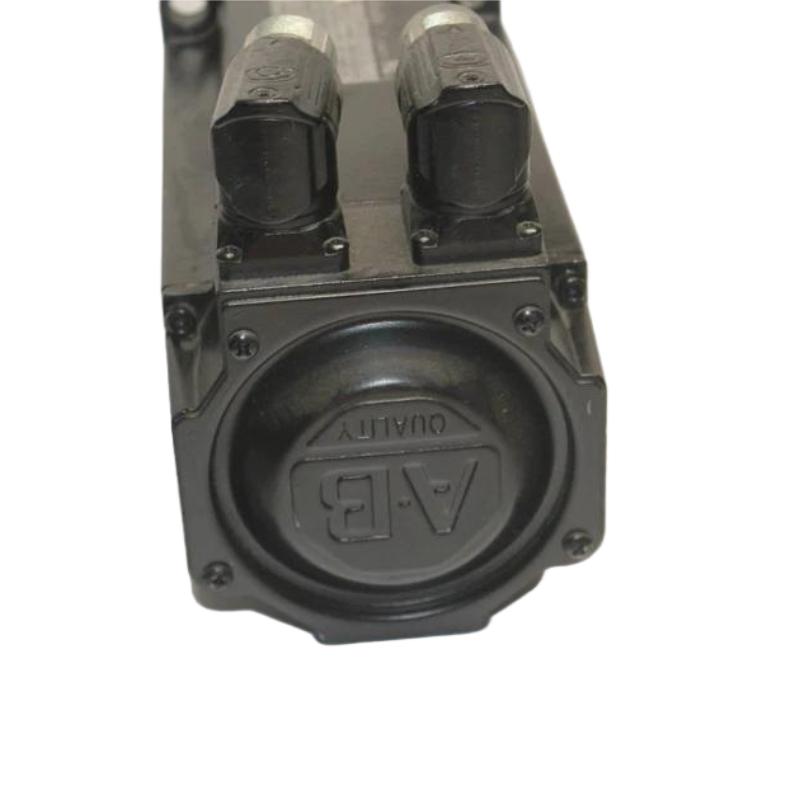

Allen Bradley MPL-A420F-M-X213 Servo Motor

Applications

The Allen Bradley MPL-A420F-M-X213 Servo Motor is a specialized MP-Series motor designed as a replacement motor for compatible Allen Bradley electric cylinder assemblies. Unlike a conventional standalone rotary servo motor, this model is engineered specifically to work within electric-cylinder applications, where rotary motor output is converted into precise linear motion.

Its design makes it suitable for machinery requiring controlled linear positioning, repeatable movement, and dependable electromechanical actuation. The motor is associated with 63 mm frame-size electric cylinder systems using a 20 mm pitch ball screw, providing a practical solution for industrial equipment that needs accurate linear movement without completely replacing the existing actuator architecture.

Typical applications include:

• Electric cylinder systems
• Industrial linear actuators
• Automated assembly machinery
• Packaging equipment
• Material handling systems
• Automated positioning equipment
• Machine tooling
• Pick-and-place mechanisms
• Linear indexing systems
• Production-line automation
• Industrial actuator replacement
• Motion-system refurbishment

The MPL-A420F-M-X213 is particularly useful for maintenance teams servicing established MP-Series electric-cylinder installations. Replacing the dedicated motor can restore actuator performance while retaining the existing cylinder and machine mechanics.

Advantages

Purpose-built electric-cylinder replacement motor
The MPL-A420F-M-X213 is specifically designed as a replacement motor for compatible MP-Series electric-cylinder assemblies, helping maintain the original actuator architecture.

230 V AC operation
Its 230 V AC class makes it suitable for compatible Allen Bradley motion-control systems using the appropriate servo-drive configuration.

63 mm frame size
The 63 mm frame format provides a compact motor package for industrial linear-motion equipment where installation space is an important consideration.

20 mm ball-screw pitch compatibility
The motor is associated with electric-cylinder systems using a 20 mm pitch ball screw, making it particularly useful when maintaining compatible linear actuator assemblies.

High-speed servo performance
The MP-Series platform is designed for responsive motion control, making the motor suitable for automated equipment requiring dynamic positioning.

Absolute feedback capability
The replacement motor is specified with absolute feedback, allowing compatible motion systems to determine motor position accurately as part of closed-loop operation.

No integral brake
The X213 configuration is supplied without a brake, which can be advantageous in actuator applications that use a different mechanism for holding or load management.

Practical retrofit solution
Replacing the motor rather than the entire actuator can reduce mechanical modifications and simplify service work when the electric-cylinder assembly itself remains usable.

Strong maintenance value
For production facilities with installed MP-Series electric cylinders, keeping the correct replacement motor available can help minimize downtime caused by motor-related failures.

Technical FAQs

1. What is the Allen Bradley MPL-A420F-M-X213?
The MPL-A420F-M-X213 is an MP-Series electric-cylinder replacement motor designed for compatible Allen Bradley linear actuator assemblies.

2. Is the MPL-A420F-M-X213 a conventional rotary servo motor?
It is a servo motor designed specifically for use as an electric-cylinder replacement motor. Its application is therefore different from a standard standalone rotary MPL motor.

3. What electric-cylinder configuration is associated with this motor?
The motor is specified for compatible 63 mm frame-size electric cylinders using a 20 mm pitch ball screw.

4. What voltage class is used by the motor?
The MPL-A420F-M-X213 belongs to the 230 V AC class and requires a compatible Allen Bradley motion-control system.

5. Does this motor include an integral holding brake?
No. The X213 configuration is specified without a brake.

6. What feedback type should be considered when commissioning this motor?
The motor uses absolute feedback, so the servo drive and controller must support the corresponding feedback architecture and be correctly configured before operation.

7. What can cause an electric cylinder to move inconsistently?
Possible causes include motor or feedback faults, incorrect servo tuning, ball-screw problems, excessive mechanical loading, actuator misalignment, cable damage, or incorrect motion parameters.

8. What should be checked when the actuator produces abnormal noise?
Inspect the motor, coupling, ball screw, actuator bearings, mounting alignment, mechanical load, and feedback system. Abnormal noise should not automatically be attributed to the motor itself.

9. Can the MPL-A420F-M-X213 be replaced by another MPL-A420 motor?
Not automatically. Electric-cylinder replacement motors can have different frame sizes, screw-pitch requirements, feedback configurations, and mechanical interfaces. The complete actuator configuration must be matched.

10. What should be verified before installing this replacement motor?
Confirm the electric-cylinder model, motor catalog number, 230 V class, frame size, ball-screw pitch, feedback configuration, mechanical interface, and compatibility with the installed servo drive and motion controller.
