Introduction

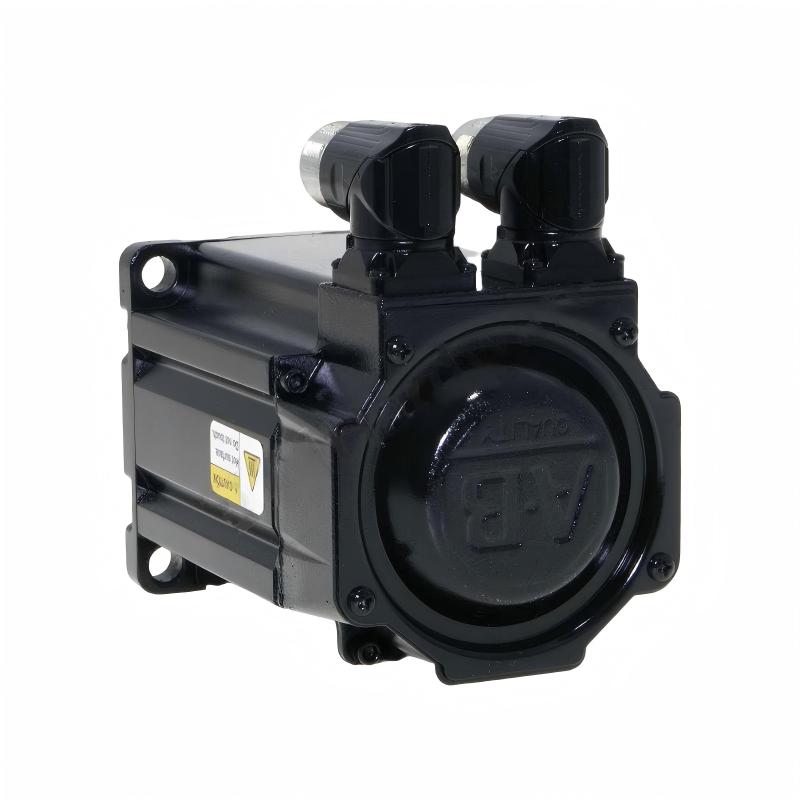

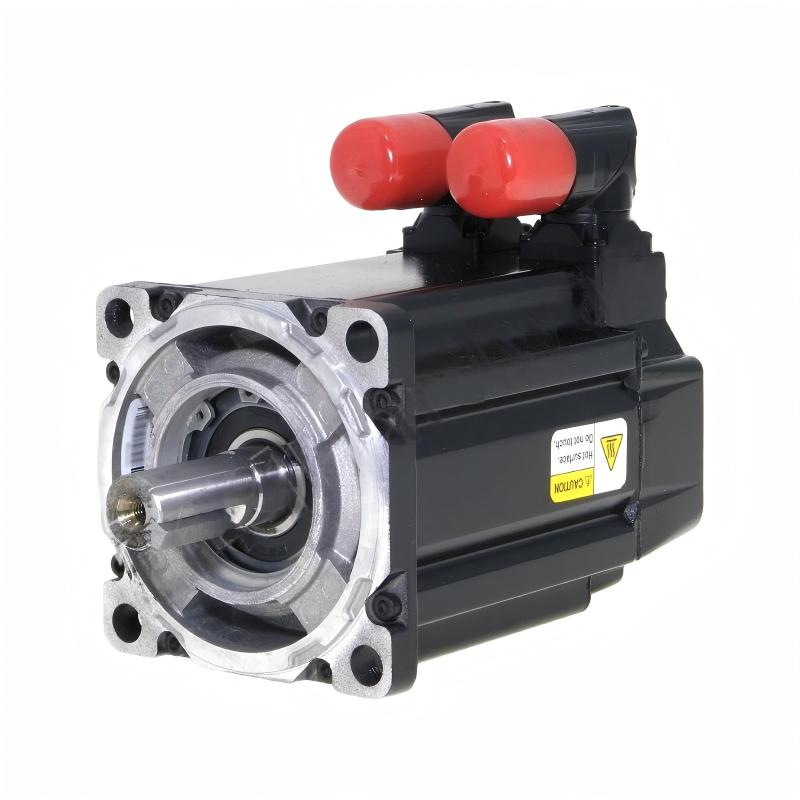

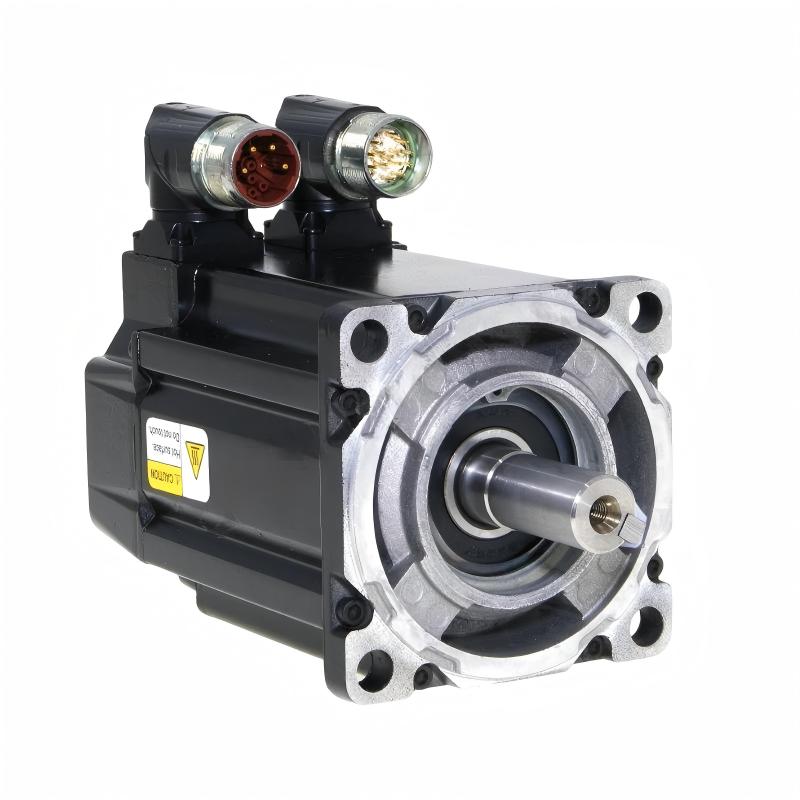

The Allen Bradley MPL-A420P-HJ72AA Servo Motor is a low-inertia brushless AC servo motor developed for industrial motion systems that require both high-speed operation and responsive closed-loop control. It belongs to the MP-Series MPL family and combines a 115 mm frame, 50.8 mm magnet stack, 5,000 RPM speed capability, and a 2,000-line incremental encoder.

The low-inertia construction is particularly useful for automated equipment that performs repeated acceleration and deceleration. Packaging machines, assembly systems, indexing mechanisms, printing equipment, and material-handling machinery can benefit from a motor that responds rapidly to changing motion commands.

Feedback is a central part of the servo system. The MPL-A420P-HJ72AA uses a 2,000-line incremental encoder to provide the servo controller with position and speed information. This feedback allows the drive to continuously correct motor behavior and maintain the commanded motion profile.

The motor's keyed shaft extension provides a conventional mechanical connection for compatible machine components. This can simplify replacement work when the existing equipment has already been designed around a keyed shaft arrangement.

Another defining feature is the absence of an integrated brake. This makes the HJ72AA suitable for applications where shaft holding is not required from the motor itself or where a separate mechanical holding system is already incorporated into the machine.

The right-angle SpeedTEC DIN connector is also useful during machine installation. Its 180-degree rotational capability gives engineers greater freedom when routing motor and feedback cables around surrounding equipment.

For maintenance teams, accurate catalog-number identification is essential. MPL-A420P models can look similar while differing in feedback, brake, shaft, and connector configurations. Selecting a motor based only on frame size can therefore lead to compatibility problems.

The MPL-A420P-HJ72AA provides a strong combination of responsive servo performance, high-speed capability, compact industrial construction, and reliable feedback for compatible Allen Bradley motion-control applications.

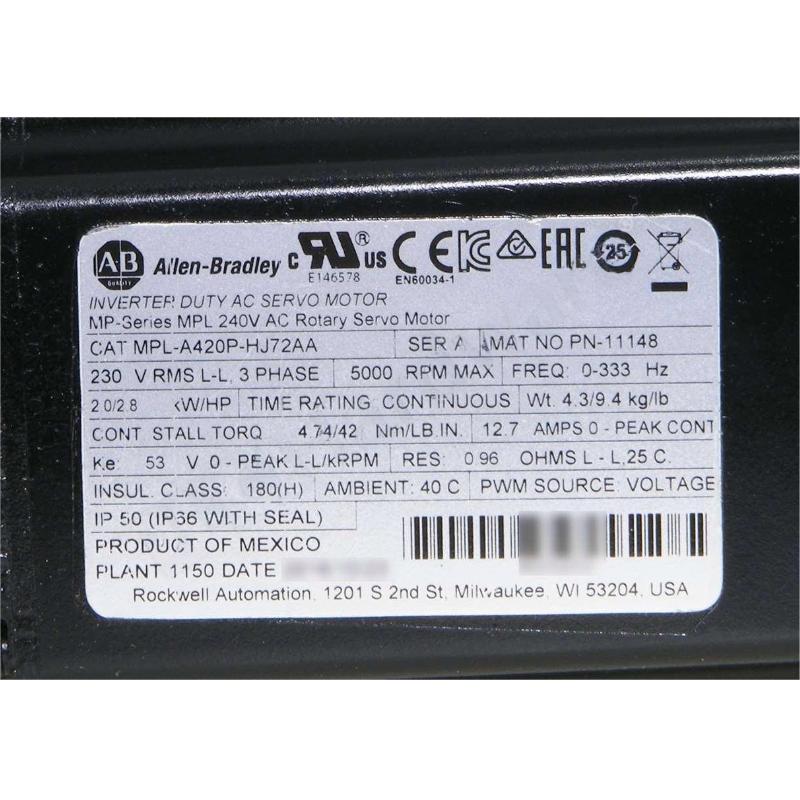

Technical Specifications

Specification	Details
Brand	Allen Bradley
Manufacturer	Rockwell Automation
Product Family	MP-Series MPL
Model	MPL-A420P-HJ72AA
Product Type	AC Servo Motor
Motor Type	Low-Inertia Brushless Servo Motor
Voltage Class	230 V AC
Frame Size	115 mm
Frame	4
Magnet Stack Length	50.8 mm (2.00 in.)
Rated Speed	5,000 RPM
Maximum Speed	5,000 RPM
Rated Power	2.00 kW
Continuous Stall Torque	4.74 N·m
Peak Stall Torque	10.20 N·m
Continuous Stall Current	12.70 A
Feedback	2,000-Line Incremental Encoder
Encoder Type	Incremental
Shaft Type	Keyed Shaft Extension
Shaft Seal	No Shaft Seal
Brake	No Brake
Connector	SpeedTEC DIN, Right Angle
Connector Rotation	180° Rotatable
Mounting	IEC Metric, Free Mounting Holes
Housing Protection	IP50 Standard
Optional Protection	Up to IP66 with Suitable Shaft Seal and Sealed Connections
Weight	4.54 kg (10.01 lb)
Application	Industrial Motion Control

Weight: 4.54 kg (10.01 lb)

The supplied product information specifies a weight of 4.54 kg. Overall external motor dimensions were not provided, so no unsupported dimensional values have been added.

Recommended Related Models

For customers maintaining Allen Bradley MP-Series MPL servo systems, the following models are useful related references:

Allen Bradley MPL-A420P-HJ74AA – Servo Motor
Allen Bradley MPL-A420P-HK72AA – Servo Motor
Allen Bradley MPL-A420P-HK74AA – Servo Motor
Allen Bradley MPL-A420P-MJ72AA – Servo Motor
Allen Bradley MPL-A420P-SJ72AA – Servo Motor

These models belong to closely related MPL-A420P configurations, but differences in feedback, shaft arrangement, brake configuration, and connector characteristics should be checked carefully before replacement.

Popular Related Models

For industrial customers maintaining Allen Bradley servo-motion equipment, the following models are also relevant:

Allen Bradley MPL-A420P-HJ74AA – Servo Motor
Allen Bradley MPL-A420P-HK72AA – Servo Motor
Allen Bradley MPL-A420P-HK74AA – Servo Motor
Allen Bradley MPL-A420P-MJ72AA – Servo Motor
Allen Bradley MPL-A420P-SJ72AA – Servo Motor

When sourcing the Allen Bradley MPL-A420P-HJ72AA Servo Motor, always provide the complete catalog number. The HJ72AA configuration is important because it identifies the 115 mm frame, 50.8 mm magnet stack, 5,000 RPM operation, 2,000-line incremental feedback, keyed shaft, right-angle SpeedTEC DIN connector, and no-brake arrangement. Accurate matching with the servo drive, feedback system, and machine mechanics is essential for reliable installation and commissioning.

Applications

The Allen Bradley MPL-A420P-HJ72AA Servo Motor is a low-inertia brushless AC servo motor designed for industrial motion-control systems where fast response, accurate positioning, and repeatable machine movement are critical.

With a 115 mm frame size, 50.8 mm magnet stack, 5,000 RPM rated speed, and 2,000-line incremental encoder, this motor is well suited to automation equipment requiring responsive rotary motion without using an excessively large motor package.

The motor can be applied to:

Automated assembly machinery
Packaging and labeling equipment
Material handling systems
Printing and converting machines
Electronic assembly equipment
Automotive production equipment
Precision indexing systems
Machine tools
Automated positioning systems
High-cycle manufacturing machinery
Industrial conveyor mechanisms
Existing Allen Bradley motion-control systems

The low-inertia design is particularly valuable where frequent acceleration and deceleration are part of the machine cycle. When correctly paired with a compatible Allen Bradley servo drive and motion controller, the MPL-A420P-HJ72AA can provide responsive and repeatable motion for demanding production applications.

Advantages

Low-inertia dynamic performance
The motor is designed to respond quickly to changes in the commanded speed and position, making it suitable for machines with frequent motion changes.

5,000 RPM operation
The high-speed capability supports applications where rapid rotary movement and short machine cycles are important.

High-resolution incremental feedback
The integrated 2,000-line incremental encoder provides detailed position and speed feedback for closed-loop servo control.

115 mm frame construction
The 115 mm frame provides a useful combination of motor capability and compact mechanical integration for industrial machinery.

230 V class operation
The MPL-A420P-HJ72AA is designed for compatible 230 V AC servo systems and can be integrated with suitable Allen Bradley motion-control equipment.

Keyed shaft extension
The keyed shaft provides a familiar mechanical interface for compatible couplings and driven machine components.

No integrated brake
The HJ72AA configuration is supplied without a brake, making it suitable for machine designs that use an independent holding or braking arrangement.

Flexible connector positioning
The right-angle SpeedTEC DIN connector can be rotated through 180 degrees, helping simplify cable routing and machine integration.

Strong replacement value
For existing MP-Series installations, the MPL-A420P-HJ72AA remains a useful replacement reference for compatible servo systems and legacy equipment maintenance.

Technical FAQs

1. What type of servo motor is the MPL-A420P-HJ72AA?
It is a low-inertia brushless AC rotary servo motor from the Allen Bradley MP-Series MPL family.

2. What is the voltage class of the motor?
The motor belongs to the 230 V AC class and must be paired with an appropriate compatible servo drive.

3. What is the rated speed of the MPL-A420P-HJ72AA?
The motor is designed for operation up to 5,000 RPM.

4. What feedback device does the motor use?
The motor uses a 2,000-line incremental encoder for closed-loop speed and position feedback.

5. Does the HJ72AA configuration include a brake?
No. The MPL-A420P-HJ72AA is a no-brake configuration.

6. What is the purpose of the low-inertia design?
Low rotor inertia allows the motor to accelerate and decelerate quickly, improving dynamic response in high-cycle positioning applications.

7. What can cause unstable servo positioning?
Potential causes include improper servo tuning, incorrect feedback configuration, coupling misalignment, mechanical resonance, excessive load, unstable control signals, or damaged motor and feedback cables.

8. What can cause the servo motor to overheat?
Excessive load, frequent high-acceleration cycles, insufficient cooling, mechanical binding, unsuitable tuning, or operation outside the specified duty conditions can increase motor temperature.

9. What should be checked if the motor rotates in the wrong direction?
Verify the motion command configuration, motor wiring, feedback wiring, controller settings, and drive configuration. Mechanical orientation and the machine's coordinate system should also be checked.

10. What should be confirmed before replacing this motor?
Verify the complete catalog number, frame size, magnet-stack length, voltage class, feedback type, shaft configuration, connector arrangement, brake option, and compatibility with the installed servo drive and controller.
