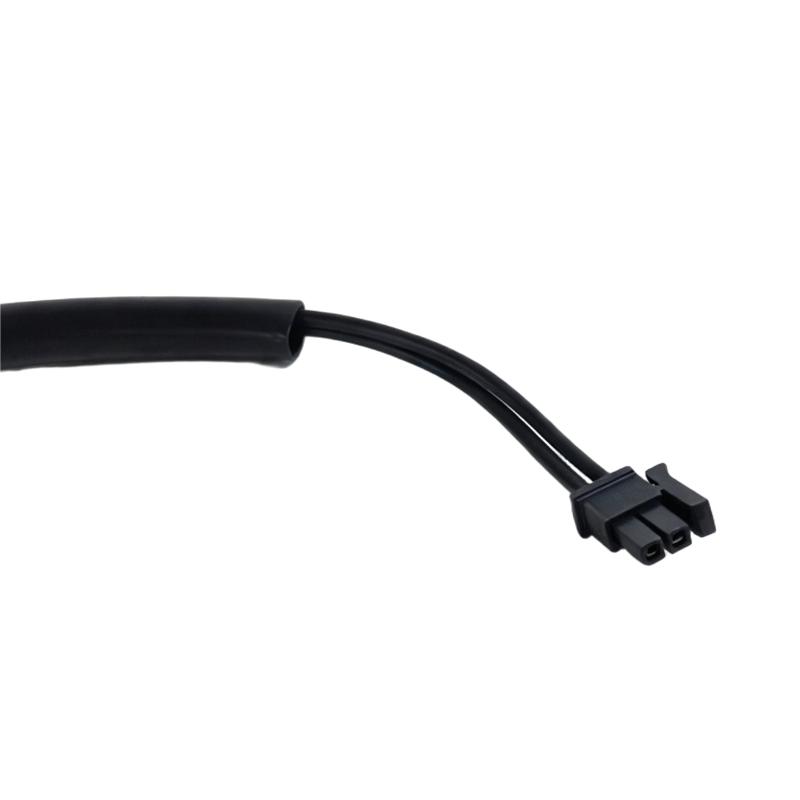

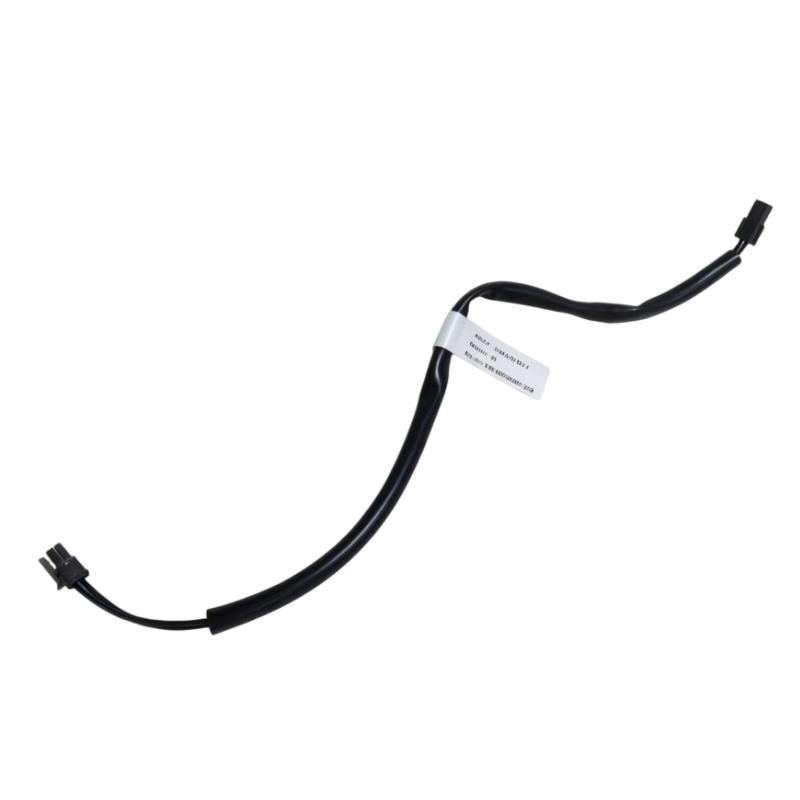

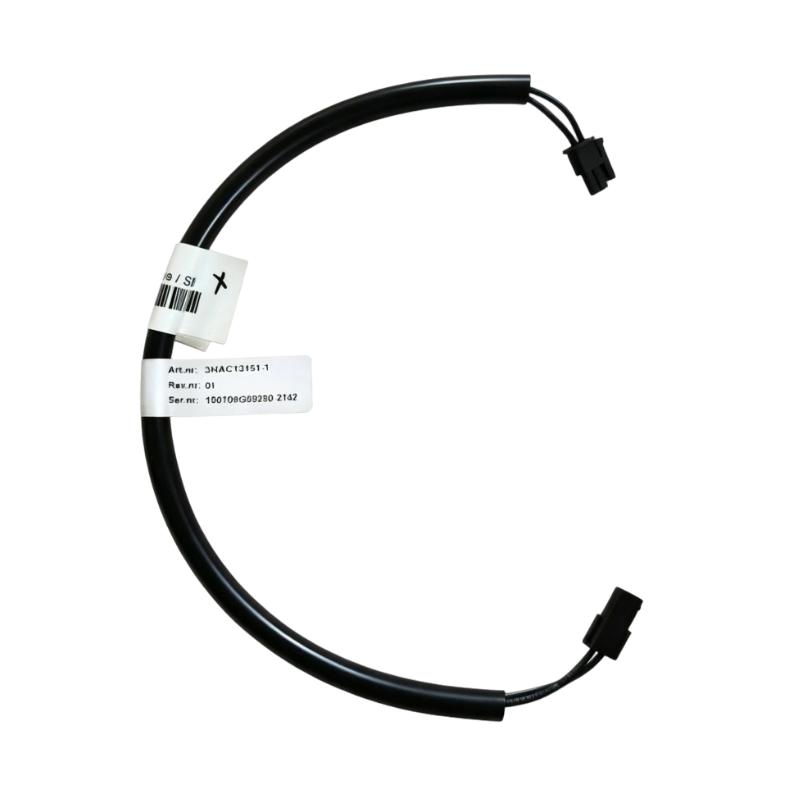

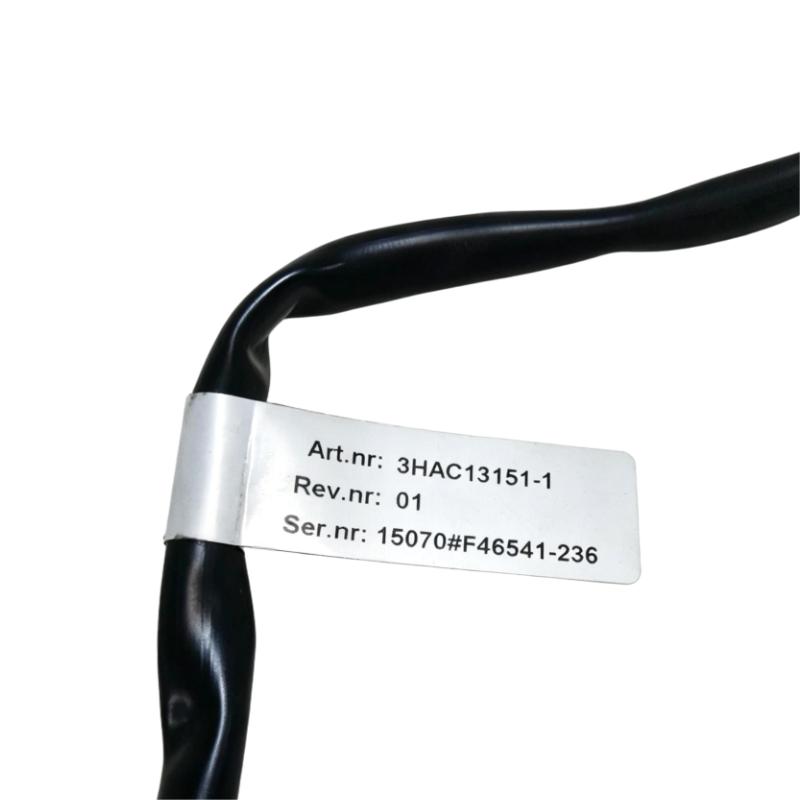

ABB 3HAC13151-1 Cable Battery

Applications

The ABB 3HAC13151-1 Battery Cable is a dedicated cable component intended for compatible ABB industrial robot and automation systems. Its primary role is to provide the electrical connection required between the battery assembly and the relevant control or monitoring circuitry.

Battery-related wiring is an important part of an industrial robot system. The battery itself may support memory retention or other controller functions, while the associated cable ensures that the battery is correctly connected to the equipment. A damaged, loose, or deteriorated battery cable can therefore create maintenance problems even when the battery itself is still serviceable.

The 3HAC13151-1 can be considered for applications such as:

• ABB industrial robot maintenance
• Robot controller battery connections
• Battery replacement projects
• ABB controller refurbishment
• Preventive maintenance
• Industrial automation servicing
• Replacement of damaged battery wiring
• Robot spare-parts inventory
• Controller electrical maintenance

For maintenance engineers, using the correct battery cable is especially important when servicing older ABB robotic equipment. Replacing the cable together with an aging battery can provide a cleaner and more dependable connection than retaining a cable with questionable insulation or connector condition.

Advantages

Dedicated battery connection

The 3HAC13151-1 is designed specifically as a battery cable, providing a dedicated connection between the battery assembly and compatible ABB equipment.

Useful during battery maintenance

Battery replacement is a routine maintenance activity on many industrial control systems. Having the correct cable available allows technicians to address both the battery and its connection condition during service.

Helps maintain electrical continuity

A properly installed battery cable provides the electrical path required by the battery circuit. Secure connections are essential for reliable operation and for preventing intermittent battery-related faults.

Suitable for controller refurbishment

During refurbishment of an older ABB robot controller, battery wiring can be inspected together with connectors, power supplies, memory-retention circuits, and other control-system components. Replacing aged wiring can improve overall service reliability.

Flexible cable configuration

The cable length is specified as optional, which makes it important to confirm the required configuration against the particular ABB system before ordering.

Practical spare-part choice

Battery cables are small components, but their failure can create disproportionate maintenance problems. Keeping a compatible replacement cable in stock can help reduce unnecessary downtime.

Designed for industrial maintenance

The component is intended for ABB automation equipment rather than being treated as a generic battery lead. This makes correct part-number identification particularly valuable when servicing established robotic systems.

Technical FAQs

1. What is the ABB 3HAC13151-1 used for?

The 3HAC13151-1 is a Battery Cable intended to provide the electrical connection between a battery assembly and compatible ABB automation or robotic equipment.

2. Why is the battery cable important if the battery itself is new?

A new battery cannot function correctly if its cable or connector is damaged. Poor connections, broken conductors, corrosion, or loose terminals can prevent the battery circuit from operating reliably.

3. Can an ordinary battery cable be used instead?

A generic cable should not automatically be considered a direct replacement. Conductor specifications, connector configuration, polarity, cable length, insulation, and the requirements of the ABB equipment should all be verified.

4. What problems can a damaged battery cable cause?

Depending on the system, a damaged battery cable can result in battery-related alarms, loss of battery connection, intermittent memory-retention problems, or other controller maintenance indications.

5. Should the cable be replaced whenever the battery is replaced?

Not necessarily. If the original cable is in good condition and the connectors are reliable, it may not require replacement. However, if there are signs of aging, damage, corrosion, loose terminals, or insulation deterioration, replacing the cable during battery service can be a sensible maintenance decision.

6. What should be checked before installing the 3HAC13151-1?

Verify the complete ABB part number, cable configuration, connector arrangement, polarity, routing path, and compatibility with the specific controller or robot system.

7. Can incorrect battery polarity damage the controller?

Yes. Incorrect polarity can cause electrical problems and potentially damage battery-related circuitry. Polarity should therefore be verified carefully before connecting the replacement cable.

8. How should the battery cable be routed?

The cable should be routed away from sharp edges, excessive heat, moving mechanisms, and areas where it can become pinched or pulled. It should also be secured so that unnecessary mechanical stress is not transferred to the connectors.

9. What should be done if a battery alarm remains after cable replacement?

Check the battery voltage, connector seating, cable continuity, polarity, and controller configuration. If these are correct, the battery monitoring circuit or another controller component may require further diagnosis.

10. Is the 3HAC13151-1 suitable for all ABB robot controllers?

No. ABB uses different controller generations and hardware configurations. The complete part number and the target controller should be verified before purchasing or installing the cable.
