Brand:Schneider PLC Item No.:ATS22C59S6 Product Origin:France Product Dimensions:455 x 304 x 339.7 mm Product Weight:50 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

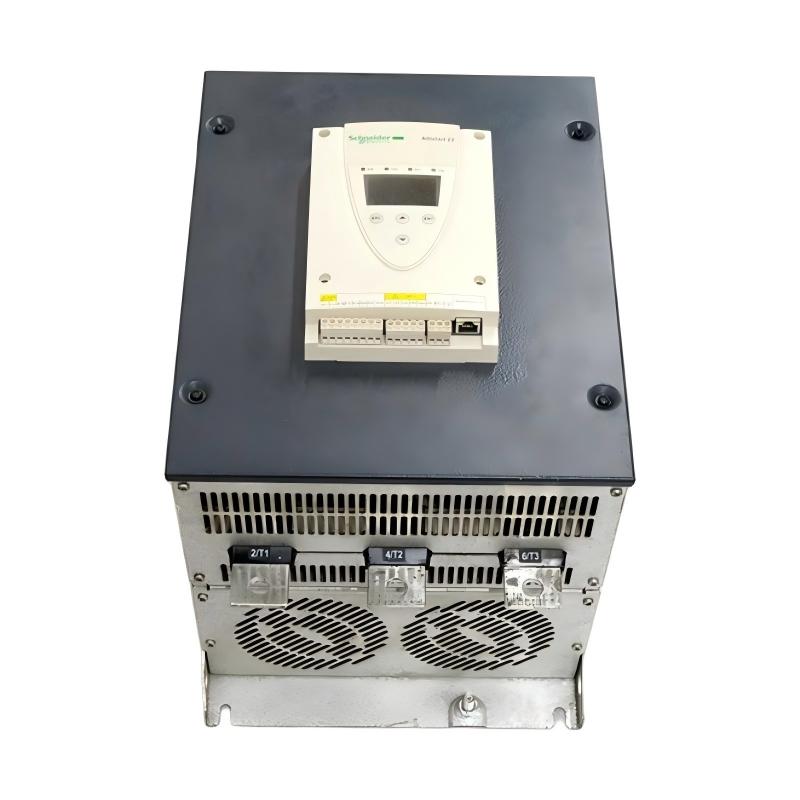

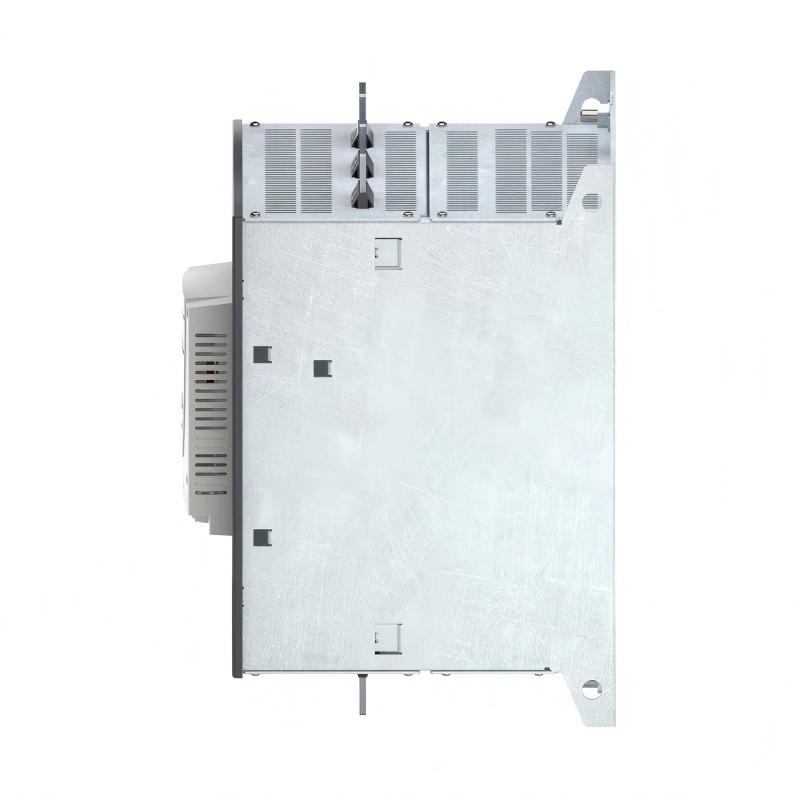

The ATS22C59S6 belongs to Schneider Electric’s Altistart 22 series, designed for controlled starting and stopping of very high-power three-phase induction motors. It uses voltage ramp and current-limiting control to reduce electrical stress and mechanical shock during motor startup.
The unit combines SCR-based power control with an integrated bypass system, ensuring efficient thermal performance and stable long-term operation. It is widely used in heavy industrial environments such as infrastructure systems, process plants, and large-scale manufacturing facilities where reliability is essential.
Although still found in many installed systems worldwide, it has been replaced in new designs by newer-generation Schneider soft starters.

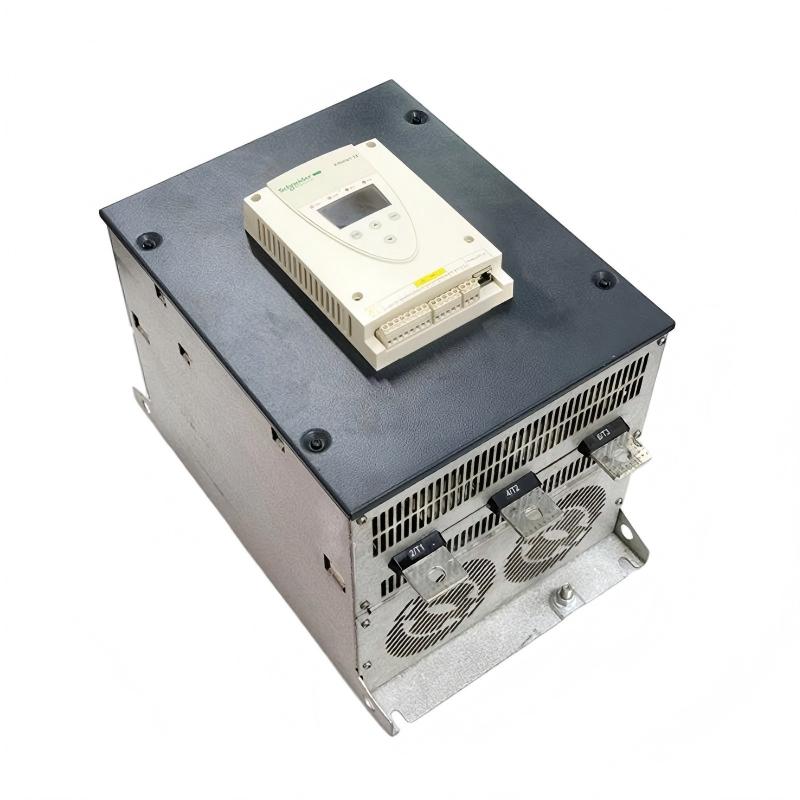

The Schneider ATS22C59S6 Soft Starter Module is designed for ultra-high power industrial motor control applications where smooth acceleration, controlled torque, and reduced inrush current are critical for system stability. It is widely used in heavy-duty process industries with large inertia loads and continuous operation requirements.
Typical applications include:
Large-scale water pumping and distribution systems
Industrial HVAC chillers, cooling towers, and air handling systems
High-capacity compressor stations and gas processing systems
Conveyor systems for bulk and continuous material handling
Mining, cement, steel, and heavy manufacturing industries
High-power three-phase induction motor drives in process plants
Its voltage ramp control significantly reduces mechanical stress and electrical shock during startup, improving equipment lifespan and overall system reliability.
Advantages
Ultra-high current capacity (590 A class) for heavy industrial motors
Smooth torque control reduces mechanical stress on couplings and gearboxes
Integrated bypass contactor improves thermal efficiency after starting
Stable soft start and soft stop enhances process continuity
Robust industrial design for harsh environments and continuous-duty operation
Compatible with PLC and industrial automation systems
Built-in motor protection improves operational safety and reliability
Reduces maintenance costs and unplanned downtime in high-load systems
Technical FAQs (10 Questions)
Q1: What motor type is compatible with ATS22C59S6?
It is designed for three-phase asynchronous induction motors.
Q2: What is the rated current of this model?
The rated current is 590 A.
Q3: What is the supply voltage range?
It operates in the 230–600 V AC range for industrial power systems.
Q4: What is the motor power range?
It supports approximately 160 kW at 230 V and up to 400 kW at higher voltages.
Q5: Does it include an internal bypass?
Yes, it includes an integrated bypass contactor to reduce heat dissipation after starting.
Q6: Is it suitable for pump applications?
Yes, it is widely used in pumping systems to reduce water hammer effects.
Q7: Can it be used in HVAC systems?
Yes, it is commonly applied in HVAC, cooling towers, and ventilation systems.
Q8: Does it support PLC integration?
Yes, it integrates with standard industrial automation systems via control interfaces.
Q9: Does it support Modbus communication?
Yes, Modbus RTU communication is supported via RS485 interface.
Q10: Is this model still in production?
No, the ATS22 series is discontinued and mainly used in legacy installations.
