Brand:ABB PLC Item No.:DSQC 563 Product Origin:Sweden (SE) Product Dimensions:155 x 25 x 100 mm Product Weight:0.14 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

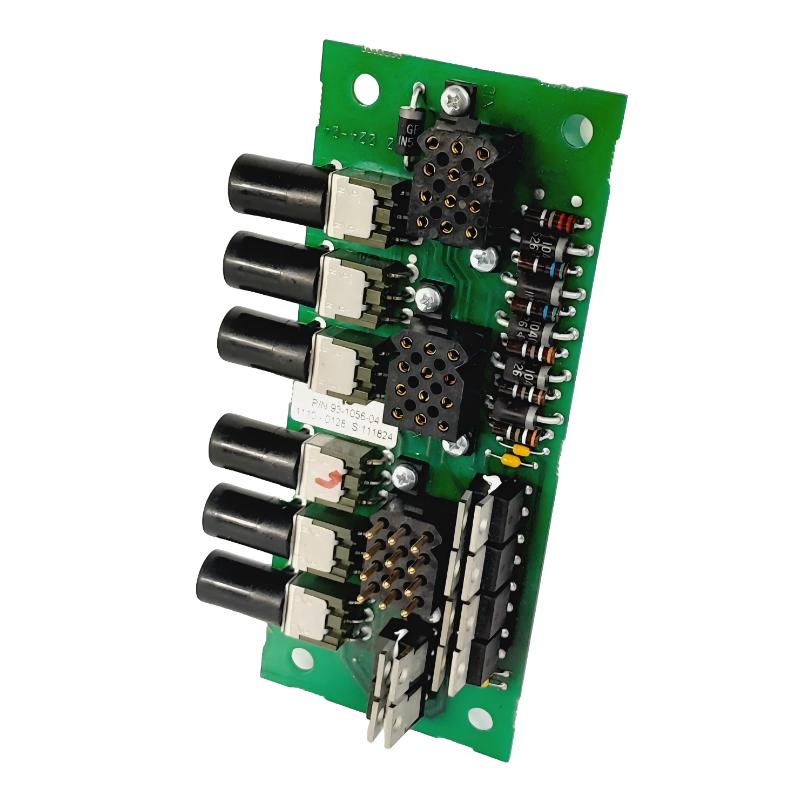

The ABB DSQC 563 3HAC16035-1 Brake Release Plate is a specialized mechanical component used in compatible ABB industrial robot service applications. Although considerably simpler than a robot controller or servo motor, a brake-release component can be essential during certain mechanical maintenance procedures.
Industrial robot axes are equipped with braking systems that help prevent unwanted movement when the robot is stopped or de-energized. During specific service operations, technicians may need to release an axis brake under controlled conditions so that mechanical components can be inspected, adjusted, or replaced.
The DSQC 563 provides the dedicated plate associated with this type of maintenance arrangement. Its relatively small 155 × 25 × 100 mm form factor makes it convenient to handle, while its low 0.14 kg weight makes it easy to keep as part of a robot maintenance kit or spare-parts inventory.
Because brake-release operations can involve potentially uncontrolled robot movement, this component should only be used by appropriately trained personnel following the applicable ABB maintenance procedures. The surrounding robot axis should be properly secured before any brake is released.
For ABB robot service companies and industrial maintenance departments, the 3HAC16035-1 is a useful spare component when maintaining compatible robotic equipment. Keeping the correct part available can eliminate delays when a brake-related service operation requires replacement of the original plate.
The complete part number 3HAC16035-1 should be verified before ordering, as similar-looking mechanical components are not necessarily interchangeable between ABB robot models.
Technical Specifications
Parameter
Specification
Brand
ABB
Model
DSQC 563
Part Number
3HAC16035-1
Product Type
Brake Release Plate
Component Category
Robot Mechanical Service Component
Application
ABB Industrial Robot Systems
Primary Function
Brake Release Mechanism Support
Installation
Compatible ABB Robot Assembly
Typical Use
Robot Maintenance and Service
Dimensions
155 × 25 × 100 mm
Weight
0.14 kg (0.31 lb)
Recommended Related Models
Model
Product Type
Recommended Application
ABB DSQC 563 3HAC16035-1
Brake Release Plate
ABB robot brake-release service
ABB 3HAC14673-7
M7 Rotary AC Motor
Robot-axis motor maintenance
ABB 3HAC17484-8/00
Rotary AC Motor
Robotic axis replacement
ABB 3HAC14940-1
Robotic Arm Wiring Harness
Robot-arm electrical maintenance
ABB 3HAC11818-1
Control Cable
ABB control-system maintenance
Popular Related Models
Model
Product Type
Typical Application
ABB DSQC 563 3HAC16035-1
Brake Release Plate
Robot brake service
ABB 3HAC14673-7
M7 Rotary AC Motor
ABB robotic axis drive
ABB 3HAC17484-8/00
Rotary AC Motor
Robot motor replacement
ABB 3HAC14940-1
Robotic Arm Wiring Harness
Robot-arm wiring replacement
ABB 3HAC13151-1
Battery Cable
ABB controller battery connection
ABB 3HNE00133-1
Teach Pendant Extension Cable
Robot programming and maintenance
ABB 3HAC020756-001
FlexPendant Cable
ABB robot pendant connection
The ABB DSQC 563 3HAC16035-1 Brake Release Plate is a compact but important maintenance component for compatible ABB robotic equipment. Its dedicated mechanical design makes it useful for controlled brake-release service work, while its small size and low weight make it convenient to maintain as part of an ABB robot spare-parts inventory. Because brake release can allow unexpected axis movement, the component should always be used in accordance with the applicable robot maintenance and safety procedures.
Applications
The ABB DSQC 563 3HAC16035-1 Brake Release Plate is a dedicated mechanical component associated with compatible ABB industrial robot systems. It is intended for use within the robot's brake-release arrangement, supporting service and maintenance operations where controlled release of a robot-axis brake is required.
Brake systems are an important part of industrial robot safety and mechanical control. When a robot axis is not powered, its brake can hold the axis in position. During specific maintenance or service procedures, an appropriate brake-release mechanism may be required to allow the axis to be moved or serviced correctly.
The DSQC 563 brake release plate is therefore particularly relevant to ABB robot maintenance environments, including:
ABB industrial robot servicing
Robot-axis brake maintenance
Robot refurbishment projects
Mechanical robot repairs
Controller and robot maintenance
Axis service procedures
Industrial automation equipment repair
ABB spare-parts inventory
Robot mechanical assembly maintenance
Production-line equipment servicing
For maintenance teams, using the correct brake-release component helps preserve the intended mechanical arrangement of the robot and reduces the need for improvised tools or modifications.
Advantages
Designed for ABB robotic equipment
The DSQC 563 3HAC16035-1 is an ABB-specific brake-release component, making accurate part-number identification important when servicing compatible robot equipment.
Supports controlled maintenance work
A dedicated brake-release plate can provide technicians with the appropriate mechanical interface for service procedures involving the robot-axis brake system.
Compact construction
With dimensions of 155 × 25 × 100 mm, the component is compact enough to be stored as a maintenance spare without taking significant cabinet or workshop space.
Lightweight service component
At only 0.14 kg, the plate is easy for maintenance personnel to handle and transport during robot service operations.
Useful for robot refurbishment
During an ABB robot refurbishment project, brake-release components can be inspected together with motors, gearboxes, cables, connectors, and other mechanical parts. Replacing damaged service components helps maintain the intended equipment configuration.
Reduces improvised maintenance solutions
Using the correct brake-release plate is preferable to fabricating an unofficial mechanical substitute. Properly matched service components help reduce the risk of incorrect engagement or unnecessary mechanical stress.
Practical spare-part value
For factories operating ABB robots in continuous production, maintaining dedicated brake-release components can help technicians respond more efficiently when axis maintenance is required.
Technical FAQs
1. What is the ABB DSQC 563 3HAC16035-1?
The ABB DSQC 563 3HAC16035-1 is a Brake Release Plate associated with compatible ABB industrial robotic equipment. It is used as part of the mechanical arrangement involved in robot-axis brake release during appropriate service procedures.
2. What is the purpose of a robot-axis brake?
A robot-axis brake helps hold the axis in position when the motor is not actively controlling it. This is particularly important when the robot is stopped or not energized.
3. Why is a dedicated brake-release component needed?
The brake-release mechanism must interface correctly with the relevant robot assembly. A dedicated component helps technicians perform the intended maintenance operation without relying on improvised mechanical arrangements.
4. Does the brake release plate operate the brake electronically?
The DSQC 563 should not be confused with an electronic brake-release module. It is identified as a mechanical Brake Release Plate and should be considered part of the applicable brake-release arrangement.
5. Can the plate be used on any ABB industrial robot?
No. ABB robots use different mechanical assemblies and generations of equipment. The DSQC 563 and 3HAC16035-1 should be matched to the robot and brake-release mechanism for which the part was specified.
6. What should be checked before installing the brake release plate?
Verify the complete ABB part number and target robot configuration. The plate, mounting points, associated brake mechanism, and surrounding mechanical components should all be checked before service work begins.
7. Is brake-release work potentially hazardous?
Yes. Releasing a robot-axis brake can allow an axis or mechanical assembly to move unexpectedly if it is not properly supported. Appropriate lockout, mechanical support, and ABB-approved maintenance procedures must be followed.
8. What could happen if a brake is released incorrectly?
An unsupported robot axis may move because of gravity, stored mechanical energy, tooling weight, or external forces. Incorrect procedures can therefore create a serious mechanical hazard and potentially damage the robot.
9. Can a damaged brake release plate simply be repaired?
A damaged mechanical component should not automatically be repaired or modified. If its geometry, mounting surface, or mechanical integrity has been compromised, using the correct replacement component is generally the safer maintenance approach.
10. What should be checked after brake-release maintenance?
Confirm that the brake-release mechanism has been fully returned to its intended operating condition, verify that no service component is obstructing normal movement, and perform the appropriate robot-system checks before restoring the equipment to production.
