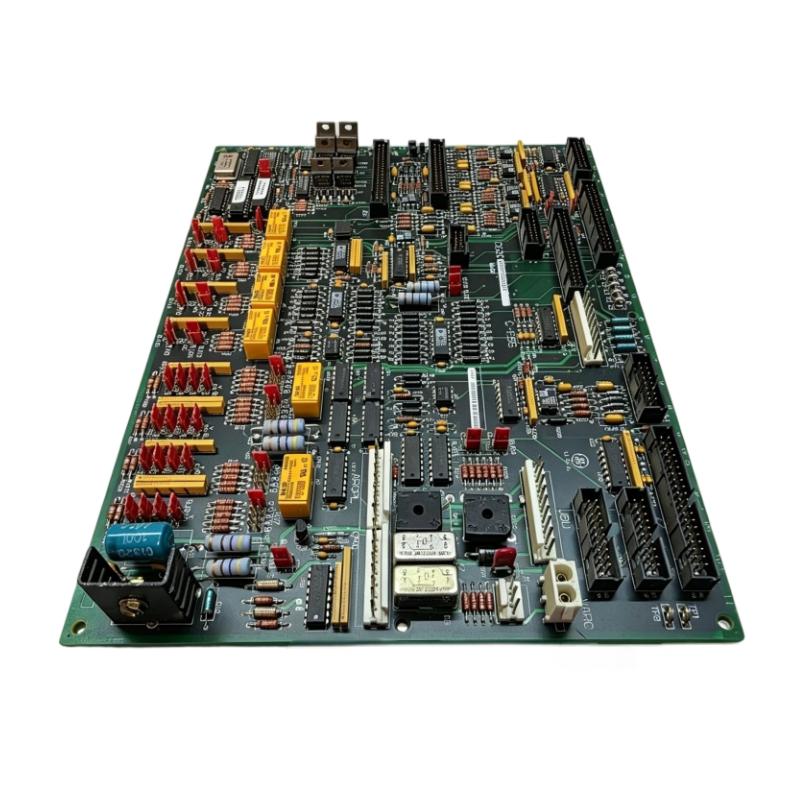

GE DS200TCQCG1BHF Mark V Analog I/O Expansion Board
GE DS200TCQCG1BHF Mark V Analog I/O Expansion Board
0.0
Points
Brand:GE Fanuc PLC Item No.:DS200TCQCG1BHF Product Origin:USA Product Dimensions:330 × 280 × 25 mm Product Weight:0.45 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The GE DS200TCQCG1BHF Mark V Analog I/O Expansion Board is an important board-level component for maintaining legacy GE turbine-control systems. It belongs to the DS200 family associated with GE's Mark V Speedtronic control platform and is designed to provide additional analog I/O and related signal-interface functions.
The TCQC board is commonly identified as an Analog I/O Expander Board and may also be described as an RST Overflow Board. Within a Mark V installation, its function is closely connected with the handling of additional analog signals and specialized turbine-control interfaces.
One of the important applications of this board is excitation for LVDT and LVDR devices. These devices can be used for position feedback in turbine control, making reliable excitation and signal handling important for the overall measurement and control chain.

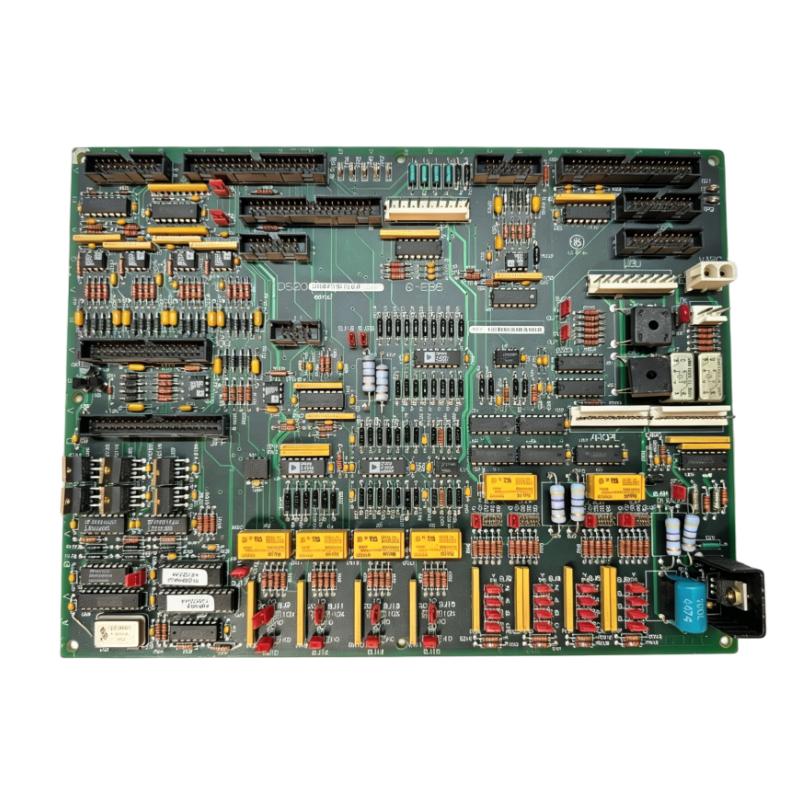

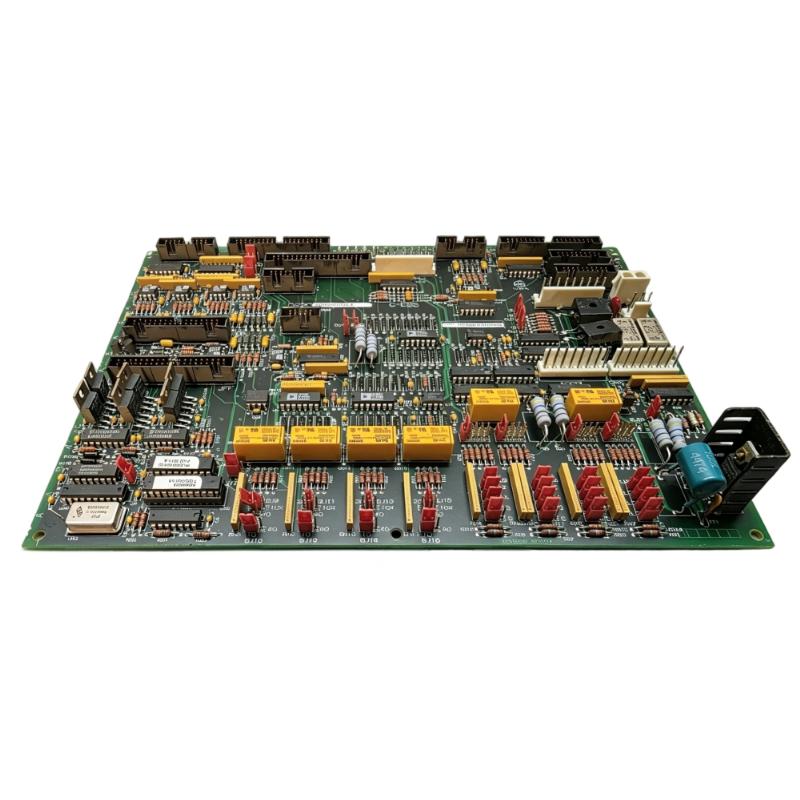

The DS200TCQCG1BHF also contains numerous connectors and configurable hardware elements. Its connector arrangement allows it to interface with other boards and system components, while the jumper settings provide hardware-level configuration for the particular installation.
For maintenance technicians, replacement should be approached carefully. A board that looks similar may not have the same revision or electrical configuration. Before removing the original unit, it is good practice to record connector positions, cable routing, jumper settings, and relevant system diagnostics.
The complete part number DS200TCQCG1BHF should be used when sourcing a replacement. The revision characters are important because DS200-series boards exist in multiple hardware revisions. Matching the exact board identification helps reduce the risk of installing an unsuitable replacement in an operating turbine-control system.
For industrial plants with long-service GE Mark V equipment, the DS200TCQCG1BHF can be an important maintenance spare. Keeping the correct replacement board available can shorten troubleshooting and restoration time when an existing I/O board develops a hardware fault.
Technical Specifications
Parameter
Specification
Brand
GE
Model
DS200TCQCG1BHF
Product Type
Mark V Analog I/O Expansion Board
Functional Description
Analog I/O Expander Board
Functional Abbreviation
TCQC
Product Series
GE Mark V DS200
Control Platform
Mark V Speedtronic
Typical Application
Gas and steam turbine control
Primary Function
Analog I/O expansion and signal interfacing
Additional Function
LVDT/LVDR excitation
Assembly Type
Normal Assembly
Functional Revision 1
B
Functional Revision 2
H
Artwork Revision
F
Dimensions
330 × 280 × 25 mm
Weight
0.45 kg / 0.99 lb
Installation
Compatible GE Mark V control-system rack
Board Type
Industrial printed circuit board assembly
Recommended Related Models
For GE Mark V turbine-control maintenance, the following TCQC-family boards are relevant when evaluating replacement options or system-related components:
GE DS200TCQCG1B — Mark V RST Overflow Board
GE DS200TCQCG1BBA — Analog I/O Expander Board
GE DS200TCQCG1BJF — Analog I/O Expander Board
GE DS200TCQCG1BKG — RST Overflow / Analog I/O Expander Board
GE DS200TCQCG1AHE — Analog I/O Expander Board
GE DS200TCQCG1AHD — Analog I/O Expander Board
These models belong to the same general TCQC family, but they should not be assumed to be direct substitutes. Revision, hardware configuration, connector arrangement, and system application should be verified before replacement.
Popular Related Models
For customers maintaining GE Mark V Speedtronic turbine-control systems, commonly encountered DS200 boards include:
GE DS200TCQCG1BHF Analog I/O Expansion Board
GE DS200TCQCG1BBA Analog I/O Expander Board
GE DS200TCQCG1BJF Analog I/O Expander Board
GE DS200TCQCG1AHE Analog I/O Expander Board
GE DS200TCQCG1AHD Analog I/O Expander Board
GE DS200TCCAG2AJB I/O Board
GE DS200TCDAH1B Digital I/O Board
GE DS200TCRAG1A Relay Output Board
When purchasing a replacement for a GE Mark V installation, always provide the complete DS200TCQCG1BHF part number and compare the board revision and system configuration before installation.
Applications
The GE DS200TCQCG1BHF Mark V Analog I/O Expansion Board is a specialized control-system circuit board designed for GE Mark V Speedtronic turbine control applications. It functions as an Analog I/O Expander Board and is also associated with RST overflow functions within the Mark V architecture.
The board is particularly relevant to turbine installations where additional analog signal handling, field-device interfacing, and excitation functions are required. It can be found in control architectures used for medium- and large-scale industrial gas turbines, steam turbines, and related turbine automation equipment.
Typical applications include:
GE Mark V turbine control systems
Gas turbine control and monitoring
Steam turbine automation
Industrial power generation systems
EX2000-related control applications
Analog I/O expansion
LVDT and LVDR excitation
Servo control signal processing
Turbine maintenance and retrofit projects
Replacement of aging Mark V control boards
Advantages
Dedicated Mark V Compatibility
The DS200TCQCG1BHF is purpose-built for the GE Mark V Speedtronic control environment. Its design is intended to work as part of the larger turbine-control architecture rather than as a generic PLC analog I/O module.
Expanded Analog Interface
The board provides additional I/O capability within the control system, supporting signal interfaces required by turbine monitoring and control applications.
LVDT and LVDR Excitation
A major function associated with the TCQC board is providing excitation for LVDT and LVDR devices. This makes it useful in turbine applications where accurate position feedback is required.
Multiple Board Interfaces
The DS200TCQCG1BHF incorporates numerous connectors for communication and signal connections with other boards and system components. This allows it to participate in the highly interconnected Mark V control architecture.
Configurable Hardware
The board contains multiple jumper positions. Maintaining the correct jumper configuration is important when replacing an existing board because incorrect settings can affect system operation and signal scaling.
Practical Legacy-System Replacement
For facilities operating GE Mark V turbine controls, replacing an individual DS200 board can provide a practical method of maintaining the existing control system and extending its usable service life.
Technical FAQs
1. What is the GE DS200TCQCG1BHF?
The DS200TCQCG1BHF is a GE Mark V Analog I/O Expander Board used within compatible Speedtronic turbine control systems.
2. What does the TCQC board do?
The TCQC board provides analog I/O expansion and related signal-interface functions within the Mark V control architecture. It also supports excitation functions for LVDT and LVDR devices.
3. Is the DS200TCQCG1BHF a PLC analog output module?
No. Although it performs analog I/O-related functions, it is a dedicated GE Mark V turbine-control circuit board and should not be treated as a conventional PLC I/O module.
4. What turbine systems use the DS200TCQCG1BHF?
The board is associated with GE Mark V Speedtronic turbine control systems, including applications involving industrial gas and steam turbines.
5. What is an RST overflow board?
Within the Mark V architecture, the RST overflow function is associated with handling additional I/O and signal requirements beyond the primary control-board resources. The TCQC board is commonly identified with this function.
6. Does the DS200TCQCG1BHF provide LVDT excitation?
Yes. The board provides excitation functions for LVDT and LVDR devices used in turbine-control applications.
7. Are jumper settings important on this board?
Yes. The board contains configurable jumper positions, and the settings should be carefully documented before removing an existing board. The replacement should normally reproduce the required configuration of the original installation.
8. What could cause a TCQC board to fail?
Potential causes include component aging, electrical overstress, power disturbances, excessive temperature, connector problems, contamination, or faults associated with external wiring and connected equipment.
9. What should be checked before replacing the DS200TCQCG1BHF?
Technicians should check system diagnostics, power conditions, connectors, field wiring, associated terminal boards, signal paths, and jumper settings. The complete board part number should also be verified.
10. Is the DS200TCQCG1BHF interchangeable with other DS200TCQC boards?
Not automatically. Other TCQC boards may have different functional or artwork revisions and different hardware configurations. The exact system application and complete part number should be checked before substitution.
